[DAIWA] Genuine Spare Parts for 15 REVROS 2004H Product code: 00057373 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 REVROS 2004H Product code: 00057373 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$16.17 [Regular Price: US$1.10 - US$23.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

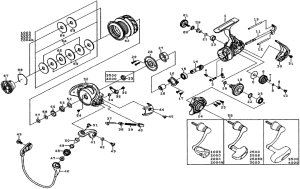

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BODY 166235 8.80
2 STOPPER LEVER 196408 2.20
3 STOPPER CAM 194186 2.20
4 STOPPER CAM SP 133886 2.20
5 OSCILLATING GEAR W 190958 1.10
6 OSCILLATING GEAR W 106138 3.30
7 OSCILLATING GEAR O-RING 10J113 1.10
8 OSCILLATING GEAR BEARING W 190854 1.10
9 OSCILLATING GEAR BALL BEARINGS 10E295 8.80
10 OSCILLATING GEAR SC 10A058 2.20
11 MAIN SHAFT 171493 6.60
12 OSCILLATING POST (B) 155338 2.20
13 OSCILLATING POST (A) 155339 2.20
14 PINION 154621 6.60
15 PINION BALL BEARING 10E210 8.80
16 PINION BEARING PLATE 182244 2.20
17 PINION BEARING PLATE SC 10A059 2.20
18 DRIVE GEAR *Cannot be ordered 138814 8.80
19 DRIVE GEAR O-RING 10J071 1.10
20 DRIVE BALL BEARING (B) 10E381 8.80
21 DRIVE BALL BEARING (B) RING 185116 2.20
22 DRIVE W 190136 1.10
23 DRIVE BALL BEARING (A) 10E210 8.80
24 BODY COVER 168296 9.90
25 BODY COVER SC 123164 2.20
26 CLUTCH RING 110034 5.50
27 ONE-WAY CLUTCH 114118 23.10
28 SHIELD CAP 182261 3.30
29 SHIELD CAP SC 10A936 2.20
30 REAR CAP 116663 3.30
31 REAR CAP SC 10A652 2.20
32 ROTOR *Cannot be ordered 188108 12.10
34 KICK LEVER SP 133858 2.20
35 KICK LEVER 111153 3.30
36 KICK LEVER SC 10A870 2.20
37 ARM LEVER SHAFT 122160 2.20
38 ARM LEVER SHAFT PLATE 160716 3.30
39 ARM LEVER SP 133859 2.20
40 ARM LEVER SP HOLDER 110056 2.20
41 ARM LEVER 101385 3.30
42 ARM LEVER SC COLLAR 110055 2.20
43 BAIL SC 10A651 2.20
44 ARM LEVER SP COVER 108109 3.30
45 ARM LEVER SP COVER SC 10A652 2.20
46 BAIL 164852 23.10
47 ROLLER COLLAR (C) 191042 2.20
48 LINE ROLLER 179147 7.70
49 ROLLER COLLAR (B) 191029 2.20
50 ROLLER COLLAR (A) 191030 2.20
51 ROLLER SC 152124 2.20
52 ROTOR NUT W 190411 1.10
53 ROTOR NUT 140307 2.20
54 ROTOR NUT SC 10A748 2.20
55 CLICK GEAR 118110 2.20
56 SPOOL W (B) 190367 1.10
57 SPOOL W (A) 190602 1.10
58 HANDLE 1H2108 22.00
59 HANDLE COLLAR 104014 2.20
60 HANDLE W 135010 2.20
61 HANDLE SC 152170 3.30
62 SPOOL (62-66) 128902 15.40
63 DRAG W 144070 2.20
64 DRAG DISK W 142069 2.20
66 DRAG RING 185054 2.20
67 DRAG KNOB 139692 3.30
