[DAIWA] Genuine Spare Parts for 23 SALTIGA 5000-XH Product code: 00065028 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 SALTIGA 5000-XH Product code: 00065028 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$160.93 [Regular Price: US$1.10 - US$229.90]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

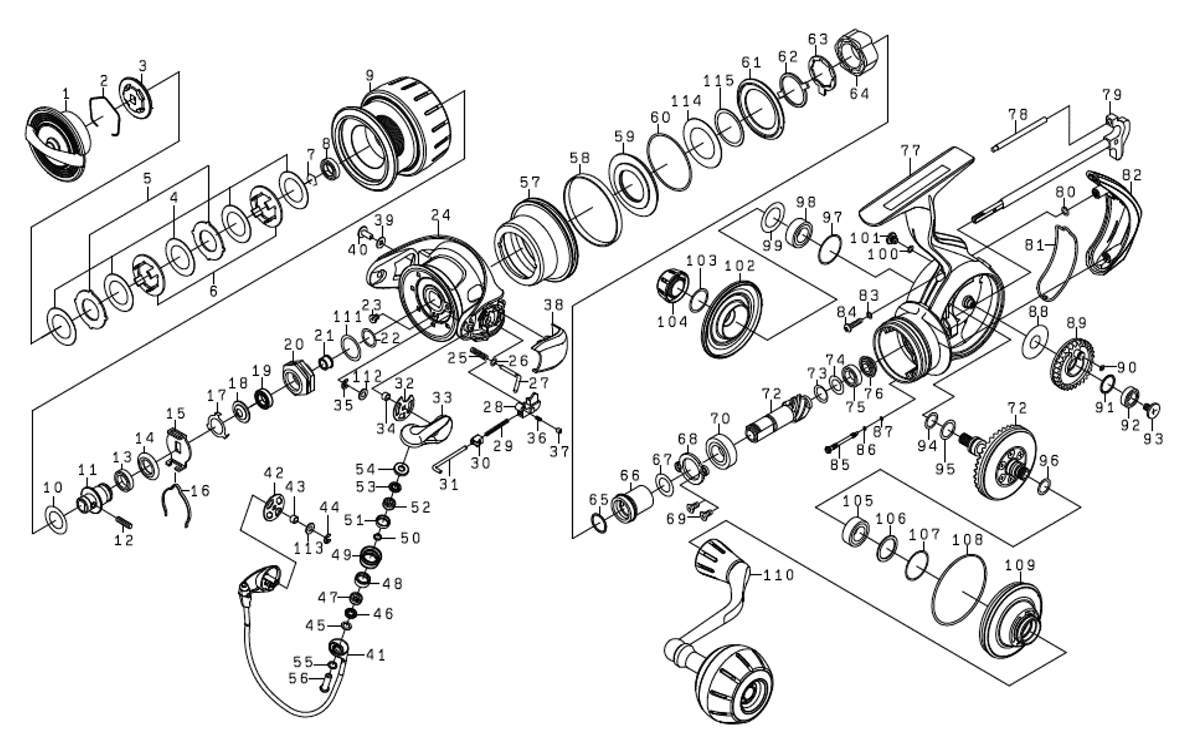

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139840 94.60
2 DRAG RING 185227 2.20
3 DRAG METAL (A) 142169 6.60
4 DRAG DOUBLE SET (5 piece) 144268 55.00
5 DRAG GRIP W 143097 1.10
6 DRAG METAL (B) 142185 2.20
7 SPOOL COLORING 185236 2.20
8 SPOOL BALL BEARING 10E367 15.40
9 SPOOL (2-9) 128F25 229.90
10 SPOOL W 190A35 1.10
11 SPOOL METAL 132151 9.90
12 SPOOL METAL SC 10AA03 2.20
13 SPOOL METAL BALL BEARING 10E326 15.40
14 SPOOL METAL PACKING 185292 2.20
15 CLICK HOLDER 116867 2.20
16 CLICKLEAF SP 181065 2.20
17 ROTOR NUT PLATE 160459 2.20
18 ROTOR NUT PACKING 185175 3.30
19 ROTOR NUT BALL BEARING 10E367 15.40
20 ROTOR NUT 140252 3.30
21 ROTOR NUT COLOR 110B76 4.40
22 ROTOR NUT O-RING 185077 2.20
23 ROTOR NUT SC 10A060 2.20
24 ROTOR *Cannot be ordered 188B67 115.50
25 ROTOR BRAKE SP 133883 2.20
26 ROTOR BRAKE W 190773 1.10
27 ROTOR BRAKE SHAFT 122333 3.30
28 ARM LEVER SP HOLDER 110C22 2.20
29 ARM LEVER SP 133747 2.20
30 ARM LEVER SHAFT COLOR 110B96 3.30
31 ARM LEVER SHAFT 122338 2.20
32 ARM LEVER PLATE 160D10 2.20
33 ARM LEVER 101483 24.20
34 ARM LEVER COLOR 110C19 3.30
35 ARM LEVER RETAINER 10F014 2.20
36 ARM LEVER SHAFT HOLDER SP 133A90 2.20
37 ARM LEVER SHAFT HOLDER PIN 156257 2.20
38 ARM LEVER COVER 108B13 6.60
39 ARM LEVER COVER SC/W 190644 1.10
40 ARM LEVER COVER SC 10AB66 2.20
41 VEIL *Cannot be ordered 164957 108.90
42 BALE HOLDER PLATE 160D11 2.20
43 VEIL HOLDER COLLAR 110C19 3.30
44 VEIL HOLDER RETAINER 10F014 2.20
45 ROLLER W 190109 1.10
46 ROLLER MUG COLOR (A) *Cannot be ordered 191071 12.10
47 ROLLER BALL BEARINGS 10E360 15.40
48 ROLLER COLLAR (A) 191076 4.40
49 LINE ROLLER *Cannot be ordered 179170 8.80
50 ROLLER COLLAR (B) 110119 2.20
51 ROLLER COLLAR (C) 191069 3.30
52 ROLLER BALL BEARINGS 10E360 15.40
53 ROLLER MUG COLOR (B) *Cannot be ordered 191072 12.10
54 ROLLER COLLAR (D) 110A47 2.20
55 ARM LEVER SC/W 190C03 1.10
56 ARM LEVER SC 10AB86 3.30
57 INFINITE COVER *Cannot be ordered 108B10 36.30
58 INFINITE COVER O-RING 10J203 1.10
59 MUG SHIELD PLATE *Cannot be ordered 114157 23.10
60 MAG SHIELD PLATE O RING 10J198 1.10
61 MUG SHIELD PLATE COLOR *Cannot be ordered 110C11 6.60
62 ONE-WAY CLUTCH PLATE (A) 160743 2.20
63 ONE-WAY CLUTCH PLATE (B) 160D63 2.20
64 ONE WAY CLUTCH *Cannot be ordered 114045 26.40
65 CLUTCH RING O RING 10J199 1.10
66 CLUTCH RING 110125 9.90
67 PINION BALL BEARING (A) W 190625 1.10
68 PINION BEARING PLATE 160D45 3.30
69 PINION BEARING PLATE SC 10A499 2.20
70 PINION BALL BEARING (A) 10E263 8.80
72 PINION + DRIVE GEAR SET *Cannot be ordered 138D46 132.00
73 PINION BALL BEARING (B) SP/W 190086 1.10
74 PINION BALL BEARING (B) W 190611 1.10
75 PINION BALL BEARING (B) 10E257 8.80
76 PINION BALL BEARING (B) COLOR 110C13 3.30
77 BODY *Cannot be ordered 166C23 105.60
78 OSCILLATING POST 155601 6.60
79 MAIN SHAFT *Cannot be ordered 171624 30.80
80 REAR CAP W 190407 1.10
81 REAR CAP GASKET 185291 3.30
82 REAR CAP *Cannot be ordered 116892 30.80
83 REAR CAP SC/W 190323 1.10
84 REAR CAP SC (A) 10AB06 2.20
85 REAR CAP SC (B) *Cannot be ordered 10AB85 4.40
86 REAR CAP SC (B) O-RING 10J169 1.10
87 REAR CAP SC (B) O-RING 10J169 1.10
88 OSCILLATING GEAR W 190072 1.10
89 OSCILLATING GEAR *Cannot be ordered 106185 7.70
90 OSCILLATING GEAR O-RING 10J200 1.10
91 OSCILLATING GEAR BEARING W 190708 1.10
92 OSCILLATING GEAR BALL BEARING 10E209 8.80
93 OSCILLATING GEAR SC 10A876 2.20
94 DRIVE GEAR O-RING (A) 10J201 1.10
95 DRIVE GEAR O-RING (B) 10J067 1.10
96 DRIVE GEAR O-RING (C) 10J201 1.10
97 DRIVE BALL BEARING (A) O-RING 10J137 1.10
98 DRIVE BALL BEARING (A) *Cannot be ordered 10E389 45.10
99 DRIVE BALL BEARING (A)W 190C19 1.10
100 COVER PLATE PIN O-RING 10J012 1.10
101 COVER PLATE PIN 156245 2.20
102 COVER PLATE *Cannot be ordered 168C56 55.00
103 HANDLE CAP O RING 10J065 1.10
104 HANDLE CAP 151237 18.70
105 DRIVE BALL BEARING (B) *Cannot be ordered 10E389 45.10
106 DRIVE BALL BEARING (B) W 190761 1.10
107 DRIVE BALL BEARING (B) O-RING 10J137 1.10
108 ENGINE PLATE O RING 10J178 1.10
109 ENGINE PLATE *Cannot be ordered 168C54 55.00
110 HANDLE 1H2C75 217.80
111 ROTOR NUT W 190C18 1.10
112 ARM LEVER W 190216 1.10
113 BALE HOLDER W 190216 1.10
114 MAG SHIELD PLATE W (A) 190C26 1.10
115 MAG SHIELD PLATE W (B) 190C25 1.10
200 HANDLE KNOB PACKING 185180 2.20
201 HANDLE KNOB W 190196 1.10
202 HANDLE KNOB BALL BEARING 10E313 15.40
203 HANDLE KNOB 1H1862 79.20
204 HANDLE KNOB SC 10A333 2.20
205 HANDLE KNOB CAP 116893 12.10
206 HANDLE KNOB CAP O RING 10J083 1.10
207 DRIVER (HANDLE KNOB CAP) 199B50 4.40
208 SPOOL BAND 199835 15.40
