[DAIWA] Genuine Spare Parts for 22 CALDIA SW 14000-H Product code: 00065055 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 22 CALDIA SW 14000-H Product code: 00065055 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$94.71 [Regular Price: US$1.10 - US$135.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5337

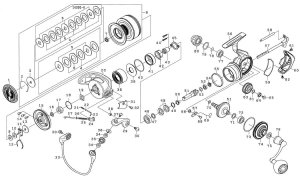

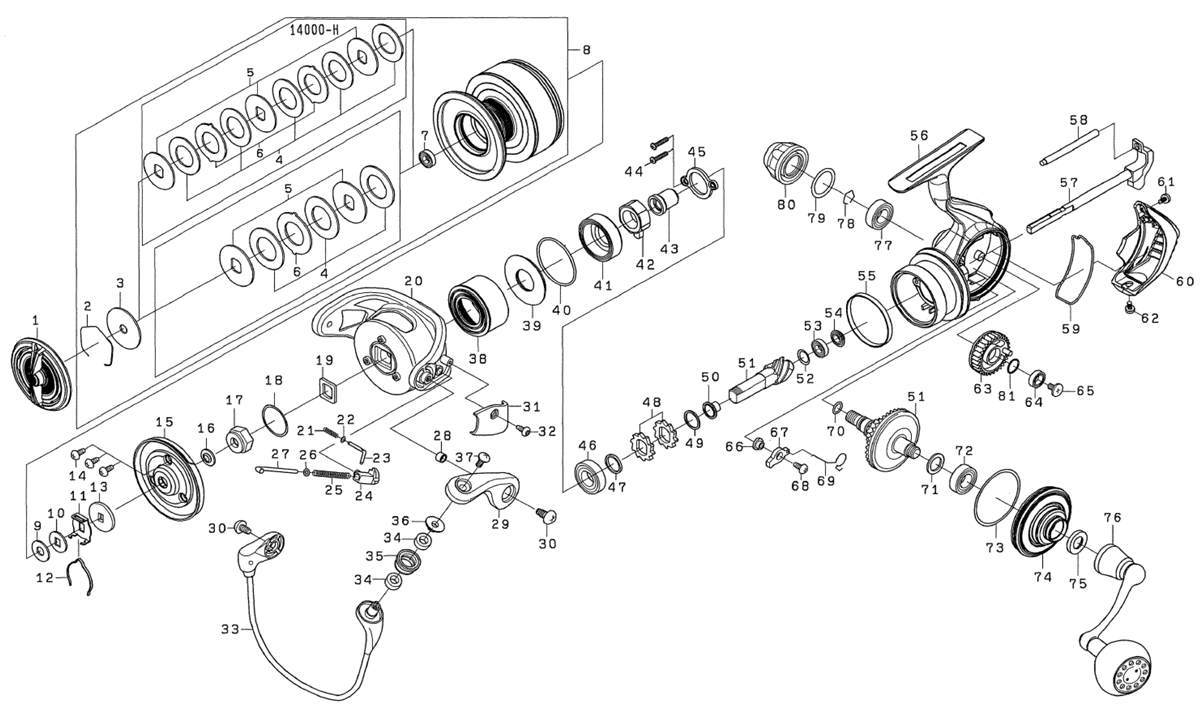

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M302001 24.20
2 DRAG RING 61704101 2.20
3 DRAG DISC W (A) 6J979901 2.20
4 DRAG W SET (5 PCS) 6M322201 49.50
5 DRAG DISC W (B) 6M126601 2.20
6 DRAG LIP W 6M126701 2.20
7 SPOOL BALL BEARING 6B358607 8.80
8 SPOOL (2-7) 6M302401 135.30
9 SPOOL W (A) 6F050103 1.10
10 SPOOL W (B) 6F050002 1.10
11 CLICK HOLDER 6H309501 3.30
12 CLICK LEAF SP 6B747701 2.20
13 CLICK HOLDER W 6F049901 1.10
14 ROTOR COVER SC 6G270801 2.20
15 ROTOR COVER 6J992601 6.60
16 ROTOR NUT PACKING 6J898101 2.20
17 ROTOR NUT 6J996301 6.60
18 ROTOR NUT O-RING 6H501001 1.10
19 ROTOR NUT PLATE 6G392203 2.20
20 ROTOR *Repair only (cannot be ordered) 6J321606 36.30
21 ROTOR BRAKE SP 6H503401 2.20
22 ROTOR BRAKE W 6G685401 1.10
23 ROTOR BRAKE SHAFT 6H503301 3.30
24 ARM LEVER SP HOLDER 6J322001 2.20
25 ARM LEVER SP 6J321901 2.20
26 ARM LEVER SHAFT W 6J321801 1.10
27 ARM LEVER SHAFT 6J321701 2.20
28 ARM LEVER SC COLLAR 6H945501 2.20
29 ARM LEVER 6J309705 12.10
30 ARM LEVER SC 6G455601 2.20
31 ARM LEVER SP COVER 6J322103 3.30
32 COVER SC 6G270801 2.20
33 BAIL 6J393602 58.30
34 ROLLER COLLAR (A) 6J416001 6.60
35 LINE ROLLER 6H246103 8.80
36 ROLLER COLLAR (B) 6J310401 2.20
37 ROLLER SC 6F608901 2.20
38 MAG SHIELD CAP *Repair only (cannot be ordered) 6J993202 7.70
39 MAG SHIELD PLATE *Repair only (cannot be ordered) 6M170401 23.10
40 MAG SHIELD PLATE O-RING 6M175401 1.10
41 MAG SHIELD PLATE COLLAR 6M170601 2.20
42 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J309101 26.40
43 CLUTCH RING *Repair only (cannot be ordered) 6M186801 18.70
44 PINION BEARING PLATE SC 6J001602 2.20
45 PINION BEARING PLATE 6J308401 2.20
46 PINION BALL BEARING (A) 6G426301 8.80
47 PINION BEARING (A) W 6G613404 1.10
48 RATCHET 6E262701 2.20
49 RATCHET W 6G613404 1.10
50 PINION COLLAR (A) 6M057102 2.20
51 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z025984 67.10
52 PINION BEARING (B) SP/W 6G578501 1.10
53 PINION BALL BEARING (B) 6G522705 15.40
54 PINION COLLAR (B) 6J320901 2.20
55 BRAKE RING 6H629701 1.10
56 BODY *Repair only (cannot be ordered) 6M301601 59.40
57 MAIN SHAFT *Repair only (cannot be ordered) 6J992701 18.70
58 OSCILLATING POST 6J320801 2.20
59 REAR CAP PACKING 6J993001 3.30
60 REAR CAP 6J993101 6.60
61 REAR CAP SC (A) 6M056601 2.20
62 REAR CAP SC (B) 6M056602 2.20
63 OSCILLATING GEAR *Repair only (cannot be ordered) 6J320401 7.70
64 OSCILLATING GEAR BALL BEARING 6G467105 8.80
65 OSCILLATING GEAR SC 6H272202 2.20
66 STOPPER COLLAR 6H243301 2.20
67 STOPPER 6M093801 3.30
68 STOPPER SC 63516401 2.20
69 STOPPER LEAF SP 6J308601 2.20
70 DRIVE GEAR O-RING 6J321201 1.10
71 DRIVE W 63712834 1.10
72 DRIVE BALL BEARING (A) 6G522802 8.80
73 ENGINE PLATE O-RING 6J894101 1.10
74 ENGINE PLATE *Repair only (cannot be ordered) 6M171302 38.50
75 HANDLE PACKING 6J432001 2.20
76 HANDLE 6M302101 115.50
77 DRIVE BALL BEARING (B) 6G522802 8.80
78 DRIVE BEARING RING 6H047201 2.20
79 HANDLE CAP O-RING 6J042501 1.10
80 HANDLE CAP 6J394903 17.60
81 OSCILLATING GEAR BEARING W 6G522103 1.10
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB COLLAR 6F648301 4.40
202 HANDLE KNOB 6M357904 42.90
203 HANDLE KNOB SC 6E454003 2.20
204 HANDLE KNOB CAP COLLAR 6H318309 11.00
205 HANDLE KNOB CAP (WITH O-RING) 6H775001 17.60
206 HANDLE KNOB CAP O-RING 6H100001 1.10
207 SPOOL BAND 6X268103 15.40
