[DAIWA] Genuine Spare Parts for 18 FREAMS LT5000S-CXH Product code: 00057060 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 18 FREAMS LT5000S-CXH Product code: 00057060 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$46.20 [Regular Price: US$1.10 - US$66.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

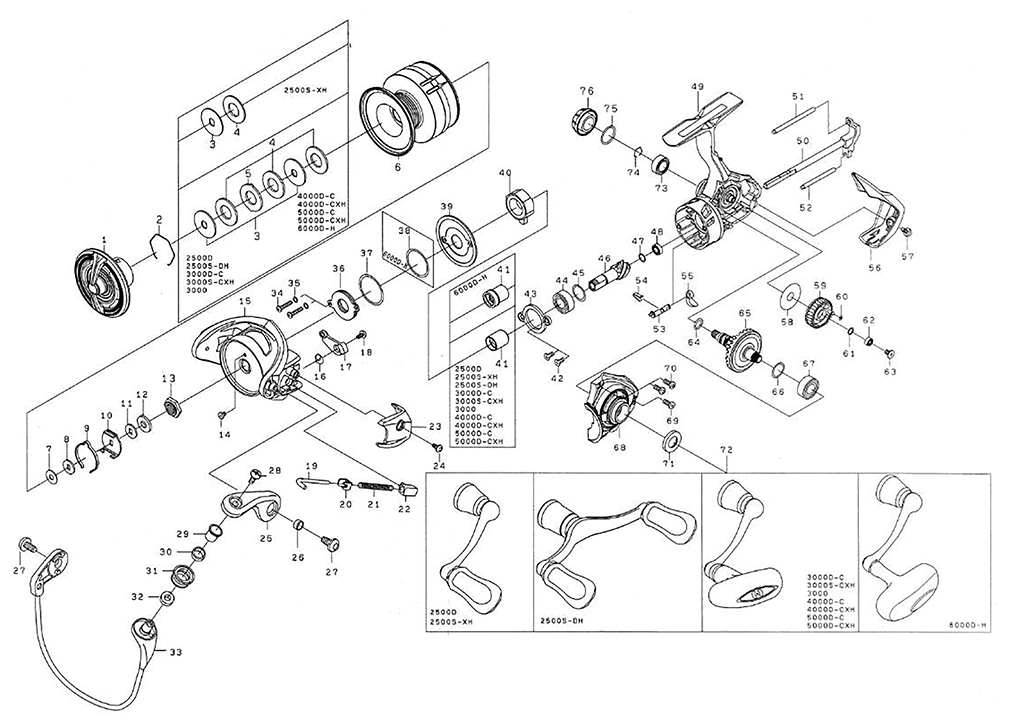

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139762 12.10
2 DRAG RING 185237 2.20
3 DRAG DISC W 142165 2.20
4 DRAG W SET (3 piece) 144225 19.80
5 DRAG GRIP W 143091 2.20
6 SPOOL (2-6) 128D10 63.80
7 SPOOL W (A) 190602 1.10
8 SPOOL W (B) 190A49 1.10
9 CLICKLEAF SP 133A50 2.20
10 CLICK HOLDER 116819 2.20
11 CLICK HOLDER W 190A50 1.10
12 ROTOR NUT PACKING 185203 3.30
13 ROTOR NUT 140333 3.30
14 ROTOR NUT SC 10A748 2.20
15 ROTOR *Cannot be ordered 188A53 16.50
16 KICK LEVER SP 133861 2.20
17 KICK LEVER 111155 3.30
18 KICK LEVER SC 10A870 2.20
19 ARM LEVER SHAFT 122162 2.20
20 ARM LEVER SHAFT PLATE 160716 3.30
21 ARM LEVER SP 133862 2.20
22 ARM LEVER SP HOLDER 110056 2.20
23 ARM LEVER SP COVER 108111 3.30
24 COVER SC 10AA13 2.20
25 ARM LEVER 101428 6.60
26 ARM LEVER SC COLOR 110055 2.20
27 ARM LEVER SC 10AA14 2.20
28 ROLLER SC 152124 2.20
29 ROLLER COLLAR (A) 191030 2.20
30 ROLLER COLLAR (B) 191029 2.20
31 LINE ROLLER 179144 7.70
32 ROLLER COLLAR (C) 191065 2.20
33 VEIL 164854 24.20
34 MAG SHIELD PLATE SC 10A741 2.20
35 PLATE SC/W 190621 1.10
36 MAG SHIELD PLATE *Cannot be ordered 114122 23.10
37 MAG SHIELD PLATE O RING 10J143 1.10
39 MUG SHIELD CAP *Cannot be ordered 108132 3.30
40 ONE WAY CLUTCH *Cannot be ordered 114119 26.40
41 CLUTCH RING *Cannot be ordered 110A62 6.60
42 PINION BEARING PLATE SC 10A059 2.20
43 PINION BEARING PLATE 182269 2.20
44 PINION BALL BEARING (A) 10E323 8.80
45 PINION BALL BEARING (A) W 190137 1.10
46 PINION *Cannot be ordered 154662 6.60
47 PINION BALL BEARING (B) W 190014 1.10
48 PINION BALL BEARING (B) 10E209 8.80
49 BODY *Cannot be ordered 166A49 26.40
50 MAIN SHAFT *Cannot be ordered 171554 8.80
51 OSCILLATING POST (A) 155341 2.20
52 OSCILLATING POST (B) 155340 2.20
53 STOPPER CAM 194186 2.20
54 STOPPER CAM LEAF SP 133886 2.20
55 STOPPER LEVER 196408 2.20
56 REAR CAP 116751 4.40
57 REAR CAP SC 10AA13 2.20
58 OSCILLATING GEAR W 190958 1.10
59 OSCILLATING GEAR *Cannot be ordered 106166 6.60
60 OSCILLATING GEAR O-RING 10J062 1.10
61 OSCILLATING GEAR BEARING W 190854 1.10
62 OSCILLATING GEAR BALL BEARING 10E295 8.80
63 OSCILLATING GEAR SC 10A058 2.20
64 DRIVE GEAR O-RING 10J071 1.10
65 DRIVE GEAR *Cannot be ordered 138991 12.10
66 DRIVE W 190136 1.10
67 DRIVE BALL BEARING (A) 10E210 8.80
68 BODY COVER 168A57 15.40
69 BODY COVER SC (A) 10AA15 2.20
70 BODY COVER SC (B) 10AA16 2.20
71 HANDLE PACKING 185206 3.30
72 HANDLE 1H2A81 66.00
73 DRIVE BALL BEARING (B) 10E381 8.80
74 DRIVE BEARING RING 185116 2.20
75 HANDLE CAP O-RING 185077 2.20
76 HANDLE CAP 151210 4.40
77 ONE-WAY CLUTCH W 190A44 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLOR 110411 2.20
202 HANDLE KNOB 1H1708 17.60
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116755 2.20
300 LINE STOPPER 177082 2.20
301 LINE STOPPER PLATE 160B28 2.20
302 LINE STOPPER SPRING 133A01 2.20
