[DAIWA] Genuine Spare Parts for 19 BALLISTIC LT4000-CXH Product code: 00065121 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 BALLISTIC LT4000-CXH Product code: 00065121 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$89.32 [Regular Price: US$1.10 - US$127.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4744

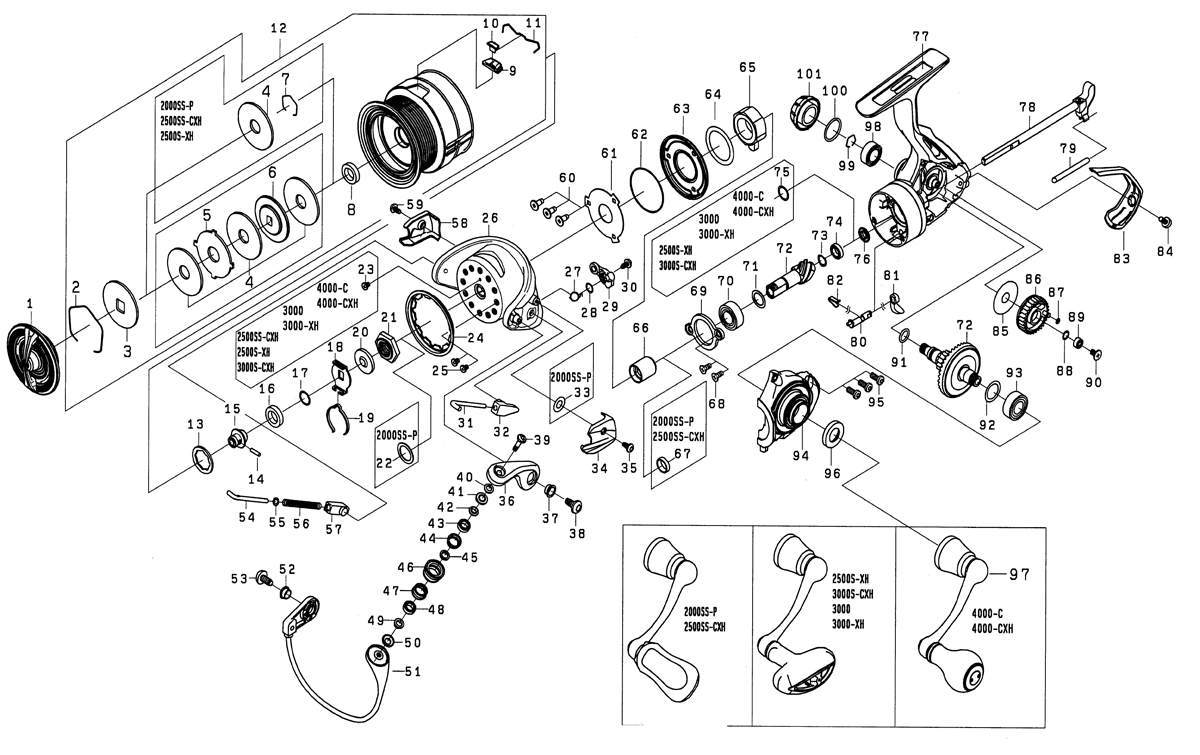

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J698701 16.50
2 DRAG RING 6J547101 2.20
3 DRAG DISC W (A) 6J547001 2.20
4 DRAG W 6J678801 19.80
5 DRAG LIP W 6J546902 2.20
6 DRAG DISC W (B) 6J549002 2.20
8 SPOOL COLLAR 6J546701 2.20
9 LINE STOPPER PLATE 6J568601 2.20
10 LINE STOPPER 6J558001 2.20
11 LINE STOPPER SP 6J314801 2.20
12 SPOOL (2-11) 6J885301 127.60
13 SPOOL W 6J546304 1.10
14 SPOOL METAL SC 6J558201 2.20
15 SPOOL METAL 6J549501 9.90
16 SPOOL METAL COLLAR 6H624801 2.20
17 SPOOL METAL W 6J602201 1.10
18 CLICK HOLDER 6M021401 2.20
19 CLICK LEAF SP 6Z026045 2.20
20 ROTOR NUT PACKING 6H986901 3.30
21 ROTOR NUT 6H961101 15.40
23 ROTOR NUT SC 6H022701 2.20
24 ROTOR COVER 6J284001 3.30
25 ROTOR COVER SC 6H022701 2.20
26 ROTOR *Repair only (cannot be ordered) 6J571902 42.90
27 KICK LEVER SP 6J435201 2.20
28 KICK LEVER W 6J339502 1.10
29 KICK LEVER 6J572001 8.80
30 KICK LEVER SC 6H417701 2.20
31 ARM LEVER SHAFT 6J262601 3.30
32 ARM LEVER SHAFT HOLDER 6J262701 2.20
34 ARM LEVER COVER 6J572202 7.70
35 ARM LEVER COVER SC 6J255201 2.20
36 ARM LEVER 6J254808 15.40
37 ARM LEVER SC COLLAR 6J254901 2.20
38 ARM LEVER SC 6J255001 2.20
39 ROLLER SC 6J257001 3.30
40 ROLLER W 6F897101 1.10
41 ROLLER PACKING 6J736201 1.10
42 ROLLER COLLAR (A) 6J530401 2.20
43 ROLLER BALL BEARING 6J256702 15.40
44 ROLLER COLLAR (B) 6J530501 3.30
45 ROLLER COLLAR (C) 6J256301 2.20
46 LINE ROLLER *Repair only (cannot be ordered) 6J256501 8.80
47 ROLLER COLLAR (B) 6J530501 3.30
48 ROLLER BALL BEARING 6J256702 15.40
49 ROLLER COLLAR (A) 6J530401 2.20
50 ROLLER PACKING 6J736201 1.10
51 BAIL *Repair only (cannot be ordered) 6J903401 60.50
52 BAIL HOLDER SC COLLAR 6J254901 2.20
53 BAIL HOLDER SC 6J255001 2.20
54 BAIL SHAFT 6G298201 2.20
55 BAIL SHAFT W 6G685401 1.10
56 BAIL SHAFT SP 6G944501 2.20
57 BAIL SHAFT SP HOLDER 6G471602 2.20
58 BAIL HOLDER COVER 6J572702 7.70
59 BAIL HOLDER COVER SC 6J255201 2.20
60 MAG SHIELD PLATE SC 6J429301 2.20
61 MAG SHIELD PLATE *Repair only (cannot be ordered) 6J675201 23.10
62 MAG SHIELD PLATE O-RING 6J354801 1.10
63 MAG SHIELD CAP *Repair only (cannot be ordered) 6J406701 4.40
64 ONE-WAY CLUTCH W 6J639902 1.10
65 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J388401 26.40
66 CLUTCH RING *Repair only (cannot be ordered) 6J001403 6.60
68 PINION BEARING PLATE SC 6G997301 2.20
69 PINION BEARING PLATE 6H411501 2.20
70 PINION BALL BEARING (A) 6G535104 8.80
71 PINION BEARING (A) W 63758502 1.10
72 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z023704 108.90
73 PINION BEARING (B) SP/W 6J683001 1.10
74 PINION BALL BEARING (B) 6G466202 8.80
75 PINION BALL BEARING (B) W 6G466103 1.10
76 PINION COLLAR 6J387701 3.30
77 BODY *Repair only (cannot be ordered) 6J884501 60.50
78 MAIN SHAFT *Repair only (cannot be ordered) 6J566902 36.30
79 OSCILLATING POST 6J084804 2.20
80 STOPPER CAM 6H595501 3.30
81 STOPPER LEVER 6H595401 2.20
82 STOPPER CAM SP 6H697801 2.20
83 REAR CAP 6J406801 3.30
84 REAR CAP SC 6J389001 2.20
85 OSCILLATING GEAR W 6J644701 1.10
86 OSCILLATING GEAR *Repair only (cannot be ordered) 6J566701 6.60
87 OSCILLATING GEAR O-RING 6G466001 1.10
88 OSCILLATING GEAR BEARING W 6H129201 1.10
89 OSCILLATING GEAR BALL BEARING 6G469005 8.80
90 OSCILLATING GEAR SC 6G997001 2.20
91 DRIVE GEAR O-RING 6G670501 1.10
92 DRIVE W 63758504 1.10
93 DRIVE BALL BEARING (A) 6G467302 8.80
94 BODY COVER 6J772202 30.80
95 BODY COVER SC 6J389801 2.20
96 HANDLE PACKING 6J130201 2.20
97 HANDLE 6J885201 94.60
98 DRIVE BALL BEARING (B) 6G522706 8.80
99 DRIVE BEARING RING 6G472401 2.20
100 HANDLE CAP O-RING 6G162401 2.20
101 HANDLE CAP 6J389701 4.40
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6H895501 27.50
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP (WITH O-RING) 6J163801 22.00
205 HANDLE KNOB CAP O-RING 6H100001 1.10
