[DAIWA] Genuine Spare Parts for 17 THEORY 4000 Product code: 00056005 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 THEORY 4000 Product code: 00056005 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$110.11 [Regular Price: US$1.10 - US$157.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4114

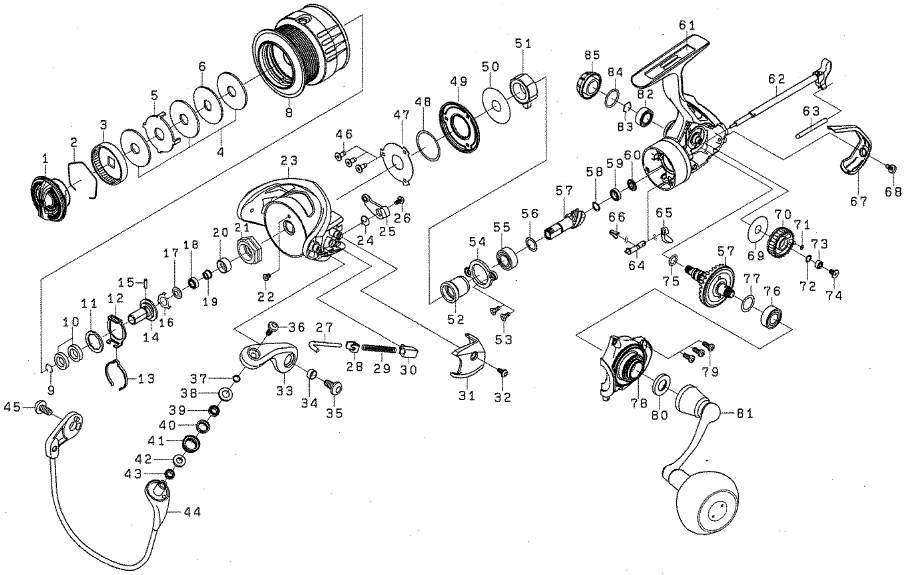

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139741 18.70
2 DRAG RINGS 185059 2.20
3 DRAG RATCHET 180161 7.70
4 DRAG W 144195 19.80
5 DRAG LIP W 190486 1.10
6 DRAG DISK W 142153 2.20
8 SPOOL (2-8) 128A86 157.30
9 SPOOL METAL RING 185120 2.20
10 SPOOL METAL COLLAR 110721 2.20
11 SPOOL W 190955 1.10
12 CLICK HOLDER 116377 3.30
13 CLICK LEAF SP 133664 2.20
14 SPOOL METAL 132122 7.70
15 SPOOL METAL PIN 123171 2.20
16 ROTOR NUT PLATE 160459 2.20
17 ROTOR NUT PACKING 185222 3.30
18 ROTOR NUT BALL BEARING 10E367 15.40
19 ROTOR NUT BEARING COLLAR 110A08 3.30
20 ROTOR NUT COLLAR 110096 4.40
21 ROTOR NUT 140341 8.80
22 ROTOR NUT SC 10A748 2.20
23 ROTOR *Cannot be ordered 188A07 42.90
24 KICK LEVER SP 133861 2.20
25 KICK LEVER 111147 4.40
26 KICK LEVER SC 10A870 2.20
27 ARM LEVER SHAFT *Not available 122145 2.20
28 ARM LEVER SHAFT PLATE 160716 3.30
29 ARM LEVER SP 133897 2.20
30 ARM LEVER SP HOLDER 110300 2.20
31 ARM LEVER SP COVER 108096 3.30
32 COVER SC 10A871 2.20
33 ARM LEVER 101369 6.60
34 ARM LEVER SC COLLAR 110012 2.20
35 ARM LEVER SC 10A872 2.20
36 ROLLER SC 187082 2.20
37 ROLLER COLLAR (A) 110011 2.20
38 ROLLER PACKING 185136 3.30
39 ROLLER BALL BEARING 10E353 12.10
40 ROLLER COLLAR (B) 110010 2.20
41 LINE ROLLER 179134 7.70
42 ROLLER COLLAR (C) 191061 2.20
43 ROLLER COLLAR (D) 110017 2.20
44 BAIL 164842 36.30
45 BAIL HOLDER SC 10A872 2.20
46 MAG SHIELD PLATE SC 10A199 2.20
47 MAG SHIELD PLATE *Cannot be ordered 114120 23.10
48 MAG SHIELD PLATE O-RING 10J134 1.10
49 MAG SHIELD CAP *Cannot be ordered 108A08 4.40
50 ONE-WAY CLUTCH W 190A18 1.10
51 ONE-WAY CLUTCH *Cannot be ordered 114116 26.40
52 CLUTCH RING *Cannot be ordered 110A73 18.70
53 PINION BEARING PLATE SC 10A051 2.20
54 PINION BEARING PLATE 182256 2.20
55 PINION BALL BEARING (A) 10E263 8.80
56 PINION BEARING (A) W 190411 1.10
57 PINION + DRIVE GEAR SET *Cannot be ordered 138927 115.50
58 PINION BEARING (B) SP・W 190826 1.10
59 PINION BALL BEARING (B) 10E211 8.80
60 PINION COLLAR 110A14 3.30
61 BODY *Cannot be ordered 166A20 73.70
62 MAIN SHAFT *Cannot be ordered 171528 27.50
63 OSCILLATING POST 155555 2.20
64 STOPPER CAM 194185 3.30
65 STOPPER LEVER 196390 2.20
66 STOPPER CAM LEAF SP 133886 2.20
67 REAR CAP 116723 3.30
68 REAR CAP SC 10A196 2.20
69 OSCILLATING GEAR W 190A21 1.10
70 OSCILLATING GEAR O-RING *Cannot be ordered 106131 4.40
71 OSCILLATING GEAR O-RING 10J012 1.10
72 OSCILLATING GEAR BEARING W 190711 1.10
73 OSCILLATING GEAR BALL BEARING 10E348 8.80
74 OSCILLATING GEAR SC 10A904 2.20
75 DRIVE GEAR BEARINGS 10F064 2.20
76 DRIVE BALL BEARING 10E349 8.80
77 DRIVE W 190761 1.10
78 BODY COVER 168A20 47.30
79 BODY COVER SC 10A197 2.20
80 HANDLE PACKING 185182 2.20
81 HANDLE 1H2A10 94.60
82 DRIVE BALL BEARING 10E238 8.80
83 DRIVE BEARING RING 185120 2.20
84 HANDLE CAP O-RING 10J065 1.10
85 HANDLE CAP 151203 4.40
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110411 2.20
202 HANDLE KNOB 1H1479 29.70
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP (WITH O-RING) 116667 18.70
