[DAIWA] Genuine Spare Parts for 17 THEORY 3012H Product code: 00056002 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 17 THEORY 3012H Product code: 00056002 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$97.79 [Regular Price: US$1.10 - US$139.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4116

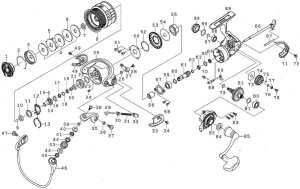

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J390301 15.40
2 DRAG RING 6F710001 2.20
3 DRAG RATCHET 6F895301 7.70
4 DRAG W SET (3 PCS) 6J398501 19.80
5 DRAG LIP W 6F627301 1.10
6 DRAG DISC W 6F627201 2.20
7 DRAG COLLAR 6H624801 2.20
8 SPOOL (2-8) *Discontinued (cannot be ordered) 6J407301 139.70
9 SPOOL METAL RING 6G472401 2.20
10 SPOOL METAL COLLAR 6H624801 2.20
11 SPOOL W 6H806301 1.10
12 CLICK HOLDER 6H416001 2.20
13 CLICK LEAF SP 6H416101 2.20
14 SPOOL METAL 6J415902 7.70
15 SPOOL METAL PIN 6G375001 2.20
16 ROTOR NUT PLATE 6G471501 2.20
17 ROTOR NUT PACKING 6H461201 2.20
18 ROTOR NUT BEARING W 63755201 2.20
19 ROTOR NUT BALL BEARING 6H959602 15.40
20 ROTOR NUT BEARING COLLAR 6J544501 3.30
21 ROTOR NUT COLLAR 6J253101 3.30
22 ROTOR NUT 6J253001 8.80
23 ROTOR NUT W 63712824 1.10
24 ROTOR NUT SC 6H022701 2.20
25 ROTOR *Repair only (cannot be ordered) 6H779708 48.40
26 KICK LEVER SP 6H413601 2.20
27 KICK LEVER 6H779801 8.80
28 KICK LEVER SC 6H417701 2.20
29 ARM LEVER SHAFT 6H780001 3.30
30 ARM LEVER SHAFT PLATE 6H576101 3.30
31 ARM LEVER SP 6H414201 2.20
32 ARM LEVER SP HOLDER 6H414301 2.20
33 ARM LEVER SP COVER *Discontinued (cannot be ordered) 6H780101 7.70
34 COVER SC 6H741702 2.20
35 ARM LEVER *Discontinued (cannot be ordered) 6H742213 9.90
36 ARM LEVER SC COLLAR 6H742301 2.20
37 ARM LEVER SC 6H656102 2.20
38 ROLLER SC 6H744201 2.20
39 ROLLER COLLAR (A) 6H961001 2.20
40 ROLLER PACKING 6H038301 3.30
41 ROLLER BALL BEARING 6G686903 12.10
42 ROLLER COLLAR (B) 6H960901 2.20
43 LINE ROLLER 6G686703 7.70
44 ROLLER COLLAR (C) 6H960801 2.20
45 ROLLER COLLAR (D) 6J178701 2.20
46 BAIL 6J457901 36.30
47 BAIL HOLDER SC 6H656102 2.20
48 BAIL HOLDER COVER *Discontinued (cannot be ordered) 6H780601 7.70
49 BAIL HOLDER COVER SC 6H741702 2.20
50 MAG SHIELD PLATE *Repair only (cannot be ordered) 6J675201 23.10
51 MAG SHIELD PLATE SC 6J429301 2.20
52 MAG SHIELD PLATE O-RING 6J354801 1.10
53 MAG SHIELD CAP *Repair only (cannot be ordered) 6J445901 4.40
54 ONE-WAY CLUTCH W 6J639902 1.10
55 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J388401 26.40
56 CLUTCH RING *Repair only (cannot be ordered) 6J001403 6.60
57 PINION BEARING PLATE 6H411501 2.20
58 PINION BEARING PLATE SC 6G997301 2.20
59 PINION BALL BEARING (A) 6G535104 8.80
60 PINION BEARING (A) W 63758502 1.10
61 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z023072 103.40
62 PINION BEARING (B) SP/W 6H931701 1.10
63 PINION BALL BEARING (B) 6G466202 8.80
64 PINION COLLAR 6J387701 3.30
65 BODY *Repair only (cannot be ordered) 6J405201 62.70
66 MAIN SHAFT *Repair only (cannot be ordered) 6J405701 24.20
67 OSCILLATING POST 6J084802 2.20
68 STOPPER CAM 6H595501 3.30
69 STOPPER LEVER 6H595401 2.20
70 STOPPER CAM LEAF SP 6H697801 2.20
71 REAR CAP 6J406801 3.30
72 REAR CAP SC 6J389001 2.20
73 OSCILLATING GEAR W 6H595701 1.10
74 OSCILLATING GEAR *Discontinued (cannot be ordered) 6H985901 4.40
75 OSCILLATING GEAR O-RING 6G466001 1.10
76 OSCILLATING GEAR BEARING W 6H129201 1.10
77 OSCILLATING GEAR BALL BEARING 6G469005 8.80
78 OSCILLATING GEAR SC 6G997001 2.20
79 DRIVE GEAR O-RING 6G670501 1.10
80 DRIVE BALL BEARING 6G467302 8.80
81 DRIVE W 63758502 1.10
82 BODY COVER 6J406501 27.50
83 BODY COVER SC 6J389801 2.20
84 HANDLE PACKING 6J130201 2.20
85 HANDLE 6J406901 88.00
86 DRIVE BALL BEARING 6G522706 8.80
87 DRIVE BEARING RING 6G472401 2.20
88 HANDLE CAP O-RING 6G162401 2.20
89 HANDLE CAP 6J389701 4.40
90 PINION COLLAR W 6G466103 1.10
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6H781001 20.90
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6H790602 2.20
205 WASHER (REAL FOUR/RCS) 6H513202 2.20
