[DAIWA] Genuine Spare Parts for 19 EMERALDAS LT LT3000S-C-DH Product code: 00060102 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 19 EMERALDAS LT LT3000S-C-DH Product code: 00060102 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$72.38 [Regular Price: US$1.10 - US$103.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.

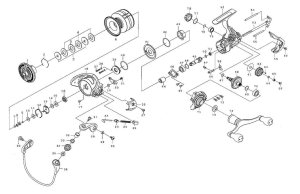

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q424401 12.10
2 DRAG RING 6Q346101 2.20
3 DRAG DISC W 6J547001 2.20
4 DRAG W SET (3 PCS) 6J678801 19.80
5 DRAG LIP W 6Q346001 2.20
6 SPOOL (2-6) 6Q526001 56.10
7 SPOOL BALL BEARING W (A) 6Q382701 1.10
8 SPOOL BALL BEARING 6E332501 8.80
9 SPOOL BALL BEARING W (B) 6B411706 1.10
10 SPOOL W (A) 6E398003 1.10
11 SPOOL W (B) 6Q348502 1.10
12 CLICK LEAF SP 6Z026045 2.20
13 CLICK HOLDER 6M021401 2.20
14 CLICK HOLDER W 6Q344001 1.10
15 ROTOR NUT PACKING 6H986901 3.30
16 ROTOR NUT 6Q177001 3.30
17 ROTOR NUT SC 6H022701 2.20
18 ROTOR *Repair only (cannot be ordered) 6Q120518 12.10
19 KICK LEVER SP 6H413601 2.20
20 KICK LEVER 6Q120701 3.30
21 KICK LEVER SC 6H417701 2.20
22 ARM LEVER SHAFT 6Q121201 2.20
23 ARM LEVER SHAFT PLATE 6H576101 3.30
24 ARM LEVER SP 6H545701 2.20
25 ARM LEVER SP HOLDER 6Q121501 2.20
26 ARM LEVER SP COVER 6Q121802 3.30
27 ARM LEVER SP COVER SC 6G270801 2.20
28 ARM LEVER 6Q121604 4.40
29 ARM LEVER SC COLLAR 6Q121701 2.20
30 BAIL SC 6G205001 2.20
31 ROLLER SC 6G195602 2.20
32 ROLLER COLLAR (A) 6G195501 2.20
33 ROLLER COLLAR (B) 6G220701 2.20
34 LINE ROLLER 6J089901 7.70
35 ROLLER COLLAR (C) 6Q203401 2.20
36 BAIL 6Q281001 27.50
37 MAG SHIELD PLATE SC 6G837101 2.20
38 PLATE SC/W 63754102 1.10
39 MAG SHIELD PLATE *Repair only (cannot be ordered) 6J688201 23.10
40 MAG SHIELD PLATE O-RING 6J354801 1.10
41 MAG SHIELD CAP *Repair only (cannot be ordered) 6Q266601 3.30
42 MAG SHIELD CAP W 6J639902 1.10
43 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6J388401 26.40
44 CLUTCH RING *Repair only (cannot be ordered) 6J001403 6.60
45 PINION BEARING PLATE SC 6Q126201 2.20
46 PINION BEARING PLATE 6H442201 2.20
47 PINION BALL BEARING (A) 6G467302 8.80
48 PINION BALL BEARING (A) W 63758502 1.10
49 PINION *Repair only (cannot be ordered) 6Q341701 6.60
50 PINION BALL BEARING (B) W 6H931701 1.10
51 PINION BALL BEARING (B) 6H959601 8.80
52 BODY *Repair only (cannot be ordered) 6Q525801 22.00
53 MAIN SHAFT *Repair only (cannot be ordered) 6Q461501 8.80
54 OSCILLATING POST (A) 6Q126301 2.20
55 OSCILLATING POST (B) 6Q119101 2.20
56 STOPPER CAM 6Q118101 2.20
57 STOPPER CAM LEAF SP 6H697801 2.20
58 STOPPER LEVER 6Q118001 2.20
59 REAR CAP 6Q120302 3.30
60 REAR CAP SC 6G270801 2.20
61 OSCILLATING GEAR W 6H595701 1.10
62 OSCILLATING GEAR 6Q118401 3.30
63 OSCILLATING GEAR O-RING 6H770601 1.10
64 OSCILLATING GEAR BEARING W 6H129201 1.10
65 OSCILLATING GEAR BALL BEARING 6G469005 8.80
66 OSCILLATING GEAR SC 6Q126101 2.20
67 DRIVE GEAR O-RING 6G670501 1.10
68 DRIVE GEAR *Repair only (cannot be ordered) 6Q341801 12.10
69 DRIVE W 63758504 1.10
70 DRIVE BALL BEARING (A) 6G467302 8.80
71 BODY COVER 6Q522501 15.40
72 BODY COVER SC 6G115001 2.20
73 HANDLE PACKING 6J100201 3.30
74 HANDLE 6Q522901 103.40
75 DRIVE BALL BEARING (B) 6G522706 8.80
76 DRIVE BEARING RING 6G472401 2.20
77 HANDLE CAP O-RING 6G162401 2.20
78 HANDLE CAP 6Q345103 4.40
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6Q523101 24.20
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP WITH O-RING 6Q524701 12.10
205 HANDLE KNOB CAP O-RING 6H100001 1.10
300 LINE STOPPER 6Q345501 2.20
301 LINE STOPPER PLATE 6Q345601 2.20
302 LINE STOPPER SPRING 6Q345701 2.20
