[DAIWA] Genuine Spare Parts for 18 EXIST LT2500S-XH-DH Product code: 00055725 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 18 EXIST LT2500S-XH-DH Product code: 00055725 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$143.99 [Regular Price: US$1.10 - US$205.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don’t accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn’t accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3867

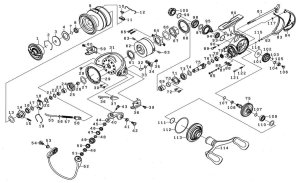

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6J556801 34.10
2 DRAG RING 6J556701 2.20
3 DRAG DISC W 6J757501 2.20
4 DRAG W (1 PC) 6J678901 6.60
7 SPOOL BEARING RING 6B358702 2.20
8 SPOOL BALL BEARING 6G212503 15.40
9 SPOOL (2-12) 6J830001 145.20
10 LINE STOPPER 6J558001 2.20
11 LINE STOPPER PLATE 6J558101 2.20
12 LINE STOPPER SPRING 6J314801 2.20
13 SPOOL METAL W 6J546304 1.10
14 SPOOL METAL 6J549501 9.90
15 SPOOL METAL SC 6J558201 2.20
16 SPOOL METAL BALL BEARING 6G522705 15.40
17 SPOOL W 6J602201 1.10
18 CLICK HOLDER 6J988901 2.20
19 CLICK LEAF SP 6J953201 2.20
20 ROTOR NUT PLATE 6G471501 2.20
21 ROTOR NUT PACKING 6J729101 2.20
22 ROTOR NUT BEARING W 63755202 1.10
23 ROTOR NUT BALL BEARING 6H959602 15.40
24 ROTOR NUT BEARING COLLAR 6J690201 4.40
25 ROTOR NUT 6J253001 8.80
26 ROTOR NUT COLLAR 6J808501 3.30
27 ROTOR NUT W 63712836 1.10
28 ROTOR NUT SC 6H022701 2.20
29 ROTOR COVER 6J538101 3.30
30 ROTOR COVER SC 6H022701 2.20
31 ROTOR *Repair only (cannot be ordered) 6J536801 47.30
32 KICK LEVER SP 6J435201 2.20
33 KICK LEVER W 6J339502 1.10
34 KICK LEVER 6J536901 8.80
35 KICK LEVER SC 6H417701 2.20
36 ARM LEVER SHAFT 6J254601 3.30
37 ARM LEVER SHAFT HOLDER 6J254701 2.20
38 ARM LEVER COVER 6J537101 7.70
39 COVER SC 6J255201 2.20
40 ARM LEVER 6J254801 15.40
41 ARM LEVER SC COLLAR 6J254901 2.20
42 ARM LEVER SC 6J255001 2.20
43 ROLLER SC 6J257001 3.30
44 ROLLER W 6J538001 2.20
45 ROLLER COLLAR (A) *Repair only (cannot be ordered) 6J538401 12.10
46 ROLLER BALL BEARING 6J256702 15.40
47 ROLLER COLLAR (B) 6J256601 3.30
48 ROLLER COLLAR (C) 6J256301 2.20
49 LINE ROLLER *Repair only (cannot be ordered) 6J256502 8.80
50 ROLLER COLLAR (B) 6J256401 4.40
51 ROLLER COLLAR (A) *Repair only (cannot be ordered) 6J537801 12.10
52 BAIL *Repair only (cannot be ordered) 6J890701 60.50
53 BAIL HOLDER SC COLLAR 6J254901 2.20
54 BAIL HOLDER SC 6J255001 2.20
55 BAIL SHAFT 6G471803 3.30
56 BAIL SHAFT W 6G685401 1.10
57 BAIL SHAFT SP 6M108801 2.20
58 BAIL SHAFT SP HOLDER 6G471601 2.20
59 BAIL HOLDER COVER 6J537701 7.70
60 BAIL HOLDER COVER SC 6J255201 2.20
61 STOPPER LEVER PACKING (A) 6J554901 2.20
62 STOPPER LEVER *Repair only (cannot be ordered) 6J554501 22.00
63 STOPPER LEVER SC 6J554701 2.20
64 MAG SHIELD PLATE *Repair only (cannot be ordered) 6J553803 23.10
65 MAG SHIELD PLATE SC 6H842808 2.20
66 ONE-WAY CLUTCH W 6H502203 1.10
67 ONE-WAY CLUTCH *Repair only (cannot be ordered) 6H412602 26.40
68 STOPPER LEVER PACKING (B) 6J553701 2.20
69 CLUTCH RING *Repair only (cannot be ordered) 6J554801 8.80
70 CLUTCH RING COLLAR 6J536202 2.20
71 PINION BEARING PLATE 6J552101 2.20
72 PINION BEARING PLATE SC 6J552203 2.20
73 PINION BALL BEARING (A) 6G279602 15.40
74 PINION BEARING (A) W 63758502 1.10
75 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z023645 118.80
76 PINION BEARING (B) SP/W 6H814901 1.10
77 PINION BEARING (B) W 6E096501 1.10
78 PINION BALL BEARING (B) 6G538007 15.40
79 PINION COLLAR *Repair only (cannot be ordered) 6J552001 3.30
80 BODY *Repair only (cannot be ordered) 6J550809 114.40
81 MAIN SHAFT *Repair only (cannot be ordered) 6J551701 36.30
82 OSCILLATING POST 6J553101 2.20
83 REAR CAP PACKING 6J553201 3.30
84 REAR CAP *Repair only (cannot be ordered) 6J553301 15.40
85 REAR CAP SC *Repair only (cannot be ordered) 6J609106 3.30
86 REAR CAP SC/W 6J718501 1.10
87 REAR CAP SC/O-RING 6J718601 1.10
88 BAIL KICK COLLAR 6J553501 2.20
89 REAR CAP SC 6J553605 2.20
90 REAR CAP SC/W 6G315301 1.10
93 DRIVE BALL BEARING (A) O-RING 6J554101 1.10
94 DRIVE BALL BEARING (A) *Repair only (cannot be ordered) 6J046802 45.10
95 SET PLATE *Repair only (cannot be ordered) 6J551201 36.30
96 SET PLATE O-RING 6J551301 1.10
97 DRIVE BEARING (A) W 6J555501 1.10
98 DRIVE BEARING (A) COVER *Repair only (cannot be ordered) 6J552801 30.80
99 HANDLE CAP O-RING 6G399702 1.10
100 HANDLE CAP 6J555901 6.60
101 OSCILLATING GEAR W 6J551401 1.10
102 OSCILLATING GEAR *Repair only (cannot be ordered) 6J551501 9.90
103 OSCILLATING GEAR O-RING 6G683301 1.10
104 OSCILLATING GEAR BEARING W 6H129201 1.10
105 OSCILLATING GEAR BALL BEARING 6G686904 15.40
106 OSCILLATING GEAR SC 6G940401 4.40
107 DRIVE GEAR O-RING 6J731701 1.10
108 DRIVE GEAR RING 6J552701 2.20
109 DRIVE BALL BEARING (B) *Repair only (cannot be ordered) 6J030303 45.10
110 DRIVE BALL BEARING (B) W 6G613401 1.10
111 DRIVE BALL BEARING (B) O-RING 6J556301 1.10
112 BODY COVER O-RING 6J553001 1.10
113 BODY COVER *Repair only (cannot be ordered) 6J552904 55.00
114 HANDLE 6J830201 205.70
115 OSCILLATING POST W 6G712401 1.10
116 OSCILLATING POST O-RING 6G683301 1.10
117 REAR CAP W 6G315302 1.10
121 STOPPER LEVER PIN *Repair only (cannot be ordered) 6J554201 3.30
122 STOPPER LEVER SPRING *Repair only (cannot be ordered) 6J554301 2.20
200 HANDLE KNOB SP/W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469009 15.40
203 HANDLE KNOB 6J315504 24.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6J315804 6.60
