[SHIMANO] Genuine Spare Parts for 14 BB-X HYPER FORCE C2000DHG Product Code: 032980 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14 BB-X HYPER FORCE C2000DHG Product Code: 032980 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$70.84 [Regular Price: US$1.10 - US$101.20]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

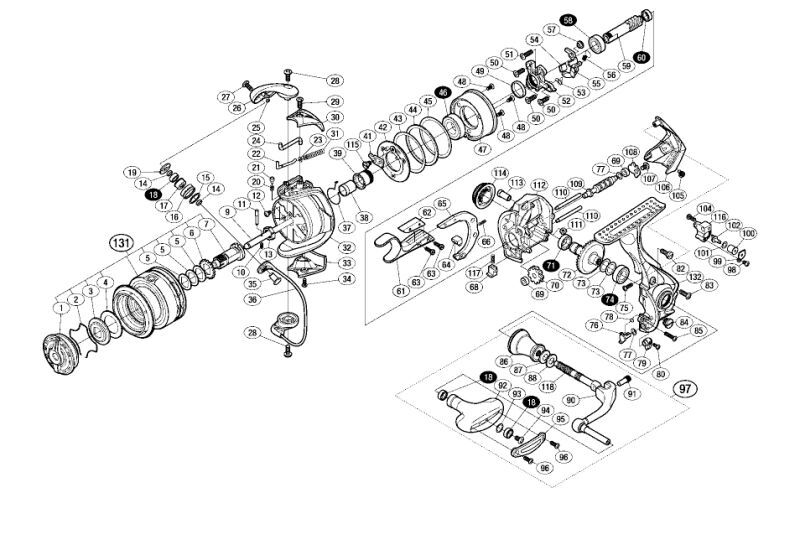

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPW REEL BAG (ACCESSORY) 17.05
1 13BH2 DRAG KNOB SET 22.55
2 10B8J STOPPER SPRING 1.65
3 13K2L OVAL WASHER 2.75
4 102ZP DRAG WASHER (A) 1.65
5 10BUK SPOOL WASHER 1.10
6 103MK SPOOL HOLDER (A) 1.65
7 13DAB SPOOL HOLDER (B) ASSEMBLY 12.65
9 13LJZ MAIN SHAFT 11.55
10 13K4Y SPOOL PIN FIXING SPRING 1.65
11 13LQ0 SPOOL HOLDER FIXING PIN 1.65
12 13JVA FIXING BOLT 1.10
13 13KPD ROTOR NUT 3.85
14 10G8N ARM ROLLER BEARING COLLAR 1.65
15 105PU ARM ROLLER SPACER 1.10
16 10KM6 ARM ROLLER 6.05
17 107RD ARM ROLLER BUSH 1.65
18 104VX BALL BEARING (4X7X2.5) 13.75
19 1079U ARM ROLLER SPACER 1.65
20 10CGZ CLICK SPRING 1.65
21 106UX CLICK PIN 1.65
22 105YJ ARM SPRING GUIDE (A) 1.65
23 1064R ARM SPRING GUIDE (A) COLLAR 1.65
24 13KRN INNER GERI LEVER 2.75
25 107X8 ARM ROLLER LUBRICATION HOLE CAP 1.65
26 13KFQ ARM CAM 6.05
27 10K40 FIXING BOLT 2.75
28 103D9 FIXING BOLT 1.65
29 103DE FIXING BOLT 1.10
30 13KL1 ARM CAM SPRING COVER 6.05
31 105LG ARM CAM SPRING 1.65
32 13CM8 ROTOR 28.05
33 13KNT BALE MOUNTING BRACKET COVER 6.05
34 103N9 FIXING BOLT 1.10
35 10Q36 ARM FIXING SHAFT 6.05
36 13CUN BAIL ASSEMBLY 34.10
37 13LVS BRAKE CLAW SPRING 1.65
38 13MNN PINION GEAR COLLAR 1.65
39 13NRA BRAKE BEARING STOP RING 6.05
41 13LVH BRAKE CLAW 3.85
42 13LVB BRAKE PLATE 9.35
43 13MKK BRAKE ADJUSTMENT WASHER 1.65
44 13MKA BRAKE WASHERS 1.65
45 13MKJ BRAKE WASHER 1.65
46 104PV BALL BEARING (10 X 19 X 5) 13.75
47 13DB5 BRAKE CORE 28.05
48 10MGG FIXING BOLT 1.10
49 13KVW BEARING PUSH SAER RING 3.85
50 10MLD FIXING BOLT 1.10
51 13JPJ FIXING BOLT 1.10
52 13L0G BEARING PUSH PLATE 3.85
53 13ML8 BRAKE SWITCHING SPRING 1.65
54 10KY5 BRAKE SHOE (C) 1.10
55 13EN8 BRAKE LEVER PLATE 6.05
56 13MNB SAFETY BRAKE CLAW SPRING 1.65
57 13MND BRAKE LEVER PLATE COLLAR 1.65
58 104JH BALL BEARING (7 X 13 X 4) 13.75
59 13L96 PINION GEAR 13.75
60 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
61 13LTS BRAKE LEVER (A) 34.10
62 13MM2 BRAKE LEVER NAMEPLATE 4.95
63 13MK1 FIXING BOLT 2.75
64 13LV5 BRAKE SHOE 1.65
65 13MLN BRAKE LEVER (B) 22.55
66 13LUM BRAKE LEVER SPRING 1.65
68 13ML0 BRAKE SHOE 1.65
69 106CM CROSS GEAR BUSH (FRONT) 1.65
70 13LYB WORM SHAFT GEAR 6.05
71 104PP BALL BEARING (7 X 11 X 3) 13.75
72 13CXX DRIVE GEAR SET 22.55
73 10JDC ADJUSTMENT WASHER SET 1.10
74 104JD BALL BEARING (7X13X4) 13.75
75 13JPA FIXING BOLT 1.65
76 13LLQ STOPPER CAM 2.75
77 1059U WASHER 1.10
78 13LQ3 STOPPER CAM SPRING 1.65
79 13L1D STOPPER KNOB 1.65
80 10PRU FIXING BOLT 1.65
82 10L5M FIXING BOLT 1.65
83 10LSZ FIXING BOLT 1.10
84 104KN LUBRICATION HOLE CAP 3.85
85 10LPW FIXING BOLT 1.10
86 13MGD HANDLE SHAFT FLANGE 14.85
87 1052H SALA SPRING 1.65
88 10FJ6 HANDLE WASHER 1.65
90 13E0B HANDLE SHAFT BOLT 28.05
91 10PV2 HANDLE SHAFT BOLT 3.85
92 13M7P HANDLE KNOB 28.05
93 104FH HANDLE WASHER 2.20
94 103E9 FIXING BOLT 1.10
95 108X1 HANDLE KNOB PLATE 3.85
96 103NH FIXING BOLT 1.10
97 13EL2 HANDLE ASSEMBLY 101.20
98 10LV7 FIXING BOLT 1.10
99 10HAB CROSS GEAR PIN PUSH PLATE 1.10
100 10JVB CROSS GEAR PIN COLLAR 2.75
101 10RKQ WASHER 2.20
102 106VH WORM SHAFT PIN 3.85
104 10LVM FIXING BOLT 1.10
105 10MHE FIXING BOLT 1.10
106 13MUW BODY GUARD 11.55
107 103LD FIXING BOLT 1.10
108 10AT2 WORM SHAFT COVER 1.65
109 13M1U WORM SHAFT 9.35
110 10332 SLIDER GUIDE (A) 2.75
111 105N8 FIXING NUT 1.65
112 13KZH LEGLESS CIBODY 22.55
113 13MJT BRAKE LEVER FIXING SHAFT 3.85
114 10N18 HANDLE SCREW CAP 11.55
115 13M6Y FIXING BOLT 2.75
116 10G5Y SLIDER 8.25
117 13MNG BRAKE SHOE SPRING 1.65
118 13AYR HANDLE SHAFT 6.05
131 13CAV SPOOL ASSEMBLY 92.40
132 13DSJ KIFTER WITH LEGS 39.60
AC02 13R2V NO. SEALS (ACCESSORY) 2.75
BNKI 13R09 EXPLODED VIEW (ACCESSORY) 1.65
MH01 13NE1 NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PM8 INSTRUCTION MANUAL (ACCESSORY) 2.75
