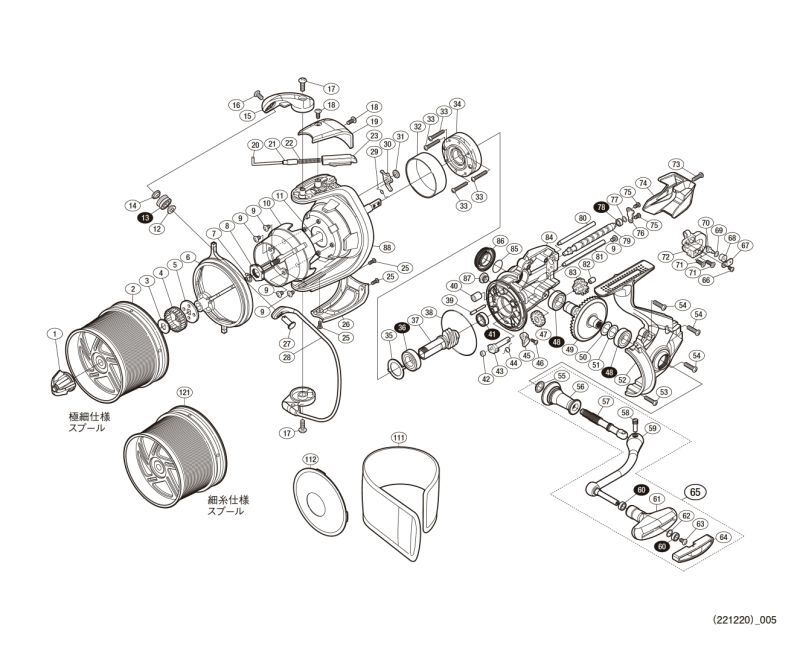

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13AXF DRAG KNOB 11.55
2 13K34 SPOOL (EXTRA FINE) 112.20
3 106VN SPOOL WASHER SET 1.10
4 10TQC SPOOL HOLDER (A) 1.65
5 10J01 SPOOL HOLDER (B) 1.65
6 10TSL THREAD FALL PREVENTION COLLAR SET 11.55
7 105RZ E-TYPE RETAINING RING 6 1.10
8 107VW ROTATING FRAME NUT 1.65
9 103L6 FIXING BOLT 1.10
10 10ST9 ROTOR FLANGE 9.35
11 103M9 MAIN SHAFT 17.05
12 10STM ARM FIXED SHAFT COLLAR 3.85
13 10DT0 LINE ROLLER (WITH BEARING) 22.55
14 10STB LINE ROLLER BEARING COLLAR 2.75
15 10STL ARM CAM 6.05
16 103HN FIXING BOLT 1.65
17 103J1 FIXING BOLT 1.10
18 103GS FIXING BOLT 1.10
19 10STG ARM CAM SPRING COVER 8.25
20 105YW ARM SPRING GUIDE (A) 1.65
21 10HDL SPRING GUIDE (A) COLLAR 1.65
22 105LH ARM CAM SPRING 1.65
23 107A8 ARM SPRING GUIDE (B) 1.65
25 103NH FIXING BOLT 1.10
26 10STE BAIL MOUNTING BRACKET COVER 8.25
27 10STC ARM FIXING SHAFT 4.95
28 10SMS BAIL ASSEMBLY 45.10
29 106PM INNER GERI LEVER SPRING 1.10
30 1085E INNER GERI LEVER 2.75
31 10764 INTERNAL GERI LEVER WASHER 1.10
32 106HS ROLLER CLUTCH RING 2.75
33 103LA FIXING BOLT 1.10
34 10QL4 ROLLER CLUTCH ASSEMBLY 17.05
35 106MU FRONT FLANGE BEARING WASHER 1.65
36 104PV BALL BEARING (10 X 19 X 5) 13.75
37 13L8S PINION GEAR 22.55
38 10MLS O-RING 2.75
39 13MP7 INTERMEDIATE GEAR (B) SHAFT 4.95
40 106GV CROSS GEAR BUSH (FRONT) 3.85
41 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
42 106F8 STOPPER CAM RING 1.10
43 104YQ STOPPER CAM 3.85
44 105B2 CLICK SPRING 1.10
45 10ST8 STOPPER LEVER 6.05
46 10MPU FIXING BOLT 1.10
47 13M07 WORM SHAFT GEAR 6.05
48 10BGD BALL BEARING (9X 17X 5) 13.75
49 13LG4 DRIVE GEAR 22.55
50 10HHK CROSS GEAR RECEIVING KE WASHER 1.10
51 10HHM SLIDING GEARS WASHER（9X 13X 0.2) 1.10
52 13DV6 KIFTER WITH LEGS 45.10
53 10M35 FIXING BOLT 1.10
54 10MBP FIXING BOLT 1.10
55 10PV5 SEAL 2.75
56 10STA HANDLE SHAFT FLANGE 17.05
57 45059 HANDLE SHAFT FLANGE 9.35
58 10A9T HANDLE SHAFT BOLT 3.85
59 13E1L HANDLE 39.60
60 104VX BALL BEARING (4 X 7 X 2.5) 13.75
61 13MAX HANDLE KNOB 6.05
62 104FH WASHER 2.20
63 103E9 FIXING BOLT 1.10
64 10STD HANDLE CAP 2.75
65 13EQP HANDLE ASSEMBLY 78.65
66 103LG FIXING BOLT 1.10
67 10HAD WORM SHAFT PIN PUSH PLATE 1.10
68 10JXP WORM SHAFT PIN COLLAR 3.85
69 10RKQ WASHER 2.20
70 106V1 CROSS GEAR PIN 2.75
71 10ML9 FIXING BOLT 1.10
72 10G7F SLIDER 6.05
73 10LHY FIXING BOLT 1.65
74 13MVE BODY GUARD 9.35
75 103KS FIXING BOLT 1.10
76 10AT4 WORM SHAFT COVER 1.65
77 10J1F WASHER 1.10
78 10PDA BALL BEARING (3X 6X 2.5) 13.75
79 10STH WORM SHAFT 9.35
80 10STJ SLIDER GUIDE (B) 4.95
81 10STK SLIDER GUIDE (A) 6.05
82 13MK2 INTERMEDIATE GEAR (B) COLLAR 3.85
83 13MMV INTERMEDIATE GEAR (B) 2.75
84 10STF LEGLESS CIBODY 34.10
85 108WP O-RING 1.65
86 13LU5 HANDLE SCREW CAP 13.75
87 109LW LUBRICATION HOLE CAP 1.65
88 1001N ROTOR ASSEMBLY 34.10
111 13R11 SPOOL PROTECTOR 6.05
112 13K4B SAND PROTECTOR (ACCESSORY) 3.85
*F01 13QPM REEL BAG (ACCESSORY) 8.25
AC02 13QTP NO. SEALS 1.65
BNKI 13R49 EXPLODED VIEW (ACCESSORY) 1.65
TRST 13PMX INSTRUCTION MANUAL (ACCESSORY) 1.65
