[SHIMANO] Genuine Spare Parts for 20 STRADIC SW 4000XG Product Code: 042422 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 20 STRADIC SW 4000XG Product Code: 042422 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$47.36 [Regular Price: US$1.10 - US$67.65]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4868

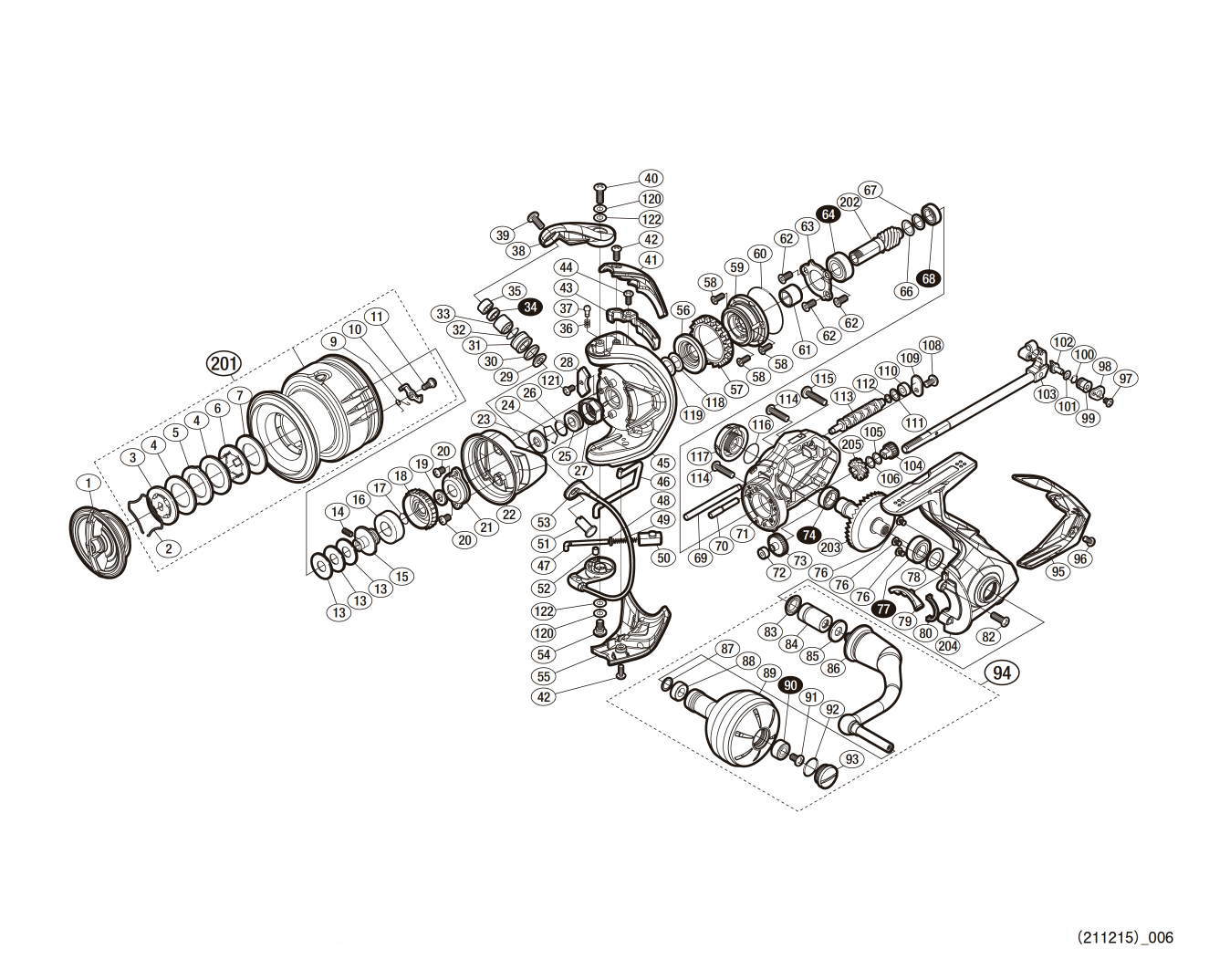

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13BNP DRAG KNOBS 9.35
2 10B8N STOPPER SPRING 1.65
3 10QBV OVAL WASHERS 6.05
4 10345 DRAG WASHERS 6.05
5 102XW EAR WASHERS 1.65
6 10BCG OVAL WASHERS 2.75
7 10C1A DRAG WASHERS 6.05
9 10BQF SPOOL PIN SPRING 1.65
10 102H5 SPOOL PIN 1.65
11 10A6F FIXING BOLT 1.65
13 101AV SPOOL WASHER (A) 2.20
14 10PN3 SET SCREW (M2 X 5) 1.65
15 10DYE MAIN SHAFT BEARING GUIDE 3.85
16 10J3G SPOOL BUSH 1.65
17 107V2 RATCHET SPRING 1.65
18 107PS DRAG CLICK EMITTING RATCHET 2.75
19 103NY SPOOL RECEIVER 1.65
20 103GW FIXING BOLT 1.65
21 1076N RETAINER 2.75
22 13KYZ ROTOR FLANGE 3.85
23 10DY6 ROTOR BEARING SEAL 1.65
24 10GEW BEARING STOPPER 1.10
25 10DXZ MAIN SHAFT COLLAR 6.05
26 101GT O-RING 1.65
27 10E38 ROTOR NUT 6.05
28 10SJN BALANCER 2.75
29 10TJM LINE ROLLER BEARING COLLAR 2.75
30 10RFZ LINE ROLLER SPACER 1.65
31 1009A LINE ROLLER 6.05
32 1009E O-RING 1.65
33 1009K LINE ROLLER BUSHING 1.65
34 104VX BALL BEARING (4 X 7 X 2.5) 13.75
35 10E44 LINE ROLLER COLLAR 2.75
36 10HE7 CLICK SPRING 1.65
37 106ZC CLICK PIN 1.65
38 13KLW ARM CAM 6.05
39 10PMH FIXING BOLT 1.65
40 103LT FIXING BOLT 1.65
41 10RSD ARM CAM SPRING COVER 3.85
42 10LFK FIXING BOLT 1.10
43 10RS3 BALANCER 2.75
44 103KS FIXING BOLT 1.10
45 13KF6 ROTOR 11.55
46 10DY7 INTERNAL GERI LEVER 2.75
47 10DJN ARM SPRING GUIDE (A) 3.85
48 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
49 10RC7 ARM CAM SPRING 1.65
50 107AB ARM CAM SPRING SEAT 2.75
51 10TPC ARM FIXED SHAFT 6.05
52 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
53 13CVE BAIL ASSEMBLY 34.10
54 103DA FIXING BOLT 1.65
55 10RSH BAIL MOUNTING BRACKET COVER 6.05
56 101D5 ROTOR COLLAR 9.35
57 10QXQ FRICTION RING 2.75
58 100WT FIXING BOLT 1.65
59 10S2L ROLLER CLUTCH ASSEMBLY 12.65
60 1009Z O-RING 1.65
61 1009Y ROLLER CLUTCH INNER 3.85
62 100WY FIXING BOLT 1.65
63 10DWD BEARING PUSH PLATE 1.65
64 10E7A BALL BEARING (7X14X5) 7.15
66 10E37 WASHER 1.65
67 10GD9 WASHER 1.65
68 10K5Y BALL BEARING (6X10X3) 8.25
69 10DYF SLIDE GUIDE (A) 1.65
70 10DYJ INTERMEDIATE GEAR SHAFT 3.85
71 13L4L BODY 22.55
72 1009G WORM SHAFT BUSH 1.65
73 10074 WORM SHAFT GEAR 9.35
74 104PP BALL BEARING (7X11X3) 13.75
76 1055H FIXING BOLT 1.65
77 104JD BALL BEARING (7X13X4) 13.75
78 101AY WASHER 2.20
79 1017Y INNER GERI HITARI 1.65
80 1009W COVER FLANGE SEAL 2.75
82 10L6G FIXING BOLT 1.10
83 10PXV HANDLE SHAFT SEAL 2.75
84 10DYA HANDLE SHAFT FLANGE (B) 6.05
85 10H9N HANDLE WASHER 1.65
86 13E2H HANDLE SHAFT ASSEMBLY 34.10
87 1020Z HANDLE WASHER 1.65
88 104UJ HANDLE NIPPLE BUSH (B) 1.65
89 13E8N HANDLE KNOB ASSEMBLY 22.55
90 10KX2 BALL BEARING (4 X 9 X 4) 13.75
91 10LFA FIXING BOLT 1.10
92 10LAB O-RING 1.10
93 13MBG HANDLE CAP 6.05
94 13ESB HANDLE ASSEMBLY 67.65
95 10RRQ BODY GUARD 6.05
96 10LCS FIXING BOLT 1.10
97 10LCT FIXING BOLT 1.65
98 1010D WORM SHAFT PIN PUSH PLATE 1.65
99 1010C WORM SHAFT PIN COLLAR 1.65
100 100WX O-RING 1.65
101 10RKQ WASHER 2.20
102 106VJ WORM SHAFT PIN 3.85
103 10SPJ MAIN SHAFT ASSEMBLY 20.35
104 10SM7 INTERMEDIATE GEAR (S) 8.25
105 10TBA WASHER 1.65
106 10G6D WASHER 1.65
108 10QG5 FIXING BOLT 1.10
109 10S7C WORM SHAFT COVER 1.65
110 1009C WORM SHAFT BUSHING 1.65
111 10ECK WORM SHAFT WASHER 1.10
112 10K9C WORM SHAFT WASHER 1.10
113 10DYB WORM SHAFT 6.05
114 10LZ6 FIXING BOLT 1.10
115 13JXA FIXING BOLT 1.65
116 108WH O-RING 1.65
117 10RSK HANDLE SCREW CAP 3.85
118 10GR6 WASHER 1.10
119 10GR5 WASHER 1.10
120 10K96 WASHER 1.65
121 101H6 FIXING BOLTS 1.65
122 10KFA ADJUSTMENT WASHER 1.10
201 13CHQ SPOOL ASSEMBLY 56.10
202 10DZ1 PINION GEAR 11.55
203 100Y1 DRIVE GEAR 17.05
204 13DWS KIFTER ASSEMBLY WITH LEGS 22.55
205 1006V INTERMEDIATE GEAR (L) 9.35
MH01 13NQ7 NAMEPLATE ON BACK OF LEG 2.75
PUNT 13FMK INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
