[SHIMANO] Genuine Spare Parts for 19-20 OCEA CONQUEST LIMITED 20 200HG Product code: 041838 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5103

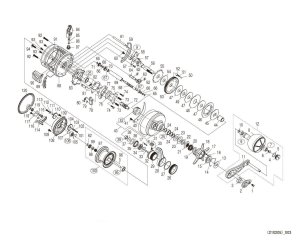

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "95 / BALL BEARING", "96 / Spool Clutch Pin" and "42 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103EG	FIXING BOLT	1.10
2	10QL6	RETAINER	3.85
3	13V1R	HANDLE FIXING NUT	4.95
4	10B2B	HANDLE CAP	6.05
5	10LAB	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	10KX2	BALL BEARING (4 X 9 X 4)	13.75
8	13AT4	HANDLE KNOB ASSEMBLY	56.10
9	105BP	BALL BEARING (5X9X3)	13.75
10	104FH	WASHER	2.20
11	13HWB	HANDLE SHAFT ASSEMBLY	56.10
12	13JD6	HANDLE ASSEMBLY	112.20
13	13V36	HANDLE HOLDER WASHER	1.65
14	10KXV	STAR DRAG CLICK PLATE	1.65
15	10J1Y	STAR DRAG CLICK PLATE	1.65
16	10B27	CLICK PIN	1.65
17	10988	CLICK SPRING	1.65
18	13UXH	STAR DRAG	28.05
19	10QXM	WASHER	1.10
20	10A71	STAR DRAG SPRING	2.75
21	10A3V	STAR DRAG FIXING NUT	3.85
22	10J1N	STAR DRAG SPACER	1.65
23	1052E	SALA SPRING (DB8H)	1.65
24	10GHN	WASHER	1.65
25	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
26	13UEC	LOCK RING	9.35
27	13PK8	WASHER	1.65
28	13HVP	FALL LEVER ASSEMBLY	45.10
29	13U8H	MECHANICAL BRAKE KNOB	22.55
30	10LVD	FIXING BOLT	1.10
31	13UDG	LEVER PROTECTOR	9.35
32	1085H	MECHANICAL BRAKE WASHER	1.10
33	1085G	SPOOL DRAG WASHER	1.10
34	10L2E	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
35	10BSX	M BRAKE KNOB CLICK PIN HOLDER	2.75
36	13U7F	MECHANICAL BRAKE KNOB CLICK STOP RING	3.85
37	109EB	O-RING S11.2	1.65
38	1057X	EXTRACTION STOPPER	1.65
39	105BR	BALL BEARING (5X9X3)	13.75
40	13T7S	BODY FIXING PLATE NAMEPLATE	6.05
41	103EE	FIXING BOLT	2.75
42	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
43	13AW6	MAIN UNIT A SET	112.20
44	10BN3	ROLLER CLUTCH INNER TUBE	6.05
45	13UTZ	STAR DRAG PLATE	3.85
46	13VC1	DRAG CLICK SYLLATIC RATCHET	1.65
47	10CHW	STAR DRAG WASHER	6.05
48	13V82	STAR DRAG WASHER	1.65
49	13V7Q	STAR DRAG WASHER	1.65
50	10C0S	DRAG CLICK PIN	2.75
51	10J89	DRAG CLICK SPRING	1.65
52	13VB6	DRAG SPRING HOLDER	1.65
53	13UXN	DRIVE GEAR	28.05
54	10CJ4	STAR DRAG WASHER (A)	3.85
55	13ULZ	STOPPER GEAR	3.85
56	13UL4	DRIVE GEAR SHAFT	22.55
57	10MPR	BODY A SEAT B FIXING BOLT	1.10
58	109SU	DRIVE GEAR SHAFT FIXING PLATE	3.85
59	13S0M	WORM SHAFT GEAR COVER	9.35
60	10PVT	FIXING BOLT	1.65
61	13SHJ	LEVEL WINDING GUIDE	3.85
62	105NK	E TYPE STOPPER RING 2.5	1.10
63	13H1Z	STOPPER CLAW ASSEMBLY	3.85
64	13T0G	STOPPER FIXING SHAFT	3.85
65	105NC	E TYPE STOPPER RING 2	1.10
66	1018Y	WASHER	1.10
67	10PDA	BALL BEARING (3X6X2.5)	13.75
68	13S5W	WORM SHAFT	9.35
69	100VH	LEVEL WINDING PIPE	11.55
70	13S0N	WORM SHAFT RECEIVER	2.75
71	13S5X	WORM SHAFT GEAR (C)	2.75
72	13SPP	PINION GEAR	22.55
73	104BB	CLUTCH YOKE SPRING	1.10
74	10LUZ	FIXING BOLT	1.10
75	1046X	CLUTCH YOKE	1.65
76	10F3Y	CLUTCH CAM PUSH PLATE	3.85
77	10K0X	CLUTCH CAM	2.75
78	105ZU	CLUTCH CLAW	3.85
79	1048C	CLUTCH CLAW BUSHING	1.65
80	10N1Z	CLUTCH CLAW SPRING	1.10
81	10QGK	CLUTCH PLATE	4.95
82	103C0	FIXING BOLT	1.10
83	10RPM	BODY A SEAT	3.85
84	10TSX	LEVEL-WIND ASSEMBLY	31.90
85	10FFT	WORM SHAFT PIN	3.85
86	13FM7	WASHER	2.75
87	10FJC	LEVEL WINDING RECEIVER	6.05
88	13AUV	FRAME ASSEMBLY	168.30
89	1096U	CLUTCH LEVER HOLDER	1.65
90	13H22	CLUTCH LEVER	9.35
91	13UED	FIXING BOLT COLLAR	1.65
92	103M0	FIXING BOLT	1.65
93	103C2	FIXING BOLT	1.10
94	13JX9	FIXING BOLT	1.65
95	105CA	BALL BEARING (5X11X4) *Cannot be ordered	13.75
96	10MD1	SPOOL CLUTCH PIN *Cannot be ordered	1.10
97	10E20	SPOOL SHAFT SPRING	1.65
98	10MCY	SPOOL SHAFT CAM	1.65
99	10JAH	WORM SHAFT GEAR	3.85
100	13AV1	SPOOL ASSEMBLY (WITH BEARINGS)	78.65
101	10LVM	FIXING BOLT	1.10
102	10HVD	WORM SHAFT GEAR (B)	1.10
103	10ECQ	WORM SHAFT GEAR (B) RECEIVER	2.75
104	10T04	WORM SHAFT GEAR (B)	2.75
105	10GEW	BEARING STOPPER	1.10
106	13RQS	BALL BEARING (3X10X4)	13.75
107	1057S	SPOOL SHAFT CONTACT (B)	1.10
108	13RUJ	FRAME B HOLDER	34.10
109	10LSL	FIXING BOLT	1.10
110	10TUG	WORM SHAFT GEAR (D)	2.75
111	10TUH	WORM SHAFT GEAR (D) HOLDER	2.75
112	10HYM	WORM SHAFT GEAR (D) WASHER	1.10
113	10TTU	FIXING BOLT	1.10
114	13RNA	BODY B CAM LEVER	1.65
115	13RGL	BODY B SHAFT	6.05
116	10280	WASHER	1.10
117	13RNC	DAMPER BUSHING	3.85
118	10U0S	FIXING BOLT	1.10
119	13RNE	DAMPER SPRING	1.65
120	13RGJ	BODY B	45.10
BNKI	13WUS	EXPLODED VIEW (ACCESSORIES)	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VTU	INSTRUCTION MANUAL (ACCESSORY)	1.65
