[SHIMANO] Genuine Spare Parts for 07-10 OCEA CALCUTTA 07 300 Type J-M Product code: 022202 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 07-10 OCEA CALCUTTA 07 300 Type J-M Product code: 022202 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$75.46 [Regular Price: US$1.10 - US$107.80]

Prices vary according to options.

Not available
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

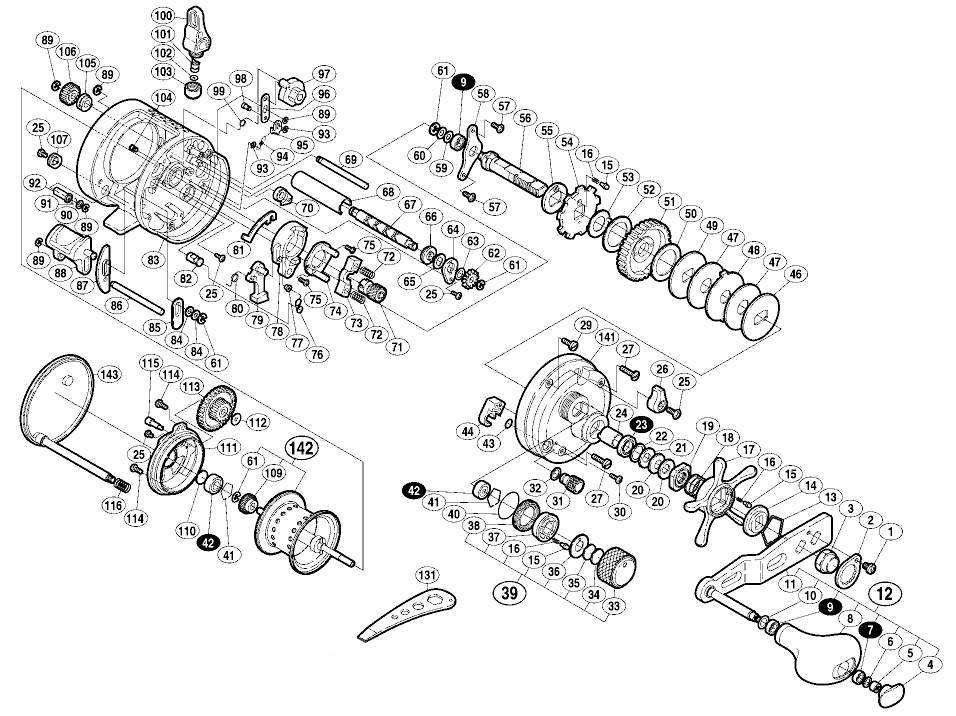

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WJ1 REEL BAG (ACCESSORY) 9.35
1 10QG0 FIXING BOLT 1.10
2 10QU8 RETAINER 3.85
3 10FT1 HANDLE FIXING NUT 2.75
4 106K1 HANDLE CAP 2.75
5 106C0 GRIP FIXING NUT 1.65
6 105ET WASHER 1.10
7 104VW BALL BEARING (4X7X2.5) 13.75
8 105ZA HANDLE GRIP 17.05
9 104JY BALL BEARING (5X8X2.5) 13.75
10 105KM GRIP FIXED SHAFT SEAL 1.10
11 13HTJ HANDLE 34.10
12 13HZR HANDLE ASSEMBLY 67.65
13 10KXV STAR DRAG CLICK PLATE EXTRACTION STOP 1.65
14 10J26 STAR DRAG CLICK PLATE 1.65
15 10BT0 CLICK PIN 1.65
16 10BT2 CLICK SPRING 1.65
17 13UVG STAR DRAG 17.05
18 10A75 STAR DRAG SPRING 2.75
19 10A0S STAR DRAG NUT 2.75
20 10EW3 SARA SPRING (DB8L) 1.65
21 1052E DRAG SPRING (DB8H) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10583 BALL BEARING (8X12X3.5) 13.75
24 10BN6 INNER TUBE A-RB 6.05
25 10MPH FIXING BOLT 1.10
26 10PN5 CLICK KNOB 3.85
27 13U3T BODY A FIXING BOLT (A) 2.75
29 13UBZ BODY A FIXING BOLT (B) 2.75
30 10MQ0 FIXING BOLT 1.10
31 13UBW MAIN UNIT B SHAFT KNOB 3.85
32 109RH BODY B SHAFT KNOB WASHER 1.10
33 13TYM SPOOL DRAG KNOB 6.05
34 10896 MECHANICAL BRAKE WASHER 1.10
35 1057S SPOOL SHAFT CONTACT (B) 1.10
36 10L2K SPOOL DRAG KNOB CLICK PLATE 2.75
37 10BSY MECHANICAL B KNOB CLICK PIN HOLDER 2.75
38 10L6Z SPOOL DRAG KNOB SOUND STOP RING 2.75
39 13HA7 SPOOL LUG KNOB ASSEMBLY 21.45
40 108W8 O-RING S-16 1.65
41 10GEW BEARING STOPPER 1.10
42 105C1 BALL BEARING (3X10X4) 13.75
43 108WS O-RING 4X6 1.10
44 10AY7 CLUTCH CLAW GUIDE 1.65
46 10D3W STAR DRAG PLATE 2.75
47 10CL3 STAR DRAG WASHER (A) 6.05
48 10J50 STAR DRAG PLATE (B) 1.65
49 106XQ STAR DRAG PLATE (A) 1.65
50 1071Y STAR DRAG WASHER (C) 4.95
51 10Q0J MAIN GEAR 22.55
52 10CJ5 STAR DRAG WASHER (A) 3.85
53 10J54 DRAG CLICK COLLAR 1.65
54 10D7C STOPPER GEAR 6.05
55 10J56 DRAG SPRING HOLDER 1.65
56 105M9 MAIN GEAR SHAFT 11.55
57 10MT0 FIXING BOLT 1.10
58 109T3 MAIN GEAR SHAFT FIXING PLATE 1.65
59 10HTW MAIN GEAR SHAFT WASHER (A) 1.10
60 10HTX MAIN GEAR SHAFT WASHER (B) 1.10
61 105NK TYPE E RETAINING RING 2.5 1.10
62 104EW CLICK GEAR 1.65
63 105EJ ADJUSTMENT WASHER 1.10
64 10FTF CROSS GEAR NUKEDOME 1.65
65 10FJY CROSS GEAR SHAFT WASHER (A) 1.10
66 10NDC CROSS GEAR BEARING A 1.65
67 13S14 CROSS GEAR SHAFT 17.05
68 10NJF LEVEL-WIND PIPE 6.05
69 10GXU LEVEL-WIND GUIDE 2.75
70 10MW3 STOPPER CLAW ASSEMBLY 2.75
71 109JC PINION GEAR 17.05
72 104BM CLUTCH YOKE SPRING 1.10
73 10477 CLUTCH YOKE 1.65
74 10F66 CLUTCH CAM PUSH PLATE 3.85
75 10LVG FIXING BOLT 1.10
76 1048E CLUTCH LEVER SPRING 1.10
77 10F22 CLUTCH CAM SEAT 1.10
78 10K17 CLUTCH CAM 2.75
79 10601 CLUTCH CLAW 2.75
80 1048H CLUTCH CLAW SPRING 1.10
81 10918 CLUTCH PLATE 2.75
82 10PND CLUTCH LEVER SPRING PIN 1.65
83 13G29 BODY FRAME 107.80
84 104H3 CLICK BUTTON WASHER (B) 1.10
85 10ASW CLUTCH LEVER RECEIVER (A) 1.65
86 10PNU CLUTCH LEVER GUIDE 2.75
87 1099W CLUTCH LEVER HOLDER (B) 1.65
88 10MY0 CLUTCH LEVER 6.05
89 105NC E TYPE RETAINING RING 2 1.10
90 105AB DAMPER WASHER 0.5 1.10
91 10FMS BODY B FIXING BOLT EXTRACTION STOPPER 1.10
92 10AZ0 DAMPER BUSHING (A) 2.75
93 105NB TYPE E RETAINING RING 1.5 1.10
94 10PSP CLICK COIL SPRING (A) 1.10
95 10PSL CLICK CLAW 2.75
96 10PN8 CLICK LINK 1.65
97 104MQ CLICK BEARING KE 2.75
98 104MN CLICK LINK FIXED SHAFT 1.65
99 10PW1 CLICK TOGGLE SPRING 1.10
100 10P1E LEVEL-WIND ASSEMBLY 17.05
101 10FFX CROSS GEAR PIN 2.75
102 10CFW ADJUSTMENT WASHER SET 1.10
103 10FJE LEVEL WINDING RECEIVER 2.75
104 104MW CLICK COIL SPRING FIXED SHAFT 1.65
105 104SX CROSS GEAR UKE B 1.10
106 10FT9 CROSS GEAR (C) 2.75
107 108L6 BODY B SHAFT GUIDE 1.65
109 10J76 CROSS GEAR (A) 3.85
110 1057Q SPOOL SHAFT CONTACT TALLY (B) 1.10
111 13RPQ BODY FRAME B RECEIVER (B) 11.55
112 10HTV CROSS GEAR B WASHER 1.10
113 105GT CROSS GEAR (B) 2.75
114 1072M FIXING BOLT 1.65
115 10LFU CROSS GEAR (B) SHAFT 2.75
116 10KNM DAMPER SPRING 1.65
131 10MJ2 SPOOL REMOVAL/ATTACHMENT WRENCH (ACCESSORY) 3.85
141 13HEF BODY A ASSEMBLY 78.65
142 13GJF SPOOL ASSEMBLY 84.15
143 13FJX MAIN UNIT B 50.60
BNKI 13WLF EXPLODED VIEW (ACCESSORY) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VJV INSTRUCTION MANUAL (ACCESSORY) 1.65
