[SHIMANO] Genuine Spare Parts for 21 ENGETSU 150HG Product code: 043047 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4977

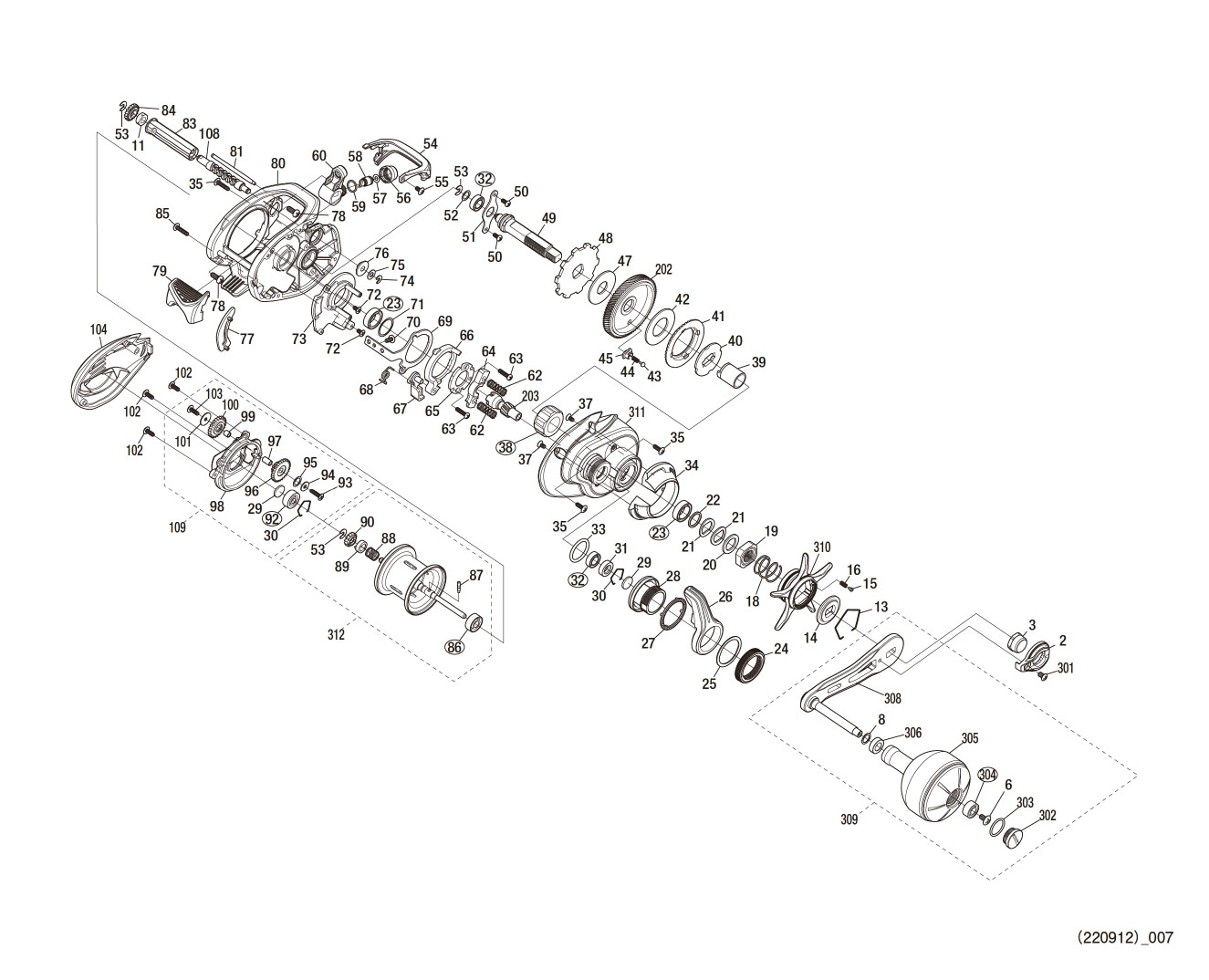

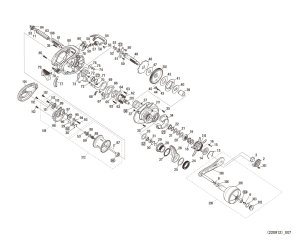

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "38 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
2	1017T	RETAINER	3.85
3	13V31	HANDLE FIXING NUT	2.75
6	10LFA	FIXING BOLT	1.10
8	104FH	WASHER	2.20
11	10PXZ	HANDLE KNOB BUSHING	1.65
13	10KXW	STAR DRAG CLICK PLATE	1.65
14	10J26	STAR DRAG CLICK PLATE	1.65
15	10MFC	CLICK PIN	1.65
16	10BT2	CLICK SPRING	1.65
18	10A70	STAR DRAG SPRING	2.75
19	10A3T	STAR DRAG FIXING NUT	3.85
20	10J1N	STAR DRAG SPACER	1.65
21	109F5	DRIVE GEAR WASHER	1.65
22	100SE	WASHER WASHER	1.10
23	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
24	13UD5	LOCK RING	2.75
25	13B6Z	WASHER	1.65
26	13UEH	FALL LEVER	8.80
27	13UD3	LOCK SPACER B	1.65
28	13U8V	MECHANICAL BRAKE KNOB	9.90
29	10EX5	SPOOL SHAFT CONTACT B	1.10
30	1054D	BEARING STOPPER	1.10
31	101V3	BEARING SPACER	2.75
32	105BP	BALL BEARING (5 X 9 X 3)	13.75
33	10R22	O-RING	1.65
34	13U8M	BODY A NAMEPLATE	2.75
35	10LCY	FIXING BOLT	1.10
37	10LA3	FIXING BOLT	1.65
38	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
39	13UCY	ROLLER CLUTCH INNER TUBE	6.05
40	13UXT	STAR DRAG PLATE	4.40
41	10JB0	DRAG CLICK SYRATCHET	2.75
42	10SE0	STAR DRAG WASHER	6.05
43	10C0T	DRAG CLICK PIN	2.75
44	10J8A	DRAG CLICK SPRING	1.65
45	10J87	DRAG SPRING HOLDER	1.65
47	10DQK	STAR DRAG WASHER	6.05
48	10R6Z	STOPPER GEAR	6.05
49	13ULM	DRIVE GEAR SHAFT	7.15
50	10E23	FIXING BOLT	1.10
51	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
52	10G6D	WASHER	1.65
53	105NK	E TYPE STOP RING 2.5	1.10
54	13SHN	LEVEL WINDING GUARD	2.20
55	10LCQ	FIXING BOLT	1.10
56	10FJB	LEVEL WINDING RECEIVER	1.65
57	10CFU	WORM SHAFT PIN	1.10
58	10BHQ	WORM SHAFT PIN	2.75
59	108WQ	O-RING	1.65
60	10R51	LEVEL-WIND ASSEMBLY	3.30
62	100U9	CLUTCH YOKE SPRING	1.10
63	10LV0	FIXING BOLT	1.10
64	100UH	CLUTCH YOKE	1.65
65	100US	CLUTCH CAM PUSH PLATE	3.85
66	100UK	CLUTCH CAM	2.75
67	10MME	CLUTCH CLAW	3.85
68	10R1H	CLUTCH CLAW SPRING	1.65
69	10QZV	CLUTCH PLATE	4.95
70	10LF4	FIXING BOLT	1.10
71	10190	CLUTCH WASHER	1.65
72	100S4	FIXING BOLT	1.10
73	10R56	BODY A SEAT	3.30
74	105NC	E TYPE STOP RING 2	1.10
75	100K0	WASHER	1.10
76	100G7	LEVEL WIND GUARD BUSHING	1.10
77	13TDA	CLUTCH LEVER RECEIVER (B)	1.10
78	13JQQ	FIXING BOLT	1.65
79	13H6H	CLUTCH LEVER ASSEMBLY	6.05
80	13GAN	FRAME ASSEMBLY	37.40
81	13S6E	LEVEL-WIND GUIDE	1.10
83	13S6D	LEVEL-WIND PIPE	1.10
84	13S5T	WORM SHAFT GEAR	2.75
85	10MTB	FIXING BOLT	1.10
86	13TXK	BALL BEARING (4 X 10 X 4)	13.75
87	10MD0	SPOOL CLUTCH PIN	1.65
88	13SVD	SPOOL SHAFT SPRING	1.65
89	10MCY	SPOOL SHAFT CAM	1.65
90	10JAH	WORM SHAFT GEAR	3.85
92	105C2	BALL BEARING (3X10X4)	13.75
93	13JXR	FIXING BOLT	1.65
94	13PE6	WASHER	1.65
95	13PKB	WASHER	1.10
96	13RTV	WORM SHAFT GEAR	1.65
97	13SGH	WORM SHAFT GEAR (B) RECEIVER B	2.75
98	13RUN	BODY B BEARING	5.50
99	13RU2	WORM SHAFT GEAR (B) HOLDER	1.65
100	13S5R	WORM SHAFT GEAR	2.75
101	1019V	WORM SHAFT GEAR (B)	1.65
102	10LCF	FIXING BOLT	1.10
103	10LCP	FIXING BOLT	1.65
104	13RGP	MAIN BODY B	4.40
108	13S61	WORM SHAFT	11.55
109	13FZJ	FRAME B	13.20
202	13UXU	DRIVE GEAR	24.75
203	13SPU	PINION GEAR	11.55
301	10R1Q	FIXING BOLT	1.65
302	13MBL	HANDLE CAP	4.95
303	10LAB	O-RING	1.10
304	10KX2	BALL BEARING (4 X 9 X 4)	13.75
305	13E8R	HANDLE KNOB ASSEMBLY	34.10
306	104UJ	HANDLE GRIP BUSH (B)	1.65
308	13HW4	HANDLE SHAFT ASSEMBLY	34.10
309	13JDB	HANDLE ASSEMBLY	88.00
310	13V46	STAR DRAG	11.55
311	13U25	MAIN BODY A	33.00
312	13GNU	SPOOL ASSEMBLY (WITH BEARINGS)	56.10
PUNT	13FMN	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	2.20
