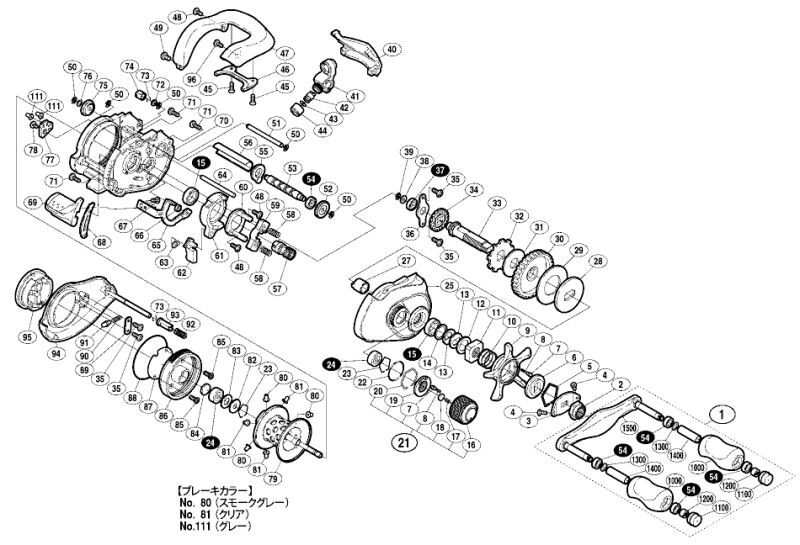

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WJ4 REEL BAG 9.35
1 104RC HANDLE ASSEMBLY 84.15
2 10FSM HANDLE FIXING NUT 2.75
3 10J53 RETAINER HANDLE 2.75
4 103GX FIXING BOLT 1.10
5 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
6 10J26 STAR DRAG CLICK PLATE 1.65
7 10BT0 CLICK PIN 1.65
8 10BT2 CLICK SPRING 1.65
9 10B3X STAR DRAG 17.05
10 10A75 STAR DRAG SPRING 2.75
11 10A0H STAR DRAG NUT 2.75
12 10J1N STAR DRAG SPACER 1.65
13 10D60 MAIN GEAR WASHER (C) 1.65
14 105PW STAR DRAG BEARING WASHER 1.10
15 10582 BALL BEARING (8 X 12 X 3.5) 9.35
16 10KJU SPOOL DRAG KNOB 6.05
17 10BR9 SPOOL DRAG SPRING 1.65
18 10L73 SPOOL DRAG WASHER 1.65
19 10L2L SPOOL DRAG KNOB CLICK PLATE 2.75
20 10L71 SPOOL DRAG KNOB CLICK HOLDER 2.75
21 10HXD SPOOL LUG KNOB ASSEMBLY 14.85
22 108WK O-RING SM14 1.65
23 10GEW BEARING RETAINING CLAMP 1.10
24 105BZ BALL BEARING (3 X 10 X 4) 9.35
25 13HEW BODY A ASSEMBLY 70.95
26 10F5D ROLLER CLUTCH BEARING A-RB 17.05
27 10BQ6 INNER TUBE ARB 6.05
28 10D3X STAR DRAG PLATE 2.75
29 1071X STAR DRAG WASHER (C) 3.85
30 10Q0F MAIN GEAR 22.55
31 10CJ4 STAR DRAG WASHER (A) 3.85
32 10D89 STOPPER GEAR 6.05
33 105MC MAIN GEAR SHAFT 22.55
34 10J75 CROSS GEAR (A) 3.85
35 10MT0 FIXING BOLT 1.10
36 109T6 MAIN GEAR SHAFT FIXING PLATE 1.65
37 104K1 BALL BEARING (5 X 8 X 2.5) 13.75
38 10HYP MAIN GEAR SHAFT WASHER 1.10
39 105NK E TYPE STOP RING 2.5 1.10
40 10QQL LEVEL WIND GUARD 17.05
41 10P1G LEVEL-WIND ASSEMBLY 11.55
42 10FFX CROSS GEAR PIN 2.75
43 10CFW ADJUSTMENT WASHER SET 1.10
44 10FJN LEVEL WINDING RECEIVER 2.75
45 10MGC FIXING BOLT 1.10
46 10Q2C LINE GUARD ITA 11.55
47 10P12 THUMB REST 22.55
48 10LVG FIXING BOLT 1.10
49 103EC FIXING BOLT 1.10
50 105NC E-TYPE RETAINING RING 2 1.10
51 108L2 LINE GUARD 3.85
52 10FP3 CROSS GEAR (C) 6.05
53 1053U CROSS GEAR 17.05
54 104VV BALL BEARING (4 X 7 X 2.5) 9.35
55 10NDG CROSS GEAR RECEIVER A 1.65
56 10NJH LEVEL WINDING PIPE 6.05
57 109JK PINION GEAR 19.25
58 104BM CLUTCH YOKE SPRING 1.10
59 1047Q CLUTCH YOKE 2.75
60 10F66 CLUTCH CAM PUSH PLATE 3.85
61 10K11 CLUTCH CAM 2.75
62 10607 CLUTCH CLAW 3.85
63 10490 CLUTCH CLAW SPRING 1.65
64 10GXX LEVEL WINDING GUIDE 3.85
65 1091C CLUTCH PLATE 6.05
66 10Q7J CLUTCH PLATE BEARING 1.65
67 103C0 FIXING BOLT 1.10
68 109BZ CLUTCH LEVER RECEIVER (B) 2.75
69 10P5A CLUTCH LEVER 6.05
70 13G2F BODY FRAME 67.65
71 10LUX FIXING BOLT 1.10
72 105AC DAMPER WASHER 0.6 1.10
73 10FMS FIXING BOLT FOR MAIN BODY B 1.10
74 10AZ4 DAMPER BUSH (B) 2.75
75 104SZ CROSS GEAR UKE B 1.65
76 10BHX CROSS GEAR SHAFT WASHER (A) 1.10
77 108Q3 SVS HOLDER 1.65
78 10LV5 FIXING BOLT 1.10
79 10LAZ SPOOL ASSEMBLY 112.20
80 10HWH BRAKE COLLAR (A) SMOKE GRAY 1.65
81 10CPC BRAKE COLLAR (CLEAR) 1.65
82 10KNS BODY B SIDE BEARING SEAL 1.65
83 10B95 B SIDE B SEAL 1.65
84 1057S SPOOL SHAFT CONTACT TALLY (B) 1.10
85 10MKV FIXING BOLT 1.10
86 10G0J BODY FRAME B BEARING SEAL ASSEMBLY 6.05
87 10BQV BRAKE KNOB ADJUSTMENT WASHER 1.10
88 108WC O-RING SM26 1.65
89 10KVM CLICK PIN FIXING PLATE 1.65
90 10B52 BRAKE KNOB CLICK SPRING 1.65
91 10B50 BRAKE KNOB CLICK PIN 1.65
92 10KNM DAMPER SPRING 1.65
93 10AZ2 DAMPER BUSH (A) 2.75
94 1075A BODY B 42.90
95 13FRJ BRAKE KNOB ASSEMBLY 6.05
96 10LVK FIXING BOLT 1.10
111 10CPE BRAKE COLLAR (GRAY) 1.65
1000 1064T HANDLEBAR NIPPLE (FOR RIGHT SIDE, PADDLE TYPE) 11.55
1100 13MC4 HANDLE CAP 2.75
1200 106C0 NIGIRI FIXING NUT 1.65
1300 10HTT WASHER 1.10
1400 109VL KNOB FIXING SHAFT PIPE 3.85
1500 13HSS HANDLE 28.05
BNKI 13WM6 EXPLODED VIEW 1.65
HNLP 109VL KNOB FIXING SHAFT PIPE 3.85
HNT1 106C0 NIGIRI FIXING NUT 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
RC0A 10F5D ROLLER CLUTCH BEARING A-RB 17.05
STMK 13WX0 LOWER REEL GAUGE 1.65
TOOL 10MJ1 REEL WRENCH (ACCESSORY) 2.75
TRST 13VKM INSTRUCTION MANUAL 1.65
