[SHIMANO] Genuine Spare Parts for 21-22 CALCUTTA CONQUEST 200XG Product code: 044402 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.89 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5004

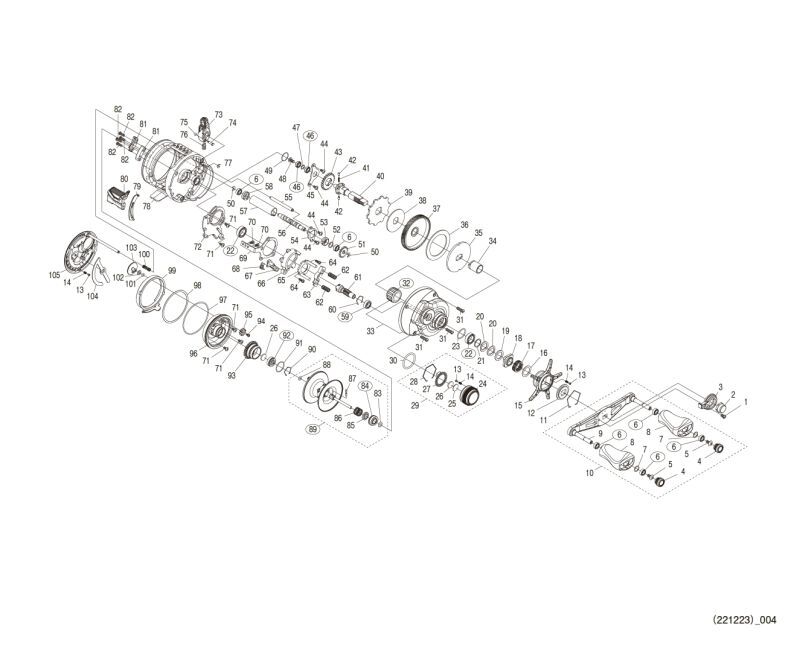

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "84 / BALL BEARING" and "87 /SPOOL CLUTCH PIN ", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WNH	REEL BAG (ACCESSORY)	11.00
1	10CZ5	FIXING BOLT	2.75
2	100GS	HANDLE FIXING NUT	10.45
3	10SSK	RETAINER	3.85
4	10T7N	HANDLE CAP	8.80
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	10SCX	HANDLE KNOB	11.00
9	13J23	HANDLE SHAFT ASSEMBLY	44.00
10	13JDS	HANDLE ASSEMBLY	101.20
11	10KXV	STAR DRAG CLICK PLATE	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	10AU1	STAR DRAG	22.55
16	10HHN	SLIDER WASHER (9X13X0.3)	1.65
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	1027V	O-RING	1.65
24	10T7H	MECHANICAL BRAKE KNOB	20.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT CONTACT (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB SOUND STOP RING	2.75
29	10TEE	MECHANICAL BRAKE KNOB ASSEMBLY	36.85
30	108W8	O-RING S-16	1.65
31	10C3N	FIXING BOLT	2.75
32	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
33	13HQ0	BODY A ASSEMBLY	132.00
34	10BN1	ROLLER CLUTCH INNER TUBE	6.05
35	10D3N	STAR DRAG PLATE	2.75
36	1071T	STAR DRAG WASHER	4.95
37	13UYK	DRIVE GEAR	28.05
38	10CHZ	STAR DRAG WASHER	2.75
39	10D6Y	STOPPER GEAR	6.05
40	101Q9	DRIVE GEAR SHAFT	13.20
41	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
42	10HJG	WORM SHAFT GEAR PINS	1.65
43	10J6W	WORM SHAFT GEAR	3.85
44	10LVF	FIXING BOLT	1.10
45	100GK	DRIVE GEAR SHAFT FIXING PLATE	1.10
46	10SAM	BALL BEARING (4X7X2)	13.75
47	13PKR	WASHER	1.10
48	10DR4	FIXING BOLT	1.10
49	10SZ4	O-RING	1.65
50	105NC	E TYPE STOP RING 2	1.10
51	10FNX	WORM SHAFT GEAR	2.75
52	10G8G	WORM SHAFT GEAR	1.10
53	10N9Q	WORM SHAFT HOLDER (A)	1.65
54	10T7S	WORM SHAFT EXTRACTION STOP	1.10
55	101QD	LEVEL WINDING GUIDE	3.85
56	101QC	WORM SHAFT	5.50
57	101G5	LEVEL WINDING PIPE	7.15
58	104SP	WORM SHAFT HOLDER (B)	1.65
59	105BP	BALL BEARING (5X9X3)	13.75
60	1057X	STOPPER	1.65
61	13SQ9	PINION GEAR	22.00
62	104BE	CLUTCH YOKE SPRING	1.10
63	1046T	CLUTCH YOKE	1.65
64	101CN	FIXING BOLT	1.65
65	10F42	CLUTCH CAM PUSH PLATE	3.85
66	10SX6	CLUTCH CAM	2.75
67	105ZU	CLUTCH CLAW	3.85
68	10N1Z	CLUTCH CLAW SPRING	1.10
69	101G3	CLUTCH PLATE	2.20
70	10559	FIXING BOLT	1.65
71	100BD	FIXING BOLT	1.65
72	101Q6	BODY A SEAT	1.10
73	10TED	LEVEL-WIND ASSEMBLY	51.70
74	100GC	WORM SHAFT PIN EXTRACTION STOPPER	1.10
75	10908	O-RING	1.65
76	100GJ	WORM SHAFT PIN	4.40
77	105NB	E TYPE STOPPER RING 1.5	1.10
78	1027M	FRAME ASSEMBLY	165.00
79	101Q7	CLUTCH LEVER HOLDER	1.10
80	10U0N	CLUTCH LEVER ASSEMBLY	7.70
81	101G4	FRAME B CLUTCH CAM	1.10
82	10LVP	FIXING BOLT	2.75
83	10TNF	O RING	1.65
84	1005D	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
85	10SWZ	BUSH	1.65
86	10SJF	BEARING PUSH SPRING	1.65
87	10MD1	SPOOL CLUTCH PIN *Cannot be ordered	1.10
88	10EZ7	O-RING	1.10
89	101L9	SPOOL ASSEMBLY (WITH BEARING)	101.20
90	10GEW	BEARING PULL-OUT STOPPER	1.10
91	10LA8	O RING	1.65
92	10S37	BALL BEARING (3 X 10 X 4)	13.75
93	100N4	BRAKE PIPE GEAR ASSEMBLY	13.75
94	10PRT	FIXING BOLT	1.10
95	10BGM	BR KNOB GEAR	1.65
96	1027L	FRAME B RECEIVER ASSEMBLY	33.00
97	1014X	O RING	1.65
98	104H8	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
99	101Q8	BODY B CAM LEVER	1.10
100	10T7F	DAMPER SPRING	1.10
101	10FMT	O-RING	1.10
102	10SEJ	WASHER	1.10
103	100TQ	BRAKE DIAL ASSEMBLY	31.35
104	101QA	BODY B SEAL	1.10
105	101LC	BODY B	77.00
BNKI	13WUX	EXPLODED VIEW (ACCESSORIES)	1.10
BSM1	1019F	BRAKE SHOES	1.10
BST1	13SFU	BRAKE SHAFT	1.10
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VTY	INSTRUCTION MANUAL (ACCESSORY)	1.65
