[SHIMANO] Genuine Spare Parts for 22 ALDEBARAN BFS HG L Product code: 043993 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.93 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5338

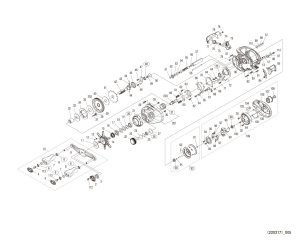

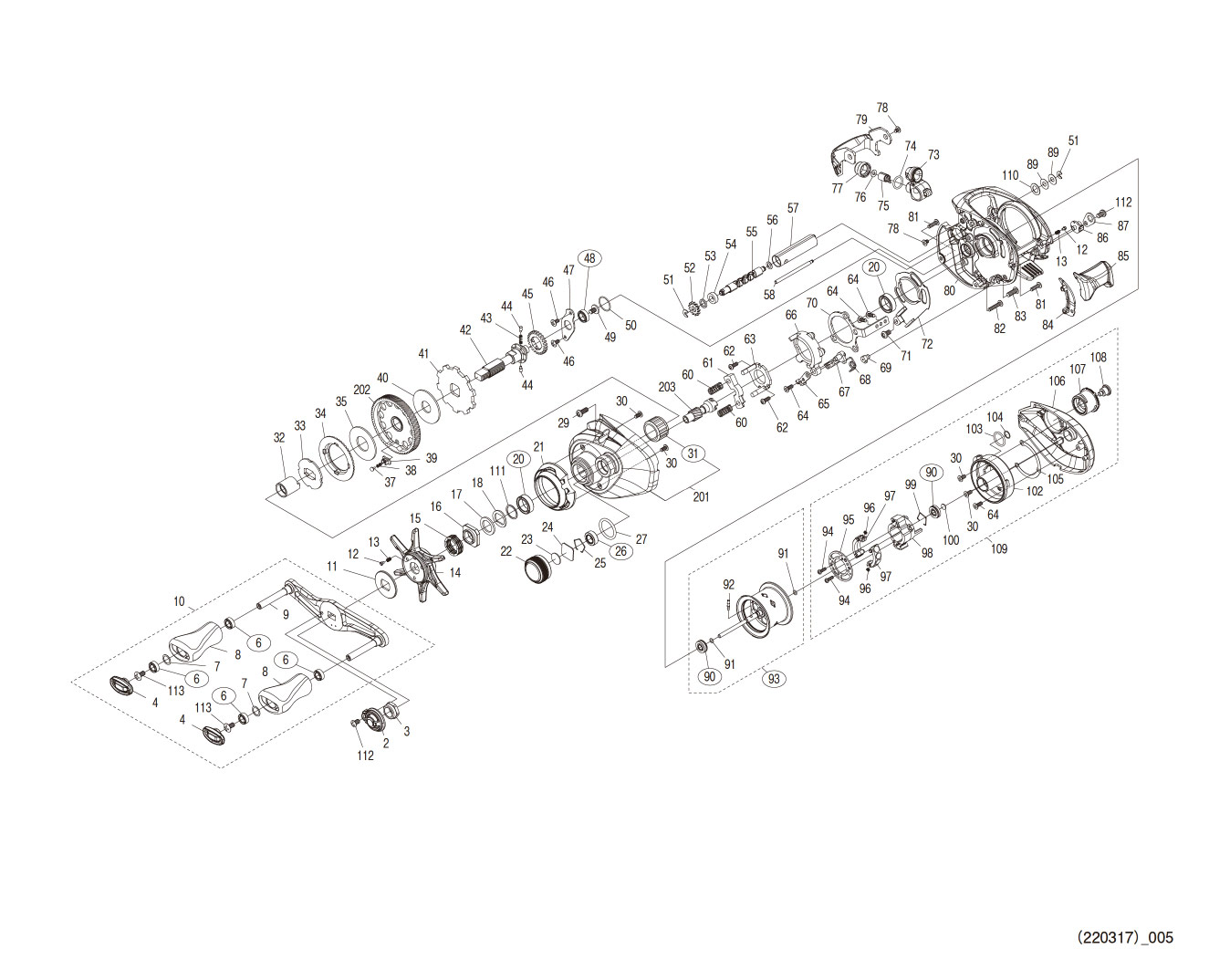

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH" and "92 / SPOOL CLUTCH PIN" and "90 / BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
2	10RZU	RETAINER	1.10
3	10RZZ	HANDLE FIXING NUT	4.95
4	10SML	HANDLE CAP	4.95
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	1004X	HANDLE KNOB	11.55
9	10E7B	HANDLE SHAFT ASSEMBLY	34.10
10	10SN3	HANDLE ASSEMBLY	90.20
11	101JC	STAR DRAG CLICK PLATE	1.65
12	10B27	CLICK PIN	1.65
13	10988	CLICK SPRING	1.65
14	10RZT	STAR DRAG	11.55
15	10A78	STAR DRAG SPRING	2.75
16	10EEG	STAR DRAG FIXING NUT	4.40
17	10J1N	STAR DRAG SPACER	1.65
18	10D60	MAIN GEAR WASHER (C)	1.65
20	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
21	10RZF	BODY A NAMEPLATE	3.85
22	10RZP	MECHANICAL BRAKE KNOB	8.25
23	10896	MECHANICAL BRAKE WASHER	1.10
24	1085F	MECHANICAL BRAKE WASHER	1.10
25	1057X	EXTRACTION STOPPER	1.65
26	105BP	BALL BEARING (5 X 9 X 3)	13.75
27	10LA9	O-RING	1.65
29	10SMM	FIXING BOLT	1.10
30	1055J	FIXING BOLT	1.65
31	10TM8	ROLLER CLUTCH *Cannot be ordered	17.05
32	10RZH	ROLLER CLUTCH INNER TUBE	9.90
33	10D55	STAR DRAG PLATE	6.05
34	10JB0	DRAG CLICK RATCHET	2.75
35	10CKS	STAR DRAG WASHER	6.05
37	10C0T	DRAG CLICK PIN	2.75
38	10J8A	DRAG SPRING HOLDER	1.65
39	10J87	DRAG SPRING HOLDER	1.65
40	10CJ4	STAR DRAG WASHER (A)	3.85
41	10R5Z	STOPPER GEAR	2.75
42	10EEM	DRIVE GEAR SHAFT	16.50
43	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
44	10HJG	PIN FOR WORM SHAFT GEAR	1.65
45	10EE3	WORM SHAFT GEAR	1.10
46	10MT2	FIXING BOLT	1.10
47	10RZG	DRIVE GEAR SHAFT FIXING PLATE	1.65
48	104JZ	BALL BEARING (5 X 8 X 2.5)	13.75
49	10PVU	FIXING BOLT	1.65
50	10SZ4	O-RING	1.65
51	105NC	E TYPE STOPPER RING 2	1.10
52	10EEL	WORM SHAFT GEAR	1.10
53	10J1J	WASHER	1.10
54	10PXY	HANDLE GRIPPED BUSHING (B)	1.65
55	10EET	WORM SHAFT	2.75
56	10GHF	WASHER	1.10
57	10NFW	LEVEL WINDING PIPE	1.65
58	10RZL	LEVEL WINDING ROD	3.30
60	104BJ	CLUTCH YOKE SPRING	1.10
61	10EE4	CLUTCH YOKE	1.10
62	10LVH	CLUTCH CAM FIXING BOLT	1.10
63	10EE6	CLUTCH CAM PUSH PLATE	8.80
64	10559	FIXING BOLT	1.65
65	10RWF	CLUTCH CLAW (B)	1.65
66	10SKS	CLUTCH CAM	2.75
67	10RWC	CLUTCH CLAW (A)	1.65
68	101A6	CLUTCH CLAW SPRING	1.65
69	10EDY	CLUTCH SPRING HOLDER	1.10
70	10RZN	CLUTCH PLATE	2.20
71	10DSZ	FIXING BOLT	1.10
72	10EEC	BODY A SEAT	1.10
73	10NYH	LEVEL WINDING ASSEMBLY	22.55
74	108WQ	O-RING	1.65
75	100BT	WORM SHAFT PIN	2.75
76	10CFV	WASHER	1.10
77	10FJB	LEVEL WINDING GUIDE	1.65
78	10S2Y	FIXING BOLT	1.10
79	10RZM	LEVEL WINDING GUARD	7.15
80	10E7C	FRAME ASSEMBLY	113.85
81	1055A	FIXING BOLT	1.65
82	10TGT	FIXING BOLT	1.10
83	103DF	FIXING BOLT	1.10
84	10EE2	CLUTCH BAR GUIDE	1.10
85	10EEF	CLUTCH BAR	5.50
86	10BAV	BODY B CAM LEVER	2.75
87	10BGQ	BODY B CAM LEVER PUSH PLATE	1.65
89	10E7G	WASHER	1.10
90	10RUC	BALL BEARING (3 X 8 X 2.5) *Cannot be ordered	15.95
91	10E7H	O RING	1.10
92	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
93	10E7D	SPOOL ASSEMBLY (WITH BEARING)	134.75
94	10EEA	FIXING BOLT	1.10
95	10TK4	BRAKE FIXING PLATE	3.85
96	10DGJ	BRAKE COIL SPRING	1.10
97	10E7E	MAGNET HOLDER ASSEMBLY	29.70
98	10EEK	BRAKE MOUNTING STAND	3.30
99	101A9	BEARING RETAINING CLAMP	1.10
100	1085H	MECHANICAL BRAKE WASHER	1.10
102	101EF	FRAME B GUIDE ASSEMBLY	45.10
103	100KS	O-RING	1.10
105	10SBH	O-RING WASHER	1.10
106	10RZR	BODY B	20.90
107	10RZX	BRAKE DIAL	3.30
108	101A7	FIXING BOLT	5.50
109	10E7F	BODY B ASSEMBLY	93.50
110	10J4L	BEARING WASHER	1.10
111	10EFM	STAR DRAG BEARING WASHER	1.65
112	10DN7	FIXING BOLT	1.65
113	10DQN	FIXING BOLT	1.65
114	10U1C	BEARING WASHER	1.10
201	101EG	BODY A ASSEMBLY	64.90
202	10EEE	DRIVE GEAR	24.75
203	10RZC	PINION GEAR	17.05
BNKI	13WV4	EXPLODED VIEW (ACCESSORIES)	1.65
OIL3	10TR6	BFS OIL	3.85
TRST	13PL6	INSTRUCTION MANUAL (ACCESSORY)	2.20
