[SHIMANO] Genuine Spare Parts for 08 CURADO 300J Product code: 022608 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 08 CURADO 300J Product code: 022608 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$47.36 [Regular Price: US$1.10 - US$67.65]

Prices vary according to options.

Not available
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

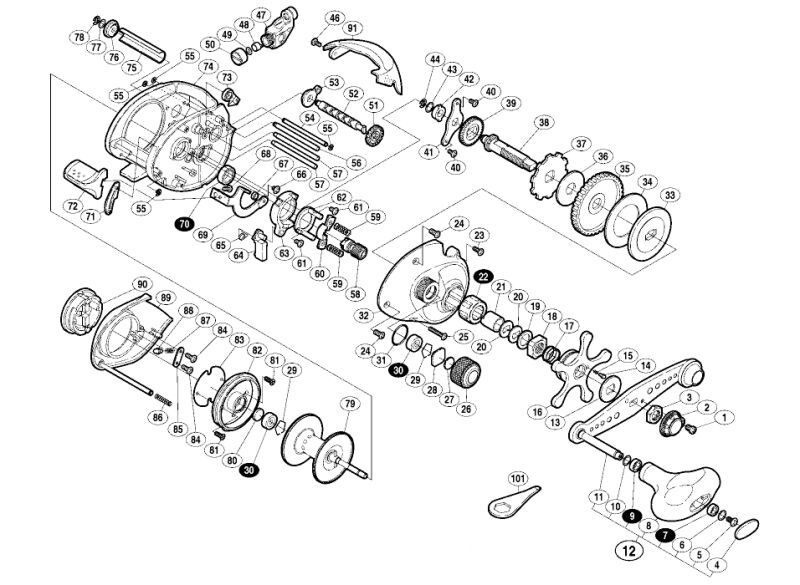

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHZ REEL BAG 9.35
1 103GX FIXING BOLT 1.10
2 10Q60 RETAINER 6.05
3 10FNR HANDLE FIXING NUT 1.65
4 13MAF HANDLE CAP 1.65
5 103E9 FIXING BOLT 1.10
6 105ET WASHER 1.10
7 104VW BALL BEARING (4 X 7 X 2.5) 13.75
8 13V05 HANDLE GRIP 17.05
9 104JY BALL BEARING (5 X 8 X 2.5) 13.75
10 105KM GRIP FIXED SHAFT SEAL 1.10
11 13HSE HANDLE 34.10
12 13J02 HANDLE ASSEMBLY 67.65
13 10J22 STAR DRAG CLICK PLATE 1.65
14 10BT0 CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 13HWN STAR DRAG ASSEMBLY 22.55
17 10A73 STAR DRAG SPRING 2.75
18 10LS6 STAR DRAG FIXING NUT 2.75
19 10J1L STAR DRAG SPACER 1.10
20 10D60 MAIN GEAR WASHER (C) 1.65
21 10BPF INNER TUBE 6.05
22 10F5D ROLLER CLUTCH BEARING A-RB 17.05
23 13JT6 FIXING BOLT 1.10
24 10LZP FIXING BOLT 1.10
25 10M2Z FIXING BOLT 1.10
26 13TY4 SPOOL DRAG KNOB 11.55
27 10896 MECHANICAL BRAKE WASHER 1.10
28 1085F MECHANICAL BRAKE WASHER 1.10
29 10GEW BEARING STOPPER 1.10
30 105C1 BALL BEARING (3 X 10 X 4) 13.75
31 108WK O-RING SM14 1.65
32 13TRY BODY A 34.10
33 10D3P STAR DRAG PLATE 3.85
34 1071U STAR DRAG WASHER 6.05
35 10CTG MAIN GEAR 24.75
36 10CHZ STAR DRAG WASHER 2.75
37 109BB STOPPER GEAR 6.05
38 105H8 MAIN GEAR SHAFT 11.55
39 10J71 CROSS GEAR 1.65
40 10MT0 FIXING BOLT 1.10
41 109T3 MAIN GEAR SHAFT FIXING PLATE 1.65
42 10MAM MAIN GEAR SHAFT BUSHING 1.65
43 10C47 MAIN GEAR SHAFT WASHER 1.10
44 105NK TYPE E RETAINING RING 2.5 1.10
46 10MPN FIXING BOLT 1.10
47 13GCZ LEVEL-WIND ASSEMBLY 9.35
48 10FFZ WORM SHAFT PIN 2.75
49 10CFW ADJUSTMENT WASHER SET 1.10
50 10FJV LEVEL WINDING RECEIVER 1.65
51 10BHY CROSS GEAR (C) 6.05
52 104ZQ CROSS GEAR SHAFT 6.05
53 10ND0 CROSS GEAR SHAFT (A) 2.75
54 10Q28 LINE GUARD 2.75
55 105NB E TYPE STOPWHEEL 1.5 1.10
56 10GUP LEVEL WINDING GUIDE 2.75
57 10QSM LEVEL WINDING ROD 2.75
58 10CV9 PINION GEAR 12.65
59 104BM CLUTCH YOKE SPRING 1.10
60 1047A CLUTCH YOKE 1.65
61 10LVG FIXING BOLT 1.10
62 10F66 CLUTCH CAM PUSH PLATE 3.85
63 10K11 CLUTCH CAM 2.75
64 105ZW CLUTCH CLAW 6.05
65 10N1Z CLUTCH CLAW SPRING 1.10
66 10MPA FIXING BOLT 1.10
67 10Q7J CLUTCH PLATE BEARING 1.65
68 10MPW FIXING BOLT 1.10
69 10NPR CLUTCH PLATE 3.85
70 10583 BALL BEARING (8 X 12 X 3.5) 13.75
71 13T8X CLUTCH BAR GUIDE (B) 2.75
72 13T2W CLUTCH LEVER 1.65
73 10MW2 STOPPER CLAW ASSEMBLY 3.85
74 13G0T MAIN FRAME 67.65
75 10NG1 LEVEL WINDING PIPE 2.75
76 104SZ CROSS GEAR GUIDE B 1.65
77 10BHX CROSS GEAR SHAFT WASHER (A) 1.10
78 105NC E TYPE STOPPER RING 2 1.10
79 13GJJ SPOOL ASSEMBLY 67.65
80 1057S SPOOL SHAFT CONTACT (B) 1.10
81 10MGK FIXING BOLT 1.10
82 13RPE MAIN FRAME B RECEIVER 22.55
83 108F2 BRAKE KNOB ADJUSTMENT WASHER 1.10
84 103C0 FIXING BOLT 1.10
85 10KVM CLICK PIN FIXING PLATE 1.65
86 10KNG DAMPER SPRING 1.10
87 10B52 BRAKE KNOB CLICK SPRING 1.65
88 10B50 BRAKE KNOB CLICK PIN 1.65
89 13R61 BODY B 22.55
90 13FQW BRAKE KNOB ASSEMBLY 11.55
91 13TMA THUMB REST 11.55
101 10MJ1 REEL WRENCH (ACCESSORY) 2.75
BNKI 13WLK EXPLODED VIEW (ACCESSORY) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VJZ INSTRUCTION MANUAL (ACCESSORY) 1.65
