[SHIMANO] Genuine Spare Parts for 16 CASITAS MGL 101HG Product code: 036162 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 CASITAS MGL 101HG Product code: 036162 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$70.84 [Regular Price: US$1.10 - US$101.20]

Prices vary according to options.

Part Number:
Quantity:

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.68 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3550

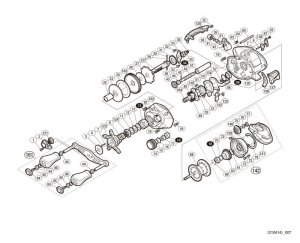

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "BSS1 / BRAKE SHOE S", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10LFC FIXING BOLT 1.65
2 10Q5U RETAINER 3.85
5 10J22 STAR DRAG CLICK PLATE 1.65
6 10MFC CLICK PIN 1.65
7 10BT2 CLICK SPRING 1.65
9 10A70 STAR DRAG SPRING 2.75
11 10J1N STAR DRAG SPACER 1.65
12 109F5 DRIVE GEAR WASHER 1.65
13 10F5C ROLLER CLUTCH BEARING 17.05
14 13U0R MECHANICAL BRAKE KNOB 9.35
15 10896 MECHANICAL BRAKE WASHER 1.10
16 1085F MECHANICAL BRAKE WASHER 1.10
17 10TMT MECHANICAL BRAKE LOOSENING STOP SPRING 1.65
18 105C0 BALL BEARING (3 X 10 X 4) 13.75
19 10LFK FIXING BOLT 1.10
20 10LSZ FIXING BOLT 1.10
22 45056 ROLLER CLUTCH INNER TUBE 6.05
23 10D3H STAR DRAG PLATE 2.75
24 106XT STAR DRAG WASHER 6.05
26 10CHF STAR DRAG WASHER 6.05
27 10D73 STOPPER GEAR 6.05
29 10JDY SPRING FOR WORM SHAFT GEAR 1.65
30 10HJG WORM SHAFT GEAR PINS 1.65
31 10J47 WORM SHAFT GEAR 2.75
32 10R1R FIXING BOLT 1.10
33 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
34 105BL BALL BEARING (5 X 9 X 3) 7.15
35 10C47 MAIN GEAR SHAFT WASHER 1.10
36 105NK E TYPE STOP RING 2.5 1.10
38 10FJB LEVEL WINDING RECEIVING PLATE 1.65
39 104TX WASHER 1.10
41 108WQ O-RING 1.65
42 10NVQ LEVEL WINDING ASSEMBLY 11.55
43 10FNV WORM SHAFT GEAR 2.75
44 10PXZ HANDLE KNOB BUSHING 1.65
45 10AEZ WORM SHAFT PIN 1.10
47 10NFX LEVEL-WIND PIPE 1.65
49 10487 CLUTCH YOKE SPRING 1.10
51 10L1R FIXING BOLT 1.10
52 10F3X CLUTCH CAM PUSH PLATE 3.85
57 103C0 FIXING BOLT 1.10
58 10190 WASHER 1.65
59 10EX6 BALL BEARING (8 X 12 X 3.5) 7.15
63 10FJZ BALL BEARING WASHER 1.10
64 105NC E TYPE STOP RING 2 1.10
65 10QSH LEVEL-WIND GUIDE 1.65
67 10BGR BODY B CAM LEVER PUSH PLATE 1.65
68 13AV9 SPOOL ASSEMBLY 101.20
69 1054D BEARING PULL-OUT STOP 1.10
70 10EX5 SPOOL SHAFT CONTACT B 1.10
72 10L1Q FIXING BOLT 1.10
75 10LA8 O RING 1.65
76 10GFC WASHER 1.65
77 10A6L FIXING BOLT 9.35
78 108F0 B RECEIVING AND ADJUSTING WASHER 1.65
81 10TPT WORM SHAFT PIN 2.75
82 10TPN WORM SHAFT 6.05
83 13AUB BRAKE PIPE GEAR 9.35
84 10FMM HANDLE CAP 1.65
85 103E9 FIXING BOLT 1.10
86 104FH WASHER 2.20
121 10FSN HANDLE FIXING NUT 2.75
123 10R0J STAR DRAG 17.05
124 10A3U STAR DRAG FIXING NUT 3.85
127 105CH DRIVE GEAR SHAFT 11.55
128 10FWK LEVEL WINDING GUARD 6.05
130 1046W CLUTCH YOKE 1.65
131 10K0P CLUTCH CAM 2.75
132 10MQM CLUTCH CLAW 3.85
133 104CQ CLUTCH CLAW SPRING 1.65
134 10QGJ CLUTCH PLATE 4.95
135 100DD CLUTCH FRAME 28.05
136 10976 CLUTCH BAR GUIDE (B) 1.65
137 10CDS CLUTCH LEVER 1.65
138 10BAZ BODY B CAM LEVER 1.65
139 10TWT FRAME B RECEIVER ASSEMBLY 11.55
140 10B1Y BR KNOB 3.85
141 10D14 BODY B 6.05
142 13AU4 BODY B ASSEMBLY 34.10
161 10TQZ HANDLE ASSEMBLY 50.60
162 13TVB BODY A 13.75
163 10CME DRIVE GEAR 22.55
164 10CSD PINION GEAR 11.55
BNKI 13BAW EXPLODED VIEW (ACCESSORIES) 1.65
BSS1 13B5A BRAKE SHOE S *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT *Cannot be ordered 1.10
HCAP 10FMM HANDLE CAP 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13B8B INSTRUCTION MANUAL (ACCESSORY) 1.65
