[SHIMANO] Genuine Spare Parts for 22 SLX DC XT 71 Product code: 044693 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.80 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5612

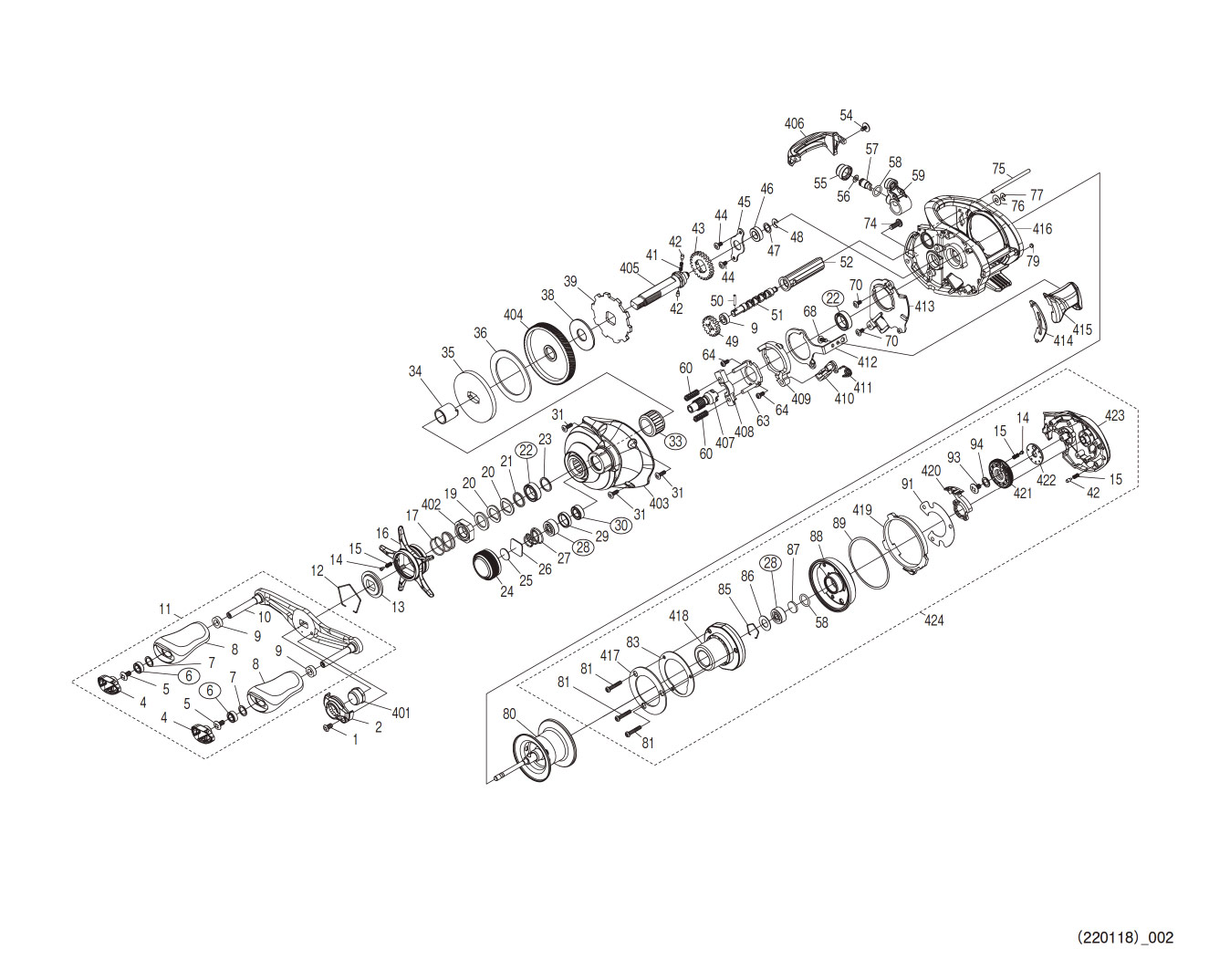

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	101VV	FIXING BOLT	1.10
2	10SRE	RETAINER	3.85
4	1027R	HANDLE CAP	2.75
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10DW6	HANDLE KNOB	11.55
9	10PXZ	HANDLE KNOB BUSH	1.65
10	101VF	HANDLE	22.55
11	10R4N	HANDLE ASSEMBLY	67.65
12	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
13	10J26	STAR DRAG CLICK PLATE	1.65
14	10MFC	CLICK PIN	1.65
15	10BT2	CLICK SPRING	1.65
16	10R4H	STAR DRAG	16.50
17	10A70	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	109F5	DRIVE GEAR WASHER	1.65
21	100SE	WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	10J4K	WASHER	1.10
24	10050	MECHANICAL BRAKE KNOB	9.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	10TMT	MECHANICAL BRAKE LOOSENING STOP SPRING	1.65
28	105C0	BALL BEARING (3 X 10 X 4)	13.75
29	10EYS	BEARING SPACER	2.75
30	105BP	BALL BEARING (5 X 9 X 3)	13.75
31	10LCY	FIXING BOLT	1.10
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
34	10TFV	ROLLER CLUTCH INNER TUBE	11.55
35	100BK	STAR DRAG PLATE	2.75
36	106XT	STAR DRAG WASHER	6.05
38	1023U	STAR DRAG WASHER	6.05
39	10R6Z	STOPPER GEAR	6.05
41	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
42	10HJG	WORM SHAFT GEAR PINS	1.65
43	10J47	WORM SHAFT GEAR	2.75
44	10E8N	FIXING BOLT	1.10
45	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
46	10DQF	DRIVE GEAR SHAFT BUSHING	1.65
47	10G6D	WASHER	1.65
48	105NK	E TYPE STOP RING 2.5	1.10
49	10FNV	WORM SHAFT GEAR	2.75
50	10AEZ	WORM SHAFT PIN	1.10
51	10THG	WORM SHAFT	1.10
52	10DGT	LEVEL WINDING PIPE	1.10
54	1022E	FIXING BOLT	1.65
55	10FJB	LEVEL WINDING RECEIVER	1.65
56	10CFU	WORM WASHER	1.10
57	10BHQ	WORM SHAFT PIN	2.75
58	108WQ	O-RING	1.65
59	10NVR	LEVEL-WIND ASSEMBLY	9.35
60	10487	CLUTCH YOKE SPRING	1.10
64	10LVE	FIXING BOLT	1.10
65	10F3X	CLUTCH CAM PUSH PLATE	3.85
68	103C0	FIXING BOLT	1.10
70	10S57	FIXING BOLT	1.65
74	10LFL	FIXING BOLT	1.65
75	10QSH	LEVEL WINDING GUIDE	1.65
76	10FJZ	WASHER	1.10
77	105NC	E TYPE RETAINING RING 2	1.10
79	108PY	FRAME TALLY WASHER	1.65
80	10DVE	SPOOL ASSEMBLY	99.00
81	10E8P	FIXING BOLT	1.65
83	101M9	BOARD MOUNTING PLATE	2.75
85	1054D	BEARING PULL-OUT STOP	1.10
86	10B94	BEARING SEAL	1.65
87	10EX5	SPOOL SHAFT CONTACT B	1.10
88	101M4	FRAME B RECEIVER	9.35
89	104N5	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
91	108EZ	B BEARING ADJUSTMENT WASHER	1.10
93	103LE	FIXING BOLT	1.10
94	10GAA	CAM LEVER ADJUSTMENT WASHER	1.10
401	10049	HANDLE FIXING NUT	6.05
402	10A3U	STAR DRAG FIXING NUT	3.85
403	10SKA	BODY A	22.55
404	10DRA	DRIVE GEAR	22.55
405	10SYR	DRIVE GEAR SHAFT	11.55
406	10SX4	LEVEL WINDING GUARD	2.75
407	10SB0	PINION GEAR	11.55
408	1046W	CLUTCH YOKE	1.65
409	10K0P	CLUTCH CAM	2.75
410	10MQM	CLUTCH CLAW	3.85
411	104CQ	CLUTCH CLAW SPRING	1.65
412	10QGJ	CLUTCH PLATE	4.95
413	10BVM	BODY A SEAT	3.85
414	1096T	CLUTCH BAR GUIDE (B)	1.65
415	10SX7	CLUTCH LEVER	3.30
416	1017G	FRAME ASSEMBLY	44.00
417	10ST5	BODY B SUBSTRATE SEAL	1.65
418	100HJ	BODY B SUBSTRATE ASSEMBLY	112.20
419	10SYQ	BODY B CAM LEVER	2.75
420	10QUT	MAGNET CAM ASSEMBLY	9.35
421	1017H	BRAKE DIAL	6.60
422	10ST4	CLICK SHILLING	1.65
423	10SX5	MAIN UNIT B	11.55
424	10DGE	MAIN UNIT B ASSEMBLY	181.50
PUNT	13JRN	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	2.20
