[SHIMANO] Genuine Spare Parts for 22 SLX DC XT 70 Product code: 044686 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.80 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5612

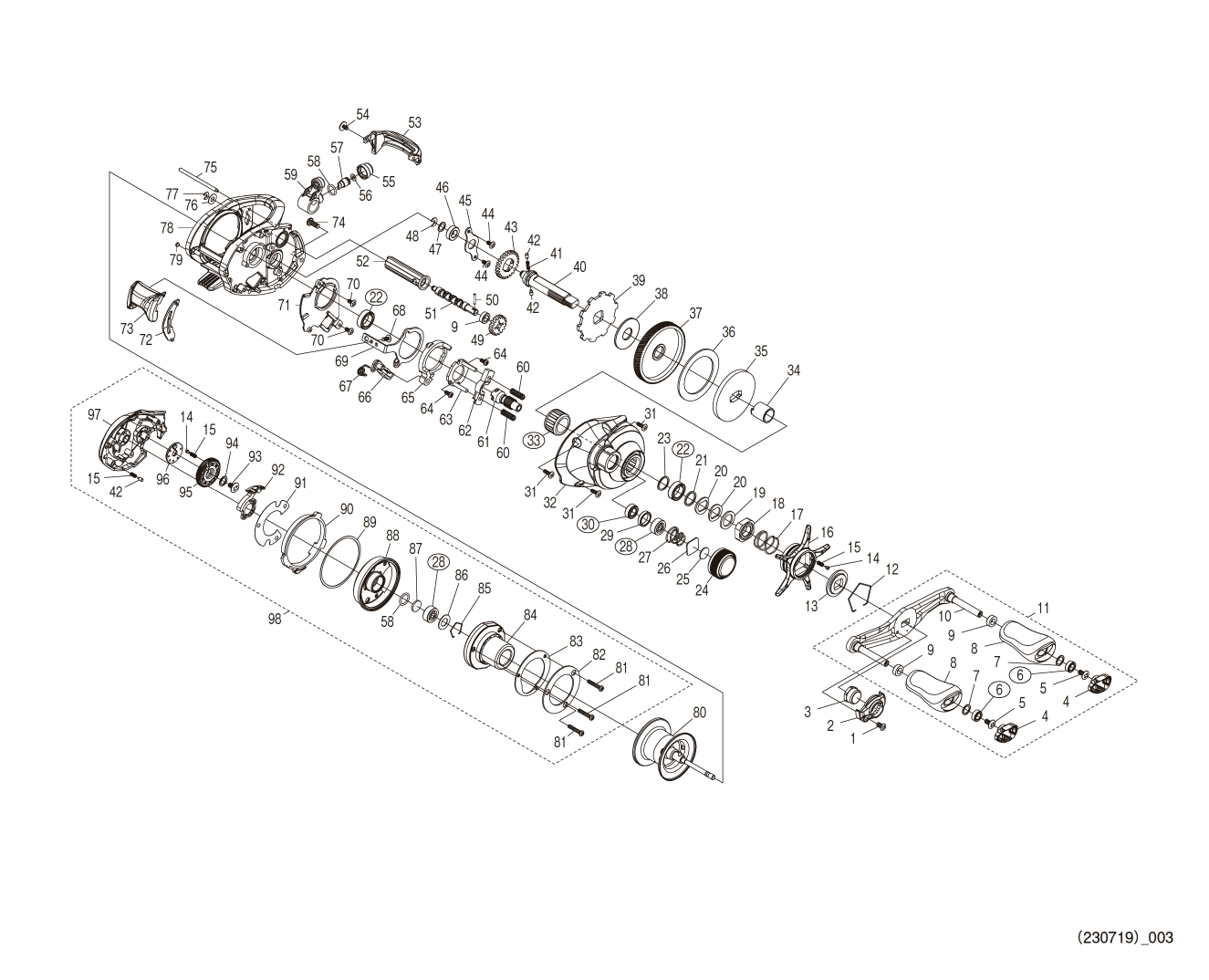

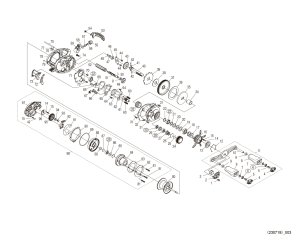

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	101VV	FIXING BOLT	1.10
2	10SRE	RETAINER	3.85
3	10E67	HANDLE FIXING NUT	6.05
4	1027R	HANDLE CAP	2.75
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	10DW6	HANDLE KNOB	11.55
9	10PXZ	HANDLE KNOB BUSHING	1.65
10	101VF	HANDLE	22.55
11	10R4N	HANDLE ASSEMBLY	67.65
12	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
13	10J26	STAR DRAG CLICK PLATE	1.65
14	10MFC	CLICK PIN	1.65
15	10BT2	CLICK SPRING	1.65
16	10R4H	STAR DRAG	16.50
17	10A70	STAR DRAG SPRING	2.75
18	10A3T	STAR DRAG LOCKING NUT	3.85
19	10J1N	STAR DRAG SPACER	1.65
20	109F5	DRIVE GEAR WASHER	1.65
21	100SE	WASHER	1.10
22	10EX8	BALL BEARING (8X12X3.5)	13.75
23	10J4K	WASHER	1.10
24	10050	MECHANICAL BRAKE KNOB	9.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	10TMT	MECHANICAL BRAKE LOCKING SPRING	1.65
28	105C0	BALL BEARING (3X10X4)	13.75
29	10EYS	BEARING SPACER	2.75
30	105BP	BALL BEARING (5X9X3)	13.75
31	10LCY	FIXING BOLT	1.10
32	10R4J	MAIN BODY A	22.55
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
34	10TFV	ROLLER CLUTCH INNER TUBE	11.55
35	100BK	STAR DRAG PLATE	2.75
36	106XT	STAR DRAG WASHER	6.05
37	101Q3	DRIVE GEAR	22.55
38	1023U	STAR DRAG WASHER	6.05
39	10R6Z	STOPPER GEAR	6.05
40	10286	DRIVE GEAR SHAFT	11.55
41	10JDY	WORM SHAFT GEAR SPRING	1.65
42	10HJG	WORM SHAFT GEAR PIN	1.65
43	10J47	WORM SHAFT GEAR	2.75
44	10E8N	FIXING BOLT	1.10
45	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
46	10DQF	DRIVE GEAR SHAFT BUSHING	1.65
47	10G6D	WASHER	1.65
48	105NK	E-TYPE RETAINING RING 2.5	1.10
49	10FNV	WORM SHAFT GEAR	2.75
50	10AEZ	WORM SHAFT PIN	1.10
51	10THG	WORM SHAFT	1.10
52	10DGT	LEVEL WIND PIPE	1.10
53	10E34	LEVEL WIND GUARD	2.75
54	1022E	FIXING BOLT	1.65
55	10FJB	LEVEL WIND RECEIVER	1.65
56	10CFU	WASHER	1.10
57	10BHQ	WORM SHAFT PIN	2.75
58	108WQ	O-RING	1.65
59	10NVR	LEVEL WIND ASSEMBLY	9.35
60	10487	CLUTCH YOKE SPRING	1.10
61	101Q4	PINION GEAR	11.55
62	1046V	CLUTCH YOKE	1.65
63	10F3X	CLUTCH CAM PRESSURE PLATE	3.85
64	10LVE	FIXING BOLT	1.10
65	10K0N	CLUTCH CAM	2.75
66	10MME	CLUTCH CLAW	3.85
67	104CP	CLUTCH CLAW SPRING	1.65
68	103C0	FIXING BOLT	1.10
69	10QGH	CLUTCH PLATE	4.95
70	10S57	FIXING BOLT	1.65
71	10BVL	MAIN BODY A SHEET	3.85
72	1096S	CLUTCH LEVER SUPPORT (B)	1.65
73	10E2Z	CLUTCH LEVER	3.30
74	10LFL	FIXING BOLT	1.65
75	10QSH	LEVEL WIND GUIDE	1.65
76	10FJZ	WASHER	1.10
77	105NC	E-TYPE RETAINING RING 2	1.10
78	10175	FRAME ASSEMBLY	44.00
79	108PY	FRAME STOP WASHER	1.65
80	10DVE	SPOOL ASSEMBLY	99.00
81	10E8P	FIXING BOLT	1.65
82	101MK	MAIN UNIT B BASE PLATE SEAL	1.65
83	101M9	BASE PLATE MOUNTING PLATE	2.75
84	100HK	MAIN UNIT B BASE PLATE ASSEMBLY	112.20
85	1054D	BEARING RETAINER	1.10
86	10B94	BEARING SEAL	1.65
87	10EX5	SPOOL SHAFT WASHER B	1.10
88	101M4	FRAME B MOUNT	9.35
89	104N5	MAIN UNIT B CAM LEVER ADJUSTMENT WASHER	1.65
90	10SRF	MAIN UNIT B CAM LEVER	2.75
91	108EZ	B MOUNT ADJUSTMENT WASHER	1.10
92	101KX	MAGNET CAM ASSEMBLY	9.35
93	103LE	FIXING BOLT	1.10
94	10GAA	WASHER	1.10
95	1017F	BRAKE DIAL	6.60
96	101WM	CLICK RING	1.65
97	10R4M	MAIN UNIT B	11.55
98	10RFF	MAIN UNIT B ASSEMBLY	181.50
