[SHIMANO] Genuine Spare Parts for 23 SLX DC 71 HG Product code: 045638 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 23 SLX DC 71 HG Product code: 045638 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$117.81 [Regular Price: US$1.10 - US$168.30]

Prices vary according to options.

Part Number:
Quantity:

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.



- Genuine Spool Purchase

* If you just want the genuine spool (No.85 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5945

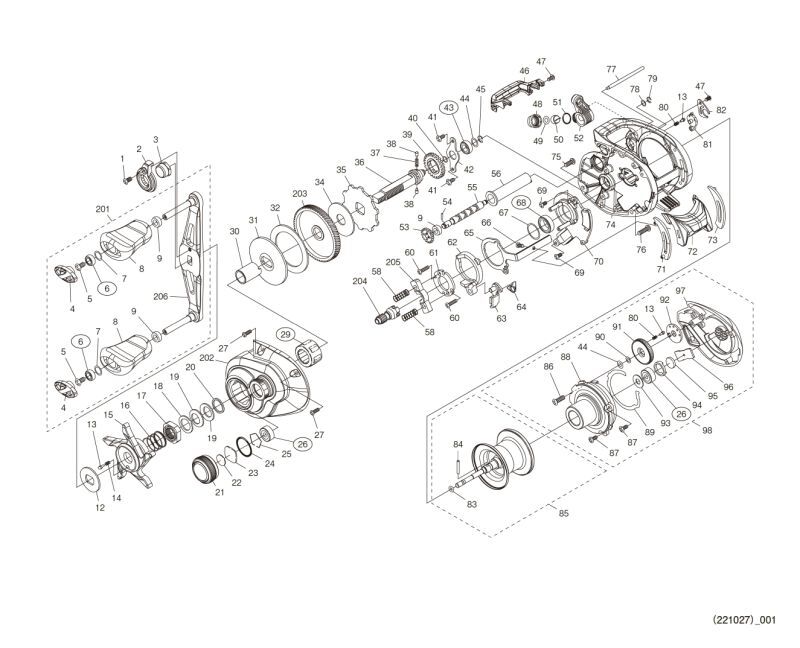

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "29 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DV5 FIXING BOLT 1.10
2 1017T RETAINER 3.85
3 10049 HANDLE FIXING NUT 6.05
4 1027R HANDLE CAP 2.75
5 10LFA FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10DW6 HANDLE KNOB 11.55
9 10PXZ HANDLE KNOB BUSHING 1.65
12 10J22 STAR DRAG CLICK PLATE 1.65
13 10MFC CLICK PIN 1.65
14 10BT2 CLICK SPRING 1.65
15 100DS STAR DRAG 11.55
16 10A70 STAR DRAG SPRING 2.75
17 10A3U STAR DRAG FIXING NUT 3.85
18 10J1N STAR DRAG SPACER 1.65
19 109F5 DRIVE GEAR WASHER 1.65
20 100SE SEATING WASHERS 1.10
21 10050 MECHANICAL BRAKE KNOB 9.35
22 10896 MECHANICAL BRAKE WASHER 1.10
23 1085F MECHANICAL BRAKE WASHER 1.10
24 10R22 O-RING 1.65
25 1054D BEARING RETAINING CLIP 1.10
26 105C3 BALL BEARING (3 X 10 X 4) 7.15
27 10LCY FIXING BOLT 1.10
29 10F5C ROLLER CLUTCH BEARING *Cannot be ordered 17.05
30 13UD1 ROLLER CLUTCH INNER TUBE 11.55
31 100BK STAR DRAG PLATE 2.75
32 106XT STAR DRAG WASHER 6.05
34 10CHF STAR DRAG WASHER 6.05
35 10R6Z STOPPER GEAR 6.05
36 100VZ DRIVE GEAR SHAFT 11.55
37 10JDY SPRING FOR WORM SHAFT GEAR 1.65
38 10HJG WORM SHAFT GEAR PINS 1.65
39 10J47 WORM SHAFT GEAR 2.75
40 108WU O-RING 1.65
41 10E23 FIXING BOLT 1.10
42 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
43 105BP BALL BEARING (5 X 9 X 3) 13.75
44 10G6D WASHER 1.65
45 105NK E TYPE STOP RING 2.5 1.10
46 13YJW LEVEL WINDING GUARD 2.75
47 1055D FIXING BOLT 1.65
48 10FJB LEVEL WINDING RECEIVER 1.65
49 10CFU WORM SHAFT PIN 1.10
50 10BHQ WORM SHAFT PIN 2.75
51 108WQ O-RING 1.65
52 10DZY LEVEL WINDING ASSEMBLY 11.55
53 13YJK WORM SHAFT GEAR C 2.75
54 10AEZ WORM SHAFT PIN 1.10
55 10THG WORM SHAFT 1.10
56 10DGT LEVEL-WIND PIPE 1.10
58 100U9 CLUTCH YOKE SPRING 1.10
60 10LV0 FIXING BOLT 1.10
61 100US CLUTCH CAM PUSH PLATE 3.85
62 100W0 CLUTCH CAM 2.75
63 10MQM CLUTCH CLAW 3.85
64 10TMC CLUTCH CLAW SPRING 1.65
65 13YJX CLUTCH PLATE 4.95
66 10LF4 FIXING BOLT 1.10
67 10190 WASHER 1.65
68 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
69 10LCT FIXING BOLT 1.65
70 10DJ8 BODY A SEAT 3.85
71 100RH CLUTCH BAR GUIDE (B) 1.65
72 13YJM CLUTCH LEVER 1.65
73 100QX CLUTCH LEVER SEAT (A) 1.65
74 13YJY FRAME 45.10
75 100UU FIXING BOLT 1.10
76 100UV FIXING BOLT 1.10
77 100UT LEVEL-WIND GUIDE 1.65
78 10FJZ WASHER 1.10
79 105NC E TYPE RETAINING RING 2 1.10
80 10GQZ CLICK SPRING 1.10
81 100R9 BODY B CAM LEVER 1.65
82 100BW BODY B CAM LEVER PUSH PLATE 1.65
83 10TM7 O-RING 1.65
84 10P67 SPOOL CLUTCH PIN 1.65
85 13YJH SPOOL ASSEMBLY 99.00
86 10LFN FIXING BOLT 1.10
87 100WT FIXING BOLT 1.65
88 13YNQ B RECEIVING BASE ASSEMBLY 112.20
89 10T9T SEAT METAL 1.10
90 100MF BRACKET 2.75
91 10SDT BRAKE DIAL 9.35
92 10012 CLICK SHILLING 1.65
93 10B94 BEARING SEAL 1.65
94 100Q2 BEARING RETAINING CLIPS 2.75
95 10EX5 SPOOL SHAFT CONTACT B 1.10
96 100Q5 SPOOL SHAFT CONTACT C 1.65
97 13YJZ BODY B 11.55
98 13YJV BODY B ASSEMBLY 168.30
201 143X4 HANDLE ASSEMBLY 67.65
202 13YK0 BODY A 22.55
203 10CME DRIVE GEAR 22.55
204 10CSD PINION GEAR 11.55
205 1001Q CLUTCH YOKE 1.10
206 13HVX HANDLE SHAFT ASSEMBLY 22.55
PUNT 141H9 INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.20
