[SHIMANO] Genuine Spare Parts for 12 ANTARES R Product code: 028358 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

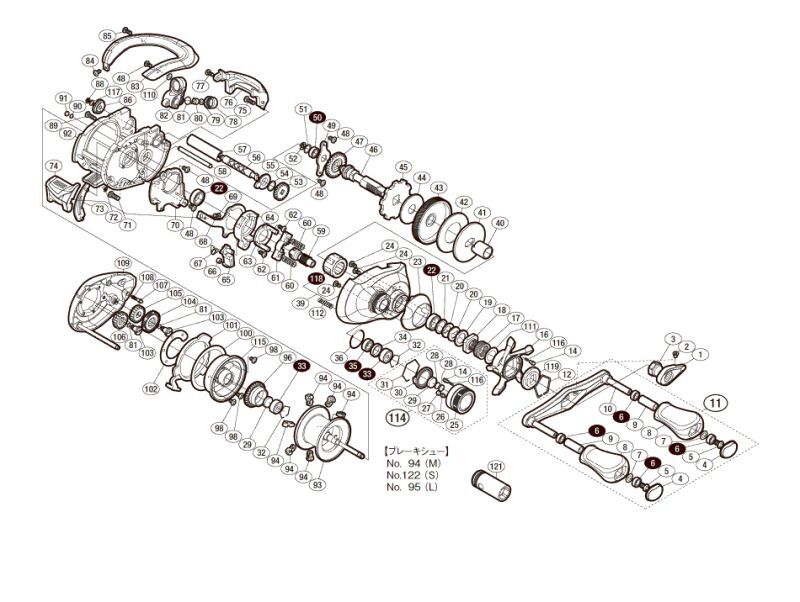

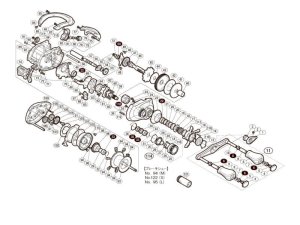

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "118 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHX	REEL BAG (ACCESSORY)	9.35
1	10Q5W	HANDLE RETAINER	6.05
2	103N8	FIXING BOLT	1.10
3	10FFH	HANDLE FIXING NUT	6.05
4	10AVV	HANDLE CAP	1.65
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10329	HANDLE KNOB	11.55
9	109VL	KNOB FIXING SHAFT PIPE	3.85
10	109VE	HANDLE	34.10
11	10CFE	HANDLE ASSEMBLY	90.20
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10BT0	CLICK PIN	1.65
16	10AX8	STAR DRAG	28.05
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	10K0A	BODY A NAMEPLATE	2.75
24	103N4	FIXING BOLT	1.10
25	10KFU	MECHANICAL BRAKE KNOB	22.55
26	10CCX	SD KNOB NAMEPLATE	1.65
27	10C5Z	NAMEPLATE SHEET	2.75
28	10896	MECHANICAL BRAKE WASHER	1.10
29	1057S	SPOOL SHAFT CONTACT (B)	1.10
30	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
31	10L6Y	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
32	10GEW	BEARING RETAINING CLAMP	1.10
33	105C0	BALL BEARING (3 X 10 X 4)	13.75
34	10EYU	BEARING SPACER	2.75
35	105BP	BALL BEARING (5 X 9 X 3)	13.75
36	108W8	O-RING S-16	1.65
39	10J36	BODY A SET	123.75
40	10BN1	ROLLER CLUTCH INNER TUBE	6.05
41	10D3M	STAR DRAG PLATE	2.75
42	10LN7	STAR DRAG WASHER	3.85
43	10CR8	DRIVE GEAR	28.05
44	10CHZ	STAR DRAG WASHER	2.75
45	10D77	STOPPER GEAR	3.85
46	105CX	DRIVE GEAR SHAFT	22.55
47	10J77	CROSS GEAR (A)	3.85
48	10MT2	FIXING BOLT	1.10
49	109T5	MAIN GEAR SHAFT FIXING PLATE	1.65
50	104JZ	BALL BEARING (5 X 8 X 2.5)	13.75
51	10C47	MAIN GEAR SHAFT WASHER	1.10
52	105NK	TYPE E RETAINING RING 2.5	1.10
53	10FP4	CROSS GEAR (C)	2.75
54	10G84	CROSS GEAR (C)	1.10
55	10NCZ	WORM SHAFT RECEIVER (A)	1.65
56	104ZN	WORM SHAFT	17.05
57	10NJH	LEVEL-WIND PIPE	6.05
58	10QSL	LEVEL-WIND ROD	2.75
59	10CU5	PINION GEAR	22.55
60	104BU	CLUTCH YOKE SPRING	1.10
61	1046S	CLUTCH YOKE	1.65
62	10LVH	CLUTCH CAM FIXING BOLT	1.10
63	10F43	CLUTCH CAM PUSH PLATE	9.35
64	10KSB	CLUTCH CAM	2.75
65	105ZU	CLUTCH CLAW	3.85
66	1048C	CLUTCH CLAW BUSHING	1.65
67	10N1Z	CLUTCH CLAW SPRING	1.10
68	10QLP	CLUTCH PLATE	4.95
69	103C0	FIXING BOLT	1.10
70	10BVX	BODY A SEAT	3.85
71	103CG	FIXING BOLT	1.10
72	105NB	E TYPE STOP RING 1.5	1.10
73	1099B	CLUTCH LEVER RECEIVER (B)	1.65
74	10MXW	CLUTCH LEVER	9.35
75	10MT8	FIXING BOLT	1.10
76	10QH1	LEVEL WIND GUARD	9.35
77	10MPR	BODY A SEAT B FIXING BOLT	1.10
78	10FJD	LEVEL WINDING RECEIVER	3.85
79	10CFW	ADJUSTMENT WASHER SET	1.10
80	10FFW	WORM SHAFT PIN	2.75
81	108WQ	O RING	1.65
82	10NYQ	LEVEL WINDING ASSEMBLY	22.55
83	104N7	THUMB REST	50.60
84	10LVD	FIXING BOLT	1.10
85	10LVL	FIXING BOLT	1.10
86	104SR	WORM SHAFT RECEIVER (B)	1.65
88	105NC	E TYPE RETAINING RING 2	1.10
89	10LUY	FIXING BOLT	1.10
90	108SK	WASHER	1.10
91	108Q2	BODY FRAME ATTACHMENT WASHER	1.10
92	10JNQ	FRAME	123.75
93	10L7Q	SPOOL ASSEMBLY	101.20
94	1046M	BRAKE SHOE (M) RED	1.10
95	13RRU	BRAKE SHOE (L) BLACK	1.10
96	10EXU	BRAKE PIPE GEAR	9.35
98	10LVA	FIXING BOLT	1.10
100	104N6	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
101	10BBW	BODY B CAM LEVER	1.65
102	108F1	BODY B RECEIVING KE ADJUSTMENT WASHER	1.10
103	10A6M	FIXING BOLT	3.85
104	10B21	BR KNOB	14.85
105	10BGN	BR KNOB GEAR	1.65
106	10CLG	INTERMEDIATE GEAR	1.65
107	10B4Z	CLICK PIN	1.65
108	10B51	CLICK SPRING	1.10
109	10HU4	BODY B ASSEMBLY	62.15
110	10CFV	WAGON WAGON	1.10
111	10HHN	SLIDER WASHER (9 X 13 X 0.3)	1.65
112	10KNE	DAMPER SPRING	1.65
114	10HWE	MECHANICAL BRAKE KNOB ASSEMBLY	34.65
115	10FXX	FRAME B RECEIVER ASSEMBLY	11.55
116	10988	CLICK SPRING	1.65
117	105EK	CLICK BUTTON WASHER	1.10
118	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
119	10J26	STAR DRAG CLICK PLATE	1.65
121	10MDK	REEL WRENCH (ACCESSORY)	3.85
122	1046N	BRAKE SHOE (S) (ACCESSORY) WHITE	1.10
BNKI	13WL3	EXPLODED VIEW (ACCESSORY)	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VJJ	INSTRUCTION MANUAL (ACCESSORY)	1.65
