[SHIMANO] Genuine Spare Parts for 19 ANTARES L Product code: 039835 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.96 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4515

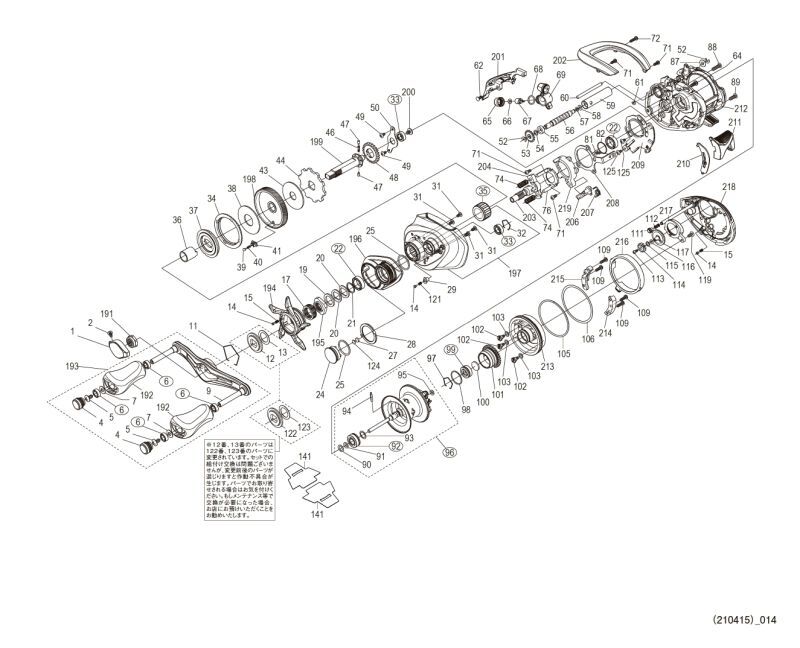

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH" and "94 / SPOOL CLUTCH PIN" and "92 / BALL BEARING" and "BSS2 / BRAKE SHOE (S)", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	10RNL	REEL BAG (ACCESSORY)	9.35
1	10RBY	RETAINER	6.05
2	10RNG	FIXING BOLT	1.65
4	10E9V	HANDLE CAP	6.05
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
9	10RMV	HANDLE SHAFT ASSEMBLY	34.10
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
24	10RLV	NUT FOR MECHANICAL BRAKE	7.15
25	1027V	O-RING	1.65
27	1085G	SPOOL DRAG WASHER	1.10
28	10RME	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
29	10RMS	MECHANICAL BRAKE KNOB CLICK PIN HOLDER	1.65
31	1055J	FIXING BOLT	1.65
32	1057X	STOPPER	1.65
33	105BP	BALL BEARING (5 X 9 X 3)	13.75
34	10E9B	DRAG CLICK RATCHET	3.85
35	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
36	10BN3	ROLLER CLUTCH INNER TUBE	6.05
37	10SNJ	STAR DRAG PLATE	7.15
38	1027W	STAR DRAG WASHER	9.35
39	10C0T	DRAG CLICK PIN	2.75
40	10J8A	DRAG CLICK SPRING	1.65
41	10J87	DRAG SPRING HOLDER	1.65
43	10CHZ	STAR DRAG WASHER	2.75
44	10RLS	STOPPER GEAR	3.85
46	10JDX	WORM SHAFT GEAR SPRING	1.65
47	10HJG	WORM SHAFT GEAR PINS	1.65
48	10057	WORM SHAFT GEAR	2.75
49	10MT2	FIXING BOLT	1.10
50	10RMQ	DRIVE GEAR SHAFT FIXING PLATE	1.65
52	105NC	E TYPE RETAINING RING 2	1.10
53	10FNX	WORM SHAFT GEAR	2.75
54	10J1J	WASHER	1.10
55	10PXY	HANDLE NIGIRI BUSHING (B)	1.65
56	10RM7	WORM SHAFT	17.05
57	10GHF	WORMSHAFT WASHER	1.10
58	10GFJ	WASHER	1.10
59	10NFW	LEVEL-WIND PIPE	1.65
60	10RMM	LEVEL-WIND GUIDE	2.75
61	105NB	E TYPE STOP RING 1.5	1.10
62	101D7	FIXING BOLT	1.65
64	10LZD	FIXING BOLT	1.65
65	10RLJ	LEVEL WINDING RECEIVER	3.85
66	10CFW	ADJUSTMENT WASHER SET	1.10
67	10211	WORM SHAFT PIN	2.75
68	108WQ	O-RING	1.65
69	10RDT	LEVEL WINDING ASSEMBLY	22.55
71	10LVH	CLUTCH CAM FIXING BOLT	1.10
72	10LUY	FIXING BOLT	1.10
74	104BU	CLUTCH YOKE SPRING	1.10
76	10F42	CLUTCH CAM PUSH PLATE	3.85
81	103C0	FIXING BOLT	1.10
82	10G8C	WASHER	1.10
87	10GA0	SEAT METAL	1.10
88	10RL4	FIXING BOLT	1.65
89	101GQ	FIXING BOLT	1.65
90	10TNF	O-RING	1.65
91	108W9	O-RING (3 X 5)	1.65
92	1005D	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
93	10GN1	WASHER	1.10
94	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
95	10EZ7	O-RING	1.10
96	10RDS	SPOOL ASSEMBLY (WITH BEARING)	101.20
97	10GEW	BEARING PULL-OUT STOPPER	1.10
98	10LA8	O-RING	1.65
99	10S37	BALL BEARING (3 X 10 X 4)	13.75
100	1057S	SPOOL SHAFT CONTACT (B)	1.10
101	100N4	BRAKE PIPE GEAR ASSEMBLY	13.75
102	10RMF	FIXING BOLT	3.85
103	10E2J	O-RING	1.65
105	108WZ	O-RING	3.85
106	104MZ	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
109	10E69	FIXING BOLT	1.10
111	10RLZ	BODY B SHAFT GUIDE	1.65
112	10REG	DAMPER SPRING	1.65
113	10PRT	FIXING BOLT	1.10
114	10BGM	BR KNOB GEAR	1.65
115	10HYU	WASHER	1.10
116	10FMT	O RING	1.10
117	10E8X	BRAKE DIAL ASSEMBLY	28.05
119	10MPS	FIXING BOLT	1.65
121	10T6Z	CLICK SPRING	1.10
122	10J1Y	STAR DRAG CLICK PLATE	1.65
123	100CU	WASHER	1.10
124	10ED4	SEAT METAL	1.10
125	100BD	FIXING BOLT	1.65
141	10PBQ	LEG PROTECTION SHEET	1.65
191	13V3H	HANDLE FIXING NUT	6.05
192	13MB9	HANDLE KNOB	11.55
193	13JCK	HANDLE ASSEMBLY	90.20
194	13V3G	STAR DRAG	28.05
195	10A0C	STAR DRAG FIXING NUT	2.75
196	13HCL	MECHANICAL BRAKE KNOB ASSEMBLY	34.65
197	13HNB	BODY A ASSEMBLY	123.75
198	13UWV	DRIVE GEAR	28.05
199	13ULD	DRIVE GEAR SHAFT	22.55
200	10PVU	FIXING BOLT	1.65
201	13SGU	LEVEL WIND GUARD	9.35
202	13RUD	THUMB REST	50.60
203	13SNX	PINION GEAR	22.55
204	1046U	CLUTCH YOKE	1.65
206	105ZV	CLUTCH CLAW	3.85
207	10N1V	CLUTCH CLAW SPRING	1.65
208	1005B	CLUTCH PLATE	4.95
209	10062	BODY A SEAT	3.85
210	1007C	CLUTCH LEVER RECEIVER (B)	1.65
211	13H66	CLUTCH LEVER ASSEMBLY	9.35
212	13G9S	FRAME ASSEMBLY	123.75
213	13FYY	FRAME B RECEIVER ASSEMBLY	22.55
214	13S04	FRAME B CLUTCH CAM	2.75
215	13S05	FRAME B RECEIVING CAM (B)	2.75
216	13RMZ	BODY B CAM LEVER	2.75
217	13RN0	BRAKE DIAL NAMEPLATE	2.75
218	13FST	BODY B ASSEMBLY	62.15
219	10SKS	CLUTCH CAM	2.75
BNKI	10RNQ	EXPLODED VIEW (ACCESSORIES)	1.65
BSS2	10RC4	BRAKE SHOES (S) *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	1.10
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	10RNV	INSTRUCTION MANUAL (ACCESSORY)	1.65
