[Avail] SHIMANO Mechanical Brake Knob BCAL-22ALD for 22 ALDEBARAN BFS

[Avail] SHIMANO Mechanical Brake Knob BCAL-22ALD for 22 ALDEBARAN BFS

Our Selling Price: US$12.32 [Regular Price: US$17.60]

View availability
Color:
Quantity:
Contact Us


Model

Mechanical Brake Knob for 22 ALDEBARAN BFS

BCAL-22ALD


Product Description

Avail original mechanical brake knob exclusively for 22 ALDEBARAN.

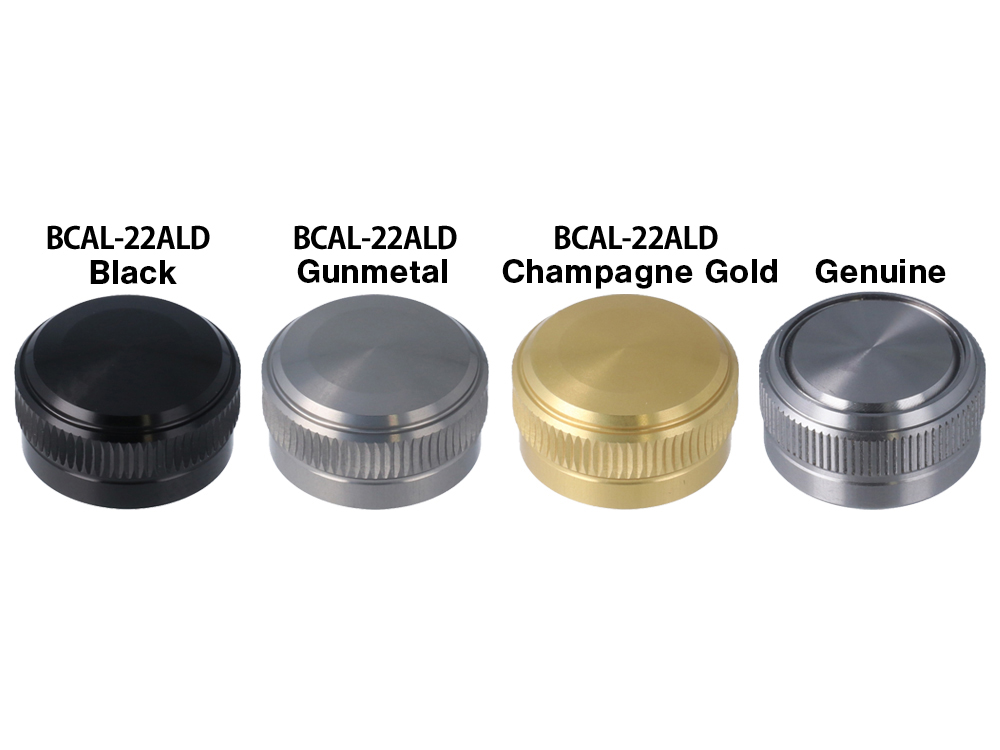

Color



Black




Gunmetal




Champagne Gold




The sides of this product have Avail's original Knurling.
You will enjoy the change in appearance along with the color.




Can be installed regardless of left/right handles and gear ratios.
BCAL-22ALD can be used even when a genuine drag is installed.
Although it is slightly heavier than the genuine product, it can be color-coordinated with the handle, drag retainer, etc.


Spec

Basic Specifications

- Material
Aluminum alloy

- Weight
Approx. 1.64 g (mechanical brake knob main unit only)
Genuine 1.56 g

- Compatible reels
22 ALDEBARAN BFS

* All gear ratios and left/right handles can be used.
* Can be installed even when genuine drag is used.


How to use

This product requires the porting of the "mechanical brake washer" that is stuck inside the genuine mechanical brake.
Refer to the following for installation
Please note that genuine parts may be lost during the work.



(1) Remove the genuine mechanical brake cap knob from the main unit of the reel.

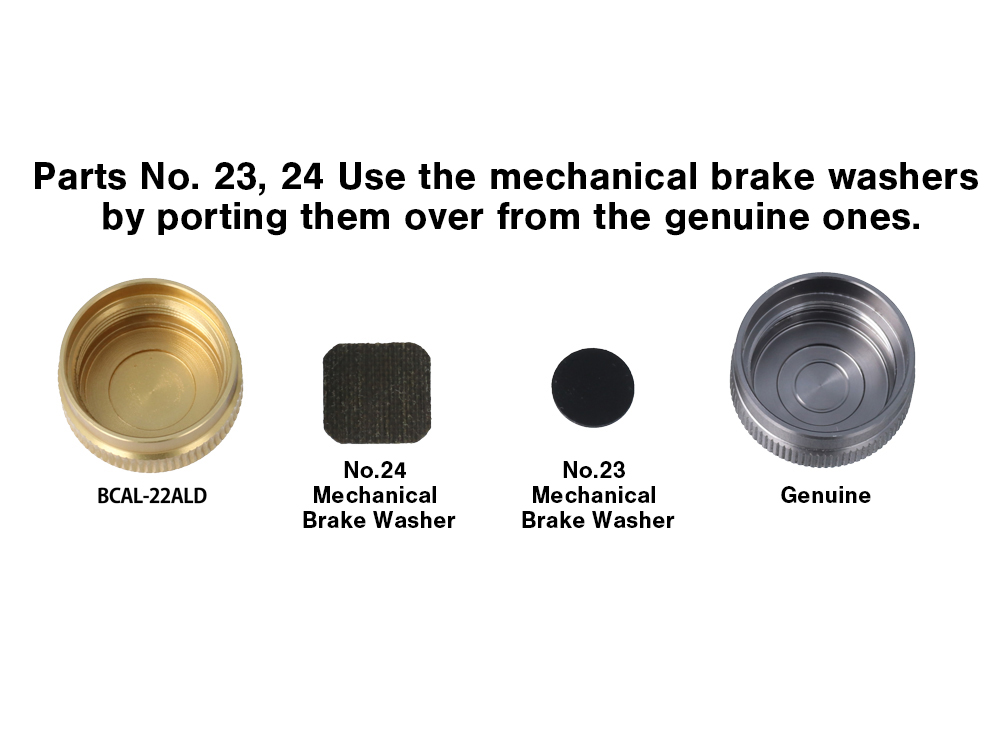

At that time, please check if the "mechanical brake washer" No. 23 or No. 24 is installed inside the genuine part (see the image above).

* If the part is missing, stop the work, purchase the genuine part, and then re-do the work.
* The part name for both genuine SHIMANO parts No. 23 and No. 24 is "mechanical brake washer. Each shape is different.

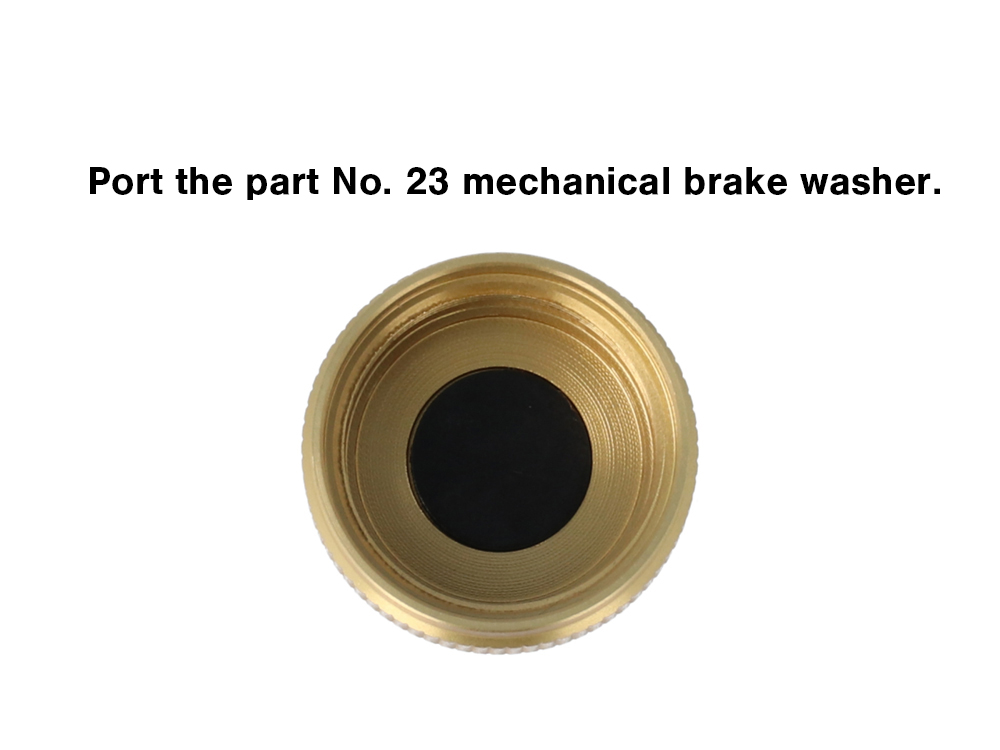

(2) Attach a No. 23 mechanical brake washer to the center of this product.

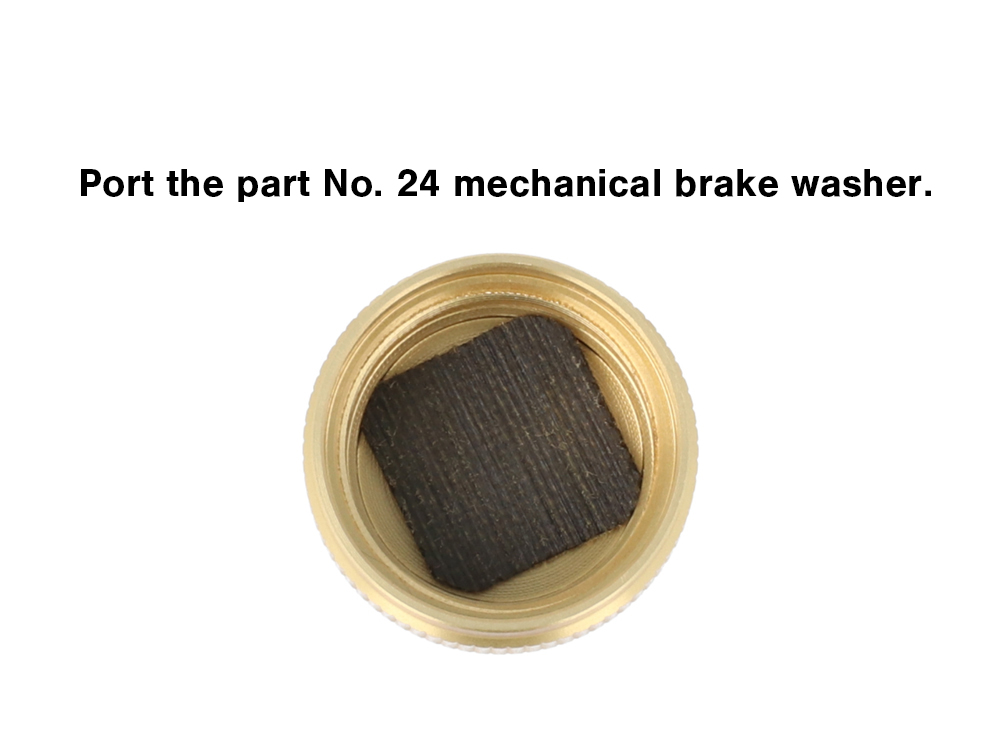

(3) Install the No. 24 mechanical brake washer on top of No. 23 to complete the porting.



After porting, attach this product to the main unit of the reel to complete the replacement process.

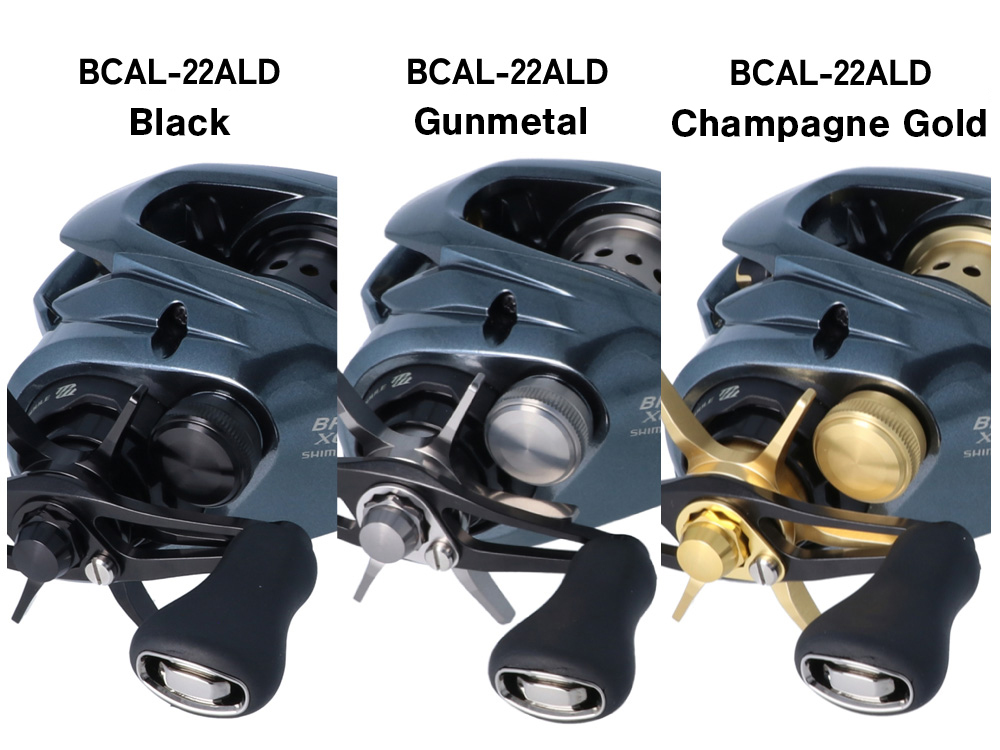

Installation Example



Black
*The handle knobs and knob caps are genuine parts.




Gunmetal
*The handle knobs and knob caps are genuine parts.




Champagne Gold
*The handle knobs and knob caps are genuine parts.
