[Avail] Abu Offset Frame 2.0 for Ambassadeur 2500C, 2501C

[Avail] Abu Offset Frame 2.0 for Ambassadeur 2500C, 2501C

Our Selling Price: US$215.60 - US$269.50 [Regular Price: US$308.00 - US$385.00]

Prices vary according to options.

View availability
Type:
Color:
Quantity:
Contact Us

Model

Aluminum offset frame 2.0 for Ambassadeur
2500-AOF20


Description







Aluminum offset frame 2.0 for Ambassadeur

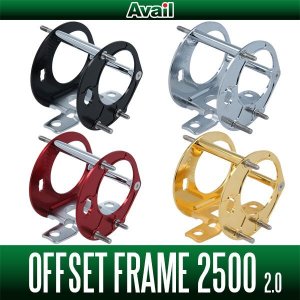

Lightweight frame for ABU Ambassadeur 1500/2500C. (Above image: 2500-AOF20)

Replacing the genuine frame can significantly reduce the weight of the reel.
Previously, the 2500-AOF75 with an offset of 7.5mm was sold, but the 2500-AOF20 has an offset of 2.0 mm.





Therefore, the height setting is easy to use even with offset grips such as champion grips.
This product is recommended for those who are particular about the genuine look and feel of the grips, and for those who use offset grips.



Although the 2500-AOF20 can be used with straight grips, we recommend the 2500-AOF75 with an offset of 7.5mm for those seeking comfort when perming.
We hope you will choose a frame that matches your preferred style and the tools you use.


Comparison of Offset Amounts


Genuine Frame


2500-AOF20 Offset amount 2.0mm


2500-AOF75 Offset amount 7.5mm


Color

2500-AOF20

AO Frame 2.0 for 2500C Black


AO Frame 2.0 for 2500C Red


AO Frame 2.0 for 2500C Chrome


AO Frame 2.0 for 2500C Gold-Plated

2501-AOF20

AO Frame 2.0 for 2501 Black


AO Frame 2.0 for 2501 Red


AO Frame 2.0 for 2501 Chrome


AO Frame 2.0 for 2501 Gold-Plated


Spec

- Basic Specifications for 2500C/2501C

Material
- Side plate, Foot, Bar: ultra-super duralumin
- Post: Titanium 64 alloy
- Fixing Screw: Stainless steel

Weight
- Aluminum offset frame 2.0 for 2500C: 27.3g (compared to genuine: approx. 54%)
- Genuine frame 2500C: 51.0g
* May vary depending on the model.

(Offset amount)
- 2.0mm

Compatibility
- ABU Ambassadeur
for 2500C: 2500C, 2500CI, 2500CDL, 3500C, 3500CS, etc.
for 2501C: 2501C, 2501CDL
*Both IAR and non-IAR are compatible.
*Not compatible with thumb bar models such as 1600C/2600C.


Example of Reel Installation







Mounted Reel: Ambassadeur 2500CS rocket


About the Product


The thumb bar portion may loosen with use.
Periodically check for looseness and retighten the screws if they are loose.
The tool size for the thumb bar portion is an M2 size hex wrench.


The previously sold 2500-AOF75 had four screws in the reel foot fixing area, but the 2500-AOF20 does not.
Therefore, the 2500-AOF20 is lighter than the 2500-AOF75 by four screws.


Precautions for mounting



As a precaution for installation, there are countless reel seats available.
Depending on the shape of the reel seat, it may not be possible to install the reel seat.
Please note that depending on the shape, offsetting may cause the level winder to interfere with the reel seat.
If the foot is loose, please use a device such as thick vinyl tape on the back of the foot.
Please understand that we may not be able to respond to inquiries as many items are unconfirmed.
