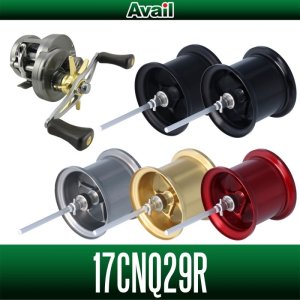

[Avail] SHIMANO Microcast Spool 17CNQ29R for 17 CALCUTTA CONQUEST BFS
It is a Microcast spool (custom spool) developed for Shimano bait finesse bait reel 17 Calcutta Conquest BFS released by Avail.
This model is compatible with Shimano's original magnet brake, FTB (finesse tune brake system) brake.
The deep groove model Microcast Spool 17CNQ29R is designed for comfortable fishing using the 10-12 lb line.
A spool with more line capacity than the genuine one recommended for light Texas rigs around 3.5g to 9g and light plucking.
Regarding Spool Bearings
The bearing mounted on the shaft of 17CNQ29R is 740ZZ size.
Please note that the size is different from the bearing built into the genuine spool.
The bearing on the palming cup side is the same as the genuine one, and the 730ZZ size (inner diameter 3 mm x outer diameter 7 mm x thickness 3 mm) is suitable.
Spool : extra super duralumin
Shaft : extra super duralumin
・Spool rim level
17CNQ15R : 1.5mm
17CNQ29R : 2.9mm
17 CALCUTTA CONQUEST BFS HG LEFT/RIGHT
Microcast Spool 17CNQ15R : approx. 5.1g
Microcast Spool 17CNQ29R : approx. 5.3g
Orginal Spool : approx. 7.9g
4Lb φ0.165mm 45m
6Lb φ0.205mm 35m
10Lb φ0.260mm 50m
12Lb φ0.285mm 40m
* The numerical value above is the result of measuring by winding fluoro-carbon line up to the edge of spool rim.
There is a possibility that anodized color finish can be rubbed off by thumbing on the spool edge as you use. It's better to thumb on fishing line on the spool as much as you can.
When winding the line on the spool, applying too much tension may cause damage.
Especially when winding a stretchy line such as a nylon line, loosen the tension before use.
