[DAIWA] Genuine Spare Parts for 20 SEABORG 300MJ-L Product code: 00810017 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 20 SEABORG 300MJ-L Product code: 00810017 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$261.80 [Regular Price: US$1.10 - US$374.00]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

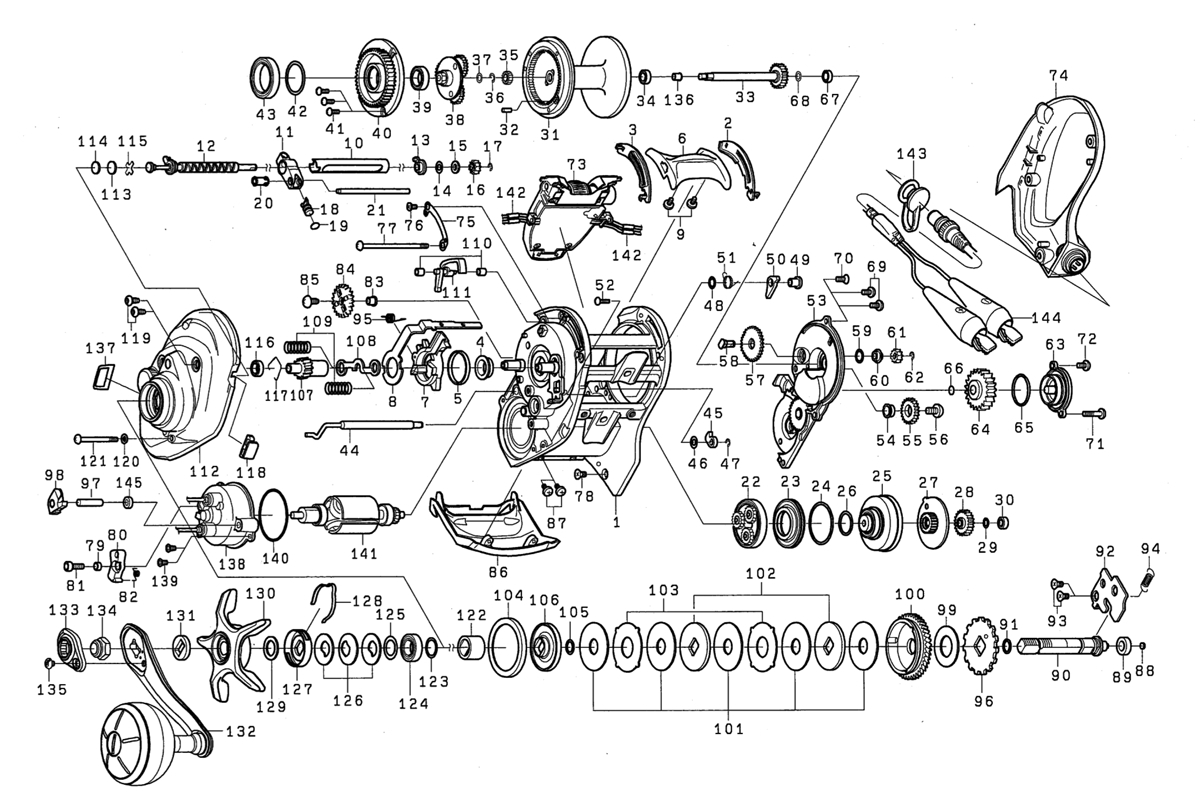

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 FRAME *Discontinued (cannot be ordered) 6H672603 127.60
2 CLUTCH LEVER PLATE (R) 6H672901 2.20
3 CLUTCH LEVER PLATE (L) 6H673001 2.20
4 CLUTCH CAM BEARING 6H092201 2.20
5 CLUTCH CAM BEARING COLLAR 6G202701 6.60
6 CLUTCH LEVER (A) 6H673102 8.80
7 CLUTCH CAM 6H673201 3.30
8 CLUTCH CAM PLATE 6H714601 4.40
9 CLUTCH CAM PLATE SCREW 6H455408 2.20
10 WORM SHIELD 6H761601 8.80
11 LEVEL WIND (LINE GUIDE) 6G502604 18.70
12 WORM SHAFT 6H673401 22.00
13 WORM SHAFT COLLAR 6F859101 2.20
14 WORM SHAFT WASHER (A) 6F889103 1.10
15 WORM SHAFT WASHER (B) 6F889106 1.10
16 WORM SHAFT GEAR 6G503101 4.40
17 WORM SHAFT RETAINER 6B864101 2.20
18 PAWL 6F859401 4.40
19 PAWL WASHER 6G099801 1.10
20 LEVEL WIND POST COLLAR 6G625601 3.30
21 LEVEL WIND POST 6H681501 2.20
22 MOTOR GEAR (A) 6H673701 100.10
23 MOTOR GEAR (A) PLATE 6H674201 7.70
24 MOTOR GEAR (A) PLATE O-RING 6H501001 1.10
25 MOTOR GEAR METAL 6H674401 105.60
26 MOTOR GEAR METAL O-RING 6H674801 1.10
27 MOTOR GEAR METAL RATCHET 6H675601 17.60
28 MOTOR GEAR (B) 6H785501 14.30
29 MOTOR GEAR (B) WASHER 63754103 1.10
30 MOTOR BALL BEARING 6G281605 8.80
31 SPOOL 6J986201 113.30
32 SPOOL PIN 6G643501 2.20
33 SPOOL SHAFT 6H785601 19.80
34 SPOOL BALL BEARING (MAGSEALED) *Repair only (cannot be ordered) 6J019303 45.10
35 SPOOL GEAR (A) 6H650701 7.70
36 SPOOL GEAR (A) RETAINER 6F550501 2.20
37 SPOOL GEAR (A) WASHER 63754101 1.10
38 SPOOL GEAR (B) 6H676501 67.10
39 SPOOL GEAR (B) BALL BEARING 6G431008 15.40
40 SPOOL PLATE 6H676901 17.60
41 SPOOL PLATE SCREW 6G299003 2.20
42 SPOOL PLATE WASHER 6F766105 1.10
43 SPOOL PLATE BALL BEARING 6G520601 15.40
44 CLUTCH LEVER (B) SHAFT 6H801901 15.40
45 CLUTCH LEVER (B) SHAFT CAM 6H677701 6.60
46 CLUTCH LEVER (B) SHAFT WASHER 6F889105 1.10
47 CLUTCH LEVER (B) SHAFT RETAINER 6B864101 2.20
48 MOTOR GEAR METAL STOPPER WASHER 6B411707 1.10
49 MOTOR GEAR METAL STOPPER COLLAR 6H677801 3.30
50 MOTOR GEAR METAL STOPPER 6H677901 4.40
51 MOTOR GEAR METAL STOPPER SPRING 6H697301 2.20
52 RS PLATE SCREW 6F935404 2.20
53 SET PLATE 6H677001 53.90
54 IDLE GEAR (A) COLLAR 6F853801 3.30
55 IDLE GEAR (A) 6G503601 4.40
56 IDLE GEAR (A) SCREW 6F252402 2.20
57 IDLE GEAR (B) 6G592601 4.40
58 IDLE GEAR (B) HOLD PIN 6G592701 3.30
59 IDLE GEAR (C) WASHER 6E096501 1.10
60 IDLE GEAR (C) COLLAR 6G593401 3.30
61 IDLE GEAR (C) 6G272301 7.70
62 IDLE GEAR (C) RETAINER 6B864101 2.20
63 IDLE GEAR (D) PLATE 6H677401 20.90
64 IDLE GEAR (D) 6H786001 48.40
65 IDLE GEAR (D) PLATE O-RING 6H156901 1.10
66 IDLE GEAR (D) WASHER 6G099801 1.10
67 SPOOL SHAFT BALL BEARING 6G281605 8.80
68 SPOOL SHAFT BEARING WASHER 63754101 1.10
69 SET PLATE SCREW (A) 6B557606 2.20
70 SET PLATE SCREW (B) 6G786102 2.20
71 IDLE GEAR (D) PLATE SCREW (A) 63517801 2.20
72 IDLE GEAR (D) PLATE SCREW (B) 6B557606 2.20
73 IC MODULE *Repair only (cannot be ordered) 6H690422 374.00
74 RS PLATE *Repair only (cannot be ordered) 6J993901 86.90
75 CLUTCH CAM HOLD PLATE 6G697101 2.20
76 CLUTCH CAM HOLD PLATE SCREW 6H158201 2.20
77 FRAME SCREW (A) 6H100502 3.30
78 FRAME SCREW (B) 6E134505 2.20
79 CLUTCH LEVER (B) COLLAR 6H690501 3.30
80 CLUTCH LEVER (B) 6H679402 9.90
81 CLUTCH LEVER (B) SCREW 6G945812 2.20
82 CLUTCH LEVER (B) SPRING 6H697401 4.40
83 SPOOL PLATE GEAR COLLAR 6H679501 3.30
84 SPOOL PLATE GEAR 6H679601 12.10
85 SPOOL PLATE GEAR SCREW 6B679313 2.20
86 FINGER COVER 6H679805 11.00
87 FINGER COVER SCREW 6H717101 2.20
88 GEAR SHAFT WASHER 6F647201 1.10
89 GEAR SHAFT COLLAR 6E351501 2.20
90 GEAR SHAFT 6J984902 16.50
91 GEAR SHAFT O-RING 6F657801 1.10
92 GEAR SHAFT PLATE 6H706301 3.30
93 GEAR SHAFT PLATE SCREW 6F211102 2.20
94 KICK LEVER SPRING 6F962801 2.20
95 CLUTCH CAM SPRING 6H706401 3.30
96 RATCHET 6F826303 2.20
97 STOPPER PIN 6J197501 3.30
98 STOPPER 6F938801 6.60
99 DRIVE GEAR WASHER 6H343401 3.30
100 DRIVE GEAR 6H691501 18.70
101 DRAG WASHER 6H118402 7.70
102 DRAG DISC WASHER (KEY WASHER) 6F796302 2.20
103 DRAG LIP WASHER (EARED WASHER) 6F796101 2.20
104 DRAG PACKING 6G697601 7.70
105 GEAR SHAFT O-RING 6F657801 1.10
106 DRAG DISC COLLAR 6H680001 12.10
107 PINION GEAR 6H691601 15.40
108 CLUTCH PLATE 6H691701 2.20
109 CLUTCH SPRING 6F304701 2.20
110 CLUTCH LEVER (C) COLLAR 6G711001 2.20
111 CLUTCH LEVER (C) 6J994101 12.10
112 LS PLATE 6J994201 90.20
113 MECHANICAL BRAKE WASHER (A) 6F853501 1.10
114 MECHANICAL BRAKE WASHER (B) 63749102 1.10
115 MECHANICAL BRAKE WASHER (C) 6F853602 1.10
116 PINION BALL BEARING 6G466201 15.40
117 PINION BEARING RING 6E219701 2.20
118 LINE STOPPER 6E286003 2.20
119 LS PLATE SCREW (A) 6G752602 2.20
120 LS PLATE SCREW (B) WASHER 6B536101 1.10
121 LS PLATE SCREW (B) 6G502001 2.20
122 DRAG COLLAR 6G290901 14.30
123 HANDLE BEARING WASHER (A) 6F366804 2.20
124 HANDLE BALL BEARING 6G523401 8.80
125 HANDLE BEARING WASHER (B) 63737813 1.10
126 DRAG SPRING WASHER 6E253501 2.20
127 DRAG HOLDER 6H691901 7.70
128 DRAG LEAF SPRING 6B747702 2.20
129 STAR DRAG WASHER 6G694201 2.20
130 STAR DRAG 6J986502 28.60
131 HANDLE COLLAR 6F863202 3.30
132 HANDLE 6J985201 72.60
133 HANDLE LOCK PLATE (HANDLE NUT PLATE) 6J625402 6.60
134 HANDLE NUT 6G793313 4.40
135 HANDLE NUT SCREW 6G835505 2.20
136 SPOOL SHAFT COLLAR 6J328401 3.30
137 NAMEPLATE 6H681101 4.40
138 MOTOR HOLDER *Repair only (cannot be ordered) 6Z020527 86.90
139 MOTOR HOLDER SCREW 6E134508 2.20
140 MOTOR HOLDER O-RING 6F274501 1.10
141 MOTOR *Repair only (cannot be ordered) 6Z020510 58.30
142 CORD COVER 6G079501 2.20
143 CONNECTOR CAP 6F661002 5.50
144 CORD 6G868701 51.70
145 STOPPER PIN COLLAR 6J379001 2.20
150 ROD CLAMP SET (151-155) 6Z018798 50.60
151 ROD CLAMP WASHER 63751505 1.10
152 ROD CLAMP SCREW 6H154101 7.70
153 ROD CLAMP 6H153801 26.40
154 ROD CLAMP NUT 6F187702 4.40
155 SCREWDRIVER (FOR ROD CLAMP) 6G626201 4.40
200 LINE GUIDE PIN 6X090801 3.30
201 REEL BAG 6X097102 9.90
202 STAND COVER 6H091801 6.60
203 JAPANESE STICKER 6H714203 2.20
204 MANUAL (SOLD SEPARATELY) 199B23 6.60
300 HANDLE KNOB WASHER 63753005 1.10
301 HANDLE KNOB COLLAR 6F648301 4.40
302 HANDLE KNOB 6J985301 35.20
303 HANDLE KNOB SCREW 6E454003 2.20
304 HANDLE KNOB CAP 6J985701 12.10
305 HANDLE KNOB CAP O-RING 6H100001 1.10
306 MECHANICAL BRAKE KNOB (CAST CONTROL CAP) *Repair only (cannot be ordered) 6G503403 9.90
307 MECHANICAL BRAKE KNOB WASHER 63755802 1.10
308 MECHANICAL BRAKE KNOB SPRING 6F853101 2.20
309 MECHANICAL BRAKE KNOB RETAINER *Repair only (cannot be ordered) 6B588102 2.20
310 IC COUNTER COVER *Repair only (cannot be ordered) 6H679012 42.90
400 JOG POWER LEVER *Repair only (cannot be ordered) 6J769401 60.50
