[SHIMANO] Genuine Spare Parts for 26 Scorpion DC MD 201XG LEFT Product code: 049155 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

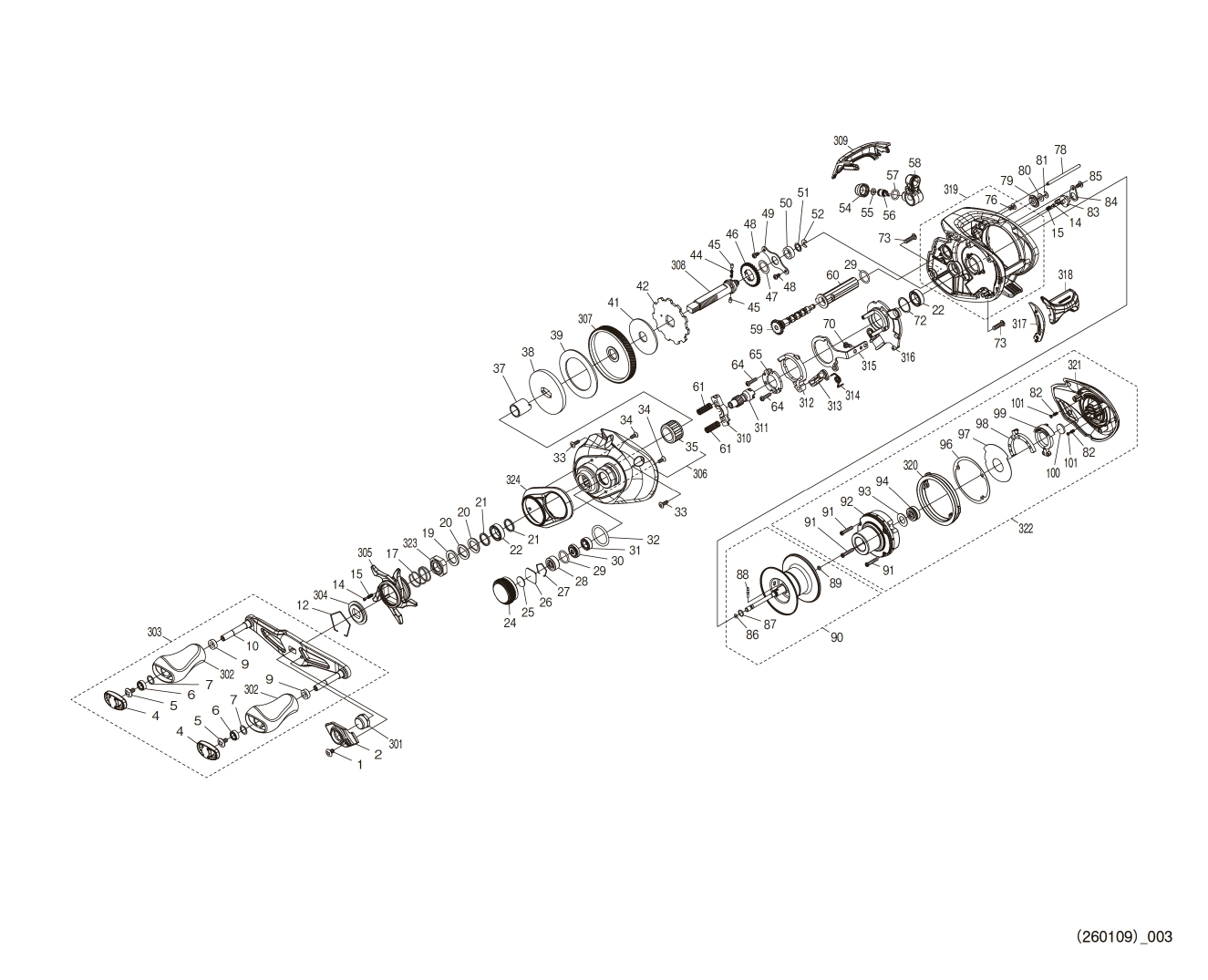

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH" and "88 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	SET SCREW	1.10
2	144EC	RETAINER	3.85
4	10SS2	HANDLE CAP	1.10
5	10LFA	SET SCREW	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
9	10PXZ	HANDLE KNOB BUSHING	1.65
10	14D8A	HANDLE SHANK ASSEMBLY	24.75
12	10KXW	STAR DRAG CLICK PLATE RETAINER	1.65
14	10MFC	CLICK PIN	1.65
15	10BT2	CLICK SPRING	1.65
17	10A70	STAR DRAG SPRING	2.75
19	10J1P	STAR DRAG SPACER	2.75
20	109F5	DRIVE GEAR WASHER	1.65
21	100SE	WASHER	1.10
22	105BK	BALL BEARING (8X12X3.5)	13.75
24	13U1N	MECHANICAL BRAKE KNOB	9.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	1054D	BEARING RETAINER	1.10
28	105C3	BALL BEARING (3X10X4)	7.15
29	101GT	O-RING	1.65
30	100BL	BEARING SPACER	1.65
31	105BP	BALL BEARING (5X9X3)	13.75
32	108WK	O-RING SM14	1.65
33	10LCY	SET SCREW	1.10
34	10LA4	SET SCREW	1.10
35	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
37	100BM	ROLLER CLUTCH INNER TUBE	6.05
38	100BK	STAR DRAG PLATE	2.75
39	10SSF	STAR DRAG WASHER	11.55
41	1023U	STAR DRAG WASHER	6.05
42	13YNT	STOPPER GEAR	6.05
44	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
45	10HJG	PIN FOR WORM SHAFT GEAR	1.65
46	101K8	WORM SHAFT GEAR	3.85
47	10GR4	WASHER	1.10
48	10S3Y	SET SCREW	1.10
49	109T1	DRIVE GEAR SHAFT RETAINING PLATE	2.75
50	10DQF	DRIVE GEAR SHAFT BUSHING	1.65
51	10C47	MAIN GEAR SHAFT WASHER	1.10
52	105NK	E-TYPE RETAINING RING 2.5	1.10
54	10FJB	LEVEL WIND SUPPORT	1.65
55	10CFU	WASHER	1.10
56	10BHQ	WORM SHAFT PIN	2.75
57	108WQ	O-RING	1.65
58	14D8C	LEVEL WIND ASSEMBLY	28.05
59	14AP3	WORM SHAFT	1.10
60	14AP4	LEVEL WIND PIPE	1.10
61	100U9	CLUTCH YOKE SPRING	1.10
64	10LV0	SET SCREW	1.10
65	100US	CLUTCH CAM SUPPORT PLATE	3.85
70	10559	SET SCREW	1.65
72	10190	WASHER	1.65
73	100UV	SET SCREW	1.10
76	10E8N	SET SCREW	1.10
78	14AP6	LEVEL WIND GUIDE	1.10
79	100G7	LEVEL WIND GUARD BUSHING	1.10
80	10FJZ	WASHER	1.10
81	105NC	E-TYPE RETAINING RING 2	1.10
82	14CF5	CLICK SPRING	1.10
83	10BAZ	MAIN UNIT B CAM LEVER	1.65
84	101UL	MAIN UNIT B CAM LEVER SUPPORT PLATE	1.65
85	10LCT	SET SCREW	1.65
86	100BH	O-RING	1.10
87	14CF3	O-RING	1.10
88	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
89	14CF2	O-RING	1.10
90	14APE	SPOOL ASSEMBLY	105.05
91	14CBN	SET SCREW	1.10
92	14AFX	DC ASSEMBLY	148.50
93	10B94	BEARING SEAL	1.65
94	10S37	BALL BEARING (3X10X4)	13.75
96	14CBP	WASHER	1.10
97	14APM	MAIN UNIT B NAMEPLATE	1.10
98	14D88	BR KNOB ASSEMBLY	3.30
99	14D89	DC DIAL ASSEMBLY	3.30
100	10EX5	SPOOL SHAFT STOP B	1.10
101	14CF4	CLICK PIN	1.65
301	1007V	HANDLE LOCK NUT	6.05
302	10EBH	HANDLE KNOB	11.55
303	14CFG	HANDLE ASSEMBLY	74.80
304	10J26	CLICK PLATE	1.65
305	13V3M	STAR DRAG	11.55
306	14DR6	MAIN UNIT A ASSEMBLY	51.70
307	10EBM	DRIVE GEAR	22.55
308	144NE	DRIVE GEAR SHAFT	11.55
309	14BN9	LEVEL WIND GUARD	11.55
310	10TFA	CLUTCH YOKE	1.65
311	14BNA	PINION GEAR	11.55
312	100W0	CLUTCH CAM	2.75
313	1003W	CLUTCH PAWL ASSEMBLY	3.85
314	14CFH	CLUTCH PAWL SPRING	1.10
315	14BND	CLUTCH PLATE	2.20
316	14DR9	MAIN UNIT A SEAT ASSEMBLY	3.30
317	14BNE	CLUTCH LEVER MOUNT (B)	1.10
318	14BNC	CLUTCH LEVER	1.10
319	14D8D	FRAME ASSEMBLY	57.20
320	14BNJ	FRAME B MOUNT	2.20
321	14BNH	MAIN UNIT B	15.40
322	14BNG	MAIN UNIT B ASSEMBLY	224.40
323	10A3U	STAR DRAG RETAINING NUT	3.85
324	14D8X	MAIN UNIT A NAMEPLATE	3.85
