[SHIMANO] Genuine Spare Parts for 26 MIRAVEL C3000 Product Code: 050106 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 MIRAVEL C3000 Product Code: 050106 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0 - US$35.42 [Regular Price: US$0 - US$50.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

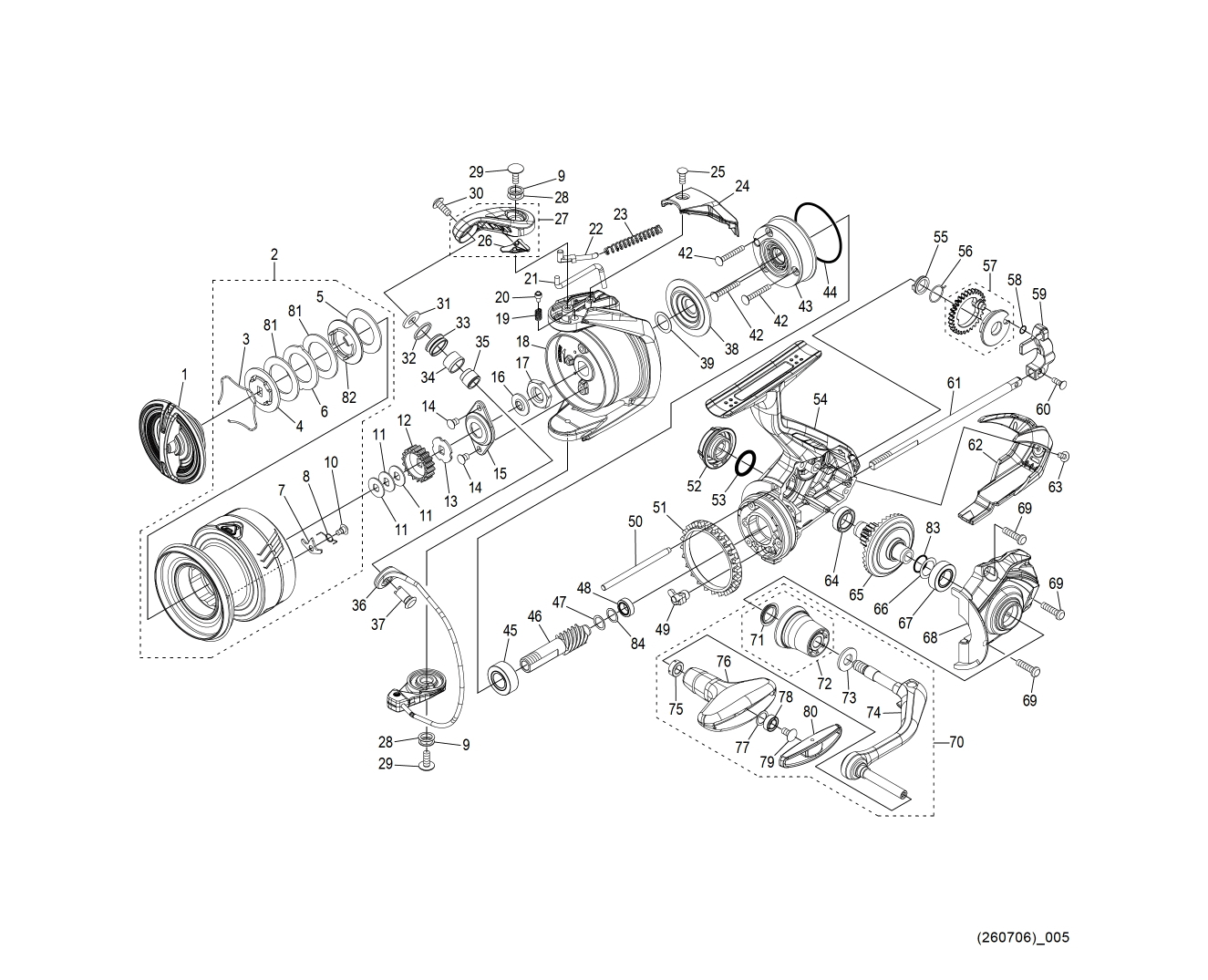

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101EP DRAG KNOB ASSEMBLY 17.05
2 14CYV SPOOL ASSEMBLY 50.60
3 10MZX ANTI-SLIP SPRING 1.65
4 14FGU OVAL WASHER (B) *Cannot be ordered NOT SET
5 10C14 DRAG WASHER 1.65
6 102XW WINGED WASHER 1.65
7 1038H SPOOL PIN 1.65
8 10PH3 SPOOL PIN SPRING 1.65
9 10K96 WASHER 1.65
10 10PH4 SET SCREW 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL MOUNT (A) 1.65
13 10J04 SPOOL MOUNT (B) 1.65
14 10PMC SET SCREW 2.75
15 10TRH RETAINER 2.75
16 107L4 ROTOR BEARING SEAL 2.75
17 10TPL ROTOR NUT 3.85
18 14CZ7 ROTOR 15.40
19 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
20 106ZC CLICK PIN 1.65
21 106P2 INNER BRAKE LEVER 2.75
22 105LT ARM SPRING GUIDE 1.10
23 10FVC ARM CAM SPRING 1.65
24 14809 ARM CAM SPRING COVER 3.85
25 103CJ SET SCREW 1.10
26 149ZE ARM CAM FIN 1.10
27 14DTR ARM CAM ASSEMBLY *Cannot be ordered NOT SET
28 10KFA ADJUSTMENT WASHER 1.10
29 103DA SET SCREW 1.65
30 10PMH SET SCREW 1.65
31 101EM WASHER 1.10
32 10KFD ARM ROLLER SPACER 1.65
33 10JLF ARM ROLLER 1.65
34 10PFH ARM ROLLER BUSHING 1.10
35 149ZC THIMBLE 1.65
36 14DTS BAIL ASSEMBLY 20.90
37 149ZA ARM MOUNTING SHAFT 3.30
38 14CZA ROTOR RING 3.85
39 10GR5 WASHER 1.10
42 14CTK SET SCREW *Cannot be ordered NOT SET
43 14DTT ROLLER CLUTCH ASSEMBLY 11.55
44 10MLU O-RING 3.85
45 107FE BALL BEARING (7X14X5) 7.15
46 149ZH PINION GEAR 13.20
47 10SYU WASHER 1.65
48 10RKR BALL BEARING (5X8X2.5) 7.15
49 149ZL STOPPER CAM 1.10
50 10TBF SLIDER GUIDE 1.65
51 104FV FRICTION RING 2.75
52 1427T HANDLE SCREW CAP 5.50
53 108WH O-RING 1.65
54 14DTY BODY ASSEMBLY 21.45
55 10TBH BUSHING 1.10
56 10RPB BUSHING SPRING 1.10
57 14BMC SLIDER GEAR ASSEMBLY 3.85
58 101BW O-RING 1.65
59 100KG SLIDER 8.25
60 10R1P SET SCREW 1.65
61 10DMK MAIN SHAFT 6.05
62 10R8U BODY GUARD 6.05
63 10LCS SET SCREW 1.10
64 107FA BALL BEARING (7X11X3) 7.15
65 14D8S DRIVE GEAR 16.50
66 10EEZ WASHER 2.75
67 107AT BALL BEARING (7X13X4) 7.15
68 14CZB LID 16.50
69 10L6K SET SCREW 1.10
70 101PE HANDLE ASSEMBLY 49.50
71 10PXV HANDLE SHAFT SEAL 2.75
72 10E7V HANDLE SHAFT FLANGE ASSEMBLY 8.80
73 10E5X HANDLE WASHER 1.65
74 10E81 HANDLE SHANK ASSEMBLY 22.00
75 10PXZ HANDLE KNOB BUSHING 1.65
76 10R38 HANDLE KNOB 17.05
77 104FH WASHER 2.20
78 10K64 BALL BEARING (4X7X2.5) 7.15
79 10LFA SET SCREW 1.10
80 10R3A HANDLE CAP 3.85
81 102ZQ DRAG WASHER 1.65
82 10B9D DRAG OVAL WASHER 2.75
83 1009S O-RING 1.65
84 10HE5 WASHER 1.65
MH01 14CZH NAMEPLATE ON BOTTOM OF LEG *Cannot be ordered NOT SET
