[DAIWA] Genuine Spare Parts for 26 ZILLION TW 150HL Product code: 00630373 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 ZILLION TW 150HL Product code: 00630373 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$114.73 [Regular Price: US$1.10 - US$163.90]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

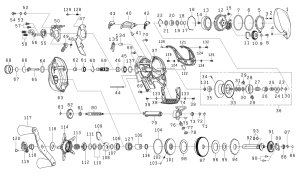

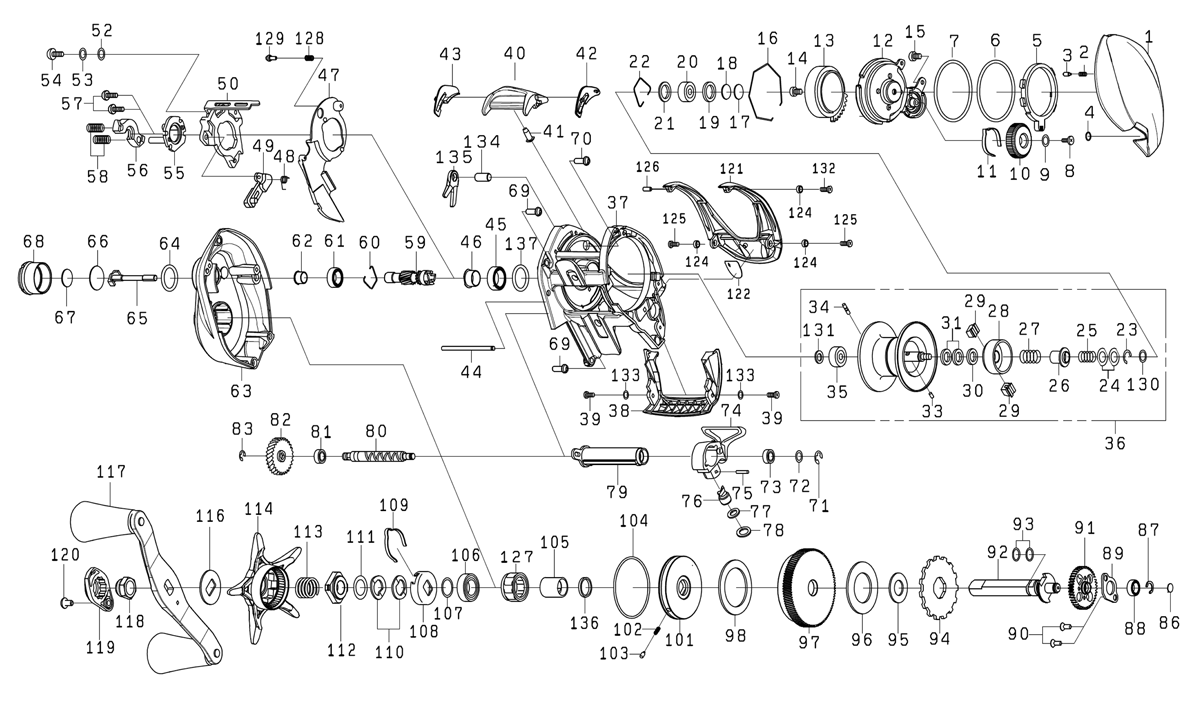

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M758101 42.90
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 RS PLATE O-RING 6J197901 1.10
5 LEVER PLATE (A) 6M758501 4.40
6 LEVER PLATE (B) 6N004M01 2.20
7 LEVER PLATE (C) 6N004N01 2.20
8 BRAKE DIAL SC 6G940402 2.20
9 BRAKE DIAL W 6H159201 1.10
10 BRAKE DIAL 6M732905 7.70
11 BRAKE DIAL LEAF SP 6J886201 2.20
12 SET PLATE 6M758301 52.80
13 MAG HOLDER 6M739301 26.40
14 SET PLATE SC (A) 6H666002 2.20
15 SET PLATE SC (B) 6G939303 2.20
16 MAG HOLDER RING 6G757801 2.20
17 RS BEARING W (A) 63757404 1.10
18 RS BEARING W (B) 63757411 1.10
19 RS BEARING W (C) 6G185101 1.10
20 RS BALL BEARING 6G511506 15.40
21 RS BEARING O-RING 6G703201 1.10
22 RS BEARING RING 6F032201 2.20
23 SPOOL HOLDER SP RETAINER 63208002 2.20
24 SPOOL HOLDER SP/W 6J497001 1.10
25 SPOOL HOLDER SP (A) 6M169901 2.20
26 SPOOL HOLDER SP COLLAR 6M299301 3.30
27 SPOOL HOLDER SP (B) 6M458601 2.20
28 SPOOL HOLDER 6N004301 29.70
29 SPOOL HOLDER COLLAR 6M169601 2.20
30 SPOOL HOLDER W (A) 6J497002 2.20
31 SPOOL HOLDER W (B) 6E096506 1.10
33 SPOOL HOLDER PIN 6M169301 2.20
34 SPOOL PIN 6J252301 2.20
35 SPOOL BALL BEARING 6G498511 15.40
36 SPOOL (23-35, 130-131) *Not available 6Z028123 163.90
37 FRAME 6M969101 81.40
38 FRONT COVER 6M673405 13.20
39 FRONT COVER SC 6H294103 2.20
41 CLUTCH LEVER SC 6H005701 2.20
42 CLUTCH LEVER PLATE (R) 6M671001 2.20
43 CLUTCH LEVER PLATE (L) 6M671101 2.20
44 OSCILLATING POST 6M674001 2.20
45 CLUTCH CAM BALL BEARING 6G431008 15.40
46 CLUTCH CAM BEARING COLLAR 6M518401 7.70
47 KICK LEVER PLATE (A) 6M335101 3.30
48 KICK LEVER SP 6M839701 2.20
49 KICK LEVER 6M335501 7.70
50 CLUTCH CAM 6M718701 3.30
52 CLUTCH CAM SC/W (A) 6H159201 1.10
53 CLUTCH CAM SC/W (B) 6F542701 1.10
54 CLUTCH CAM SC 6B360406 2.20
55 KICK LEVER PLATE (B) 6M044101 3.30
56 CLUTCH PLATE 6M707201 3.30
57 KICK LEVER PLATE (B) SC 6B032904 2.20
58 CLUTCH SP 6M672601 2.20
59 PINION + DRIVE GEAR SET 6Z028167 56.10
60 PINION RING 6H160801 2.20
61 PINION BALL BEARING 6G467101 15.40
62 PINION BEARING COLLAR *Cannot be ordered 6J953001 7.70
63 LS PLATE 6M757001 104.50
64 ZERO ADJUSTER O-RING 6J279701 1.10
65 PINION SHAFT 6H159601 3.30
66 ZERO ADJUSTER W (A) 6H161001 1.10
67 ZERO ADJUSTER W (B) 6B175503 1.10
68 ZERO ADJUSTER 6J279601 18.70
69 LS PLATE SC (A) 6B557622 2.20
70 LS PLATE SC (B) 6B557620 2.20
71 WORM SHAFT RETAINER 63205901 2.20
72 WORM SHAFT W 6B411702 1.10
73 WORM SHAFT COLLAR 6G720001 2.20
74 LEVEL WIND 6M681001 58.30
75 LEVEL WIND PIN 6J740201 3.30
76 POLE 6M454101 3.30
77 POLE W 6M161301 1.10
78 LEVEL WIND O-RING 6G252202 1.10
79 WORM SHIELD 6M707401 3.30
80 WORM SHAFT 6J243601 8.80
81 WORM SHAFT COLLAR 6G720001 2.20
82 WORM SHAFT GEAR 6M672901 4.40
83 WORM SHAFT GEAR RETAINER 6B339801 2.20
86 GEAR SHAFT W 6G099801 1.10
87 GEAR SHAFT RETAINER 63208002 2.20
88 GEAR SHAFT BALL BEARING 6G466202 8.80
89 GEAR SHAFT PLATE 6M454001 3.30
90 GEAR SHAFT PLATE SC 6G297002 2.20
91 WORM GEAR 6J281001 7.70
92 GEAR SHAFT 6M732302 24.20
93 GEAR SHAFT O-RING 6F657801 1.10
94 RATCHET 6M673101 3.30
95 DRIVE GEAR W (A) 6M336501 1.10
96 DRIVE GEAR W (B) 6H247209 6.60
97 PINION + DRIVE GEAR SET 6Z028167 56.10
98 DRAG W (1 piece) 6J517101 12.10
101 DRIVE COLLAR 6M337001 15.40
102 DRIVE COLLAR SP 6M025201 2.20
103 DRIVE COLLAR PIN 6J566201 2.20
104 CLUTCH RING O-RING 6H452801 1.10
105 CLUTCH RING 6J327701 8.80
106 HANDLE BALL BEARING 6B861705 8.80
107 HANDLE BEARING W 6B553803 1.10
108 DRAG HOLDER 6F028203 3.30
109 DRAG HOLDER LEAF SP 6F032401 2.20
110 DRAG SP・W 61508901 2.20
111 DRAG NUT W 6H929501 2.20
112 STAR DRAG NUT 6J141002 7.70
113 STAR DRAG SP 6J011901 2.20
114 STAR DRAG 6J140004 27.50
116 HANDLE W 6M422101 1.10
117 HANDLE 6M739601 118.80
118 HANDLE NUT 6G793310 4.40
119 HANDLE CAP 6J625401 4.40
120 HANDLE CAP SC 6G835505 2.20
121 TOP COVER 6M757501 19.80
122 TOP COVER HOLD SEAL 6M878101 2.20
124 TOP COVER SC COLLAR 6M047801 2.20
125 TOP COVER SC (A) 6H531509 2.20
126 TOP COVER PIN 6M751401 2.20
127 ONE-WAY CLUTCH 6G819801 20.90
128 KICK LEVER PLATE (A) SP 6H928801 2.20
129 KICK LEVER PLATE (A) PIN 6J055201 2.20
130 SPOOL HOLDER O-RING 6H770601 1.10
131 SPOOL BEARING O-RING 6M426701 1.10
132 TOP COVER SC (B) 6H842810 2.20
133 FRONT COVER SC COLLAR 6M047801 2.20
134 STOPPER PIN 6M003401 2.20
135 STOPPER 6H270401 8.80
136 CLUTCH RING COLLAR 6J640603 2.20
137 CLUTCH CAM BEARING O-RING 6M639101 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB SP・W 6H744801 1.10
202 HANDLE KNOB 6M604401 26.40
203 HANDLE KNOB BALL BEARING 6G469005 8.80
204 HANDLE KNOB COLLAR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CATCH 6M604603 6.60
