[SHIMANO] 26 MIRAVEL Line Roller 1 Bearing Upgrade Kit

| Product Features

* This listing is for the upgrade kit only. The reel is not included.
* Select a bearing type to see its price.



A tournament-spec, high-sensitivity bearing focused on rotational performance.




A saltwater-ready bearing made of a new corrosion-resistant material, offering the highest level of rust resistance and durability.


(How to Choose Bearings)
SHG Premium Bearing for freshwater fish such as trout and bass, and for light lure fishing where sensitivity matters.
HRCB Rust-Resistant Bearing is recommended for all kinds of saltwater fishing.
* SHG can also be used in saltwater, but HRCB is the best choice if durability is your priority.


| Upgrade Menu & Contents

(Upgrade Menu)
- Line Roller 1BB Bearing Upgrade

(Contents)

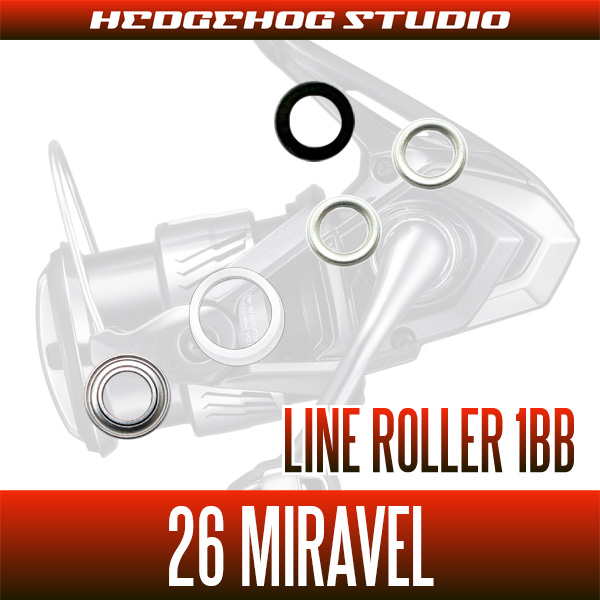

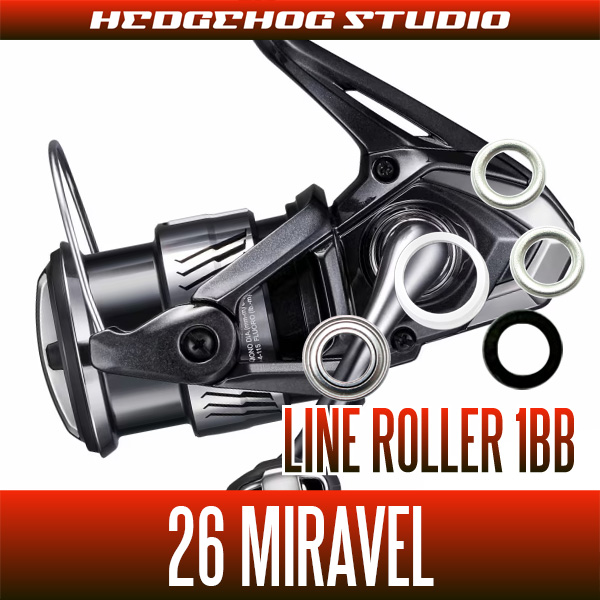

- Line Roller BB x 1 (SHG-740ZZ or HRCB-740ZHi)
- Roller Bush (for 1BB) x 1
- Roller Washer (0.8mm) x 2
- Roller Spacer (2.0mm) x 1
- Installation Manual


| Upgrade Menu

| Line Roller 1BB Bearing Upgrade

With the Genuine line roller, no bearings are installed as standard, so it is possible to add one bearing to convert it to a 1BB specification line roller.
(The 26 MIRAVEL is limited to a 1BB specification only, as it is structurally impossible to install two bearings in the line roller.)

Improved line roller rotation reduces line twist, helping maintain line suppleness while enhancing durability and casting distance.




This is the parts configuration diagram.
Refer to the arrows to replace and install the parts.




As long as the positions of the parts to be installed are correct, the work procedure does not have to follow this exact order. However, for clarity, this explanation describes installing the parts sequentially from the left.

Align the arm fixing shaft with the bail assembly.
From this point until the final step, holding the arm fixing shaft in place with your finger will make the work easier.




Install the roller spacer (2.0mm).




Install the line roller BB.




Install the roller bush (for 1BB).




Install the arm roller (line roller body).




Stack and install the two roller washers (0.8mm).




Install the arm roller spacer.




Install the line roller washer.




Finally, tighten the screw to complete the installation.
Please check that the line roller rotates properly.




* One-Point Advice

Roller Bush (for 1BB)
Arm Roller (Line Roller Body)
Arm Roller Spacer
are positioned in this relationship.




Pre-assembling these three parts will make the work easier.


| Compatible Models



- 26 NASCI
( 500, 1000, C2000S, C2000SHG, 2500, 2500HG, 2500SHG, C3000, C3000HG, 4000, 4000XG, C5000XG )

- 26 MIRAVEL
( 1000, C2000S, C2000SHG, 2500, 2500S, 2500SHG, C3000, C3000HG, 4000, 4000XG, C5000XG )
