[ABU] Genuine Spare Parts for Ambassadeur 4501C Factory Tuned Black Product code: 1592963 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

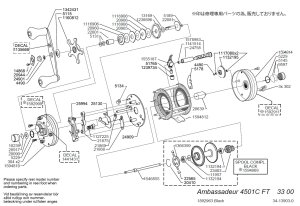

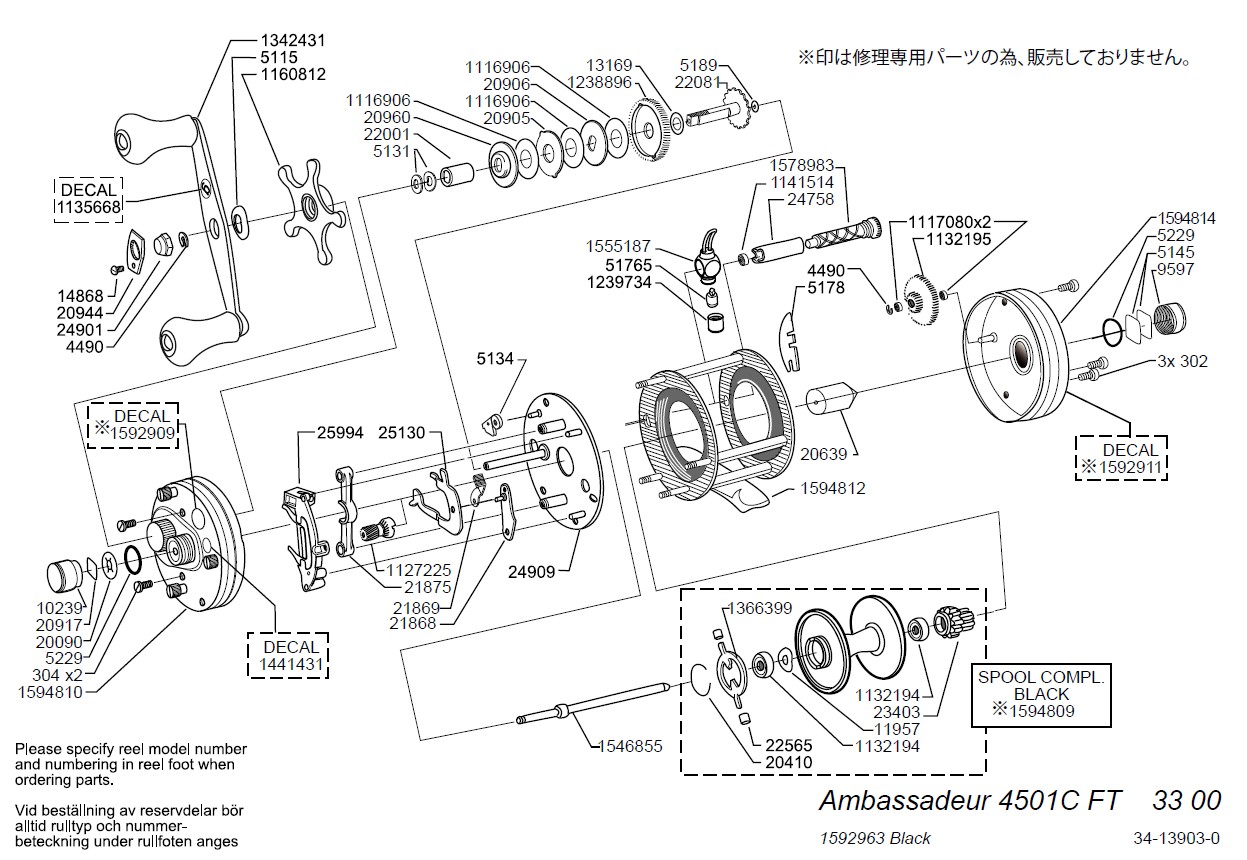

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
	302	SCREW	2.20
	304	SCREW	2.20
	4490	RETAINER	2.20
	4490	RETAINER	2.20
	5115	WASHER	2.20
	5131	SPRING WASHER	2.20
	5134	ANTI REVERSE PAWL	9.90
	5145	BASE WASHER BRONZE	2.20
	5178	LOCK PLATE	2.20
	5189	DRIVE SHAFT W	2.20
	5229	O-RING	2.20
	5229	O-RING	2.20
	9597	BEARING BUSH	16.50
	10239	SPOOL CAP	13.20
	11957	WASHER	2.20
	13169	BRAKEWASHER	2.20
	14868	SCREW	2.20
	20090	LOCK SPRING	2.20
	20410	RETAINER	2.20
	20639	SPOOL SHAFT BUSHING	9.90
	20905	DRAG WASHER	2.20
	20906	DRAG WASHER	2.20
	20917	BASE WASHER	2.20
	20944	NUT COVER	6.60
	20960	WASHER	6.60
	21868	LINK ARM	12.10
	21869	RELEASE TRIGGER	6.60
	21875	PINION YOKE	5.50
	22001	HANDLE BUSHING	13.20
	22081	MAINGEAR BUSHING LH	31.90
	22565	BRAKE WEIGHT	1.10
	23403	CLICK AND COGWHEEL POM	2.20
	24758	LEWELWIND TUBE	16.50
	24901	HANDLE NUT	5.50
	24909	BRAKE PLATE	52.80
	25130	CLUTCH ARM LEFT	11.00
	25994	POSITION HOLDER LEFT	8.80
	51765	PILOT GUIDE	6.60
	1116906	CARBON DRAG WASHER	2.20
	1116906	CARBON DRAG WASHER	2.20
	1116906	CARBON DRAG WASHER	2.20
	1117080	BALL BEARING	33.00
	1127225	PINION	33.00
	1132194	HYBRID BALL BEARING	19.80
	1132194	HYBRID BALL BEARING	19.80
	1132195	COG WEEL	6.60
	1135668	LABEL (g AS IN GARCIA *Cannot be ordered	2.20
	1141514	BALLBEARING	13.20
	1160812	STAR WHEEL	19.80
	1238896	MAIN GEAR	27.50
	1239734	LINE CARRIAGE NUT	6.60
	1342431	HANDLE	44.00
	1366399	CLUTCH WASHER	6.60
	1441431	LABEL (FT *Cannot be ordered	2.20
	1546855	SPOOL SHAFT COMPLETE SPECIAL	38.50
	1555187	LINE CARRIAGE	26.40
	1578983	LEVEL WIND COMPLETE	49.50
	1592909	LABEL 'HIGH SPEED' *Cannot be ordered	5.50
	1592911	LABEL ASYMETRIC *Cannot be ordered	11.00
	1594809	SPOOL COMPLETE	99.00
	1594810	LEFT SIDE PLATE COMPLETE	92.40
	1594812	FRAME COMPLETE	72.60
	1594814	RIGHT SIDE PLATE	60.50

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
