[ABU] Genuine Spare Parts forAmbassadeur 4500 Striper Black Product code: 1619959 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

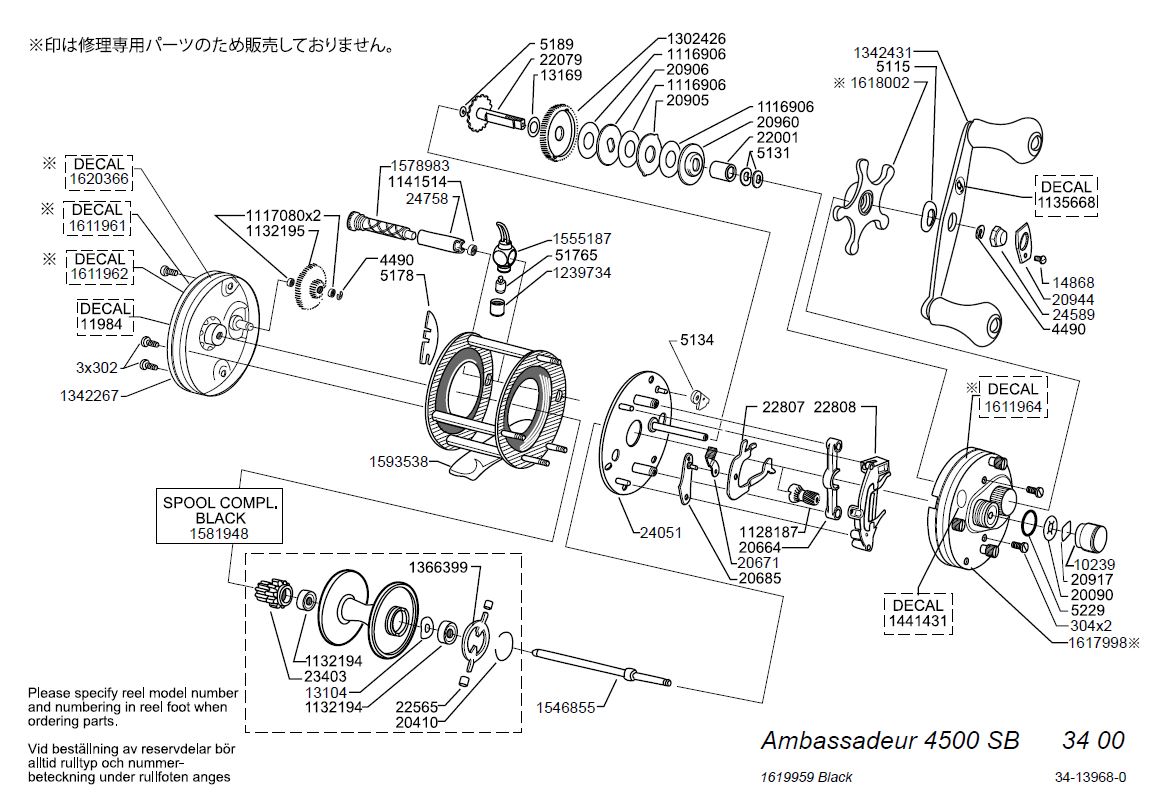

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
	302	SCREW	2.20
	304	SCREW	2.20
	4490	RETAINER	2.20
	4490	RETAINER	2.20
	5115	WASHER	2.20
	5131	SPRING WASHER	2.20
	5134	ANTI REVERSE PAWL	9.90
	5178	LOCK PLATE	2.20
	5189	DRIVE SHAFT W	2.20
	5229	O-RING	2.20
	10239	SPOOL CAP	13.20
	11984	LABEL 'HIGH SPEED'*Cannot be ordered	2.20
	13104	ADJUSTMENT WASHER	2.20
	13169	BRAKEWASHER	2.20
	14868	SCREW	2.20
	20090	LOCK SPRING	2.20
	20410	RETAINER	2.20
	20664	YOKE POM	6.60
	20671	RELEASE TORIGGER	6.60
	20685	LINK ARM RIVETED	11.00
	20905	DRAG WASHER	2.20
	20906	DRAG WASHER	2.20
	20917	BASE WASHER	2.20
	20944	NUT COVER	6.60
	20960	WASHER	6.60
	22001	HANDLE BUSHING	13.20
	22079	MAIN GEAR BUSHING	31.90
	22565	BRAKE WEIGHT	1.10
	22807	CLUTCH ARM	11.00
	22808	POSITION HOLDER	6.60
	23403	CLICK AND COGWHEEL POM	2.20
	24051	BRAKE PLATE	52.80
	24589	HANDLE NUT	5.50
	24758	LEWELWIND TUBE	16.50
	51765	PILOT GUIDE	6.60
	1116906	CARBON DRAG WASHER	2.20
	1116906	CARBON DRAG WASHER	2.20
	1116906	CARBON DRAG WASHER	2.20
	1117080	BALL BEARING	33.00
	1128187	PINION	33.00
	1132194	HYBRID BALL BEARING	19.80
	1132194	HYBRID BALL BEARING	19.80
	1132195	COG WEEL	6.60
	1135668	LABEL (g AS IN GARCIA*Cannot be ordered	2.20
	1141514	BALLBEARING	13.20
	1239734	LINE CARRIAGE NUT	6.60
	1302426	MAIN GEAR	27.50
	1342267	LEFT SIDEPLATE	46.20
	1342431	HANDLE	44.00
	1366399	CLUTCH WASHER	6.60
	1441431	LABEL (FT *Cannot be ordered	2.20
	1546855	SPOOL SHAFT COMPLETE SPECIAL	38.50
	1555187	LINE CARRIAGE	26.40
	1578983	LEVEL WIND COMPLETE	49.50
	1581948	SPOOL *Cannot be ordered	104.50
	1593538	FRAME COMPLETE	72.60
	1611961	LABEL GARCIA *Cannot be ordered	8.80
	1611962	LABEL STRIPER *Cannot be ordered	16.50
	1611964	LABEL STRIPER DRAG *Cannot be ordered	19.80
	1617998	OUTER SIDE PLATE RIGHT W *Cannot be ordered	99.00
	1618002	STAR WHEEL CHROME *Cannot be ordered	30.80
	1620366	LABEL GARCIA AMBASSADEUR 4500 *Cannot be ordered	22.00

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.


| Spare Spools, Bearings, and Other Tuning Parts Compatible with AMBASSADEUR Series Here!
