[SHIMANO] Genuine Spare Parts for 26 NEXAVE C5000HG Product Code: 049544 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 NEXAVE C5000HG Product Code: 049544 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$22.33 [Regular Price: US$1.10 - US$31.90]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

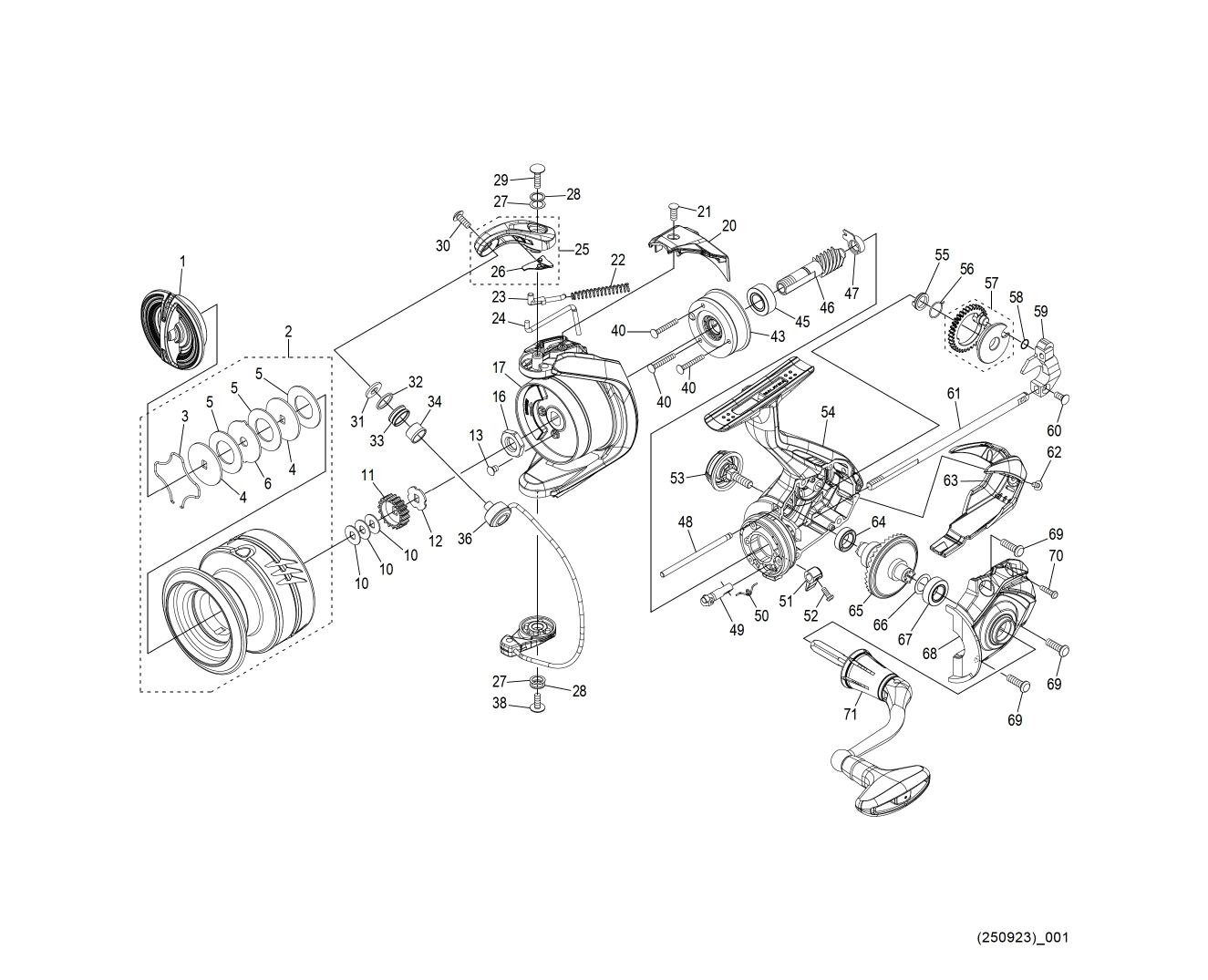

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14BQA DRAG KNOB ASSEMBLY 17.05
2 14CFT SPOOL ASSEMBLY 31.90
3 10B8N RETAINING SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 102ZG DRAG WASHER 1.65
6 102ZD EAR WASHER 1.65
10 10BXN SPOOL WASHER SET 1.10
11 103MU SPOOL HOLDER (A) 1.65
12 10J04 SPOOL HOLDER (B) 1.65
13 10LCE SET SCREW 1.10
16 10RXE ROTOR NUT 1.65
17 14BR0 ROTOR 8.80
20 148D6 ARM CAM SPRING COVER 3.85
21 103CJ SET SCREW 1.10
22 10FVC ARM CAM SPRING 1.65
23 105LT ARM SPRING GUIDE 1.10
24 106P4 INNER LEVER 2.75
25 14CWF ARM CAM ASSEMBLY 3.30
26 14A9E ARM CAM FIN 1.10
27 10KFA ADJUSTMENT WASHER 1.10
28 10K96 WASHER 1.65
29 103LT SET SCREW 1.65
30 10PMH SET SCREW 1.65
31 14BQQ WASHER 1.10
32 10KFD ARM ROLLER SPACER 1.65
33 10JLF ARM ROLLER 1.65
34 10PFE ARM ROLLER BUSHING 1.10
36 14CWE BAIL ASSEMBLY 11.00
38 10LFH SET SCREW 1.10
40 103C6 SET SCREW 1.10
43 14CN9 ROLLER CLUTCH ASSEMBLY 11.55
45 107FE BALL BEARING (7X14X5) 7.15
46 10RUG PINION GEAR 9.35
47 1074K PINION GEAR BUSHING 1.65
48 101HU SLIDER GUIDE 1.65
49 10TB2 STOPPER CAM 1.10
50 105B4 CLICK SPRING 1.65
51 100HA STOPPER LEVER 1.10
52 103NA SET SCREW 1.65
53 13YP8 HANDLE SCREW CAP ASSEMBLY 6.05
54 14CFZ BODY 11.00
55 10TBH BUSHING 1.10
56 10RPB BUSHING SPRING 1.10
57 10U1D SLIDER GEAR 3.30
58 10241 O-RING 1.65
59 101UC SLIDER 8.25
60 10ML7 SET SCREW 1.65
61 101SZ MAIN SHAFT 6.05
62 10LCS SET SCREW 1.10
63 100H6 BODY GUARD 5.50
64 107FA BALL BEARING (7X11X3) 7.15
65 14CG2 DRIVE GEAR 7.15
66 10EEZ WASHER 2.75
67 107AT BALL BEARING (7X13X4) 7.15
68 14CFY COVER 11.00
69 10L9R SET SCREW 1.10
70 100S9 SET SCREW 1.65
71 14CG3 HANDLE ASSEMBLY 17.05
