[SHIMANO] Genuine Spare Parts for 26 NEXAVE C3000 Product Code: 049506 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 NEXAVE C3000 Product Code: 049506 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$18.48 [Regular Price: US$1.10 - US$26.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Return & Exchange Policy
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

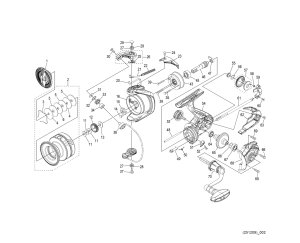

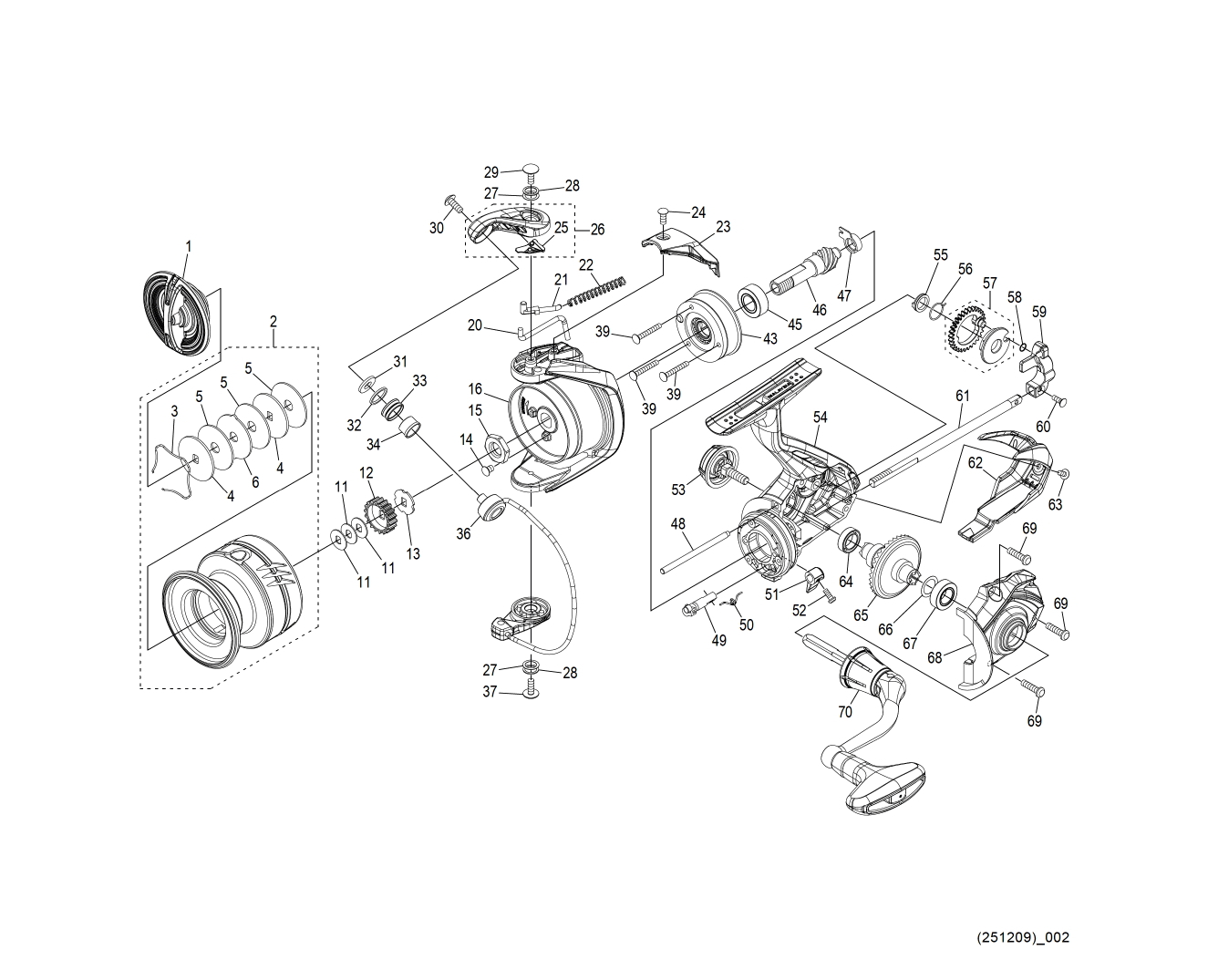

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14BQA DRAG KNOB ASSEMBLY 17.05
2 14BQE SPOOL ASSEMBLY 26.40
3 10MZX RETAINING SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 10N5A DRAG WASHER 1.10
6 102ZD EAR WASHER 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL HOLDER (A) 1.65
13 10J04 SPOOL HOLDER (B) 1.65
14 10LCE SET SCREW 1.10
15 10RXE ROTOR NUT 1.65
16 14AQ0 ROTOR 8.80
20 106P2 INNER BRAKE LEVER 2.75
21 105LT ARM SPRING GUIDE 1.10
22 10FVC ARM CAM SPRING 1.65
23 14809 ARM CAM SPRING COVER 3.85
24 103CJ SET SCREW 1.10
25 149ZE ARM CAM FIN 1.10
26 14CN8 ARM CAM ASSEMBLY 3.30
27 10KFA ADJUSTMENT WASHER 1.10
28 10K96 WASHER 1.65
29 103DA SET SCREW 1.65
30 10PMH SET SCREW 1.65
31 14BQQ WASHER 1.10
32 10KFD ARM ROLLER SPACER 1.65
33 10JLF ARM ROLLER 1.65
34 10PFE ARM ROLLER BUSHING 1.10
36 14CN7 BAIL ASSEMBLY 11.00
37 10LFH SET SCREW 1.10
39 103C6 SET SCREW 1.10
43 14CN9 ROLLER CLUTCH ASSEMBLY 11.55
45 107FE BALL BEARING (7X14X5) 7.15
46 1001D PINION GEAR 9.35
47 1074K PINION GEAR BUSHING 1.65
48 10TBF SLIDER GUIDE 1.65
49 10TB2 STOPPER CAM 1.10
50 105B4 CLICK SPRING 1.65
51 100HA STOPPER LEVER 1.10
52 103NA SET SCREW 1.65
53 13YP8 HANDLE SCREW CAP ASSEMBLY 6.05
54 14BQS BODY 11.00
55 10TBH BUSHING 1.10
56 10RPB BUSHING SPRING 1.10
57 14BMC SLIDER GEAR ASSEMBLY 3.85
58 101BW O-RING 1.65
59 100KG SLIDER 8.25
60 10R1P SET SCREW 1.65
61 10DMK MAIN SHAFT 6.05
62 100PN BODY GUARD 5.50
63 10LCS SET SCREW 1.10
64 107FA BALL BEARING (7X11X3) 7.15
65 14BQT DRIVE GEAR 7.15
66 10EEZ WASHER 2.75
67 107AT BALL BEARING (7X13X4) 7.15
68 14BQR COVER 11.00
69 10L6K SET SCREW 1.10
70 14BQW HANDLE ASSEMBLY 17.05
