[SHIMANO] Genuine Spare Parts for 26 Stile 100HG Product code: 050250 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

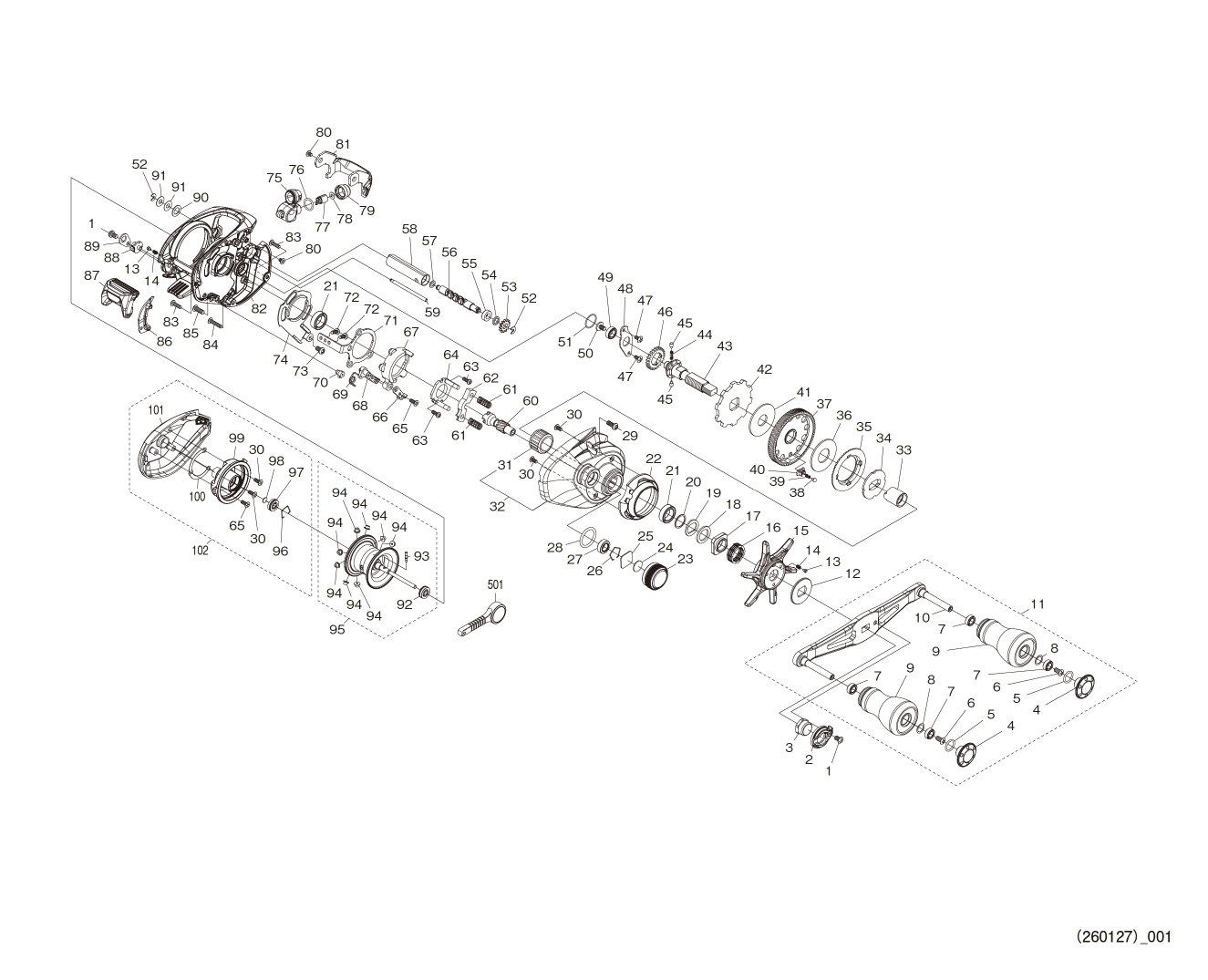

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH", "93 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DN7	SET SCREW	1.65
2	1017T	RETAINER	3.85
3	148ME	HANDLE LOCK NUT	8.80
4	148KU	HANDLE CAP	11.00
5	10LAA	O-RING	1.10
6	103E9	SET SCREW	1.10
7	104VX	BALL BEARING (4X7X2.5)	13.75
8	104FH	WASHER	2.20
9	14BK1	HANDLE KNOB ASSEMBLY	20.35
10	14BJT	HANDLE SHAFT ASSEMBLY	47.30
11	14BK2	HANDLE ASSEMBLY	116.60
12	101JC	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	148MC	STAR DRAG	20.35
16	10A78	STAR DRAG SPRING	2.75
17	10EDV	STAR DRAG LOCK NUT	4.40
18	10J1N	STAR DRAG SPACER	1.65
19	10D60	MAIN GEAR WASHER (C)	1.65
20	10EFM	STAR DRAG BEARING WASHER	1.65
21	10EX8	BALL BEARING (8X12X3.5)	13.75
22	10EE9	MAIN UNIT A NAMEPLATE	3.85
23	148M3	MECHANICAL BRAKE KNOB	20.35
24	10896	MECHANICAL BRAKE WASHER	1.10
25	1085F	MECHANICAL BRAKE WASHER	1.10
26	1057X	RETAINING CLIP	1.65
27	105BR	BALL BEARING (5X9X3)	13.75
28	10LA9	O-RING	1.65
29	10SMM	SET SCREW	1.10
30	1055J	SET SCREW	1.65
31	10TM8	ROLLER CLUTCH *Cannot be ordered	17.05
32	14EHD	MAIN UNIT A ASSEMBLY	68.20
33	10RZH	ROLLER CLUTCH INNER TUBE	9.90
34	10D55	STAR DRAG PLATE	6.05
35	10JB0	DRAG CLICK RATCHET	2.75
36	10CKS	STAR DRAG WASHER	6.05
37	10RZE	DRIVE GEAR	24.75
38	10C0T	DRAG CLICK PIN	2.75
39	10J8A	DRAG CLICK SPRING	1.65
40	10J87	DRAG SPRING HOLDER	1.65
41	10CJ4	STAR DRAG WASHER (A)	3.85
42	10R5Z	STOPPER GEAR	2.75
43	148M8	DRIVE GEAR SHAFT	12.65
44	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
45	10HJF	PIN FOR WORM SHAFT GEAR	1.65
46	10EE3	WORM SHAFT GEAR	1.10
47	10MT2	SET SCREW	1.10
48	10RZG	DRIVE GEAR SHAFT RETAINING PLATE	1.65
49	104JZ	BALL BEARING (5X8X2.5)	13.75
50	10PVT	SET SCREW	1.65
51	10SZ4	O-RING	1.65
52	105NC	E-TYPE RETAINING RING 2	1.10
53	10EEL	WORM SHAFT GEAR	1.10
54	10J1J	WASHER	1.10
55	10PXY	HANDLE GRIP BUSHING (B)	1.65
56	10EET	WORM SHAFT	2.75
57	10GHF	WASHER	1.10
58	10NFW	LEVEL WIND PIPE	1.65
59	10RZL	LEVEL WIND ROD	3.30
60	10RZS	PINION GEAR	17.05
61	104BJ	CLUTCH YOKE SPRING	1.10
62	1004W	CLUTCH YOKE	1.10
63	10LVH	CLUTCH CAM MOUNTING BOLT	1.10
64	10EE6	CLUTCH CAM SUPPORT PLATE	8.80
65	10559	MOUNTING BOLT	1.65
66	10RWM	CLUTCH PAWL (B)	1.65
67	10SX6	CLUTCH CAM	2.75
68	10RVS	CLUTCH PAWL (A)	1.65
69	10RRB	CLUTCH PAWL SPRING	1.65
70	10EDY	CLUTCH SPRING HOLDER	1.10
71	10EE7	CLUTCH PLATE	2.20
72	101LH	MOUNTING BOLT	1.10
73	10DSZ	MOUNTING BOLT	1.10
74	10RZB	MAIN BODY A SHEET	1.10
75	10NYH	LEVEL WIND ASSEMBLY	22.55
76	108WQ	O-RING	1.65
77	100BT	WORM SHAFT PIN	2.75
78	10CFV	WASHER	1.10
79	10FJB	LEVEL WIND BRACKET	1.65
80	10S2Y	MOUNTING BOLT	1.10
81	148LL	LEVEL WIND GUARD	16.50
82	14BJW	FRAME ASSEMBLY	174.90
83	1055A	MOUNTING BOLT	1.65
84	10TGT	MOUNTING BOLT	1.10
85	103DF	MOUNTING BOLT	1.10
86	10EDW	CLUTCH LEVER BRACKET	1.10
87	14BJX	CLUTCH LEVER ASSEMBLY	11.00
88	10BAU	MAIN UNIT B CAM LEVER	2.75
89	10BGQ	MAIN UNIT B CAM LEVER SUPPORT PLATE	1.65
90	10J4L	WASHER	1.10
91	144QV	WASHER	1.10
92	104VP	BALL BEARING (4X8X3) *Cannot be ordered	13.75
93	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
94	13SFV	BRAKE COLLAR (M) RED	1.10
95	14BJY	SPOOL ASSEMBLY	107.80
96	10GEW	BEARING RETAINER	1.10
97	13RQS	BALL BEARING (3X10X4)	13.75
98	1057Q	SPOOL SHAFT STOP (B)	1.10
99	14BJZ	FRAME B BRACKET ASSEMBLY	39.60
100	148KH	WASHER	1.10
101	148J0	MAIN BODY B	39.05
102	14BK0	MAIN BODY B ASSEMBLY	90.75
501	10NC0	REEL WRENCH	1.65
