[ABU] Genuine Spare Parts for Fune DLC BG H Product code: 1613875 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

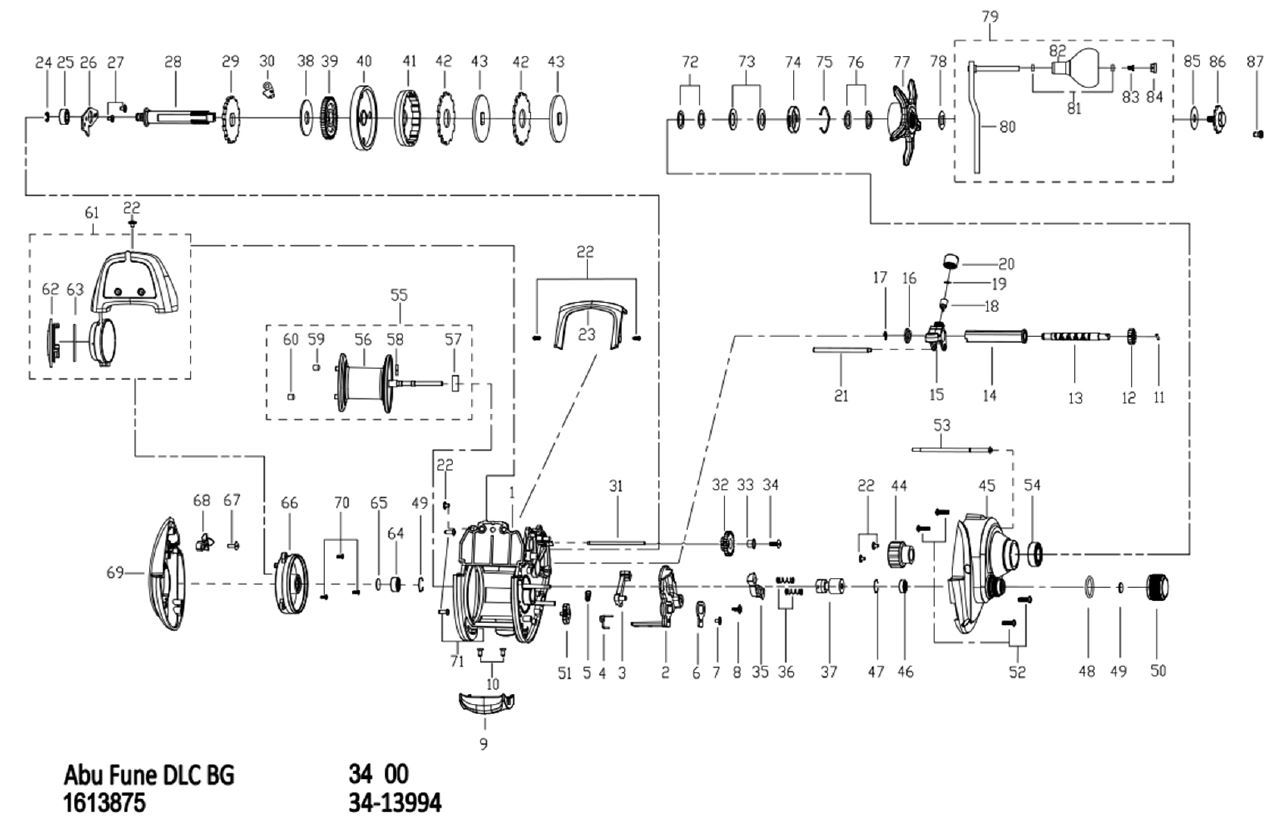

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1624566	FRAME	44.00
2	1529304	LIFT CURVE	3.30
3	1529305	KICK LEVER	3.30
4	1529306	CLUTCH SPRING	2.20
5	1529147	KICK LEVER SPRING	2.20
6	1529308	LIFT CURVE PLATE	3.30
7	1548309	SCREW	2.20
8	1529148	SCREW	2.20
9	1529310	THUMB BAR	3.30
10	1125962	SCREW	1.76
11	1529311	WORM SHAFT PIN	2.20
12	1529312	WORM SHAFT GEAR	2.20
13	1529313	WORM SHAFT	16.50
14	1529314	LINE GUIDE TUBE	3.30
15	1553503	LINE GUIDE	5.50
16	1529316	WORM SHAFT BUSHING	2.20
17	1206522	RETAINER	2.20
18	1206527	PILOT GUIDE	2.20
19	1529204	WASHER	2.20
20	1529317	LINE GUIDE NUT	2.20
21	1529318	LINE GUIDE SHAFT	5.50
22	1513272	SCREW	2.20
23	1624567	FRONT COVER	5.50
24	1529321	RETAINER	2.20
25	1529322	BUSHING	2.20
26	1529323	MAIN GEAR SHAFT PLATE	3.30
27	1548128	SCREW	2.20
28	1529324	MAIN GEAR SHAFT	11.00
29	1529325	RATCHET	3.30
30	1529326	STOPPER	5.50
31	1529327	LEVEL WIND GEAR SHAFT	3.30
32	1529328	LEVEL WIND GEAR	2.20
33	1529329	BUSHING	2.20
34	1529330	SCREW	2.20
35	1529331	YOKE	2.20
36	1529332	YOKE SPRING	2.20
37	1553567	PINION	11.00
38	1529334	DRAG WASHER	3.30
39	1529335	WORM SHAFT DRIVE GEAR	5.50
40	1553568	MAIN GEAR	16.50
41	1529337	WASHER DRUM	4.40
42	1624568	DRAG WASHER	3.30
43	1529339	METAL WASHER	3.30
44	1529341	ONE WAY CLUTCH ASSEMBLY	13.20
45	1624569	GEAR SIDE PLATE	27.50
46	1116155	BUSHING	2.20
47	1513276	RING	2.20
48	1538274	O-RING	2.20
49	1513278	FRICTION WASHER	2.20
50	1624570	BRAKE KNOB	11.00
51	1529234	FLIPPING SWITCH	3.30
52	1529239	SCREW	2.20
53	1529241	LINE GUIDE SHAFT	3.30
54	1538275	BALL BEARING	6.60
55	1624571	SPOOL ASSEMBLY	44.00
56	1624572	SPOOL	22.00
57	1530654	BALL BEARING	6.60
58	1530655	PIN	2.20
59	1529218	MAGNET	2.20
60	1529219	MAGNET BALANCE	2.20
61	1624573	ELECTRONIC LINE COUNTER	55.00
62	1531380	BATTERY DOOR	5.50
63	1456426	O-ring	2.20
64	1529212	BALL BEARING	6.60
65	1130070	BRONZE WASHER	1.76
66	1529351	BB HOLDER	16.50
67	1529283	SCREW	2.20
68	1553563	LINE CLIP	2.20
69	1624574	PALM SIDE PLATE	22.00
70	1529207	SCREW	2.20
71	1624549	SCREW	2.20
72	1529355	WASHER	2.20
73	1529356	SPRING WASHER	2.20
74	1529357	CLICK SPRING HOLDER	2.20
75	1529358	CLICK SPRING	2.20
76	1529359	SPRING WASHER	2.20
77	1624575	STAR WHEEL	13.20
78	1529361	WASHER	2.20
79	1624576	HANDLE ASSEMBLY	22.00
80	1624577	HANDLE ARM	11.00
81	1529970	BUSHING	2.20
82	1530030	HANLDE KNOB	4.40
83	1518224	SCREW	2.20
84	1529198	HANDLE KNOB COVER	2.20
85	1529363	WASHER	2.20
86	1529364	HANDLE NUT	2.20
87	1624578	SCREW	2.20

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
