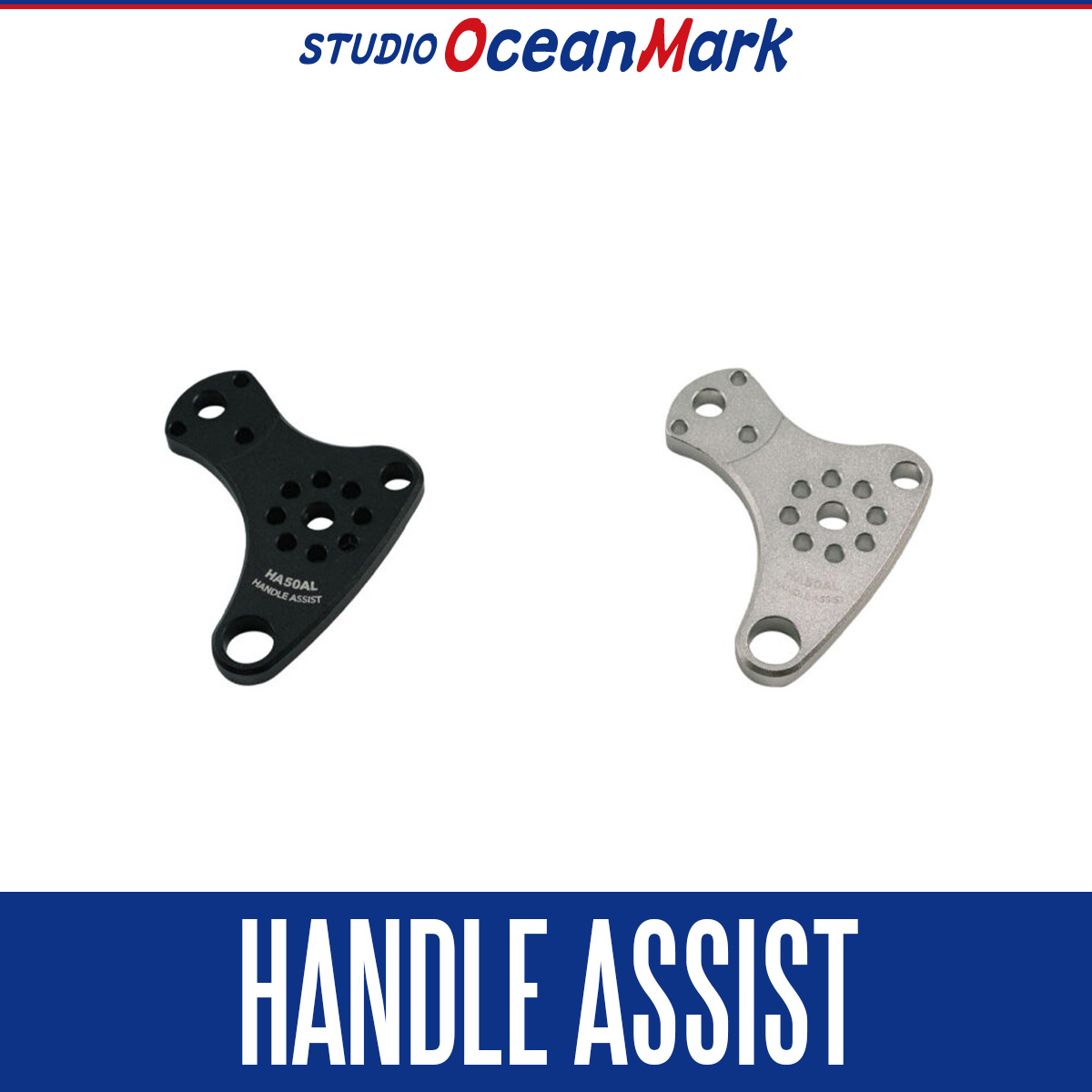

[STUDIO Ocean Mark] HANDLE ASSIST [HA50AL]

The handle assist, highly rated by big fish hunters for the OG2100 series, has been renewed.
The conventional HA50 design has been revised and downsized, and it can now be attached to both the OG2200Da and OG2100 models.


Mounted on OG2200Da



Since the OG2200 handle itself is movable, the HA50 is mounted as a fixed type with two screws and one pin.


Mounted on OG2100



As with previous models, the handle assist on the OG2100 moves, controlling the movements of struggling fish and preventing slipping out.


How to Attach to OG2200



1. Remove the minus screw on the handle.




2. Remove the handle cover and insert the HA50 into the pin.




3. Reattach the handle cover.




4. Tighten the minus screw securely and reassemble.
*The HA50 is fixed to the handle and does not swing.


How to Attach to OG2100



1. Remove the screw and washer on the resin body side (hex wrench / 2mm).




2. Slowly lift the resin body and insert the HA50 into the gap.




3. Insert the HA50 into the metal rivet.




4. Reassemble.


Curl Cord Installation Example (Fixed Type)



Securely attach the curl cord body to the handle assist.


Curl Cord Installation Example (Detachable Type)



By purchasing a small carabiner separately and connecting it, the handle assist and curl cord can be attached and detached.


Carabiner (Ring) Installation Example



Fix with a carabiner or commercially available ring through the hole at the end of the handle assist.
