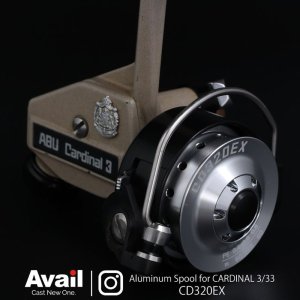

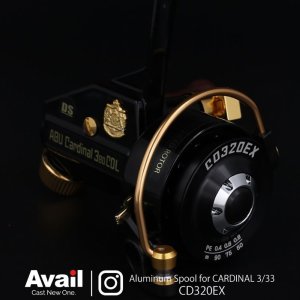

[Avail] ABU Aluminum Spool for ABU Cardinal 3 Series [CD320EX, CD340EX]

For ABU Cardinal3 Series

Model Name

CD320EX
CD340EX


Product Introduction



This is an aluminum spool for the Cardinal 3/33 series.
By using aluminum material, Avail has achieved a high-quality and luxurious appearance.
In terms of performance, the CD320EX is 4.5 g lighter, and the CD340EX is 2g lighter than the existing 320R/340R, further reducing the body’s weight.
Avail has also slightly smoothed the angle of the spool edge and thinned it.
These changes reduce line release resistance, improve casting distance, and achieve a superb casting feel.
In particular, it is highly compatible with the PE line setting, which has become mainstream in modern times.
For expert anglers who can control the amount of line released by feathering, casting distance and casting feeling can be improved even when using nylon lines with “restorative power” that are difficult to handle with genuine spools.

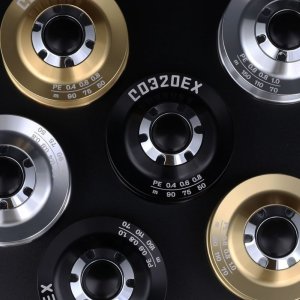

Color

CD320EX



CD320EX Black




CD320EX Silver




CD320EX Champagne Gold


CD340EX



CD340EX Black




CD340EX Silver




CD340EX Champagne Gold


Specifications

Basic Specifications

- Spool Material: Aluminum Alloy

- Button Press Material: Aluminum Alloy

- Button Material: Polyacetal Resin

- Compatible Reels:
ABU Cardinal
3/33/3X/3R/3E/33X/3BP/3RD/3XBII/G3/B3


About Weight

Spool	Weight
CD320EX	16.5 g
CD340EX	18.0 g
Genuine Spool	20.4 g

*The weight may vary slightly depending on the production lot.


CD320EX Line Capacity

PE	#0.4	#0.6	#0.8
CD320EX	90 m	75 m	50 m
Nylon	#0.8 (3lb) Diameter: 0.148 mm	#1 (4lb) Diameter: 0.165 mm	#1.2 (5lb) Diameter: 0.185 mm
CD320EX	65 m	50 m	35 m

*This product is recommended for use with PE lines.
Please refer to the “Product Features and Precautions” below when using a nylon line.


CD340EX Line Capacity

PE	#0.6	#0.8	#1.0
CD340EX	150 m	110 m	70 m
Nylon	#1 (4lb) Diameter: 0.165 mm	#1.2 (5lb) Diameter: 0.185 mm	#1.5 (6lb) Diameter: 0.205 mm
CD340EX	110 m	90 m	70 m

*This product is recommended for use with PE lines.
Please refer to the “Product Features and Precautions” below when using a nylon line.

*The PE line winding amount is measured by winding the PE line Pitbull 4-braid from SHIMANO Co., Ltd. up to the spool C surface.
Please use the above PE line winding amount as a guide, as it may vary depending on your line.
*The nylon line winding amount is measured by winding the Versatile Design (nylon) from Yamato Tegus Co., Ltd. up to the spool C surface.
Please use the above nylon line winding amount as a guide, as it may vary depending on your line.


Product Features and Precautions



Nylon lines have “restorative power” compared to PE lines.
Due to this high restorative power, nylon lines are released from the spool immediately after casting (and at landing).
Therefore, when using a nylon line, please perform “feathering” to intentionally suppress line release more than when using a PE line.

*Troubles will be reduced by feathering and intentionally applying brakes to line release.


Installation Method



The installation method for CD320EX/340EX is available on the Avail official YouTube channel.
If you need help installing, please refer to the above video for spool replacement.


Line Winding Method



The recommended line winding method for CD320EX/340EX is available on the Avail official YouTube channel.
Please refer to the above video for line winding on the spool.
