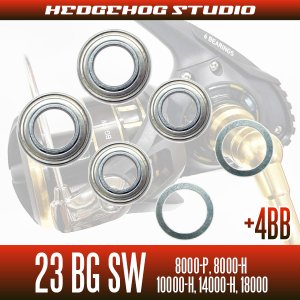

[DAIWA] 23 BG SW 8000-P, 8000-H, 10000-H, 14000-H, 18000 MAX9BB Upgrade Bearing Kit

[DAIWA] 23 BG SW 8000-P, 8000-H, 10000-H, 14000-H, 18000 MAX9BB Upgrade Bearing Kit

Our Selling Price: US$25.72 - US$35.58 [Regular Price: US$36.74 - US$50.82]

Prices vary according to options.

Bearing Type:


* The commercial product is the tuning kit, Not the fishing reel.
* Please select bearing type.

SHG bearing

The high-sensitive bearing whose rotary performance is terrific is for professional use. The products were carefully selected by hand work from the crowd of other bearings.
The rotational performance is superior to HRCB, and there is no rival for its ultimate smoothness.
This is the bearing to tune up for professional-use. It is very suitable for a high sensitivity reel to challenge by delicate tackle.

HRCB bearing

The new technique that metal itself is hard to get rusty very much by special manufacturing method is adopted.
The bearing is resistance to salt water.
And the derusting performance is more than ten times compared with SHG.
It makes rotation feeling like silky smoothness that's quite unique to HEDGEHOG STUDIO.
That helps tough fishing situation that requires both rotation performance and durability in a high level.
It is the next-generation anti-rust bearings for Salt Water angler.

How to choose bearings

SHG bearing : for freshwater fishing such as Bass/Trout or fishing which attaches importance to sensitivity by using light weight lures

HRCB bearing : for overall saltwater fishing which attaches importance to anti-rust effect
(Although you can use SHG bearing on saltwater fishing, HRCB bearing is more suitable because of its durability.)


* Adding 4 bearings is possible by the kit.

for 2 Bearings Line Roller System
- Line Roller Bearing x 2pcs (SHG-950ZZ or HRCB-950ZHi)
- Washer for Line Roller x 2pcs (5mm×7mm×0.1mm)

for 2 Bearing Handle Knob System
- Handle Knob Bearing x 2 pcs (SHG-850ZZ or HRCB-850ZHi)

*Instructions are not included. Please refer to the installation instructions below.


*The following is a photo of 22 CALDIA SW.

for 2 Bearing Line Roller System

Disassembling the line roller section, the genuine parts are in the order shown in the photo.

Replace the stock parts with line roller bearings and roller washers, referring to the photo.

When reassembling the line roller, it is easier to work by putting the parts in order on the bail side as shown in the photo.

Finally, squeeze the screws to complete the process.

for 2 Bearing Handle Knob System

Remove the handle knob cap using a genuine DAIWA tool (sold separately).

Replace the black plastic collar inside the handle knob with a handle knob bearing.
The number of washers depends on the reel, so please install them as they were originally.
If the handle knob does not turn, please remove one washer.

One Point Advice

The black plastic color of the handle knob, but it may be hard to remove because it is deep in the knob.

A handle knob cap remover is very useful in these situations.

Parts located in deep places can be easily removed.

Compatible Models

- 23 BG SW
( 8000-P, 8000-H, 10000-H, 14000-H, 18000 )
