[DAIWA] 23 GEKKABIJIN LT1000S, LT2000S, LT2000S-H MAX11BB Upgrade Bearing Kit

[DAIWA] 23 GEKKABIJIN LT1000S, LT2000S, LT2000S-H MAX11BB Upgrade Bearing Kit

Our Selling Price: US$24.49 - US$35.12 [Regular Price: US$34.98 - US$50.16]

Prices vary according to options.

View availability
Bearing Type:
Quantity:
Contact Us

Product Description

* The commercial product is the tuning kit, Not the fishing reel.
* Please select bearing type.



SHG bearing

The high-sensitive bearing whose rotary performance is terrific is for professional use. The products were carefully selected by hand work from the crowd of other bearings.
The rotational performance is superior to HRCB, and there is no rival for its ultimate smoothness.
This is the bearing to tune up for professional-use. It is very suitable for a high sensitivity reel to challenge by delicate tackle.



HRCB bearing

The new technique that metal itself is hard to get rusty very much by special manufacturing method is adopted.
The bearing is resistance to salt water.
And the derusting performance is more than ten times compared with SHG.
It makes rotation feeling like silky smoothness that's quite unique to HEDGEHOG STUDIO.
That helps tough fishing situation that requires both rotation performance and durability in a high level.
It is the next-generation anti-rust bearings for Salt Water angler.

How to choose bearings
SHG bearing : for freshwater fishing such as Bass/Trout or fishing which attaches importance to sensitivity by using light weight lures

HRCB bearing : for overall saltwater fishing which attaches importance to anti-rust effect
(Although you can use SHG bearing on saltwater fishing, HRCB bearing is more suitable because of its durability.)

It is the Full set of tuning kit consists of :
High-performance bearing / Peculiar parts / instructions
This one is for beginner tuners. We prepare and send all the necessary items.
* Please prepare drivers or pliers yourself.

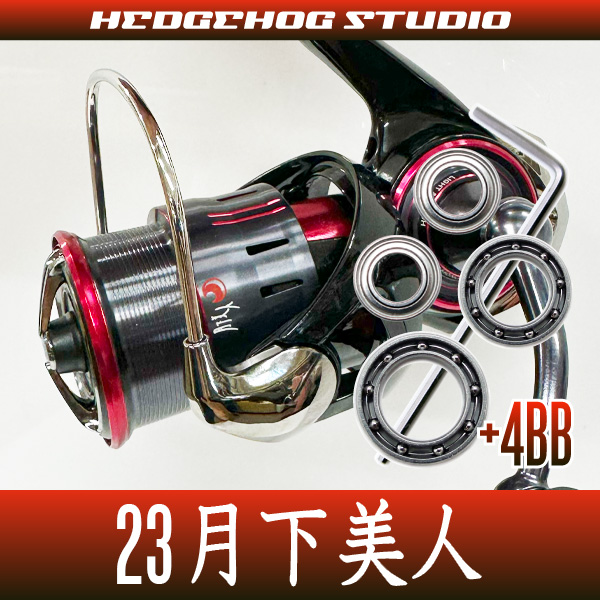

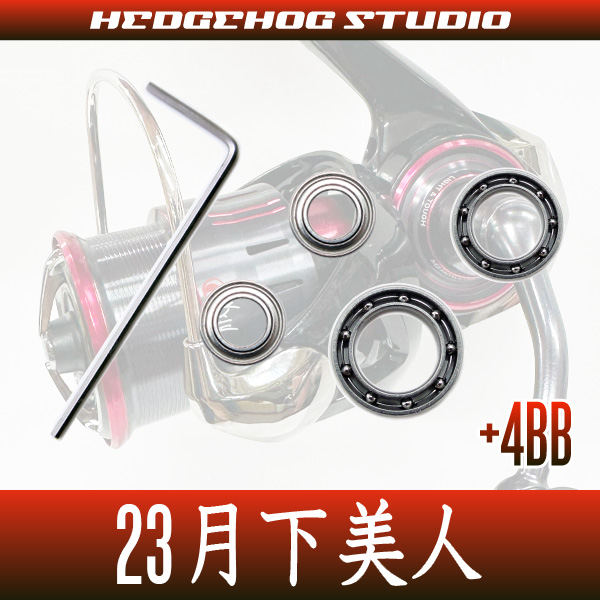

Contents

* Adding 4 bearings is possible by the kit.

for 2 Bearing Handle Knob System
- Handle Knob Bearing (SHG-740ZZ or HRCB-740ZHi) x 2 pcs

for 2 Bearing Drag System
- Spool Shaft Bearing (SHG-1170 or HRCB-1170Hi) x 1 pc
- Spool Inside Bearing (SHG-1060 or HRCB-1060Hi) x 1 pc

- Hexagonal wrench for spool shaft x 1 pc
- Illustration manual

*It is possible to add 4 bearings with this kit and perform MAX11BB full bearing tuning.

Instructions

*The following explanation is based on a photo of a CALDIA reel with the same reel construction.

- for Bearing Drag System (Spool Inside Bearing)



If you remove the drag washers from the inside of the 23 GEKKABIJIN spool, you will see a collar at the far end. Replacing this collar with a bearing is called a finesse spool drag bearing tune.

By adding a bearing to this part, you can make the rotation of the drag smoother.

It also reduces drag sticking and supports smooth line release.

*The 23 GEKKABIJIN has a metal collar instead of a resin collar.


Installation



(1) Remove the drag ring and drag the washer from the spool.

It's recommended to keep the removed parts to make reassembly smoother when putting the parts back.




(2) After removing the drag washers and other parts, you will see a collar fixed to the bottom of the spool with a stopper ring.

Remove the stopper ring using a small flat-blade screwdriver or toothpick, and pull out the collar.

*Please note that the stopper ring is easy to lose when removing the stopper ring.




(3) Replace the collar with the bearing (size 1060) included in the kit.




(4) Install the bearing into the spool and secure it with the stopper ring.

Install the drag washers in the reverse order of when they were removed, then install the reel and confirm that the spool rotates smoothly and makes a proper clicking sound.

If there are no problems, the work is complete.

If it does not work properly, there is a possibility that some parts have been installed incorrectly, so please disassemble the reel and check again.


- for Bearing Drag System (Spool Shaft Bearing)



If you remove the drag washers from the inside of the 23 GEKKABIJIN spool, you will see a collar at the far end. Replacing this collar with a bearing is called a finesse spool drag bearing tune.

By adding a bearing to this part, you can make the rotation of the drag smoother.
It also reduces drag sticking and supports smooth line release.


Installation



(1) First, remove the adjustment washer on the spool shaft.

This will reveal a hex screw.




(2) Remove this with the hexagonal wrench provided.




(3) Then the collar and spool metal can be removed.




(4) Replace the collar with the bearing (1170 size) included in the kit.




(5) Reinstall the spool metal and bearing to the spool shaft and secure the parts using the hex screws.




(6) Finally, install the adjusting washers to complete the work.


- for 2 Bearing Handle Knob System



Replace the two Collars in the handle knob of 23 GEKKABIJIN with bearings.

Adding bearings to the handle knob can further improve the quality and sensitivity of the reeling feel.


*When installing this kit, we will not touch the parts where the mag shield is built (the part under the rotor with the Magshield stamped). Therefore, please be assured that the mag shield will not come off during installation.

It is easy to reassemble the parts and return the reel to its original condition.


Compatible Models



- 23 GEKKABIJIN LT1000S, LT2000S, LT2000S-H
