[LIVRE] SB 70-75 TS Balancer Handle

[LIVRE] SB 70-75 TS Balancer Handle

Our Selling Price: US$173.95 [Regular Price: US$248.50]

View availability
Handle Type:
Color (Main Plate/Center Nut):
Quantity:
Return & Exchange Policy
Contact Us
Special order item: ships in about 5 business days. This item is ordered from the manufacturer after your order is placed.

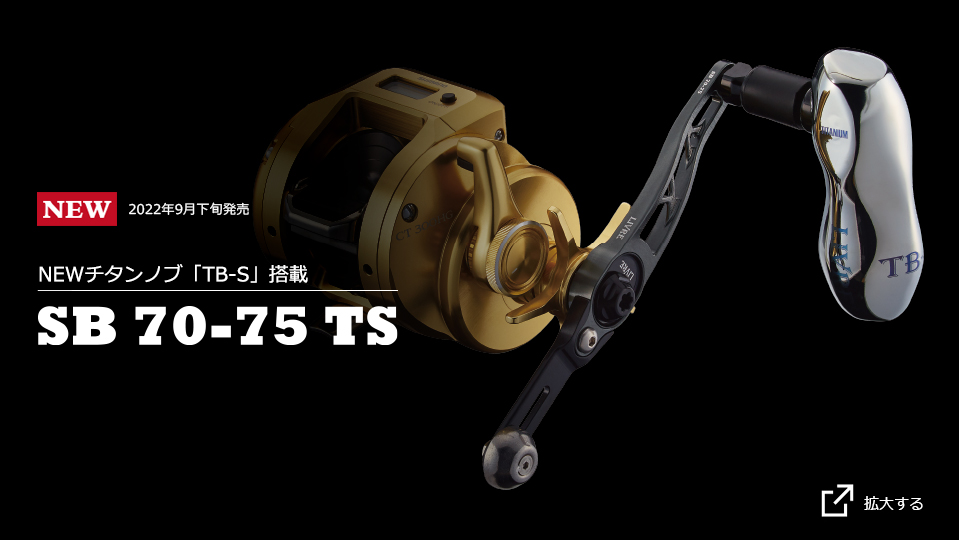

LIVRE SB 70-75 TS Balancer Handle mounted on a baitcasting reel
With the Titanium Knob “TB-S”

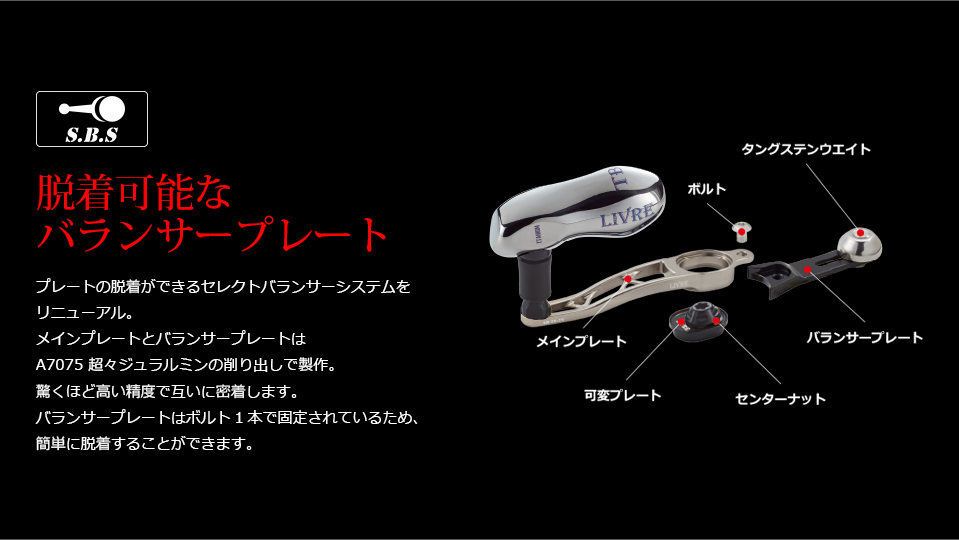

LIVRE SB 70-75 TS removable balancer plate: main plate, bolt, tungsten weight, balancer plate, variable plate and center nut
S.B.S: Removable Balancer Plate
The renewed Select Balancer System lets you attach and remove the balancer plate. The main plate and the balancer plate are machined from A7075 extra super duralumin and fit together precisely. The balancer plate is held by a single bolt.

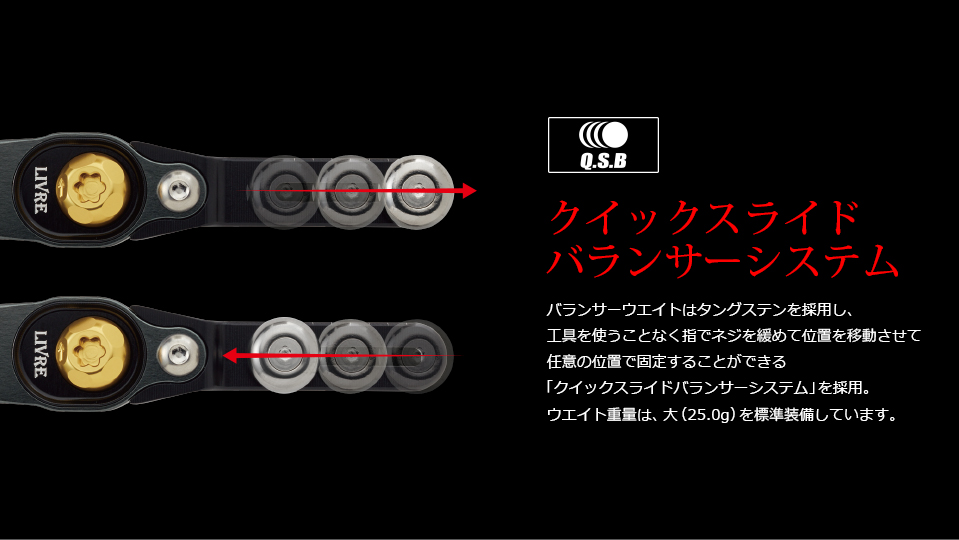

LIVRE SB 70-75 TS quick slide balancer system with a tungsten weight
Q.S.B: Quick Slide Balancer System
The tungsten balancer weight is loosened by hand, slid and fixed in any position, no tools needed. The large weight (25.0g) comes as standard.

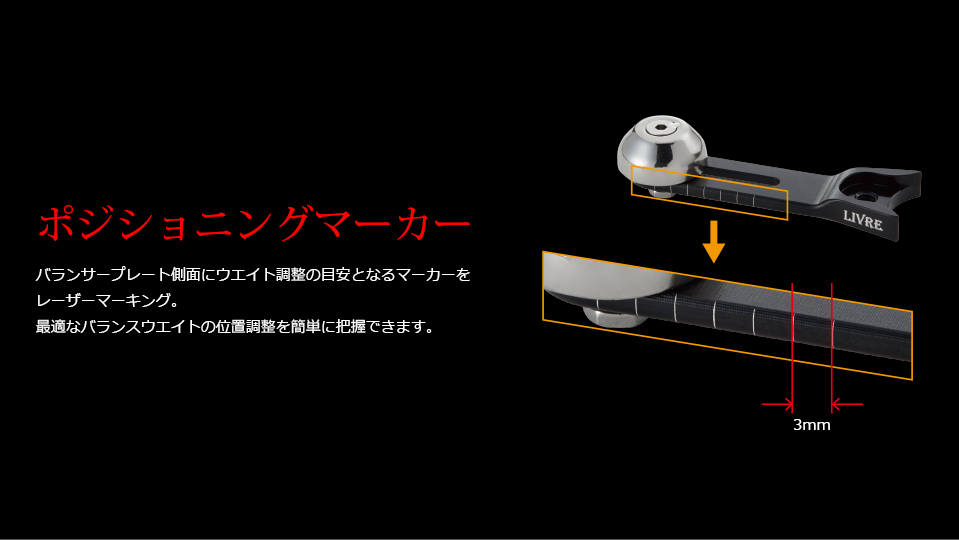

LIVRE SB 70-75 TS positioning marker on the side of the balancer plate, 3mm intervals
Positioning Marker
Markers laser-engraved on the side of the balancer plate serve as a guide for weight adjustment, so you can easily see where to set the weight for the best balance.

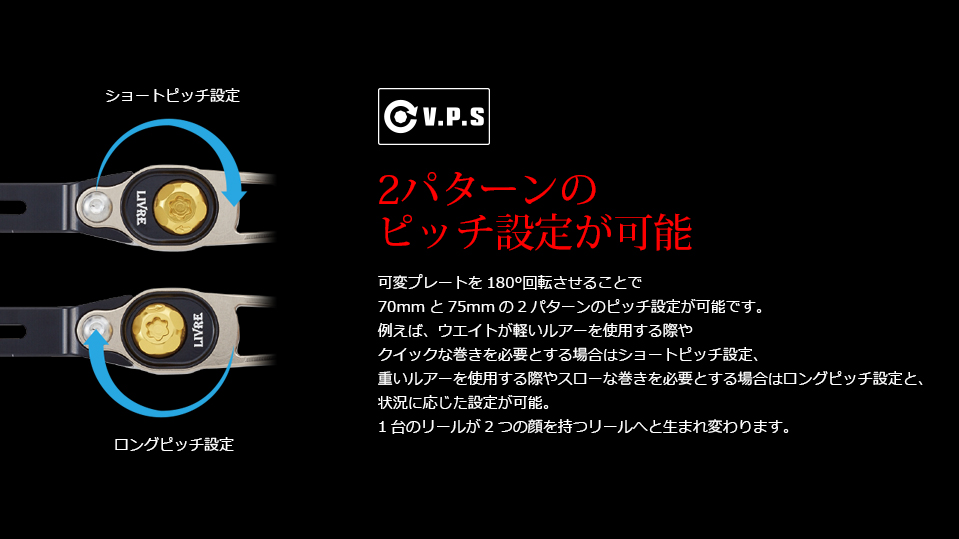

LIVRE SB 70-75 TS variable pitch system: short pitch and long pitch settings
V.P.S: Two Pitch Settings
Rotating the variable plate 180 degrees gives two pitch settings: 70mm and 75mm. Use the short pitch for light lures or quick reeling, and the long pitch for heavy lures or slow reeling. One reel gains two different characters.

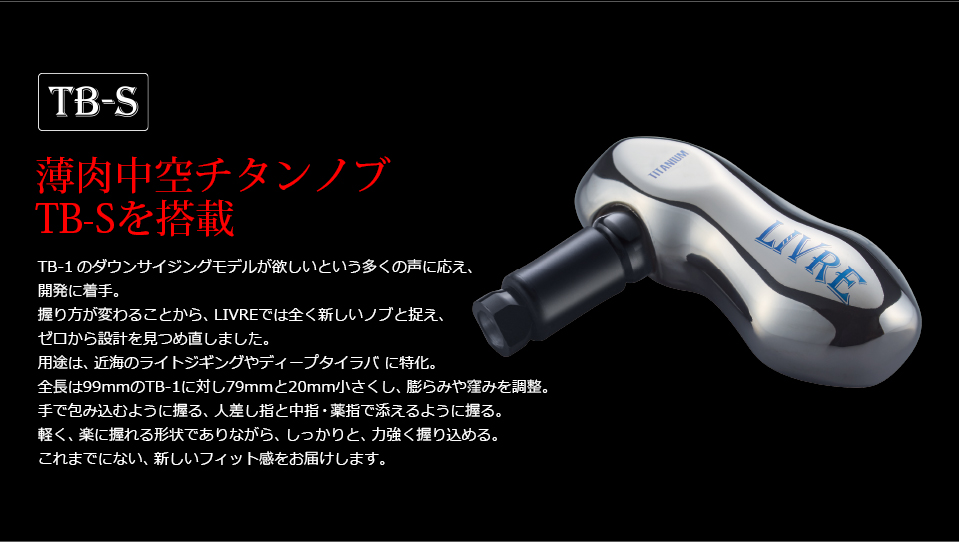

LIVRE TB-S thin-walled hollow titanium knob
Thin-Walled Hollow Titanium Knob “TB-S”
A downsized TB-1, redesigned from scratch for nearshore light jigging and deep-water tai rubber fishing. At 79mm long, it is 20mm shorter than the 99mm TB-1. Easy and light to hold, yet you can grip it firmly and powerfully.

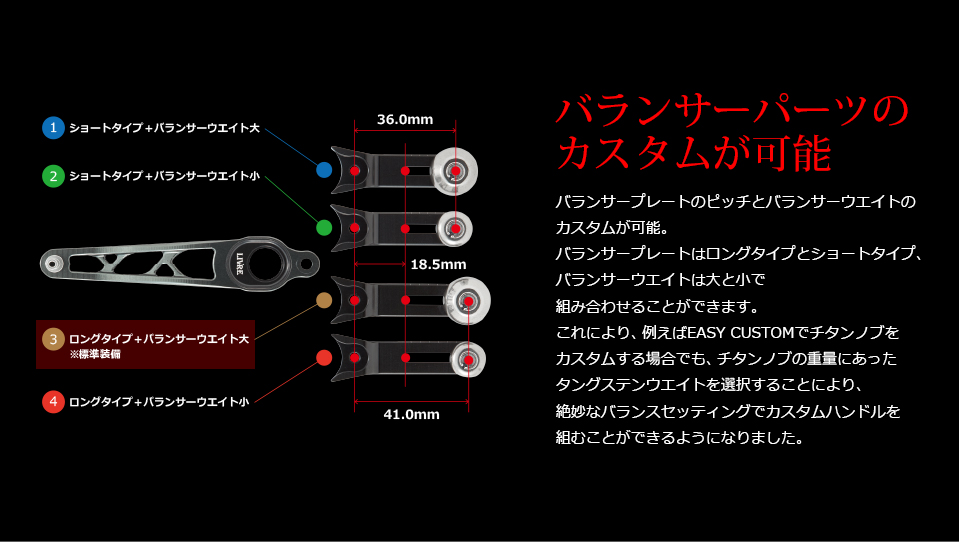

LIVRE SB 70-75 TS balancer parts: short and long balancer plates with large and small tungsten weights
Customizable Balancer Parts
Balancer plates come in long and short types, and tungsten weights in large and small sizes, which you can combine. Even with a custom titanium knob from EASY CUSTOM, you can choose a weight that suits the knob and fine-tune the balance.
Custom Titanium Knob Weights
Fino Plus Fortissimo EF 30 EP 37 EP 41
11.9g 15.5g 14.4g 14.5g 15.6g
EP 40 EP 44 EP 50 PT 48 PT 52
28.7g 31.4g 36.6g 33.6g 37.0g
* SB 70-75 TS comes with the large (25.0g) tungsten weight as standard.
* The balance can be finely tuned by combining the titanium knob and tungsten weight, the handle pitch, the balancer plate pitch and the position of the balancer weight.

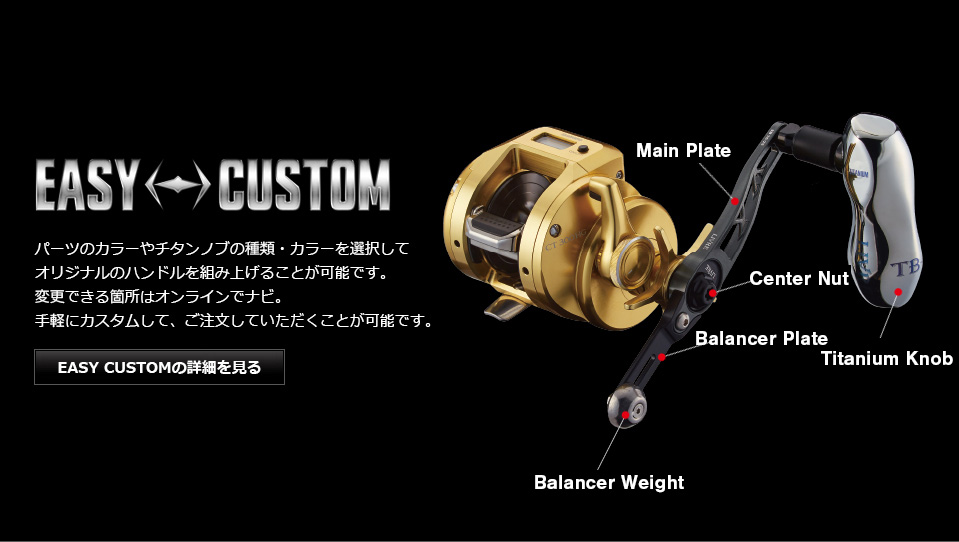

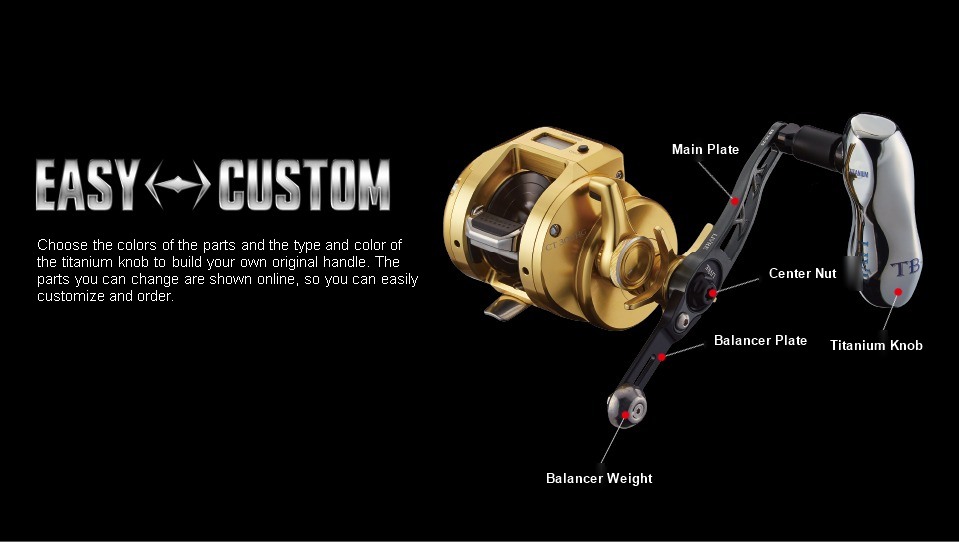

LIVRE SB 70-75 TS EASY CUSTOM parts diagram: main plate, center nut, balancer plate, titanium knob, balancer weight

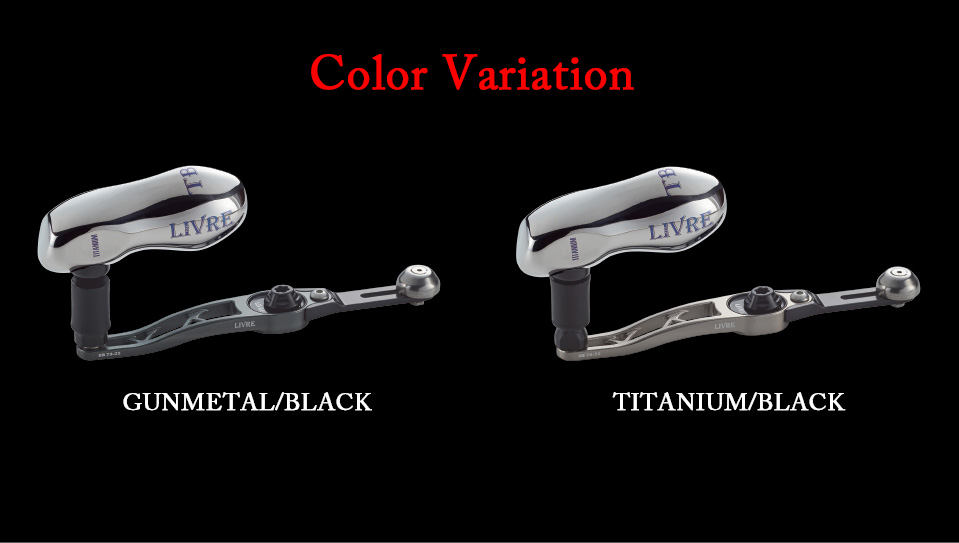

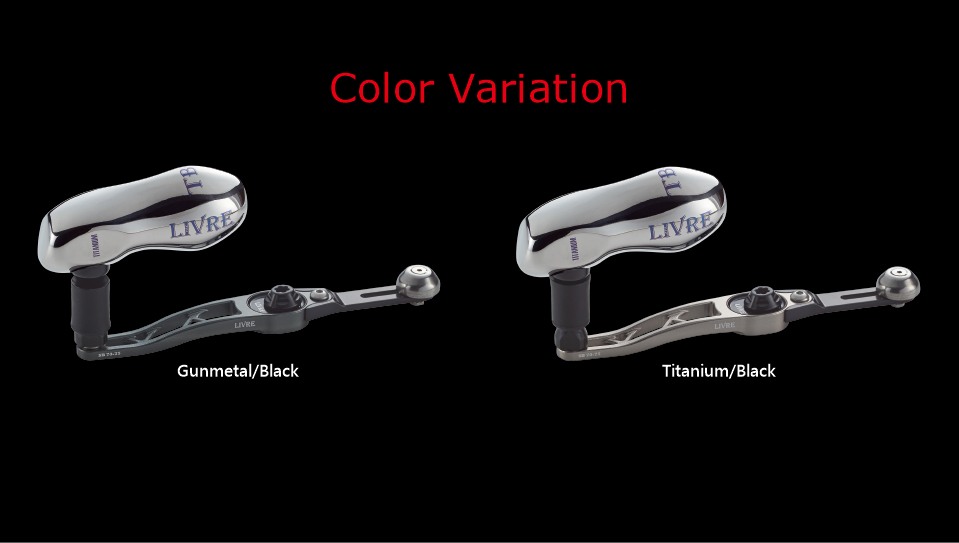

LIVRE SB 70-75 TS color variation: Gunmetal/Black, Titanium/Black
[Color Variation]
*Click an image to enlarge.

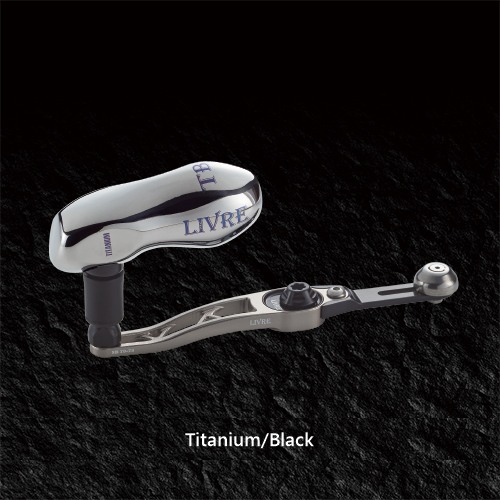

LIVRE SB 70-75 TS Balancer Handle in Gunmetal/Black LIVRE SB 70-75 TS Balancer Handle in Titanium/Black
Gunmetal/Black Titanium/Black

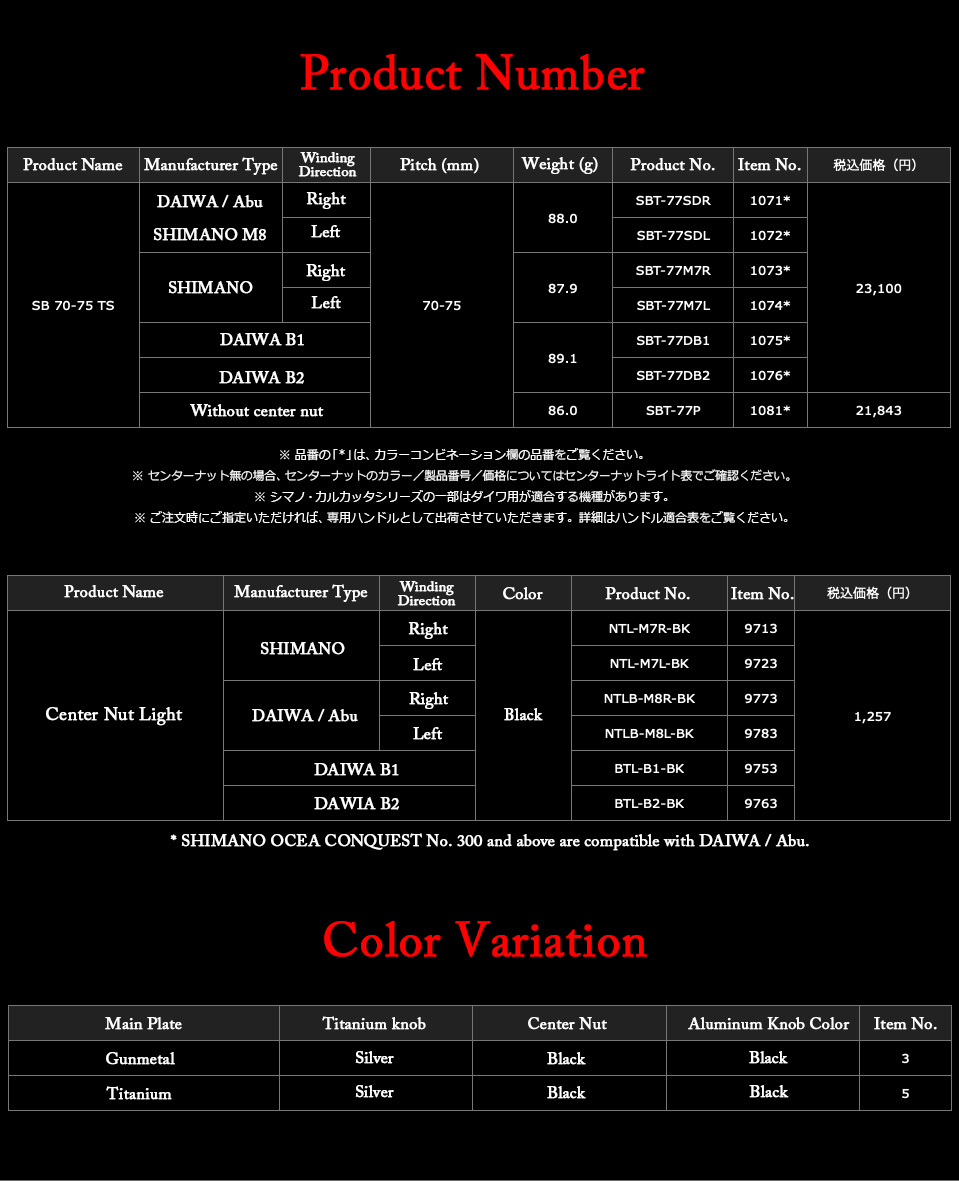

Specification
Model Titanium Knob Handle Type Center Nut Pitch (mm) Weight (g) Product No. Item No.
SB 70-75 TS TB-S SHIMANO M7 Right 70-75 87.9 SBT-77M7R 1073*
Left SBT-77M7L 1074*
DAIWA/SHIMANO M8 Right 88.0 SBT-77SDR 1071*
Left SBT-77SDL 1072*
DAIWA B1 (Bolt Type) Left and Right 89.1 SBT-77DB1 1075*
DAIWA B2 Left and Right SBT-77DB2 1076*
* Weights are with the standard knob (TB-S).
* For Item No. marked with “*”, refer to the Item No. in the Color Combination table.
* SHIMANO OCEA CONQUEST 300 size and larger fit the DAIWA/SHIMANO M8 type. See the compatibility chart for details.


Color Combination
Main Plate Titanium Knob Center Nut Aluminum Knob Collar Item No.
Gunmetal Silver Black Black 3
Titanium 5


Check LIVRE handle compatibility with your reel and how to select the handle type


* Specifications and prices on this page are subject to change without notice.
* We try to show product colors as accurately as possible, but actual colors and materials may look slightly different depending on photography and your screen.
