[LIVRE] BJ 66-74 PT Power Handle

[LIVRE] BJ 66-74 PT Power Handle

Our Selling Price: US$127.00+

Prices vary according to options.

Retail Price: US$254.00 - US$259.50

Handle Type:
Color (Main Plate/Center Nut, Aluminum Knob Collar):
Handle Knob/Knob Color:

Our Selling Price: US$127.00+

Retail Price: US$254.00 - US$259.50

Quantity:
Special order item: ships in about 5 business days. This item is ordered from the manufacturer after your order is placed.

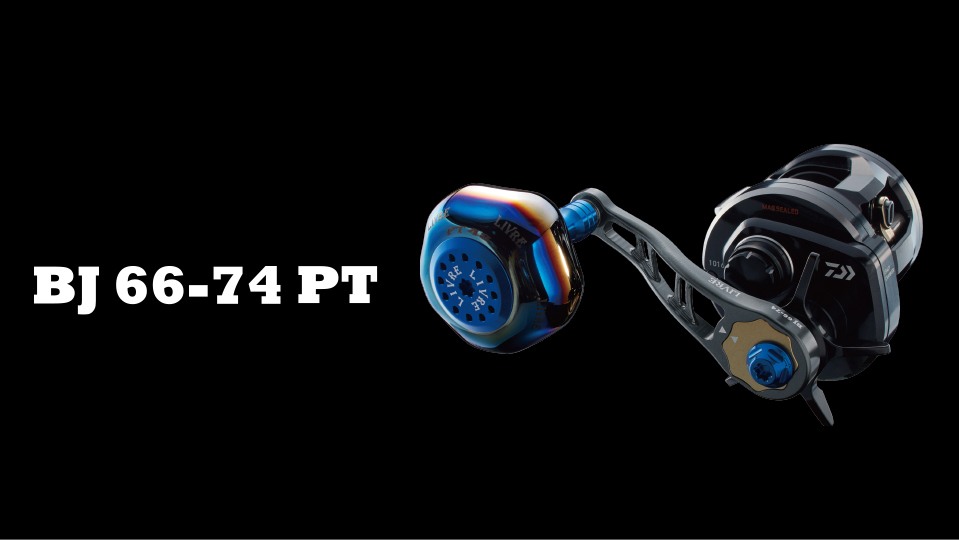

LIVRE BJ 66-74 PT power handle mounted on a baitcasting reel
Variable Pitch Power Handle, PT Knob
LIVRE PT 48 thin-walled hollow titanium knob and its cross-section
Equipped With the Thin-Walled Hollow Titanium Knob “PT 48”
The newly developed PT 48 is a pentagonal thin-walled hollow titanium knob with bumps all over. It does not slip out even when held lightly, and fits your hand when gripped hard.

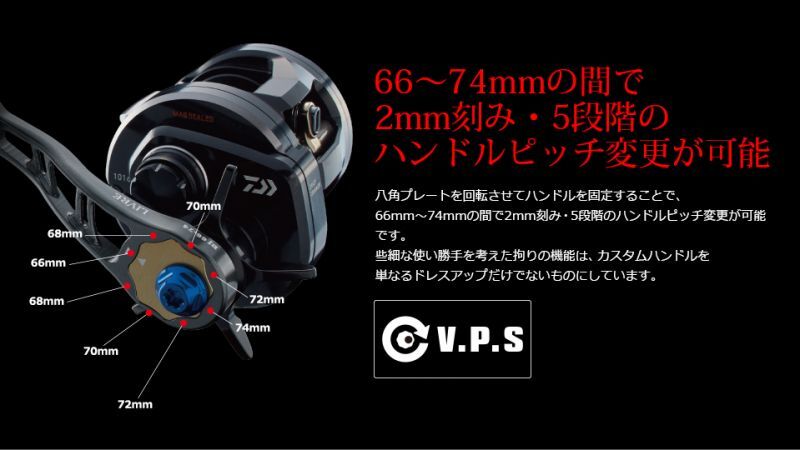

LIVRE BJ 66-74 PT V.P.S variable pitch: the octagonal plate sets the pitch from 66mm to 74mm
Variable Pitch: 66mm to 74mm in 5 Steps
Rotate the octagonal plate to set the handle pitch in 2mm steps (66mm, 68mm, 70mm, 72mm, 74mm). A feature for real use, not just for looks.
LIVRE BJ 66-74 PT main plate machined from A7075 extra super duralumin
A7075 Extra Super Duralumin, 3D Machined
Extra super duralumin is an aluminum alloy called “A7075” in the Japanese Industrial Standards (JIS). It has excellent yield strength and is used for thick plates and forged parts. LIVRE machines it into an H-section 3D shape with high precision. Only machining from solid allows maximum lightening while giving top priority to high rigidity.

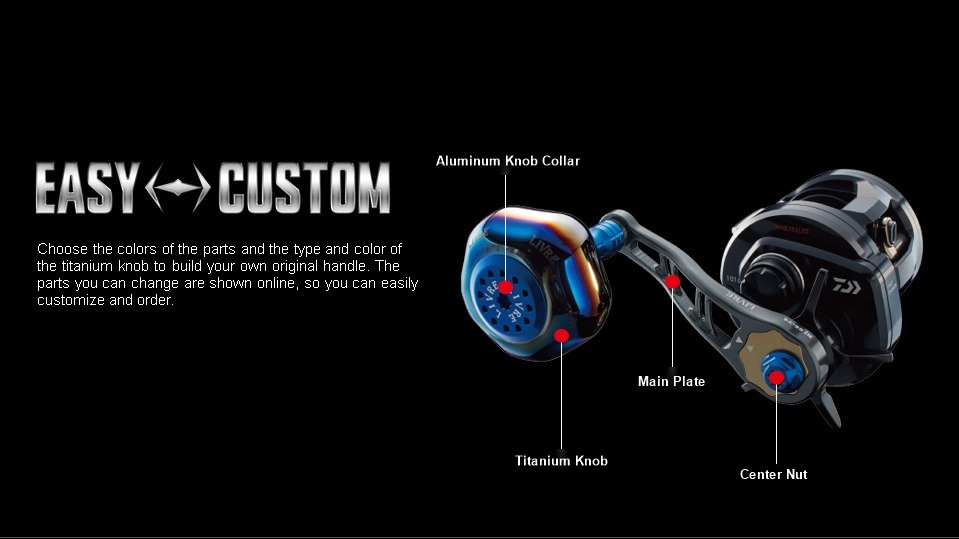

LIVRE BJ 66-74 PT EASY CUSTOM parts diagram: aluminum knob collar, center nut, main plate, titanium knob

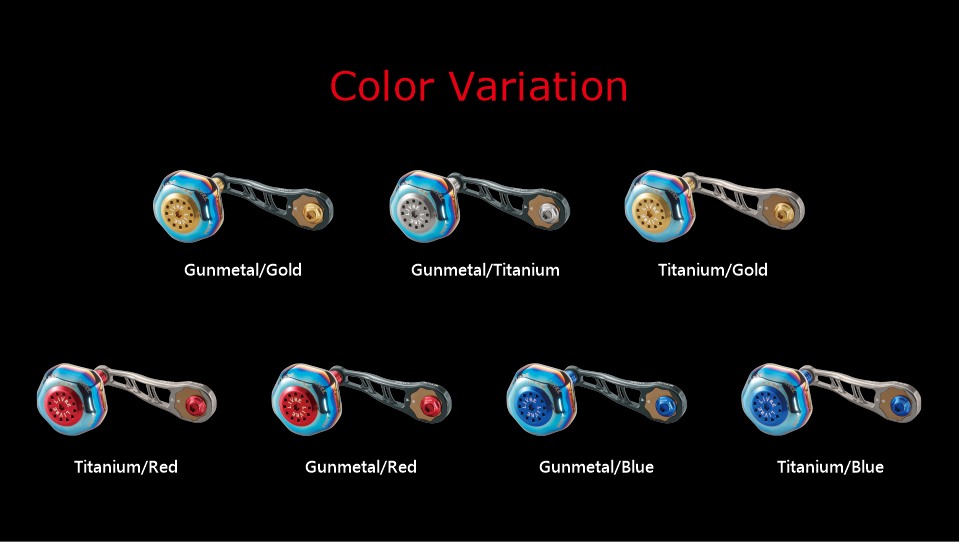

LIVRE BJ 66-74 PT color variation chart: Gunmetal/Gold, Gunmetal/Titanium, Titanium/Gold, Titanium/Red, Gunmetal/Red, Gunmetal/Blue, Titanium/Blue
[Color Variation]
*Click an image to enlarge.

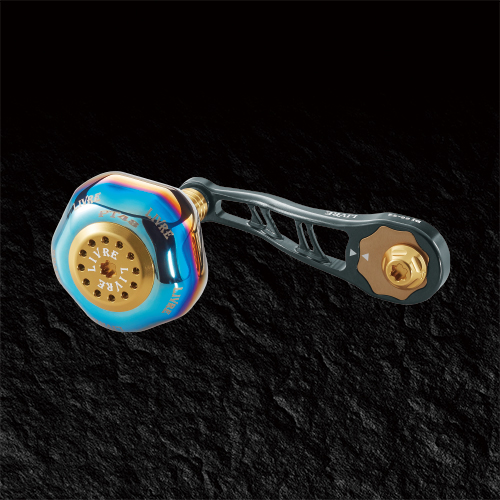

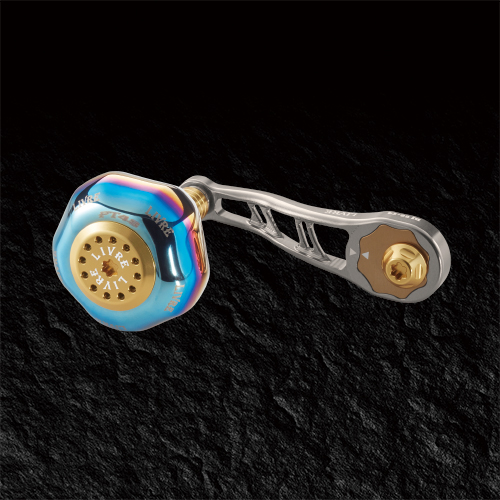

LIVRE BJ 66-74 PT in Gunmetal/Gold LIVRE BJ 66-74 PT in Gunmetal/Titanium LIVRE BJ 66-74 PT in Titanium/Gold
Gunmetal/Gold Gunmetal/Titanium Titanium/Gold

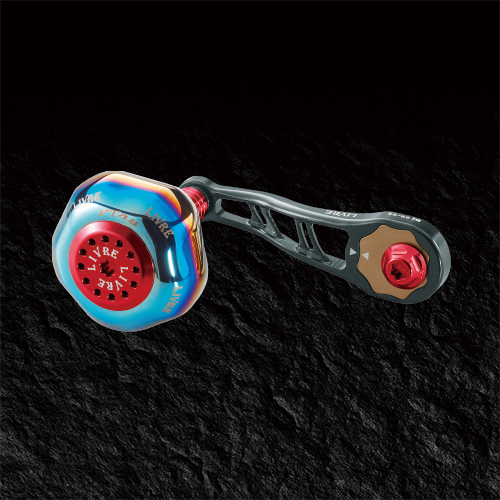

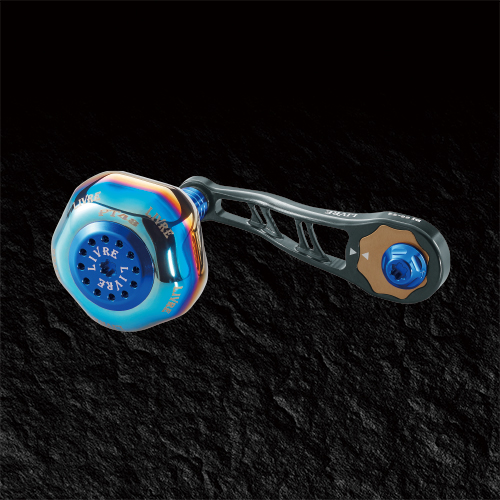

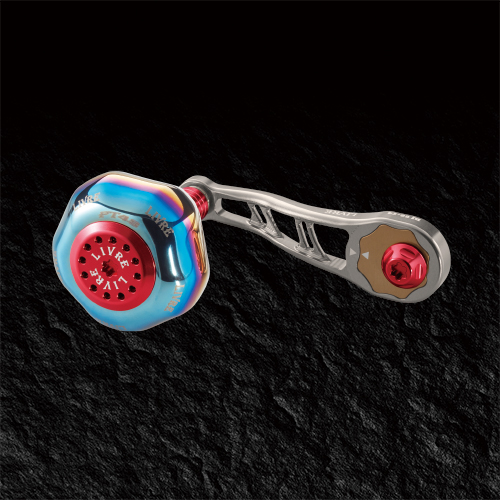

LIVRE BJ 66-74 PT in Titanium/Red LIVRE BJ 66-74 PT in Gunmetal/Red LIVRE BJ 66-74 PT in Gunmetal/Blue
Titanium/Red Gunmetal/Red Gunmetal/Blue

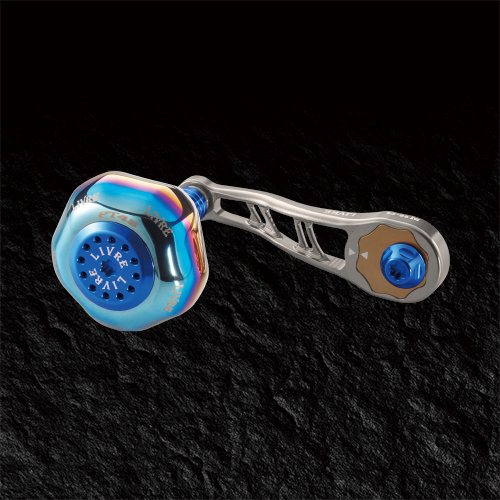

LIVRE BJ 66-74 PT in Titanium/Blue
Titanium/Blue


Choice of Knob Types
[Knob Type Selection]
*Standard: PT 48 (Fire). Choose the knob in the cart.
LIVRE PT 48 titanium handle knob
PT 48
(Standard)
[Knob Color Selection]
*Color samples are PT 48.
LIVRE titanium knob color sample: Fire (PT 48) LIVRE titanium knob color sample: Brown IP (PT 48)
Fire Brown (IP)


Specification

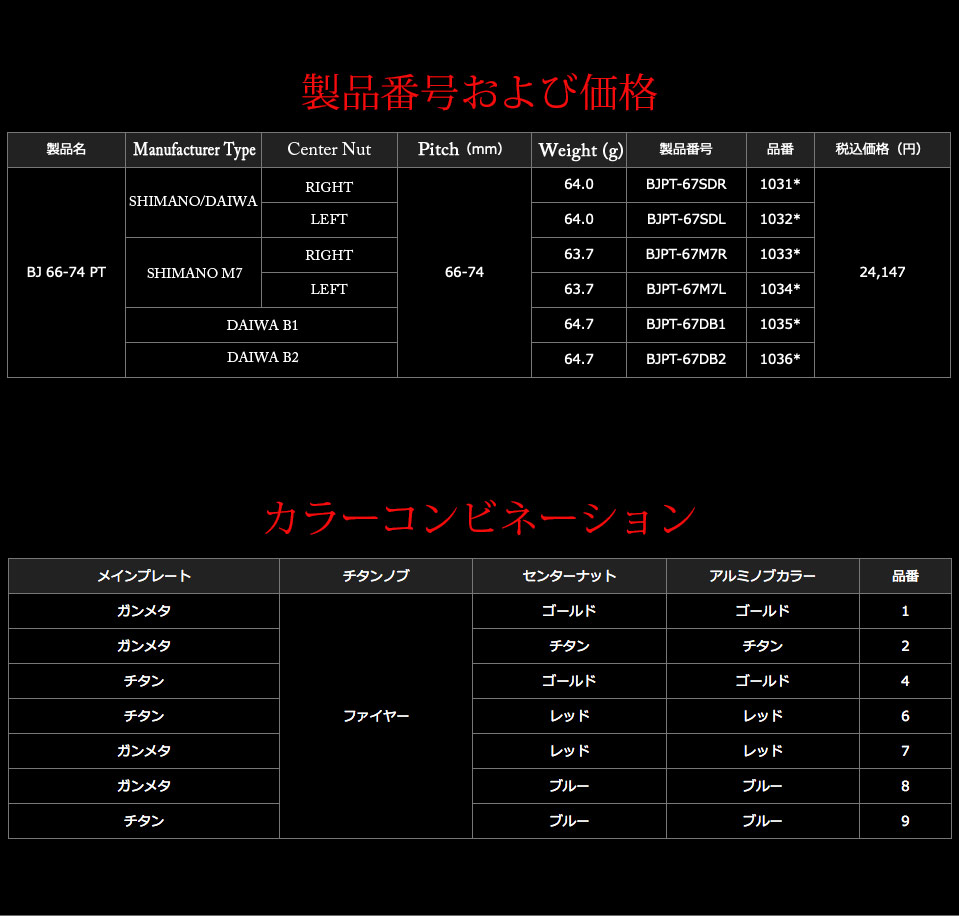

Model Titanium Knob Handle Type Center Nut Pitch (mm) Weight (g) Product No. Item No.
BJ 66-74 PT PT 48 SHIMANO M7 Right 66-74 63.7 BJPT-67M7R 1033*
Left BJPT-67M7L 1034*
DAIWA/SHIMANO M8 Right 64.0 BJPT-67SDR 1031*
Left BJPT-67SDL 1032*
DAIWA B1 (Bolt Type) Left and Right 64.7 BJPT-67DB1 1035*
DAIWA B2 Left and Right BJPT-67DB2 1036*
* Weights are with the standard knob (PT 48).
* SHIMANO M7: SHIMANO reels up to size 200. DAIWA/SHIMANO M8: DAIWA reels and SHIMANO reels from size 300.
* For Item No. marked with “*”, refer to the Item No. in the Color Combination table.


Color Combination
Main Plate Titanium Knob Center Nut Aluminum Knob Collar Item No.
Gunmetal Fire Gold Gold 1
Gunmetal Titanium Titanium 2
Gunmetal Blue Blue 8
Gunmetal Red Red 7
Titanium Gold Gold 4
Titanium Blue Blue 9
Titanium Red Red 6
Titanium Titanium Titanium -


JAN
Handle Type Center Nut Product No. Color Item No. JAN
SHIMANO M7 Right BJPT-67M7R Gunmetal/Gold 10331 4580421756244
Gunmetal/Titanium 10332 4580421756251
Gunmetal/Blue 10338 4580421756275
Gunmetal/Red 10337 4580421756268
Titanium/Gold 10334 4580421756282
Titanium/Blue 10339 4580421756305
Titanium/Red 10336 4580421756299
Left BJPT-67M7L Gunmetal/Gold 10341 4580421756312
Gunmetal/Titanium 10342 4580421756329
Gunmetal/Blue 10348 4580421756343
Gunmetal/Red 10347 4580421756336
Titanium/Gold 10344 4580421756350
Titanium/Blue 10349 4580421756374
Titanium/Red 10346 4580421756367
DAIWA/SHIMANO M8 Right BJPT-67SDR Gunmetal/Gold 10311 4580421756107
Gunmetal/Titanium 10312 4580421756114
Gunmetal/Blue 10318 4580421756138
Gunmetal/Red 10317 4580421756121
Titanium/Gold 10314 4580421756145
Titanium/Blue 10319 4580421756169
Titanium/Red 10316 4580421756152
Left BJPT-67SDL Gunmetal/Gold 10321 4580421756176
Gunmetal/Titanium 10322 4580421756183
Gunmetal/Blue 10328 4580421756206
Gunmetal/Red 10327 4580421756190
Titanium/Gold 10324 4580421756213
Titanium/Blue 10329 4580421756237
Titanium/Red 10326 4580421756220
DAIWA B1 (Bolt Type) Left and Right BJPT-67DB1 Gunmetal/Gold 10351 4580421756381
Gunmetal/Titanium 10352 4580421756398
Gunmetal/Blue 10358 4580421756411
Gunmetal/Red 10357 4580421756404
Titanium/Gold 10354 4580421756428
Titanium/Blue 10359 4580421756442
Titanium/Red 10356 4580421756435
DAIWA B2 Left and Right BJPT-67DB2 Gunmetal/Gold 10361 4580421756459
Gunmetal/Titanium 10362 4580421756466
Gunmetal/Blue 10368 4580421756480
Gunmetal/Red 10367 4580421756473
Titanium/Gold 10364 4580421756497
Titanium/Blue 10369 4580421756510
Titanium/Red 10366 4580421756503
* Item No. “-” is a custom color combination (center nut and aluminum knob collar in titanium).


Check LIVRE handle compatibility with your reel and how to select the handle type


* Specifications and prices on this page are subject to change without notice.
* We try to show product colors as accurately as possible, but actual colors and materials may look slightly different depending on photography and your screen.
