Baitcasting Reel

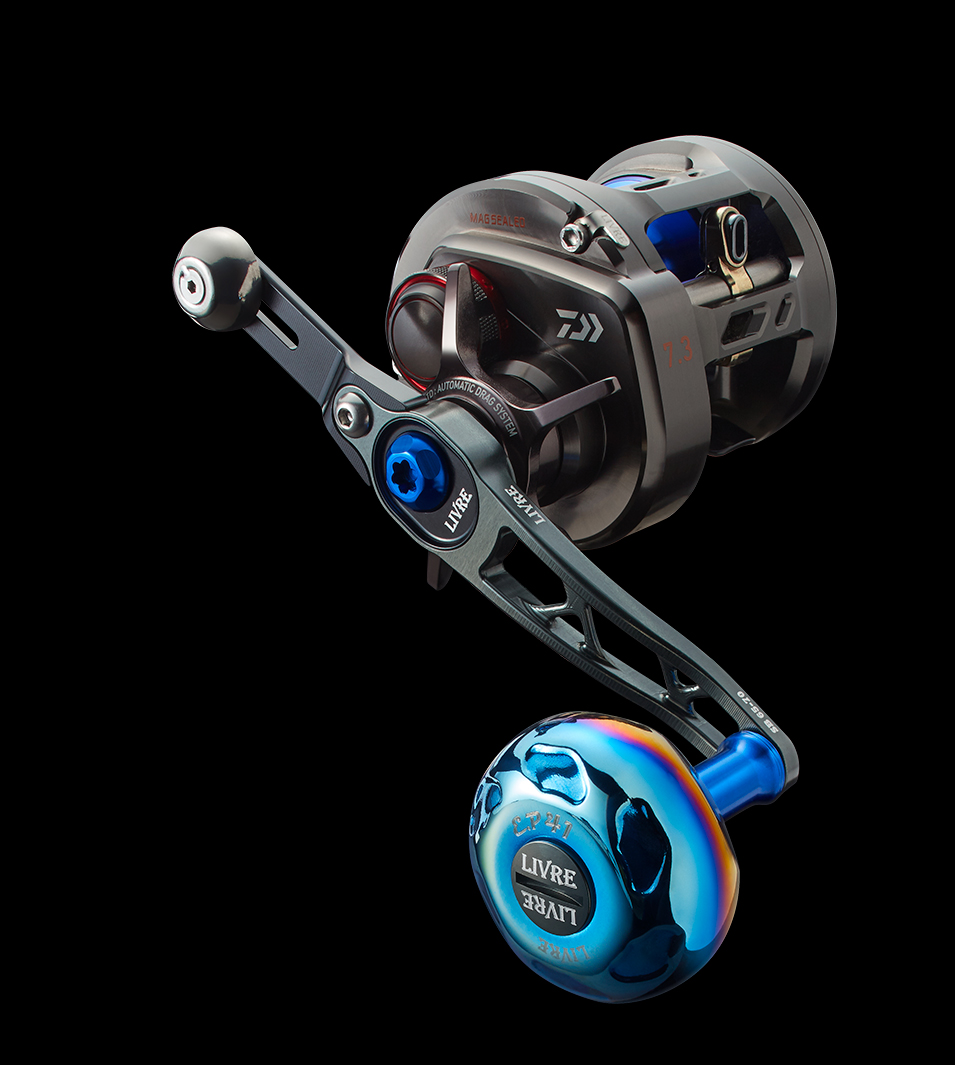

[LIVRE] SB 65-70 Jigging Handle
![Photo1: [LIVRE] SB 65-70 Jigging Handle](https://www.hedgehog-studio.co.jp/data/hedgehog-studio/product/20200212_5d99ad.jpg)

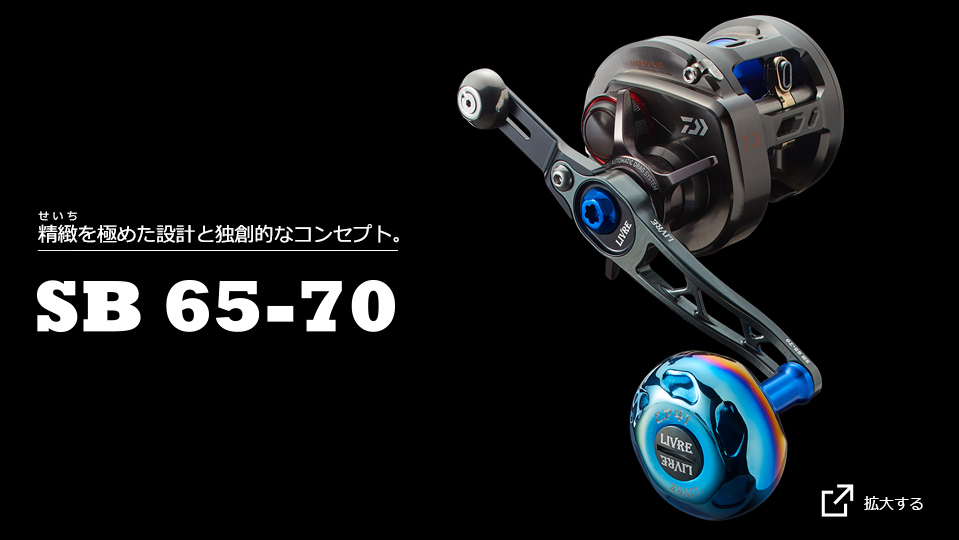

Refined Design and an Original Concept

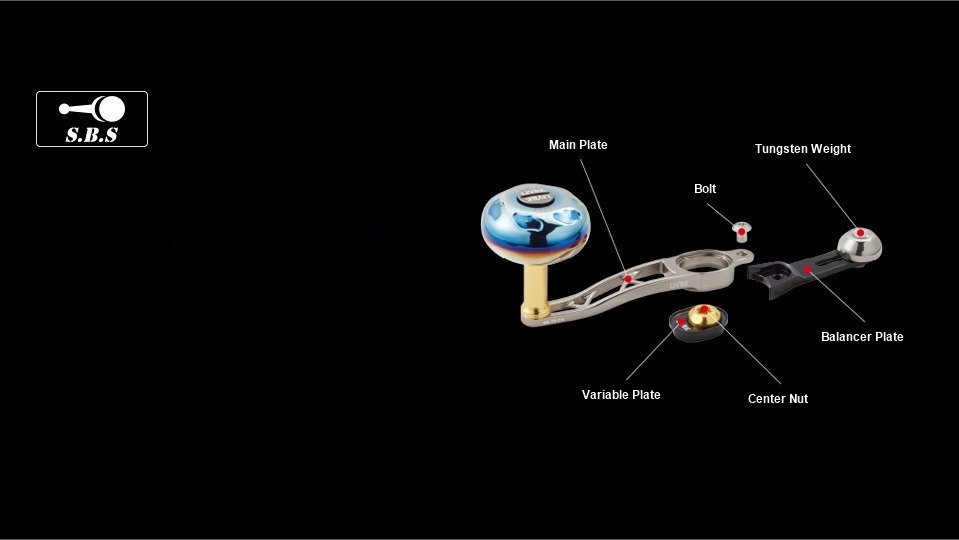

S.B.S: Removable Balancer Plate
The renewed Select Balancer System lets you attach and remove the balancer plate. The main plate and the balancer plate are machined from A7075 extra super duralumin and fit together precisely. The balancer plate is held by a single bolt.

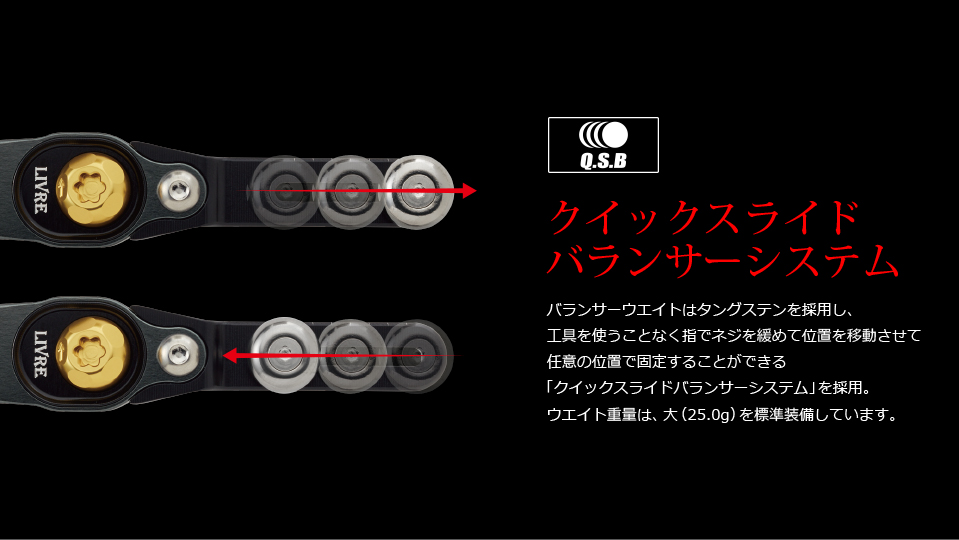

Q.S.B: Quick Slide Balancer System
The tungsten balancer weight is loosened by hand, slid and fixed in any position, no tools needed. The large weight (25.0g) comes as standard.

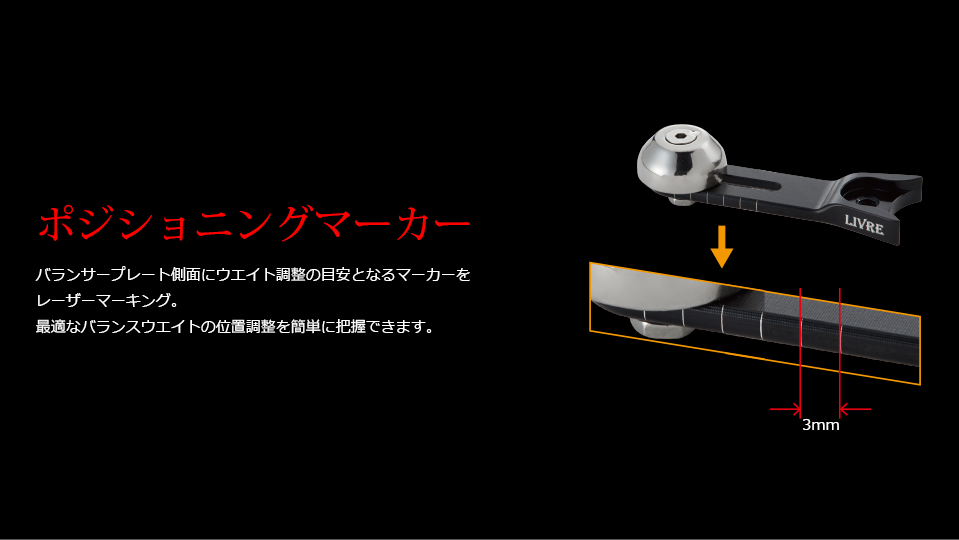

Positioning Marker
Markers laser-engraved on the side of the balancer plate serve as a guide for weight adjustment, so you can easily see where to set the weight for the best balance.

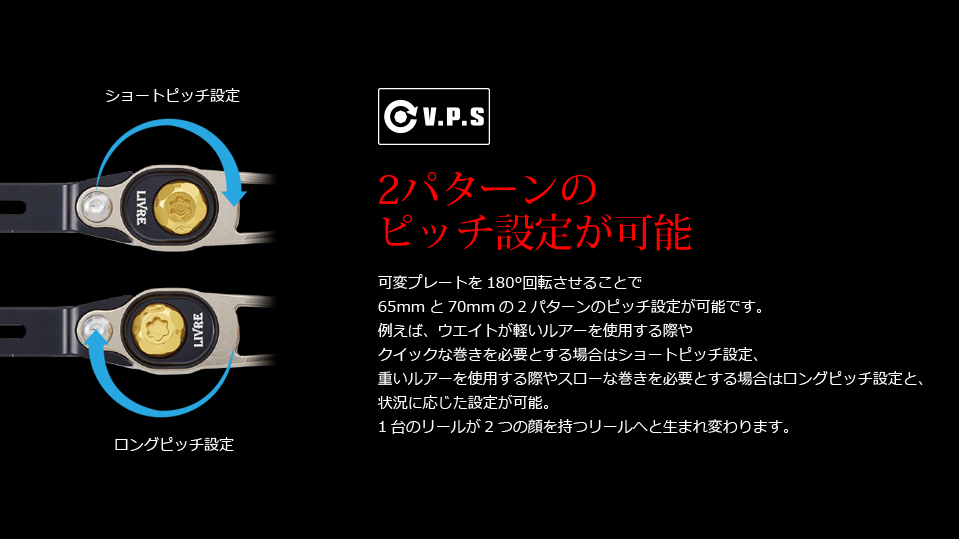

V.P.S: Two Pitch Settings
Rotating the variable plate 180 degrees gives two pitch settings: 65mm and 70mm. Use the short pitch for light lures or quick reeling, and the long pitch for heavy lures or slow reeling. One reel gains two different characters.
Thin-Walled Hollow Titanium Knob EP 41
Developed alongside the long-pitch plate, EP 41 is based on a round knob with angled sides so your fingers hook on more securely. With 0.6mm titanium walls, it gives a light operating feel and a stronger sense of power.

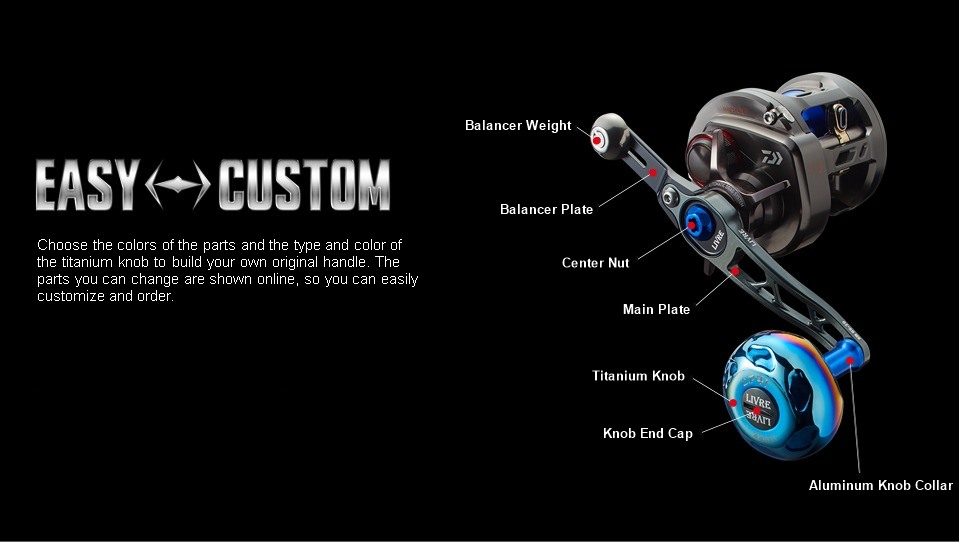

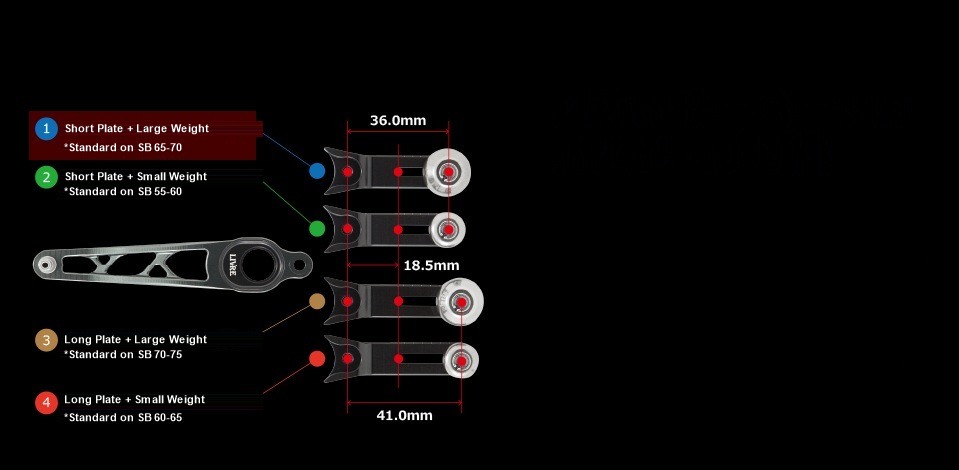

Customizable Balancer Parts
Balancer plates come in long and short types, and tungsten weights in large and small sizes, which you can combine. Even with a custom titanium knob from EASY CUSTOM, you can choose a weight that suits the knob and fine-tune the balance.
| Custom Titanium Knob Weights | ||||
| Fino Plus | Fortissimo | EF 30 | EP 37 | EP 41 |
| 11.9g | 15.5g | 14.4g | 14.5g | 15.6g |
| EP 40 | EP 44 | EP 50 | PT 48 | PT 52 |
| 28.7g | 31.4g | 36.6g | 33.6g | 37.0g |
* The balance can be finely tuned by combining the titanium knob and tungsten weight, the handle pitch, the balancer plate pitch and the position of the balancer weight.

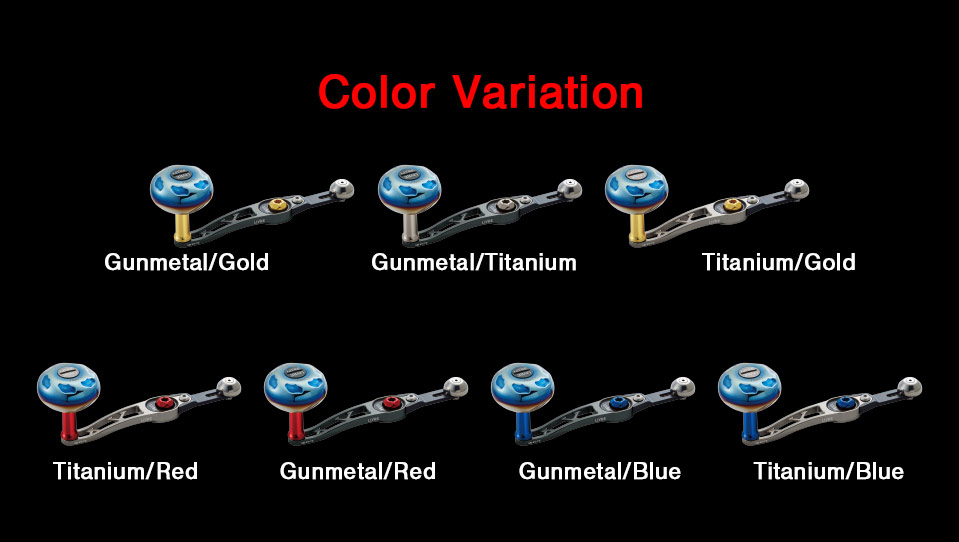

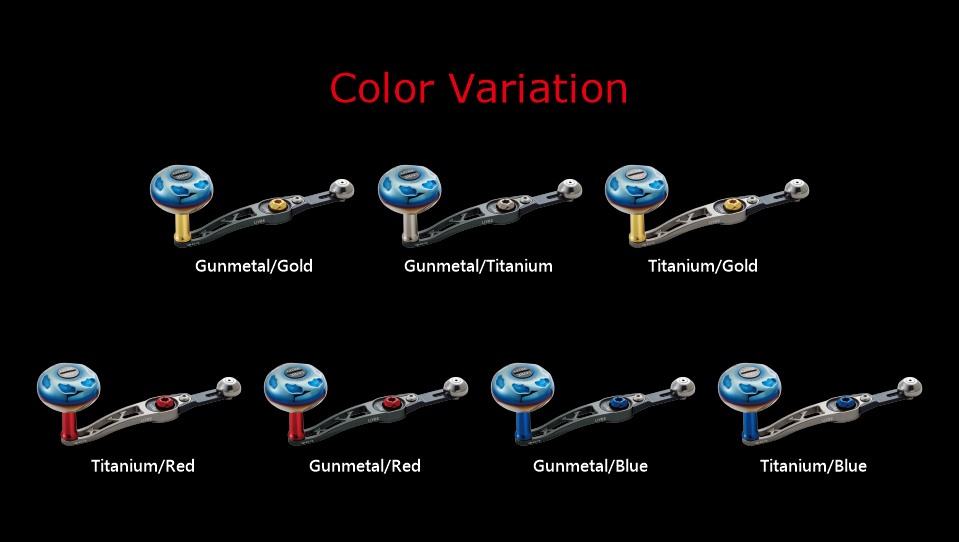

| [Color Variation] *Click an image to enlarge. |
||
 |
 |
 |

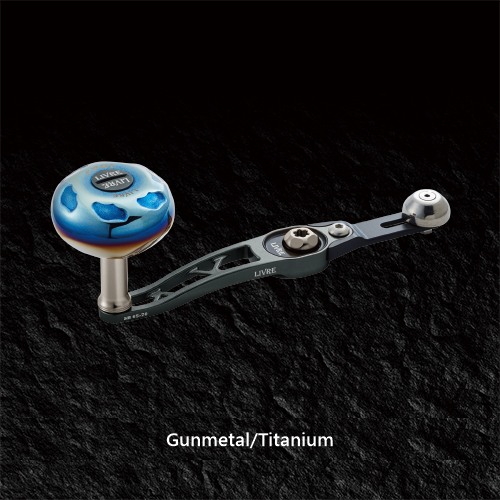

| Gunmetal/Gold | Gunmetal/Titanium | Titanium/Gold |
 |
 |
 |

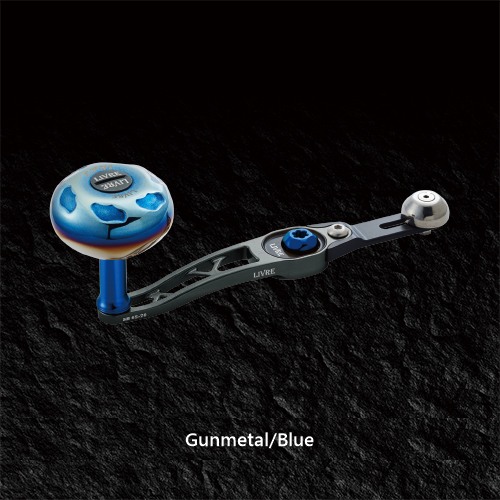

| Titanium/Red | Gunmetal/Red | Gunmetal/Blue |
 |
||
| Titanium/Blue | ||
| [Knob Type Selection] *Standard: EP 41 (Fire). Choose the knob in the cart. |
||
 |
 |
 |
| EP 41 (Standard) |
Fino Plus | EF 30 |
 |
 |
 |
| PT 35 | EP 37 | EP 44 |
 |
 |
 |
| EP 50 | PT 42 | PT 48 |
 |
 |
|
| PT 52 | TB-S | |
| [Knob Color Selection] *Color samples are PT 48. Available colors differ by knob. |
||
 |
 |
|
| Fire | Brown (IP) | |
| Model | Titanium Knob | Handle Type | Center Nut | Pitch (mm) | Weight (g) | Product No. | Item No. |
| SB 65-70 | EP 41 | SHIMANO M7 | Right | 65-70 | 67.6 | SBA-67SR | 714* |
| Left | SBA-67SL | 715* | |||||
| DAIWA/Abu/SHIMANO M8 | Right | 67.2 | SBA-67DR | 718* | |||
| Left | SBA-67DL | 719* | |||||
| DAIWA B1 (Bolt Type) | Left and Right | 68.3 | SBA-67B1 | 716* |
* For Item No. marked with “*”, refer to the Item No. in the Color Combination table.
* SHIMANO OCEA CONQUEST 300 size and larger fit the DAIWA/Abu type. See the compatibility chart for details.
| Main Plate | Titanium Knob | Center Nut | Aluminum Knob Collar | Knob End Cap | Item No. |
| Gunmetal | Fire | Gold | Gold | Gunmetal | 1 |
| Gunmetal | Titanium | Titanium | Gunmetal | 2 | |
| Titanium | Gold | Gold | Titanium | 4 | |
| Titanium | Red | Red | Titanium | 6 | |
| Gunmetal | Red | Red | Gunmetal | 7 | |
| Gunmetal | Blue | Blue | Gunmetal | 8 | |
| Titanium | Blue | Blue | Titanium | 9 |
* Specifications and prices on this page are subject to change without notice.
* We try to show product colors as accurately as possible, but actual colors and materials may look slightly different depending on photography and your screen.
