[Avail] ABU Microcast Spool for OLD Ambassadeur 5500/5500D [AMB5550R]

| Model Name

Microcast Spool AMB5550R (Groove Depth 5.0mm)


| Product Description



Reel: ABU Ambassadeur 5500D (780200)

This is a Microcast Spool for the Ambassadeur 5500 OLD.
It can be installed on the Old Ambassadeur 5500 and 5500D.
The Ambassadeur 5500 began production in 1975 and continued until 1980.
Early models were brown in color, changing to red from 1977.
Also, for only a short period in 1977, a champagne gold model was produced.
The Ambassadeur 5500D was produced only for a short period from 1977 to 1979.
Unlike the 5000D, it does not have a line alarm mechanism.

Please note that even among reels with the same name Ambassadeur 5500, this does not fit the Palming model, Ultracast model, C3, etc., so please be careful not to make a mistake.
Compatibility with the Simon Shimomura model is unconfirmed.




It fits reels with the spool shaft shape shown in the photo.
The photo has the cogwheel removed.
Remove the cogwheel and check the shape of the part that will be hidden.

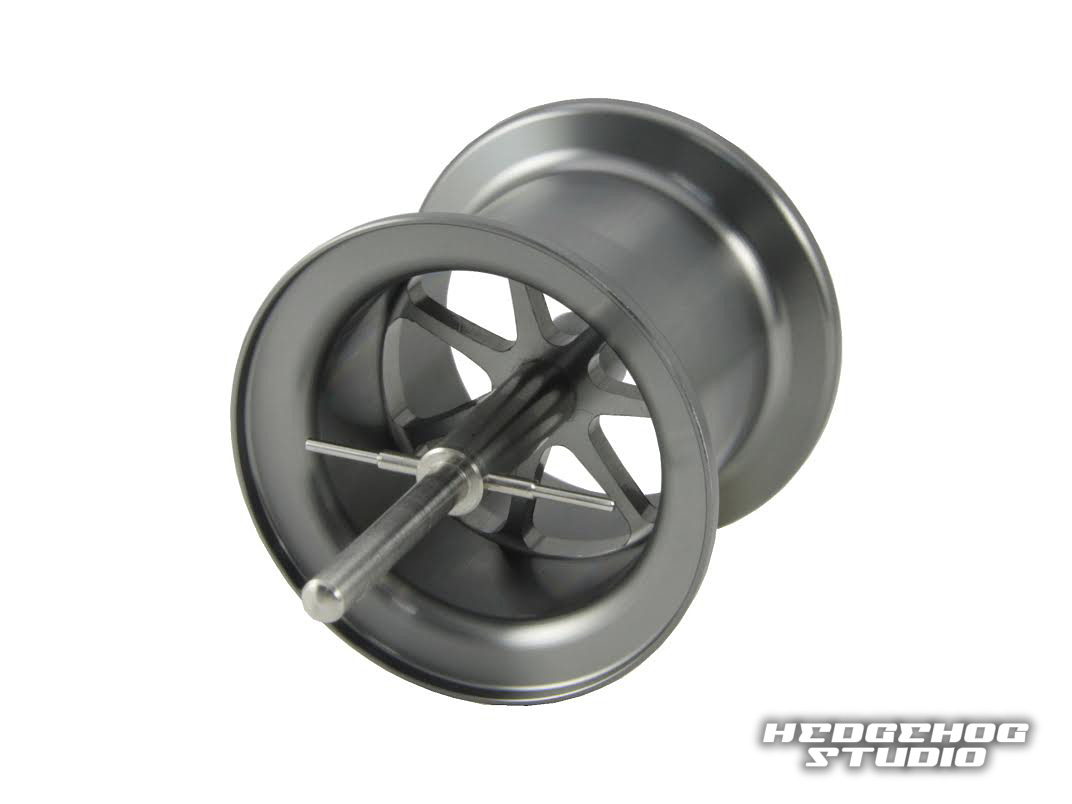

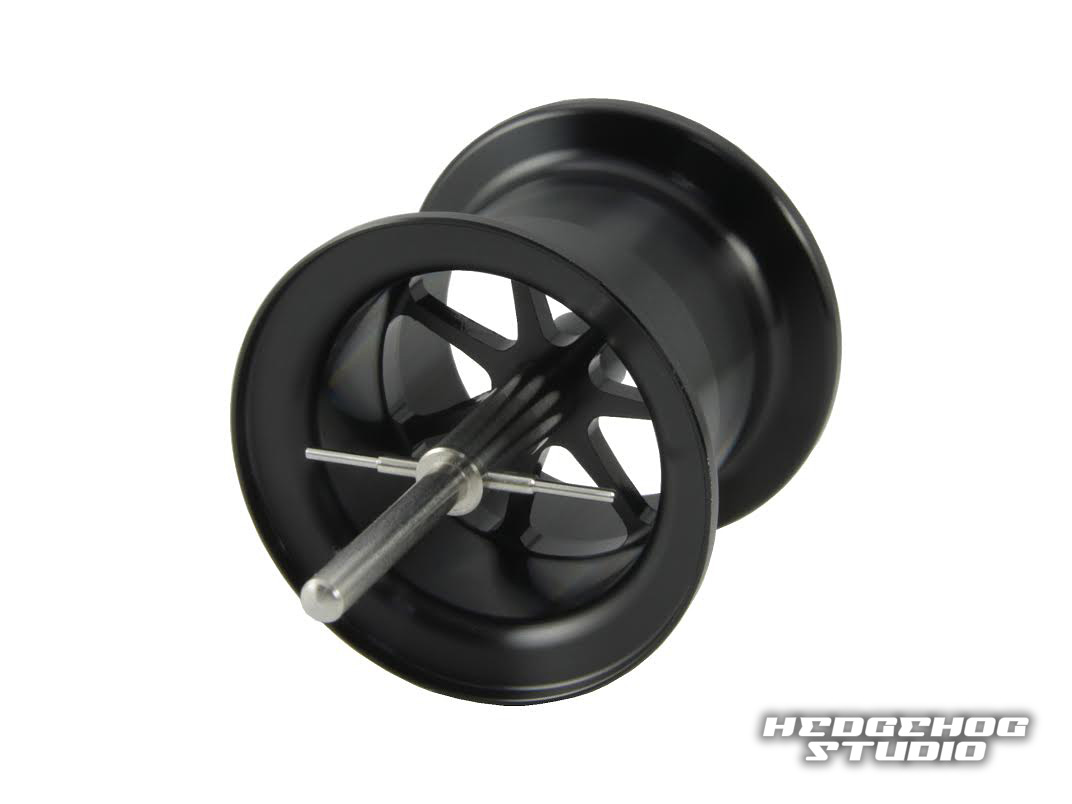

| Color



Black




Gunmetal




Red



Silver


| Features

By reducing the spool weight and the line capacity, the overall spool weight can be significantly reduced.
This greatly improves the minimum castable lure weight and extends the casting distance of lures of the same weight.


| Spec

- Basic Specifications

(Material)
Spool part: Super Super Duralumin (colored by anodizing)
Shaft part: Stainless Steel

(Compatible Reels)
Ambassadeur 5500/5500D
*If you are unsure, please contact us by email

- About Weight

Spool/Weight/Weight Ratio to Genuine Spool
Microcast Spool AMB5550R /16.6g/59.5%
Genuine Spool Ambassadeur 5500D (780200)/27.9g/-

Weight may vary slightly depending on the production lot.

- Line Capacity

Microcast Spool AMB5550R
12lb φ0.285mm 110m
14lb φ0.310mm 90m
16lb φ0.330mm 70m

*The above values are measured with Yamatoyo Tegusu Co., Ltd. nylon line (Versatile Design) wound up to the C surface of the spool.


| Instructions



Remove the cogwheel attached to the genuine spool and transplant it to the Microcast Spool.

If you thumb the spool using the spool rim, the anodizing may peel off due to friction.
Please thumb on the line-wound surface of the spool.
