[LIVRE] SB 55-60 Jigging Handle

[LIVRE] SB 55-60 Jigging Handle

Our Selling Price: US$153.51+ [Regular Price: US$219.30]

Prices vary according to options.

View availability
Handle Type:
Color (Main Plate/Center Nut, Aluminum Knob Collar):
Handle Knob/Knob Color:

Our Selling Price: US$153.51+ [Regular Price: US$219.30]

Quantity:
Return & Exchange Policy
Contact Us
Special order item: ships in about 5 business days. This item is ordered from the manufacturer after your order is placed.

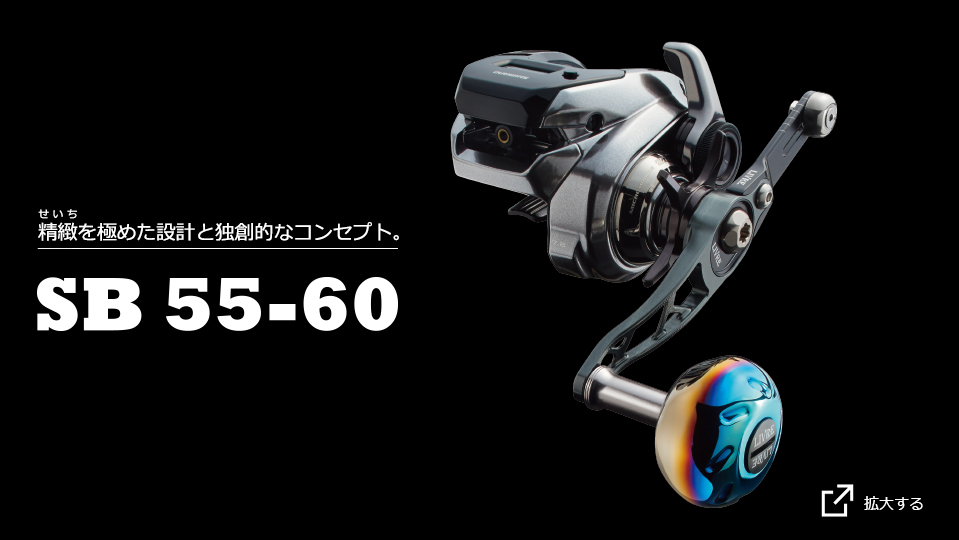

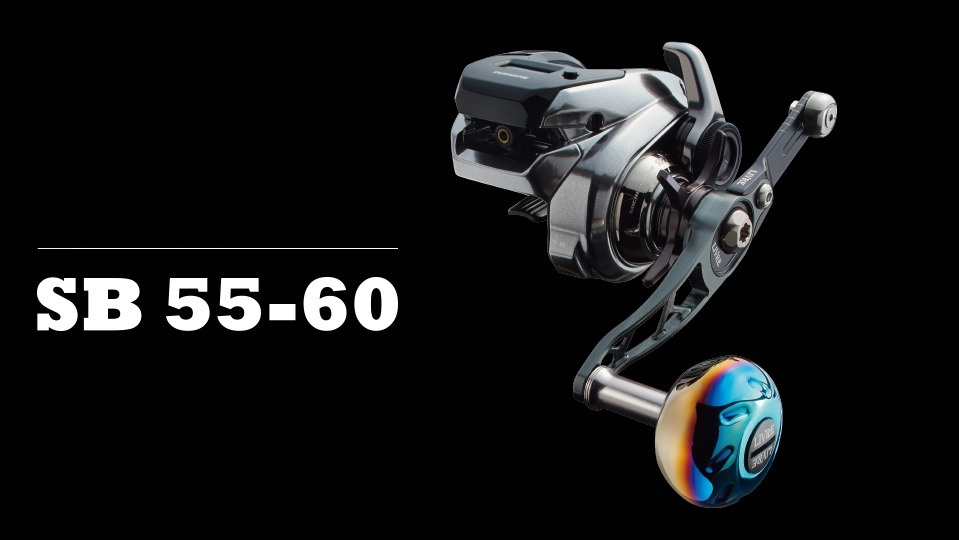

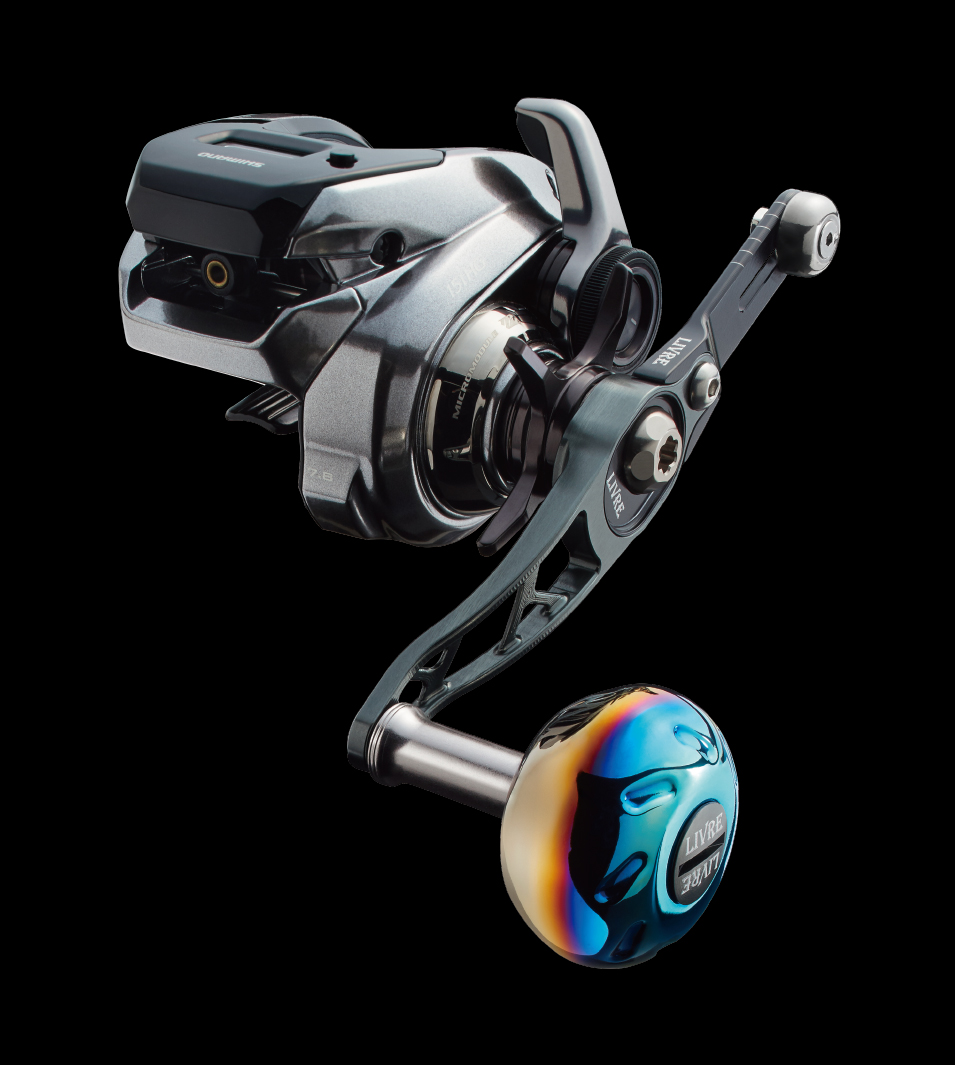

LIVRE SB 55-60 Balancer Handle mounted on a baitcasting reel
Refined Design and an Original Concept

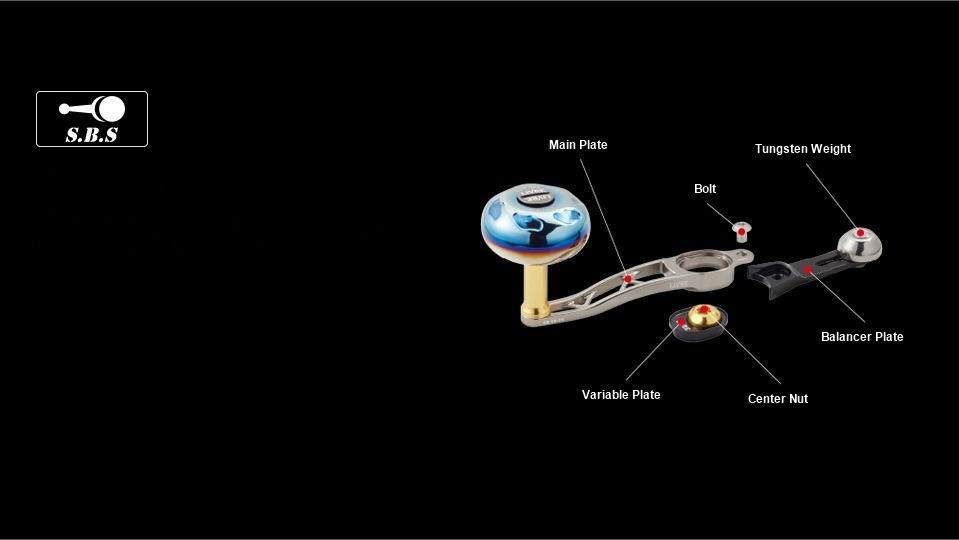

LIVRE SB 55-60 removable balancer plate: main plate, bolt, tungsten weight, balancer plate, variable plate and center nut
S.B.S: Removable Balancer Plate
The renewed Select Balancer System lets you attach and remove the balancer plate. The main plate and the balancer plate are machined from A7075 extra super duralumin and fit together precisely. The balancer plate is held by a single bolt.

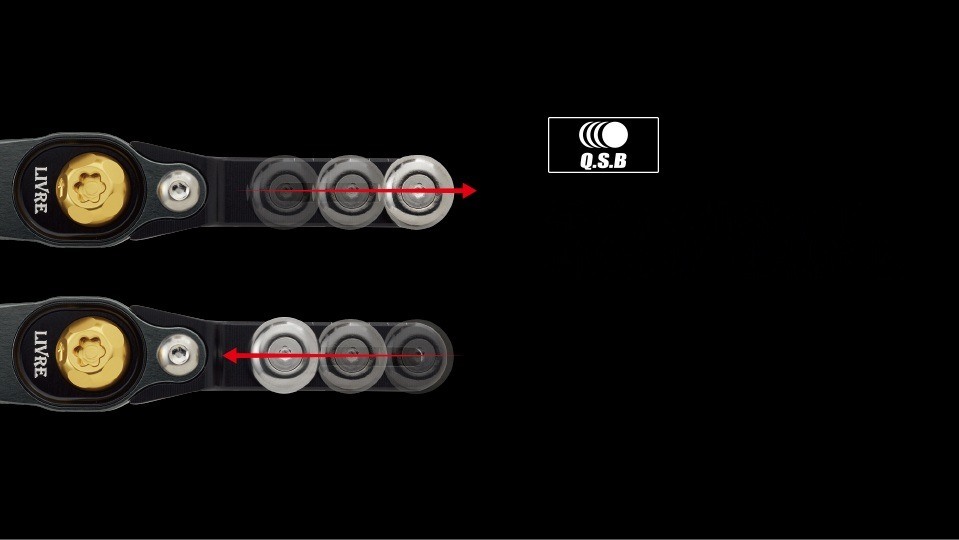

LIVRE SB 55-60 quick slide balancer system with a tungsten weight
Q.S.B: Quick Slide Balancer System
The tungsten balancer weight is loosened by hand, slid and fixed in any position, no tools needed. The small weight (11.5g) comes as standard.
LIVRE SB 55-60 positioning marker on the side of the balancer plate, 3mm intervals
Positioning Marker
Markers laser-engraved on the side of the balancer plate serve as a guide for weight adjustment, so you can easily see where to set the weight for the best balance.

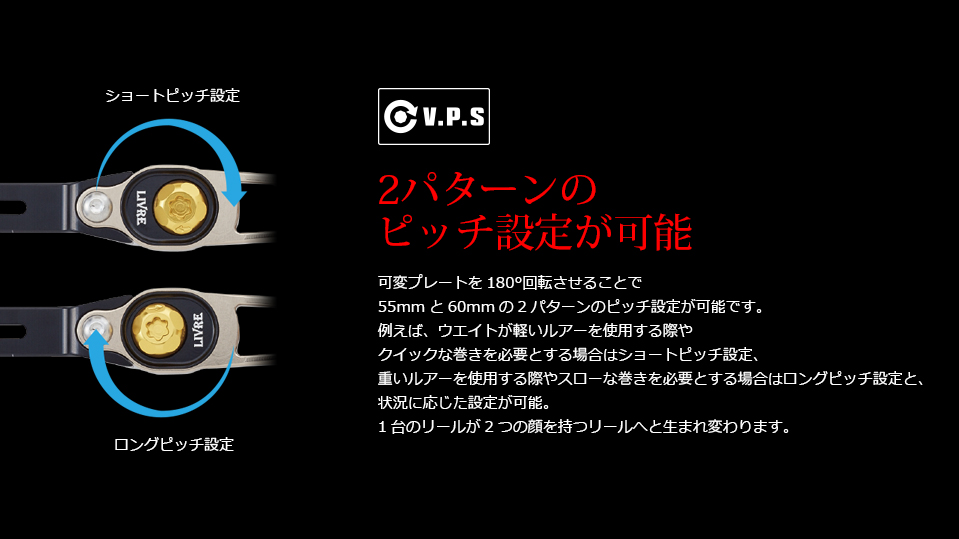

LIVRE SB 55-60 variable pitch system: short pitch and long pitch settings
V.P.S: Two Pitch Settings
Rotating the variable plate 180 degrees gives two pitch settings: 55mm and 60mm. Use the short pitch for light lures or quick reeling, and the long pitch for heavy lures or slow reeling. One reel gains two different characters.
LIVRE EP 37 thin-walled hollow titanium knob
Thin-Walled Hollow Titanium Knob EP 37
Designed for reeling and quick action, with a shape that is easy to hook your fingers on and hard to slip off. After field-testing prototypes differing by a single millimeter, LIVRE chose 37mm. With 0.6mm titanium walls, it is light and highly sensitive.
LIVRE SB 55-60 balancer parts: short and long balancer plates with large and small tungsten weights
Customizable Balancer Parts
Balancer plates come in long and short types, and tungsten weights in large and small sizes, which you can combine. Even with a custom titanium knob from EASY CUSTOM, you can choose a weight that suits the knob and fine-tune the balance.
Custom Titanium Knob Weights
Fino Plus Fortissimo EF 30 EP 37 EP 41
11.9g 15.5g 14.4g 14.5g 15.6g
EP 40 EP 44 EP 50 PT 48 PT 52
28.7g 31.4g 36.6g 33.6g 37.0g
* SB 55-60 comes with the small (11.5g) tungsten weight as standard.
* The balance can be finely tuned by combining the titanium knob and tungsten weight, the handle pitch, the balancer plate pitch and the position of the balancer weight.

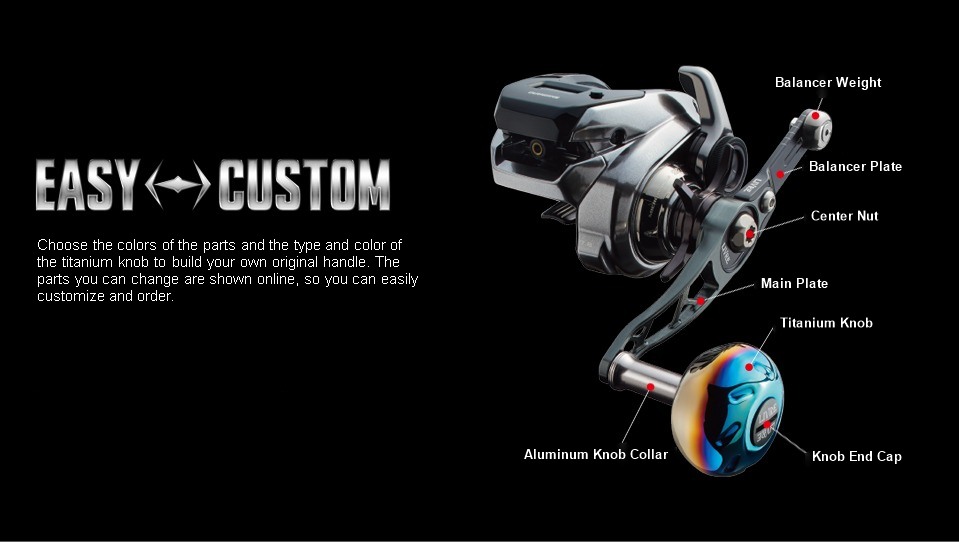

LIVRE SB 55-60 EASY CUSTOM parts diagram: balancer weight, balancer plate, center nut, main plate, titanium knob, aluminum knob collar, knob end cap

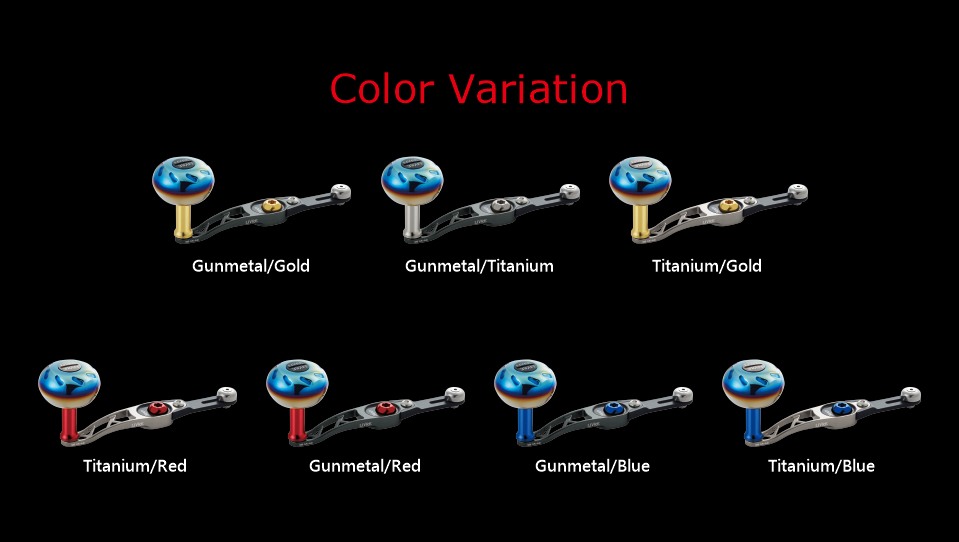

LIVRE SB 55-60 color variation chart with 7 main plate and center nut color combinations
LIVRE SB 55-60 Balancer Handle mounted on a baitcasting reel, large photo
[Color Variation]
*Click an image to enlarge.

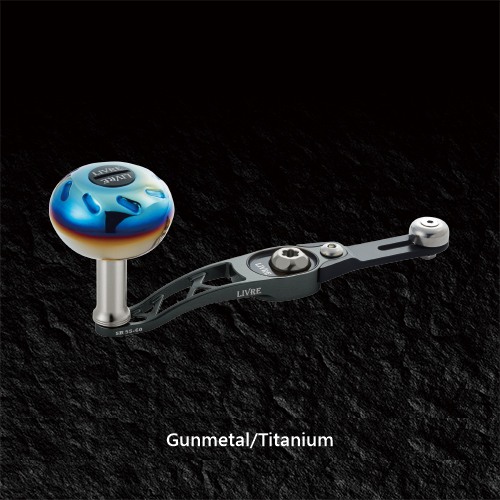

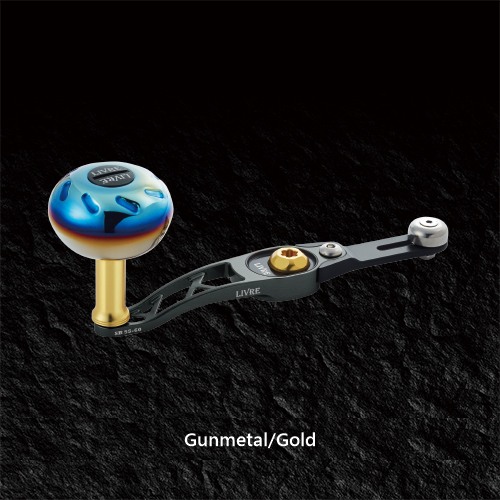

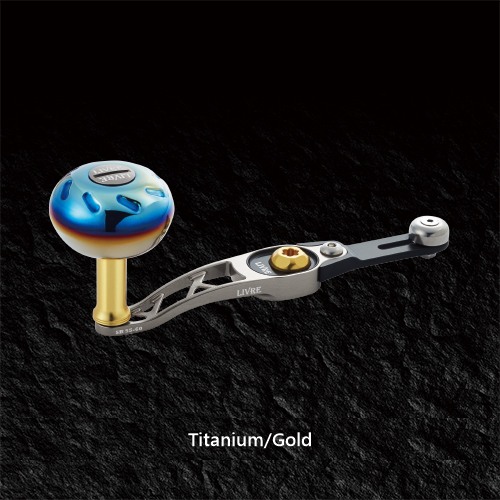

LIVRE SB 55-60 Balancer Handle in Gunmetal/Gold LIVRE SB 55-60 Balancer Handle in Gunmetal/Titanium LIVRE SB 55-60 Balancer Handle in Titanium/Gold
Gunmetal/Gold Gunmetal/Titanium Titanium/Gold

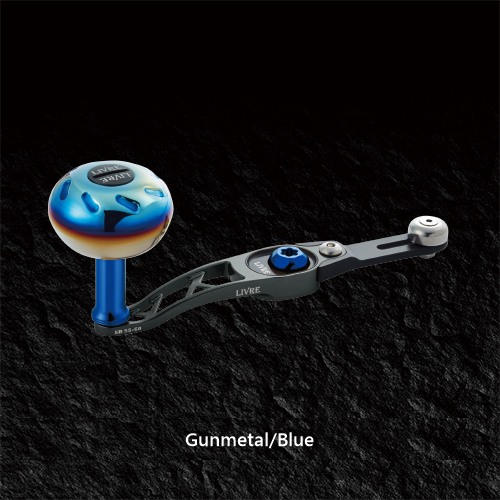

LIVRE SB 55-60 Balancer Handle in Titanium/Red LIVRE SB 55-60 Balancer Handle in Gunmetal/Red LIVRE SB 55-60 Balancer Handle in Gunmetal/Blue
Titanium/Red Gunmetal/Red Gunmetal/Blue

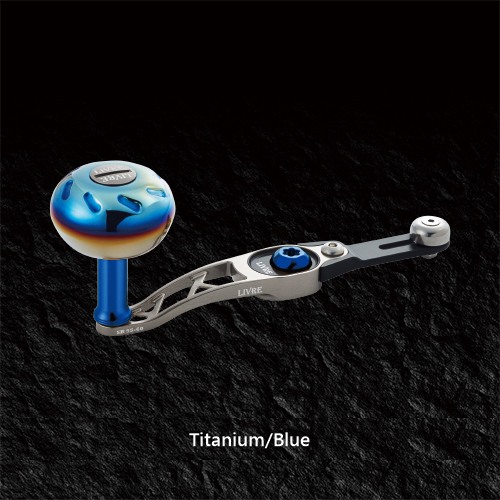

LIVRE SB 55-60 Balancer Handle in Titanium/Blue
Titanium/Blue


Choice of Knob Types
[Knob Type Selection]
*Standard: EP 37 (Fire). Choose the knob in the cart.
LIVRE EP 37 titanium handle knob LIVRE Fino Plus titanium handle knob LIVRE EF 30 titanium handle knob
EP 37
(Standard)		 Fino Plus EF 30
LIVRE PT 35 titanium handle knob LIVRE EP 41 titanium handle knob LIVRE EP 44 titanium handle knob
PT 35 EP 41 EP 44
LIVRE PT 42 titanium handle knob LIVRE PT 48 titanium handle knob LIVRE TB-S titanium handle knob
PT 42 PT 48 TB-S
[Knob Color Selection]
*Color samples are PT 48. Available colors differ by knob.
LIVRE titanium knob color sample: Fire (PT 48) LIVRE titanium knob color sample: Brown IP (PT 48)
Fire Brown (IP)


Specification
Model Titanium Knob Handle Type Center Nut Pitch (mm) Weight (g) Product No. Item No.
SB 55-60 EP 37 SHIMANO M7 Right 55-60 51.9 SBA-56SR 857*
Left SBA-56SL 858*
DAIWA/Abu/SHIMANO M8 Right 51.4 SBA-56DR 861*
Left SBA-56DL 862*
DAIWA B1 (Bolt Type) Left and Right 52.6 SBA-56B1 859*
* Weights are with the standard knob (EP 37).
* For Item No. marked with “*”, refer to the Item No. in the Color Combination table.
* SHIMANO OCEA CONQUEST 300 size and larger fit the DAIWA/Abu type. See the compatibility chart for details.


Color Combination
Main Plate Titanium Knob Center Nut Aluminum Knob Collar Knob End Cap Item No.
Gunmetal Fire Gold Gold Gunmetal 1
Gunmetal Titanium Titanium Gunmetal 2
Titanium Gold Gold Titanium 4
Titanium Red Red Titanium 6
Gunmetal Red Red Gunmetal 7
Gunmetal Blue Blue Gunmetal 8
Titanium Blue Blue Titanium 9


Check LIVRE handle compatibility with your reel and how to select the handle type



* Specifications and prices on this page are subject to change without notice.
* We try to show product colors as accurately as possible, but actual colors and materials may look slightly different depending on photography and your screen.
