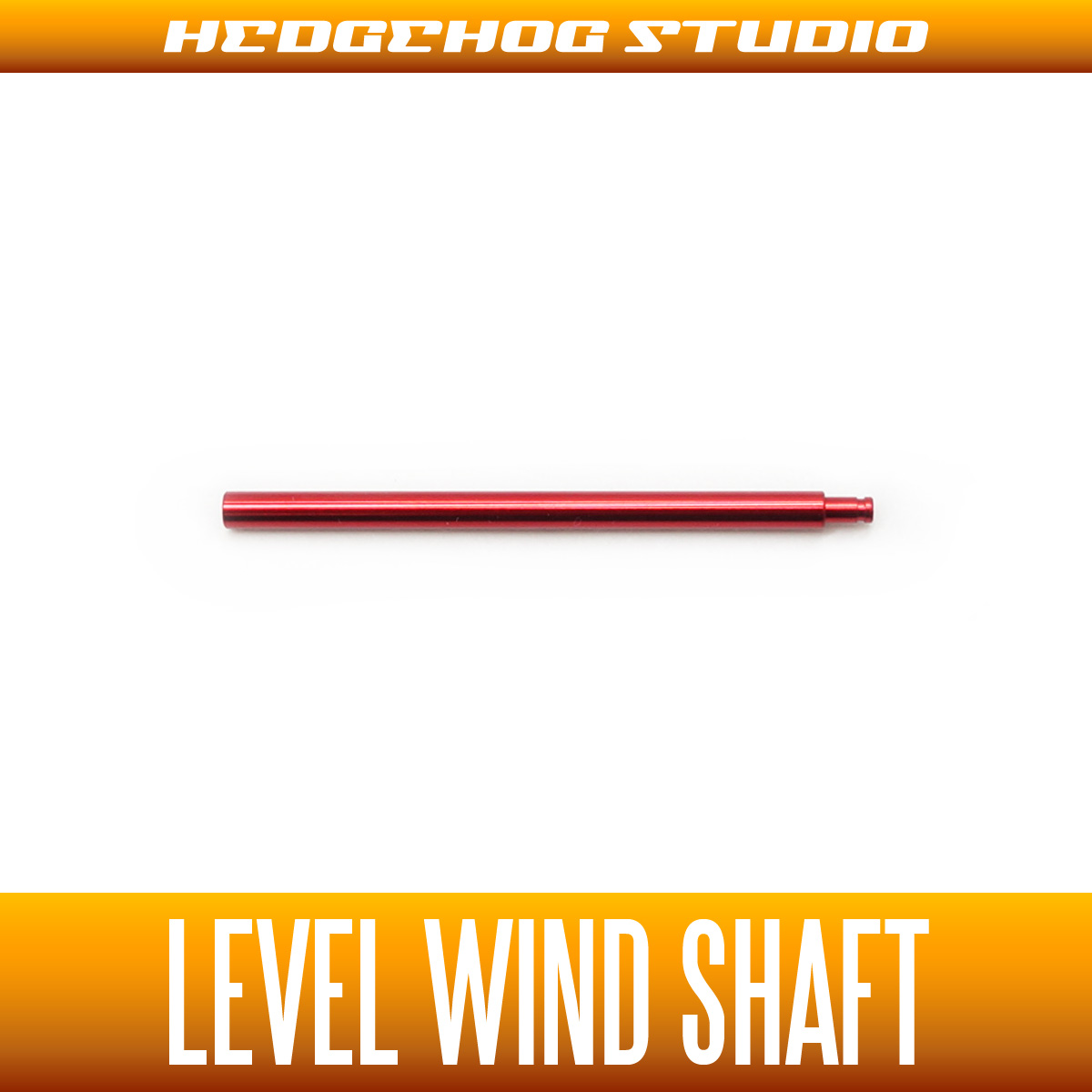

【DAIWA】 Level Wind Shaft 【ZSV】 【STEEZ SV TW,ZILLION SV TW】 RED

【DAIWA】 Level Wind Shaft 【ZSV】 【STEEZ SV TW,ZILLION SV TW】 RED

Our Selling Price: US$7.26

Retail Price: US$8.28

Not available

◆Description

This item is Level Wind Shaft for STEEZ SV TW and ZILLION SV TW, made of duralumin by machine cut..

Weight : approx. 0.28g
(genuine product : approx. 0.80g)









◆Compatibility

・STEEZ SV TW
( 1016SV-H,1016SV-HL,1016SV-SH,1016SV-SHL )

・STEEZ A TW
( 1016H, 1016HL, 1016SH, 1016SHL )

・ZILLION SV TW
( 1016SV, 1016SV-L, 1016SV-H, 1016SV-HL, 1016SV-SH, 1016SV-SHL, 1016SV-XXH, 1016SV-XXHL )

・TATULA TW
( 100H, 100HL, 100SH, 100SHL, 100XH, 100XHL )

・TATULA SV TW
( 6.3R, 6.3L, 7.3R, 7.3L, 8.1R, 8.1L )

・16 TATULA CT - USA MODEL -
( TACT100P, TACT100H, TACT100HL, TACT100HS, TACT100HSL, TACT100XS )

・16 TATULA CT TYPE-R - USA MODEL -
( TACT-R100H, TACT-R100HL, TACT-R100HS, TACT-R100HSL, TACT-R100XS, TACT-R100XSL )

・morethan PE TW
( 1000SH-TW, 1000SHL-TW, 1000XH-TW, 1000XHL-TW )


◆Instructions

DAIWA TATULA
First take your reel apart as pictured above.

DAIWA TATULA
Take off the arrowed screw and E-shaped retainer with an extra-fine driver.
This E-shaped retainer is : E-2.5

DAIWA TATULA
If you try to install bearings on the Worm Shaft, please remove a E-shaped retainer
on the small white gear.
This E-shaped retainer is : E-2.0
After removing the white gear, you can take off the screw underneath.

DAIWA TATULA
The Front Cover is detachable by taking off the screws on its both side.
After removing the Front Cover, remove the Level Wind Cap,
and remove a washer and a pin from inside.
Then you can take the Warm Shaft off the main unit.

DAIWA TATULA
This is an original Worm Shaft.
These two black plastic collars can be replaced with beaings.
After replacing with bearings, the retrieving feel gets smoother.
>> Worm Shaft +2BB

DAIWA TATULA
Take off the small E-shaped retainer with an extra-fine driver in order to replace
Level Wind Shaft.
This E-shaped retainer is : E-1.2

DAIWA TATULA
Replace with our custom part.

DAIWA TATULA
After replacing the Level Wind Shaft, put the E-shaped retainer back to fix it.

DAIWA TATULA
Put the Warm Shaft back.
At this point, make sure not yet to fix the E-shaped retainer of the other side.

DAIWA TATULA
Set the pin and washer on the Level Wind.

DAIWA TATULA
Put a Level Wind Cap on.
>> Level Wind Cap

DAIWA TATULA
Then, put the Front Cover back.

DAIWA TATULA
Tighten the arrowed screw under the small white gear first.

DAIWA TATULA
And tighten the screw of the side cover, finally fix the E-shaped retainer.
* If fixing the E-shaped retainer before the screw of the side cover,
you cannot tighten the screw of the gear side.

DAIWA TATULA
Put the pinon gear and others on.

DAIWA TATULA
Then, put the drive gear and others on.

DAIWA TATULA
Set the gearbox cover and tighten screws to fix it.
Several screw colors are available.
>> Duralumin Screw Set

DAIWA TATULA
To install a drag properly, make sure to install the following parts in the right order.
From the left : Bearing - Washer (silver) - Clicking-sound folder - Plate washer x 2
- Washer (gold) - Nut - Spring

DAIWA TATULA
Hold the drag as pushing it down to set a handle.

DAIWA TATULA
Fix a Handle Lock Nut and a Retainer to finish up.
>> Handle Lock Nut Set B-type

DAIWA TATULA

DAIWA TATULA
This is how it looks with all color parts.
Basically any color parts go nice on this glossy black body.
