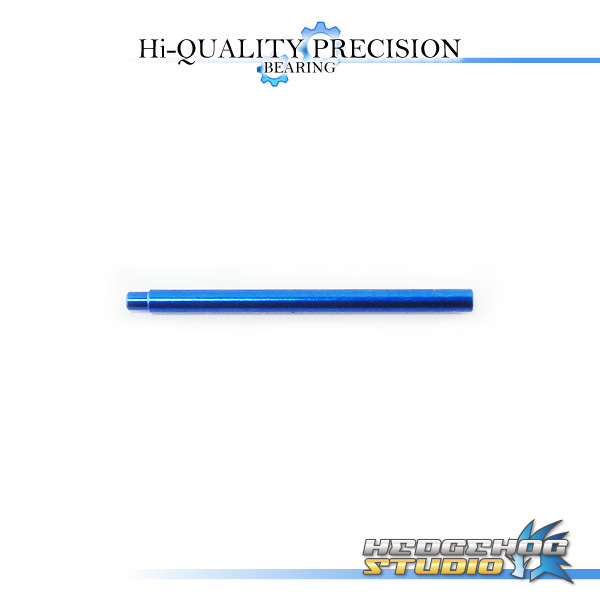

【SHIMANO】 Level Wind Shaft 【ALD】 SAPPHIRE BLUE

---

｜Description of the product

---

※Can be used for both left and right handles.

※In order to attach the parts, you need to disassemble the gear box.

---

｜Corresponding Models

---

〜　JAPAN MODEL　〜

■12 ALDEBARAN BFS XG
■09 ALDEBARAN Mg/Mg7
■08 Metanium MgDC/MgDC7
■07 Metanium Mg/Mg7

〜　USA & EUROPA MODEL　〜

■CORE （ALDEBARAN & Metanium Type）

---

｜Instruction Manual

---

Please refer to this link for the first half on disassembly.
↓
http://www.hedgehog-studio.co.jp/phone/product/148



Next,remove these parts by hand so they don't fall off during maintenance.



After you have removed those loose parts,
then remove the e-ring with a small minus head screw driver.
After you have removed the e-ring,
you can remove the level wind shaft from the reel.



Now change out all parts by following the picture below.



After changing out all the parts,
all you have too do is put all pieces back to their original position and you'll be finished.



After your reel is back together please apply a slight amount of oil to your new custom parts for longevity.
